Overview

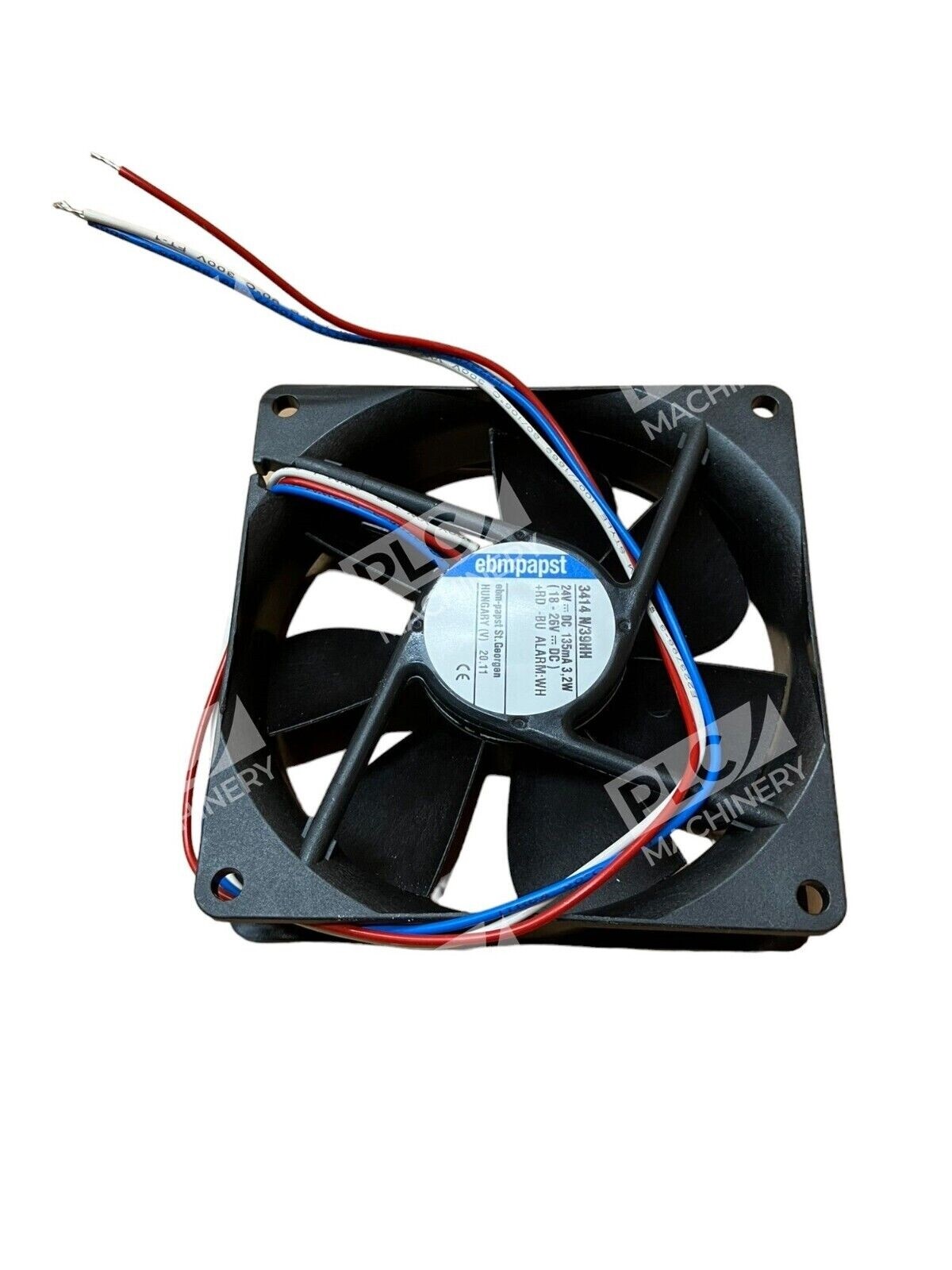

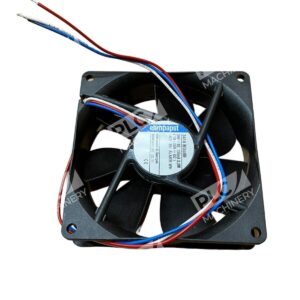

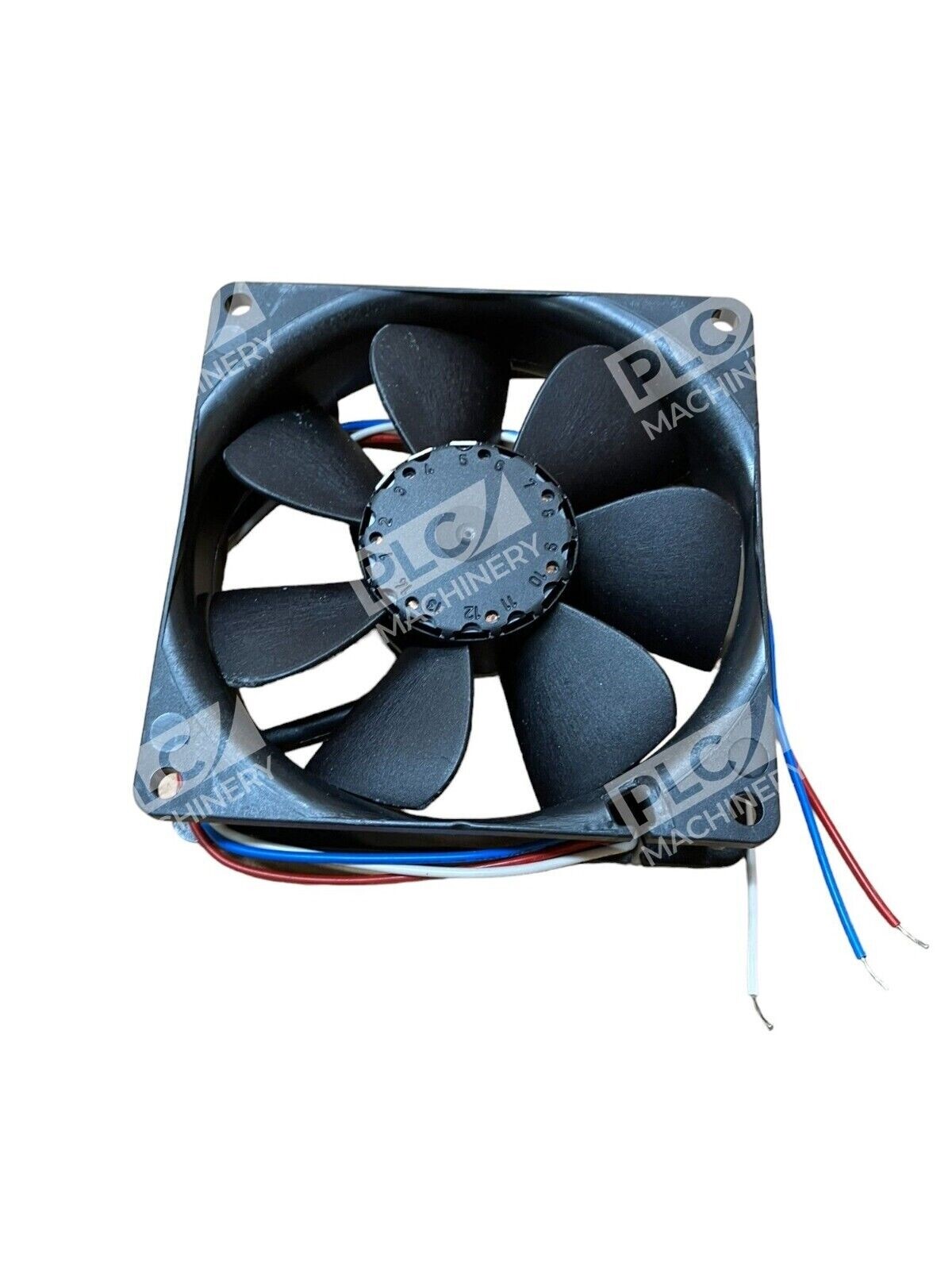

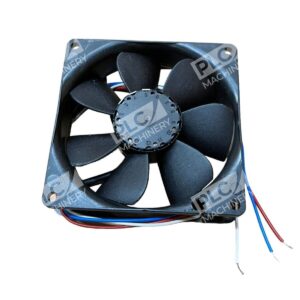

The ebm-papst 3414N/39HH 24VDC axial fan is a reliable, compact cooling solution for industrial electronics, enclosures, and thermal-sensitive equipment. Designed for harsh environments with ball bearing construction and long service life, this fan operates continuously at 3250 RPM with minimal acoustic signature, making it suitable for control rooms, process automation, and sensor-driven applications where both performance and noise control matter.
Key Features
- Compact square footprint: 92 × 92 × 25.4 mm for easy mounting in tight enclosures
- Ball bearing design for extended bearing life and reliability in 24/7 operation
- Low noise: 38 dB(A) at nominal voltage—maintains quiet operation in industrial settings
- Wide voltage tolerance: 18–26 V DC allows operation on variadtors and unstable power supplies
- DC brushless motor: minimal maintenance and low electromagnetic interference
- Stranded wire termination (2-pin connector) simplifies installation
Technical Specifications

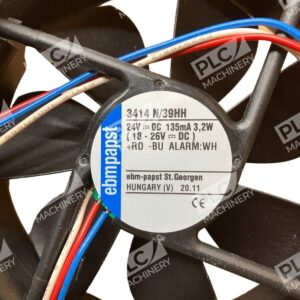

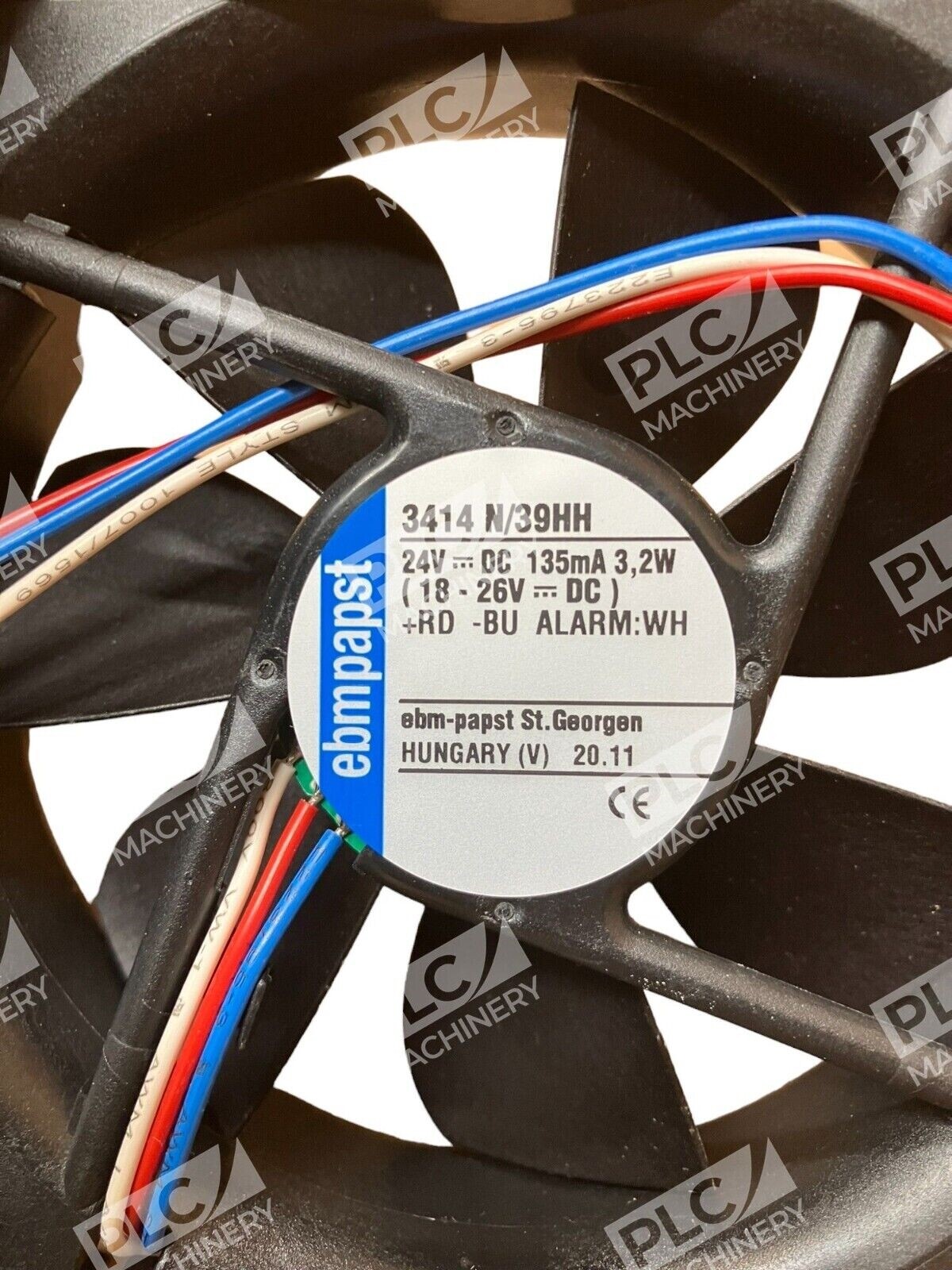

| Nominal Voltage | 24 V DC |
| Operating Voltage Range | 18–26 V DC |
| Current Rating | 0.135 A (135 mA) |
| Power Consumption | 3.2 W |
| Fan Speed | 3250 RPM |
| Airflow (Max Free-Air) | 100 m³/h (59 CFM) |
| Noise Level | 38 dB(A) |
| Dimensions (W × H × D) | 92 × 92 × 25.4 mm |
| Weight | 106 g (0.23 lb) |
| Bearing Type | Ball bearing |
| Operating Temperature | −20 to +70 °C |
| Termination | 2-pin stranded wire, 310 mm cable |
| Series | ebm-papst 3400 N Series |
Typical Applications
- Industrial control enclosures and panel cooling
- Power electronics and frequency converter ventilation
- Telecommunications and network equipment racks
- LED lighting and semiconductor thermal management
- Hazardous location and rail transit equipment
- Process automation and instrumentation systems
Compatibility & Replacements
Compatible With
- 24 V DC industrial power supplies (regulated or variable)
- Control enclosures with 92 mm square mounting footprint
- Standard 24 V automation systems (Siemens, Allen-Bradley, Mitsubishi, Omron)
- PWM speed controllers and DC drive circuits
- Industrial cooling ducts and filter housings
Replaces / Drop-In Replacement For
- ebm-papst 3414NHH (alternate part numbering)
- ebm-papst 3400 N series fans with matching 92 × 92 mm form factor
- Other 24 V, 3.2 W compact axial fans with 2-pin stranded wire termination
Works With
- 24 V DC systems and variable frequency drives
- PWM dimming and speed control circuits
- Temperature-based thermostat controls
- Industrial automation software and sensor networks
- Standard electrical enclosure cooling systems
