Overview

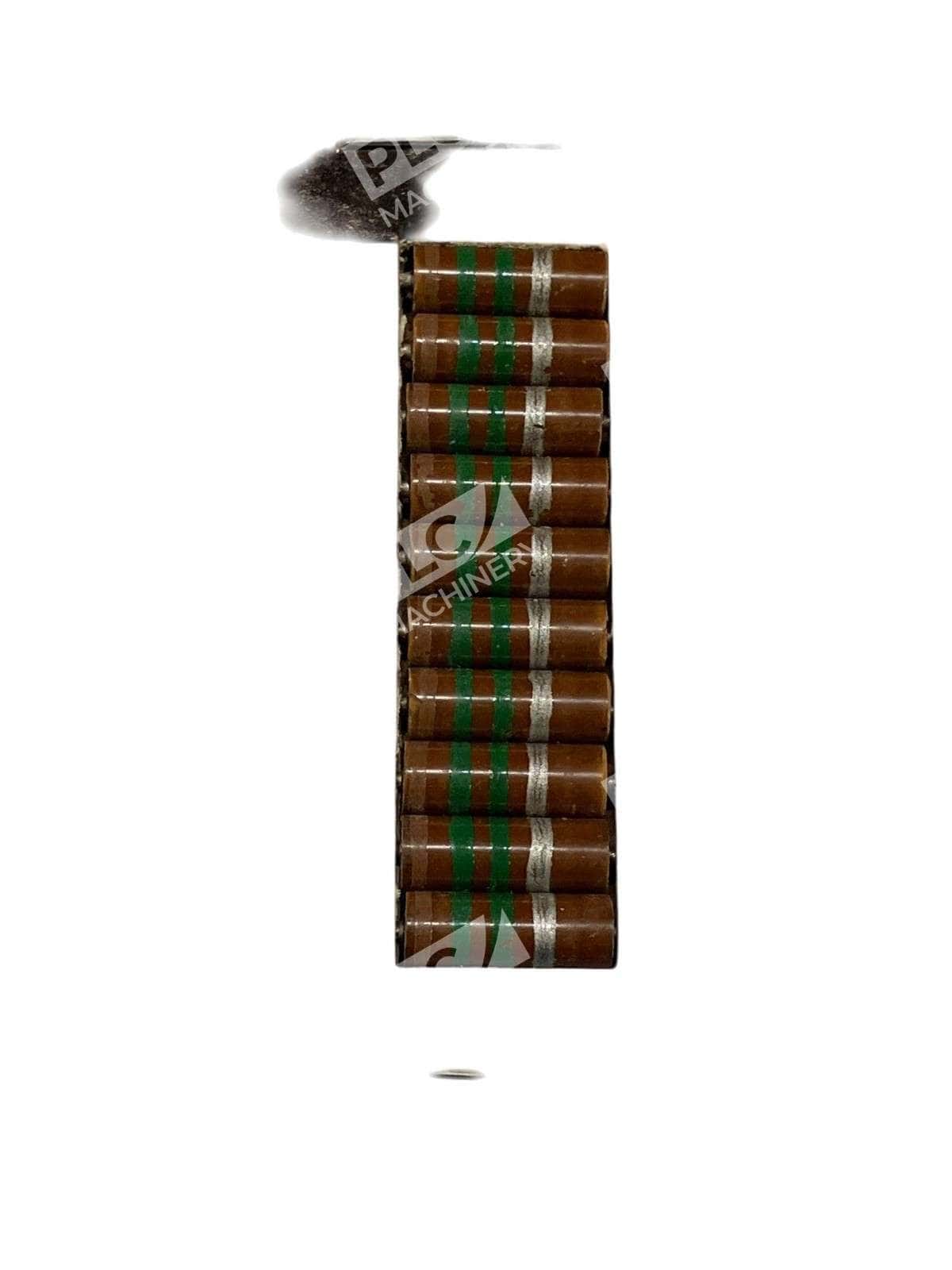

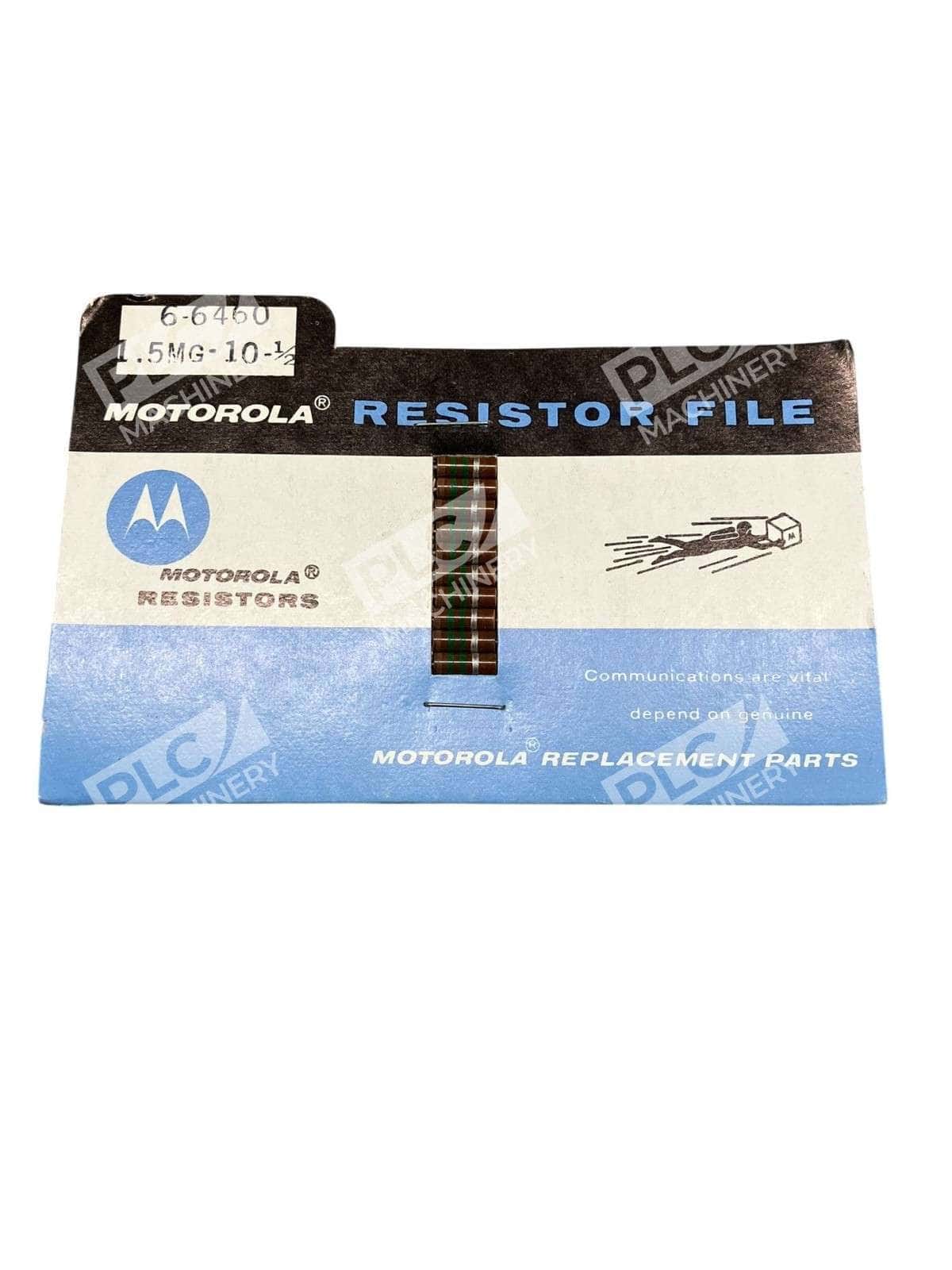

The Motorola 6-6460 carbon composition resistor delivers stable, fixed resistance performance in a compact axial-lead format. Rated at 1.5 megohm (1.5M Ω) with 1/2 watt power handling and ±10% tolerance, this NOS (new old stock) component is ideal for legacy equipment restoration, vintage electronics repair, and applications requiring reliable mid-to-high resistance values. Manufactured in the United States by Motorola, this resistor combines proven carbon composition technology with decades of proven reliability.
Key Features
- Resistance: 1.5 megohm (1.5M Ω)
- Power Rating: 1/2 watt (0.5W)
- Tolerance: ±10% (E12 standard value)
- Construction: Carbon composition
- Lead Style: Axial termination
- Condition: New in Box (NOS—never installed)
- Manufactured in USA by Motorola
Technical Specifications
Carbon composition resistors provide stable DC performance with minimal noise, making them suitable for audio coupling, biasing, and general-purpose circuit applications. The 1.5M Ω value falls within high-resistance applications, such as input impedance matching, bleeder networks, and sensor circuits.
- Operating Temperature Range: −55°C to +155°C (typical for carbon composition)
- Temperature Coefficient: ±1000 ppm/°C (typical)
- Frequency Response: DC to low RF
- Insulation Resistance: >1000 MΩ at 500V DC
Typical Applications
- Legacy equipment restoration and repair
- Vintage radio and audio amplifier restoration
- Input impedance and biasing networks
- Sensor and measurement circuit support
- Bleeder networks and voltage dividers
- Collector or gate bias resistors in amplifier stages
Compatibility & Replacements
Compatible With
- Vintage tube amplifiers and radios
- Legacy industrial control circuits
- Vintage audio equipment and consumer electronics
- General-purpose DC and low-frequency circuits
- Any circuit requiring 1.5M Ω fixed resistance at ±10% tolerance
Replaces / Drop-In Replacement For
- Original Motorola 6-6460 resistor assemblies
- Any generic 1.5M Ω, 1/2W, ±10% carbon composition resistor with axial leads
- Verify exact form factor and lead spacing with your schematic before substitution
Works With
- Standard PCB and through-hole circuit design
- Breadboard prototyping and experimentation
- Hand-wired and point-to-point vintage construction
- Compatible with standard soldering equipment and processes
