Overview

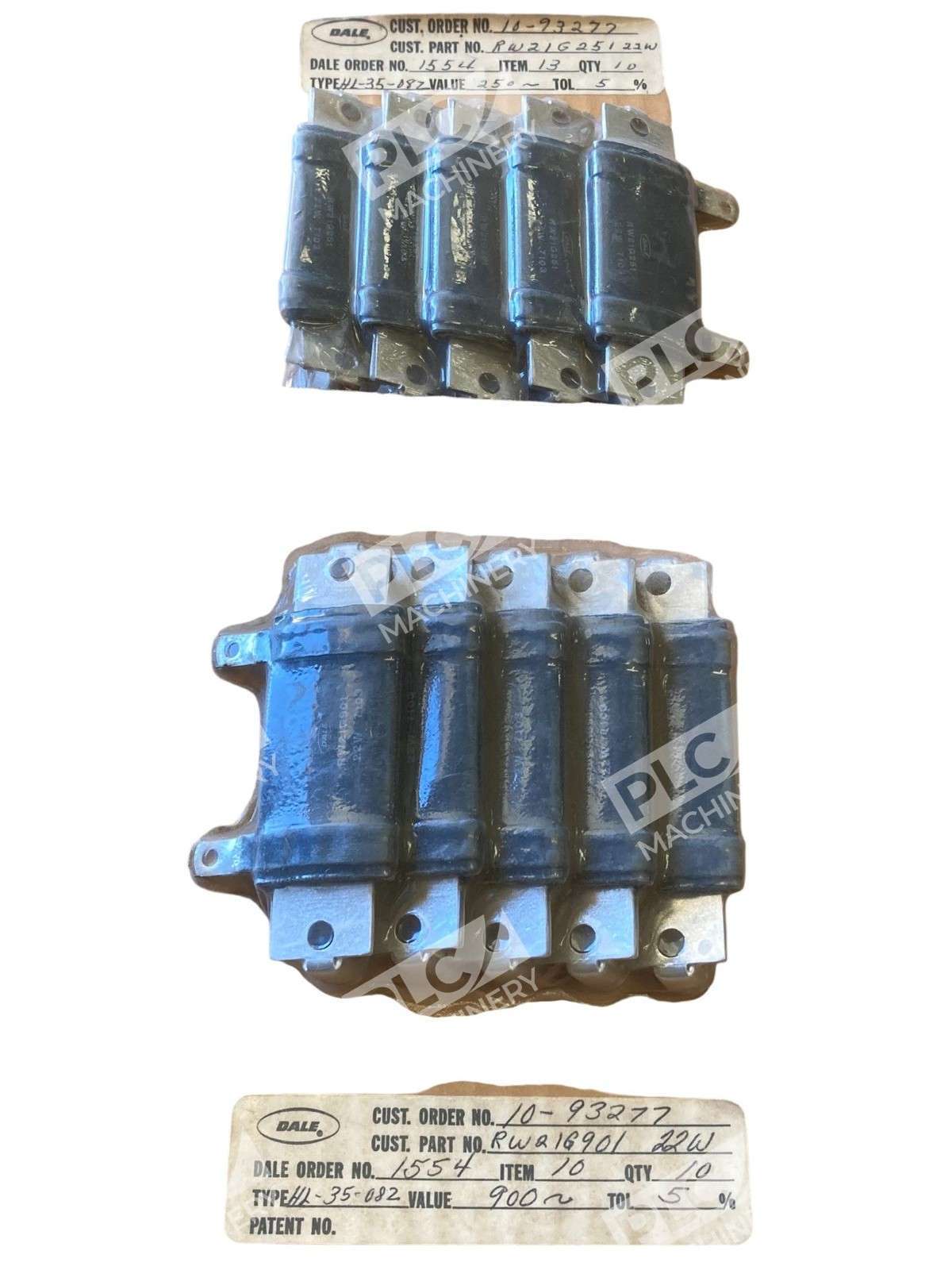

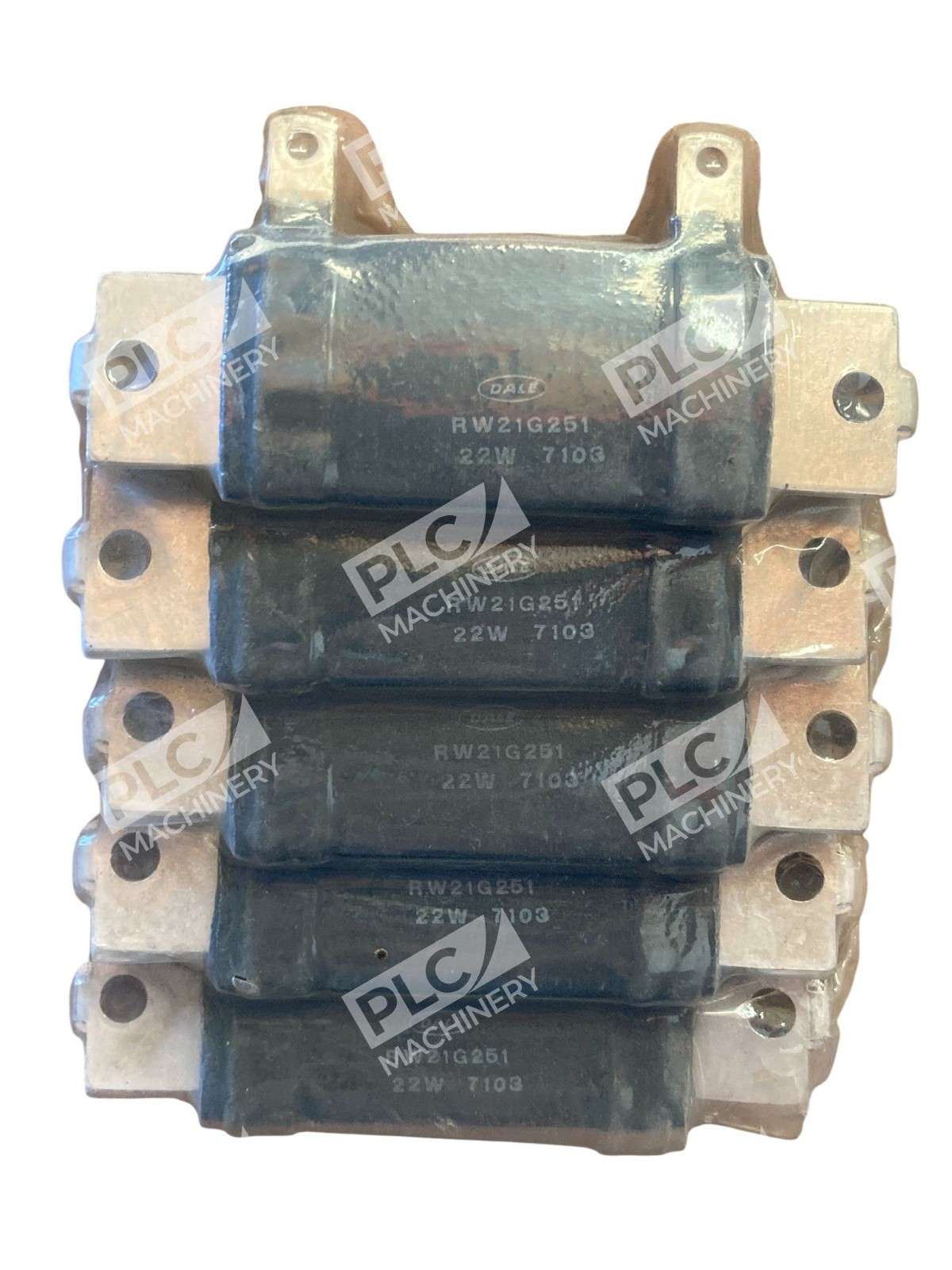

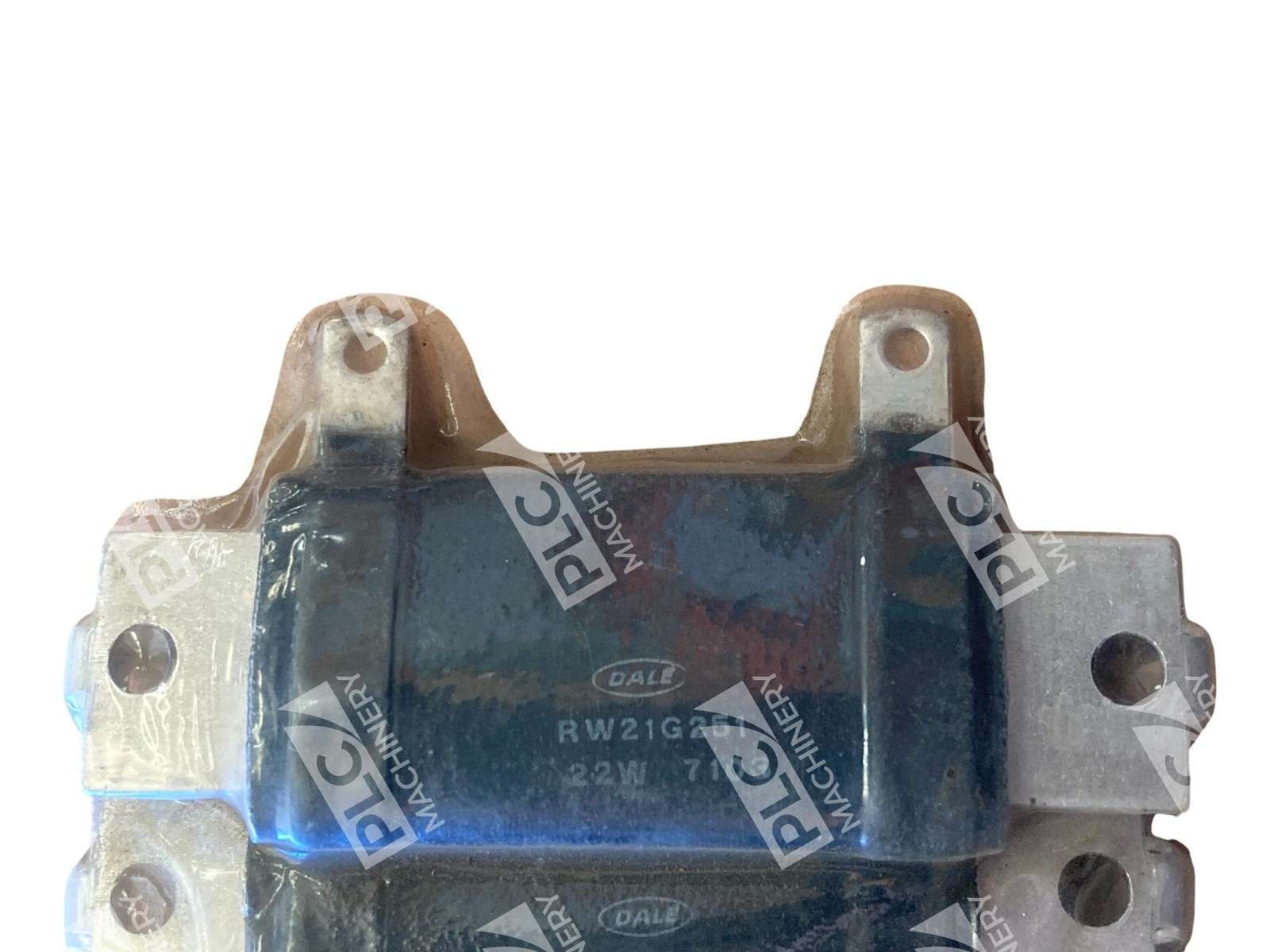

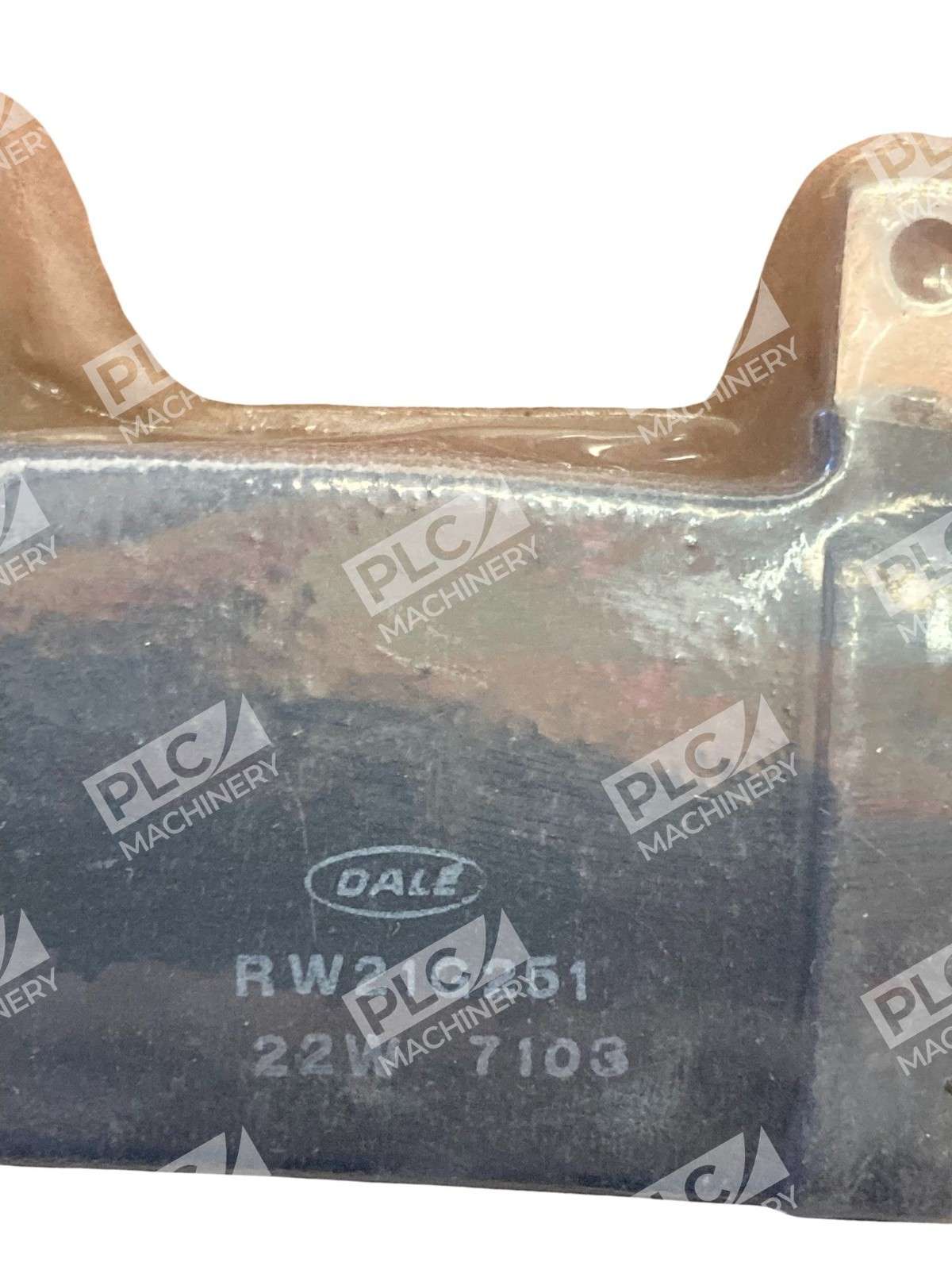

The Dale HL-35-08Z is an industrial-grade wirewound power resistor manufactured by Vishay Dale. This fixed resistor delivers stable, precise resistance values with a ±5% tolerance rating. Supplied as a lot of 10 units at 22W each, the HL-35-08Z combines reliable performance with cost-effective bulk availability, making it ideal for replacement stock, prototyping, and production applications in electronics and industrial control systems.
Key Features
- Wirewound construction for stable, low-noise performance
- ±5% tolerance ensures accurate resistance specification
- 22W power rating per unit with efficient heat dissipation
- Solder lug termination for secure mechanical connection
- Lot of 10 units—volume pricing for stock buildup and replacement inventory
Technical Specifications
- Series: HL-35-08Z
- Manufacturer: Vishay Dale
- Construction: Wirewound, fixed resistor
- Power Rating: 22W per unit
- Tolerance: ±5%
- Termination: Solder lugs
- Quantity: 10 units per order

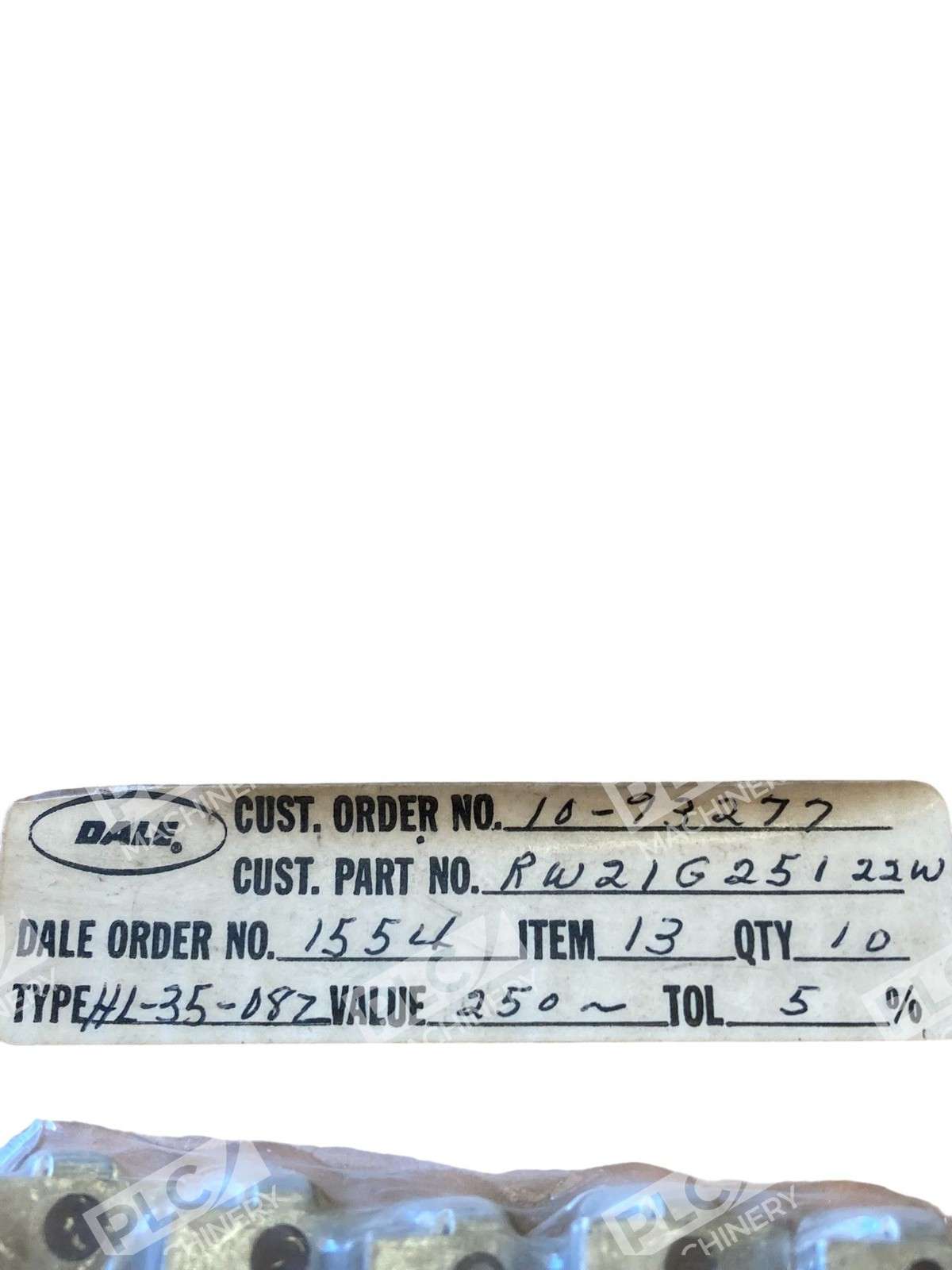

- Part Number Reference: RW21G251
Typical Applications
- Power supply circuits and load resistors
- Braking resistors in motor drives and inverters
- Ballast and current-limiting circuits
- Industrial heating and test equipment
- Replacement stock for maintenance and repair
- Prototype development and circuit validation
Compatibility & Replacements
Compatible With
- General industrial electronics and power circuits
- Motor control and drive systems
- Power distribution equipment
- Test and measurement rigs
- Heating element circuits
Replaces / Drop-In Replacement For
The Dale HL-35-08Z is a standard industrial power resistor with common resistance and power ratings. Verify specific part number compatibility and resistance value for your application before ordering. Consult your system design documentation or contact our technical team for drop-in replacement guidance.
Works With
- Soldering and assembly processes using standard industrial techniques
- PCB mounting and panel-mount installations via solder lug terminals
- Industrial power supply designs and custom electronics
- Thermal management systems requiring passive load resistors
