Overview

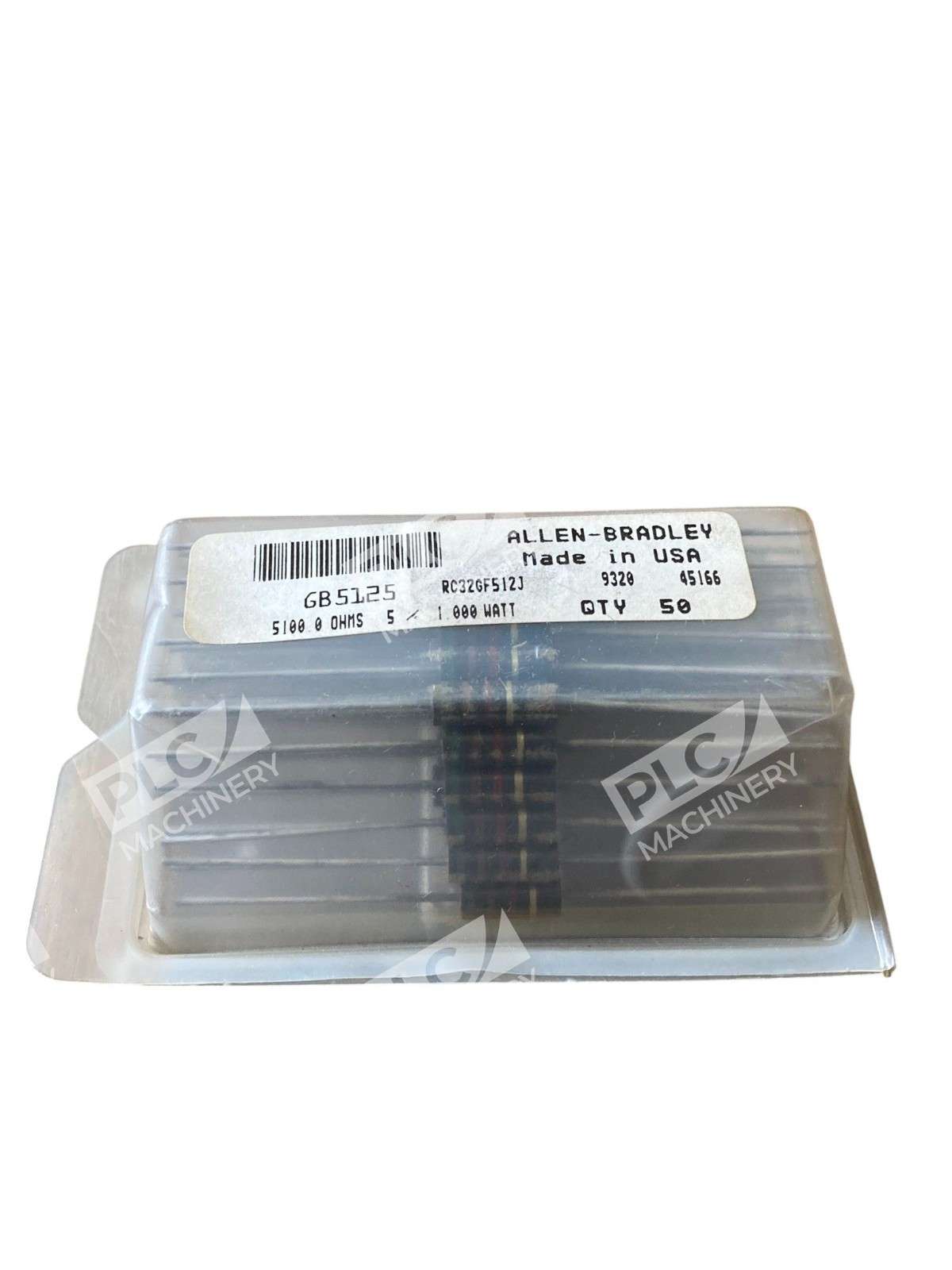

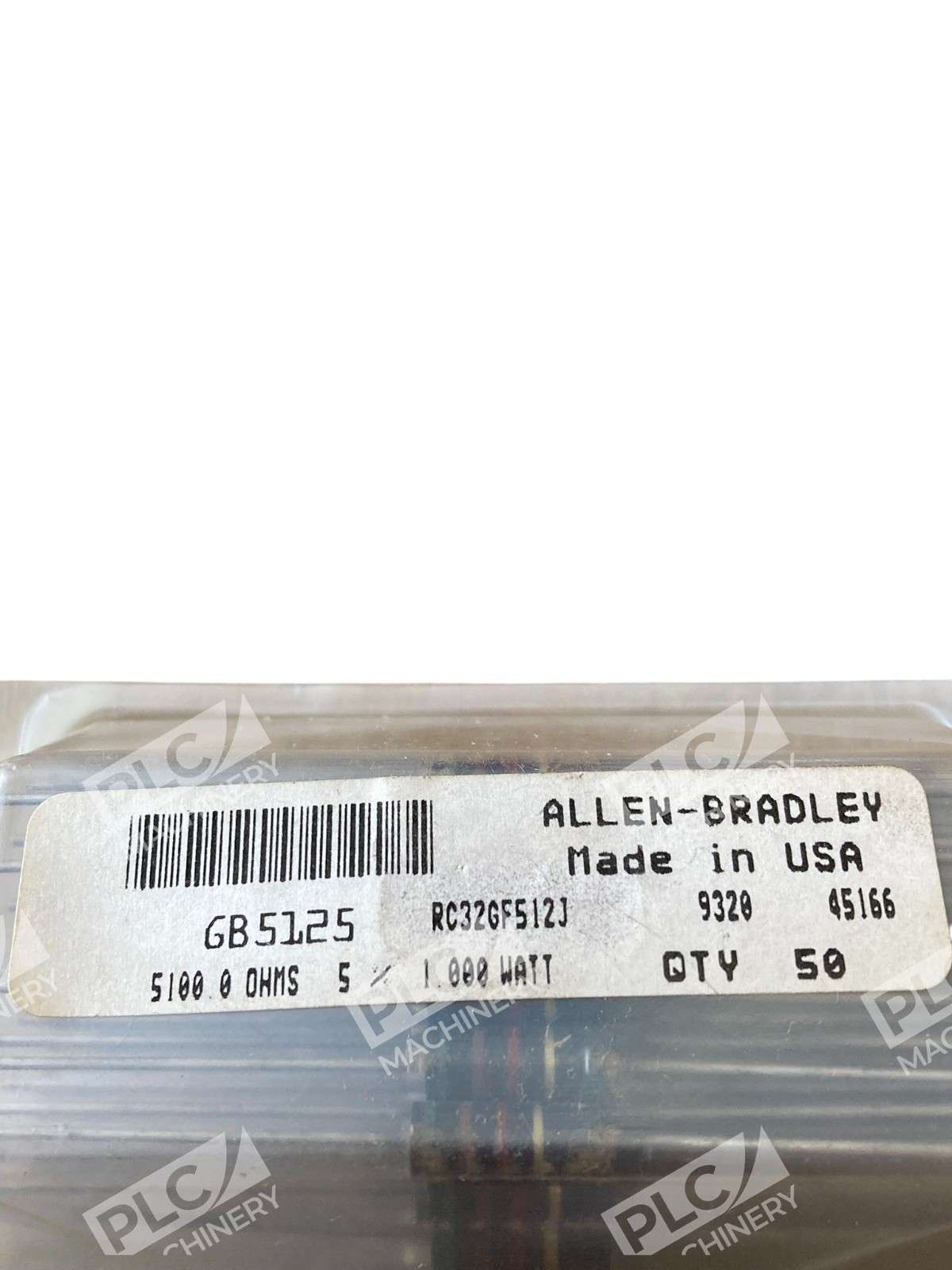

The Allen-Bradley RC32GF512J is a proven carbon composition fixed resistor engineered for industrial automation, control panels, and legacy equipment. With a resistance value of 5,100 ohms (5.1kΩ), 1-watt power rating, and tight 5% tolerance, this resistor delivers stable, reliable performance in demanding applications. The axial through-hole design with oxygen-free copper leads ensures excellent solder reliability and long service life.
Key Features
- Resistance value: 5,100 ohm (5.1kΩ)
- Power rating: 1 watt
- Tolerance: ±5%
- Axial through-hole mount with oxygen-free copper leads
- Carbon composition construction for noise immunity in analog circuits

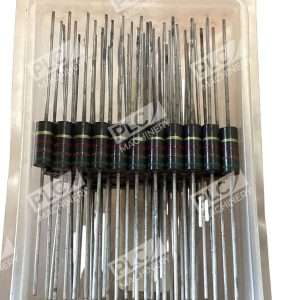

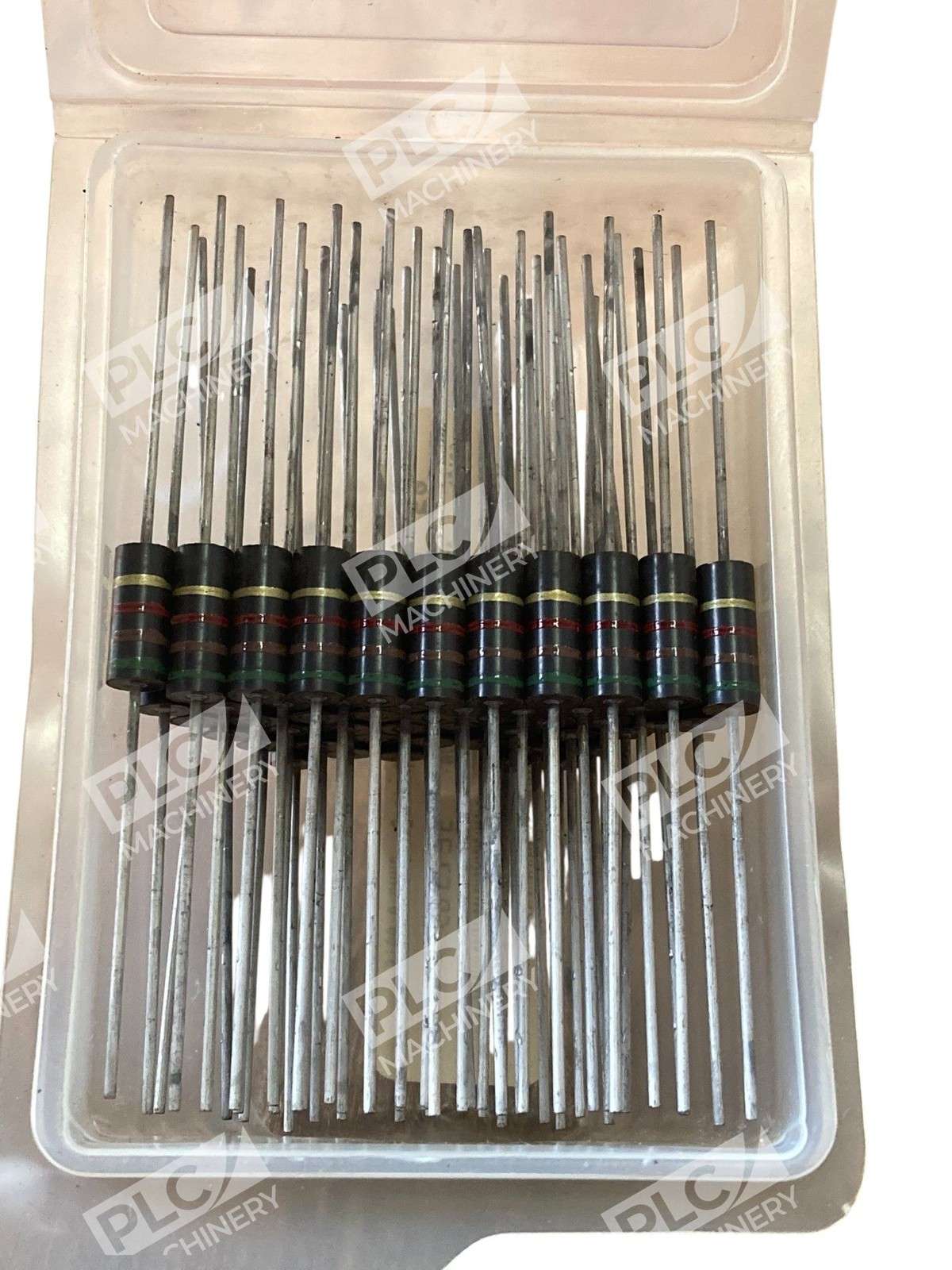

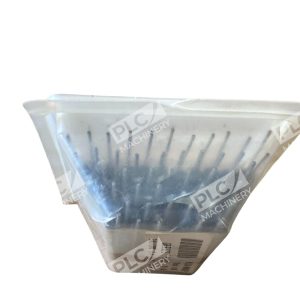

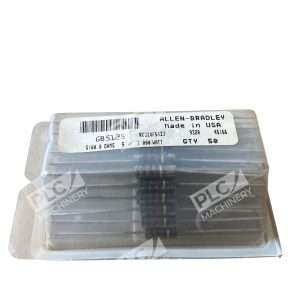

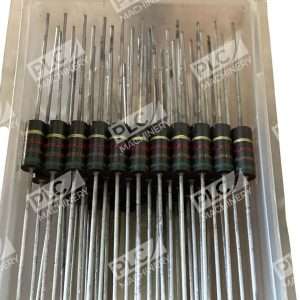

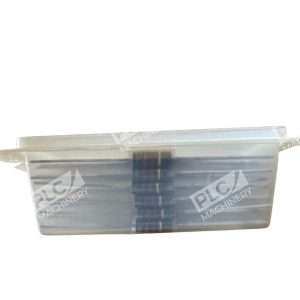

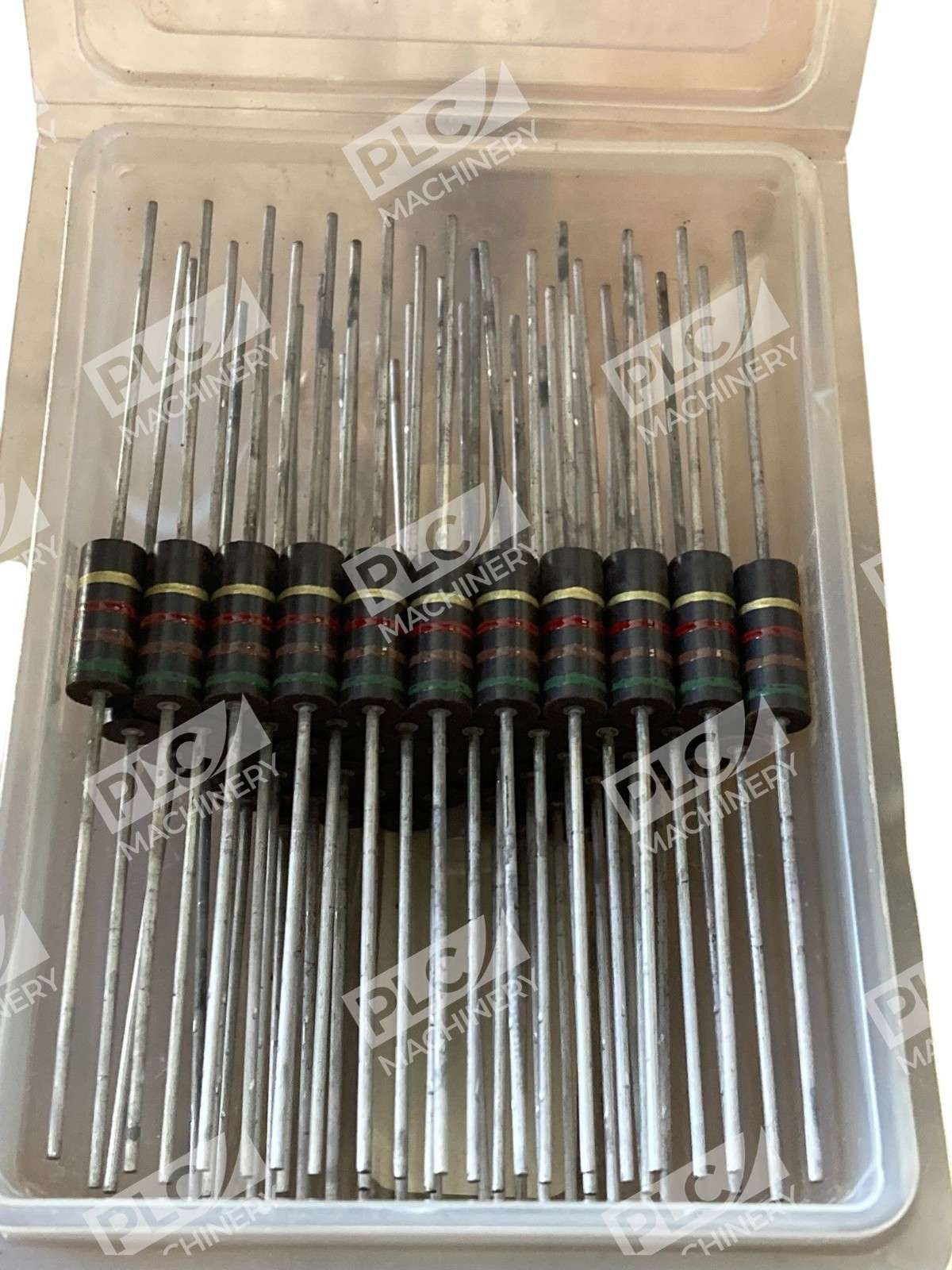

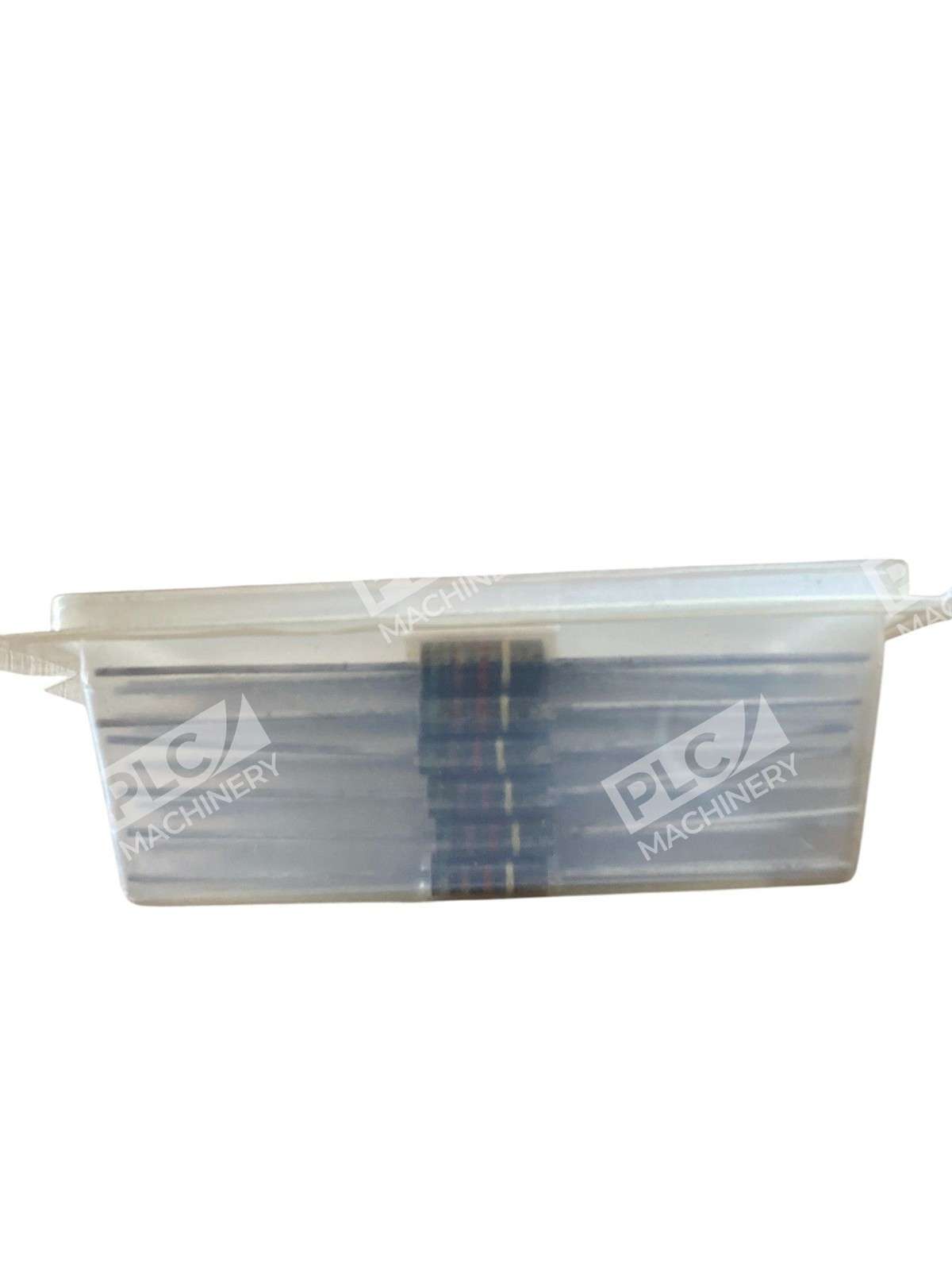

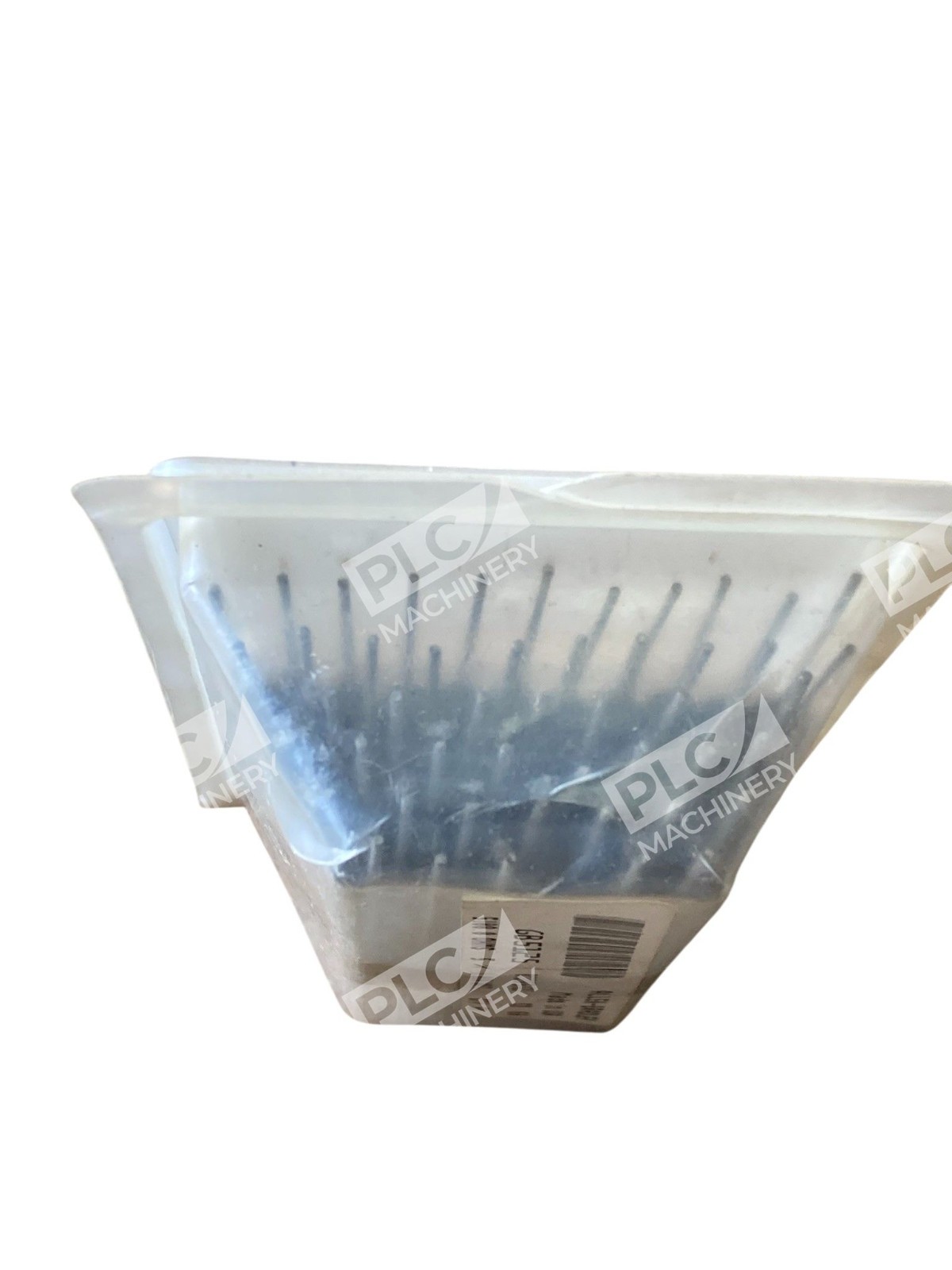

- Supplied in convenient bulk lots of 50 units
- Operating temperature range up to 70°C ambient
Technical Specifications
The RC32GF512J follows industrial standards for carbon composition resistors and is designed for long-term reliability in control and instrumentation circuits. The carbon composition construction provides inherent EMI/RFI filtering characteristics valuable in noisy industrial environments. Oxygen-free copper leads ensure minimal resistance changes and superior solder joint durability over equipment lifetime.
Typical Applications
- PLC input/output conditioning circuits
- Analog signal processing and biasing networks
- Control panel wiring and terminal blocks
- Legacy automation system repairs and upgrades
- Instrumentation and measurement circuits
- Drive and motor control applications
Compatibility & Replacements
The RC32GF512J is a fixed-specification component with no direct electronic replacements—it is specified by part number for legacy systems requiring exact resistance and power ratings. If substituting resistors, confirm identical resistance value (5.1kΩ), power rating (1W minimum), and tolerance (±5%) to maintain circuit performance. When upgrading systems, metal-film alternatives may offer tighter tolerance or lower noise, but component layout and thermal considerations must be re-evaluated. Always verify compatibility with original schematic requirements before installation. Bulk lots of 50 provide inventory for multi-unit repairs or system builds without recurring orders.
