Overview

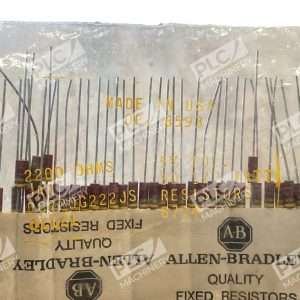

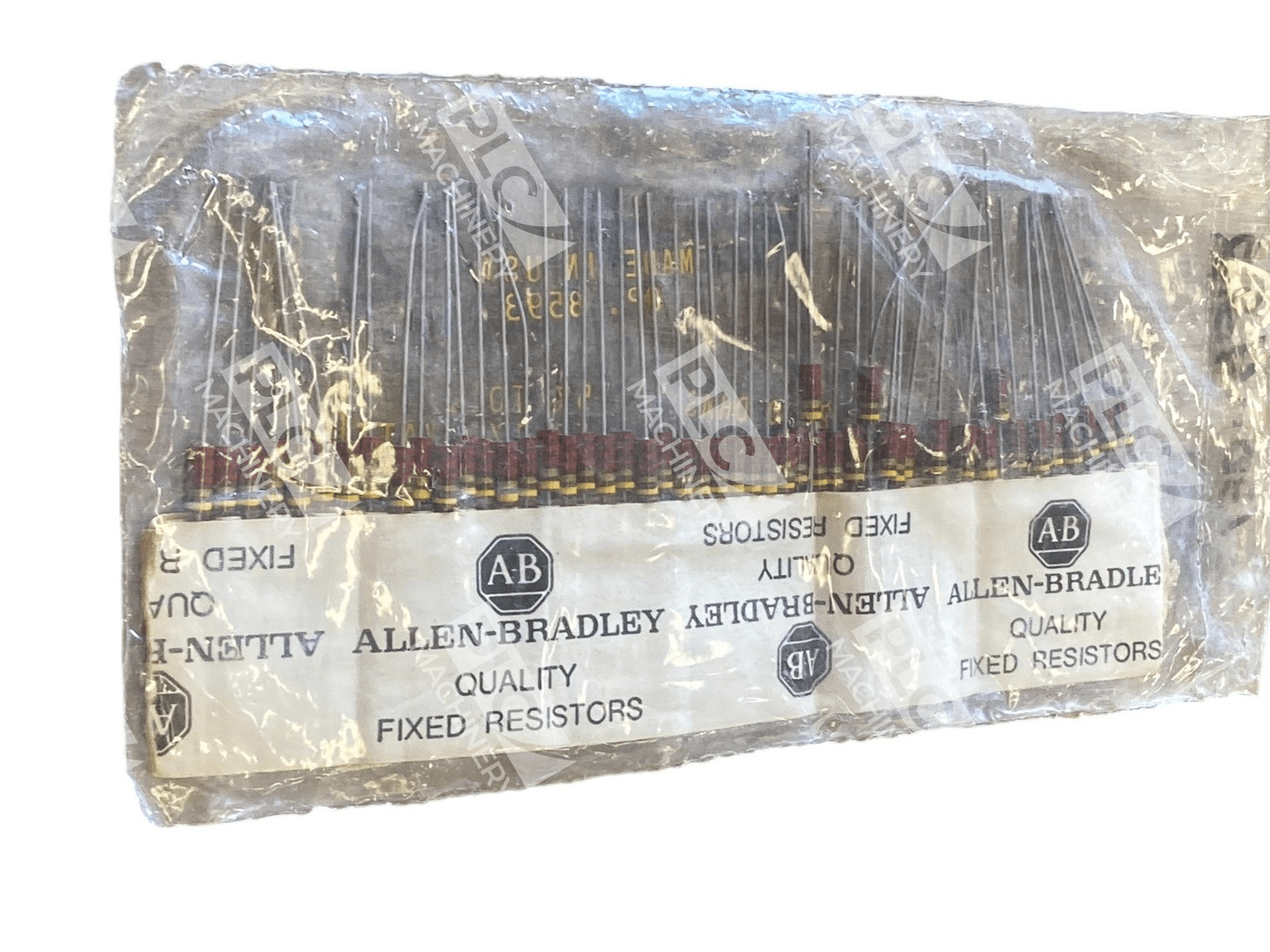

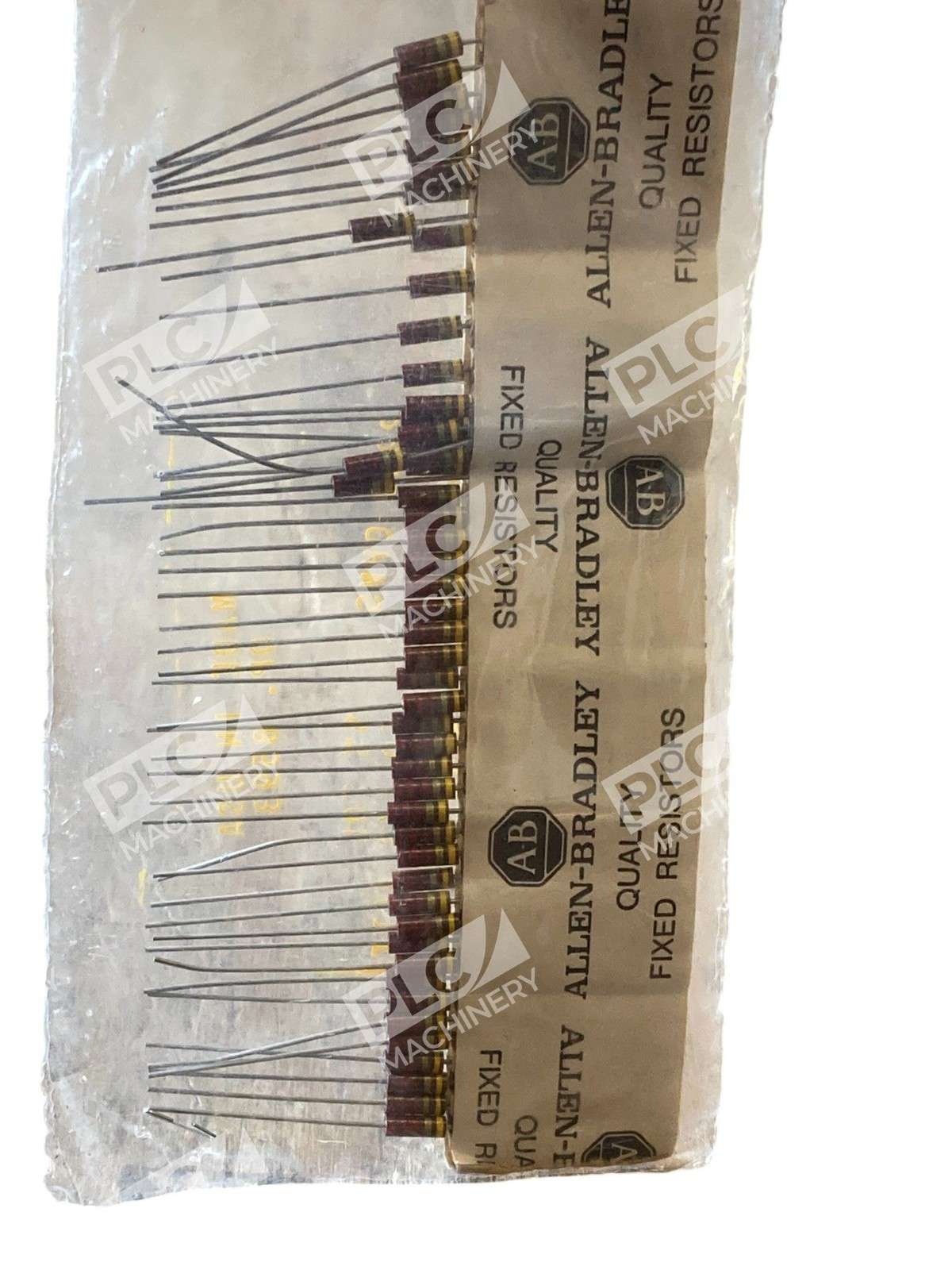

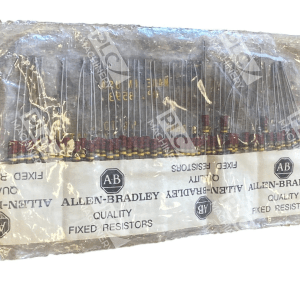

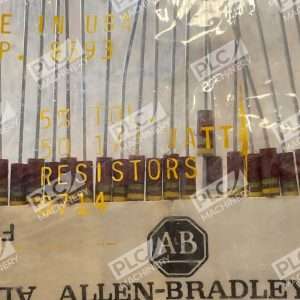

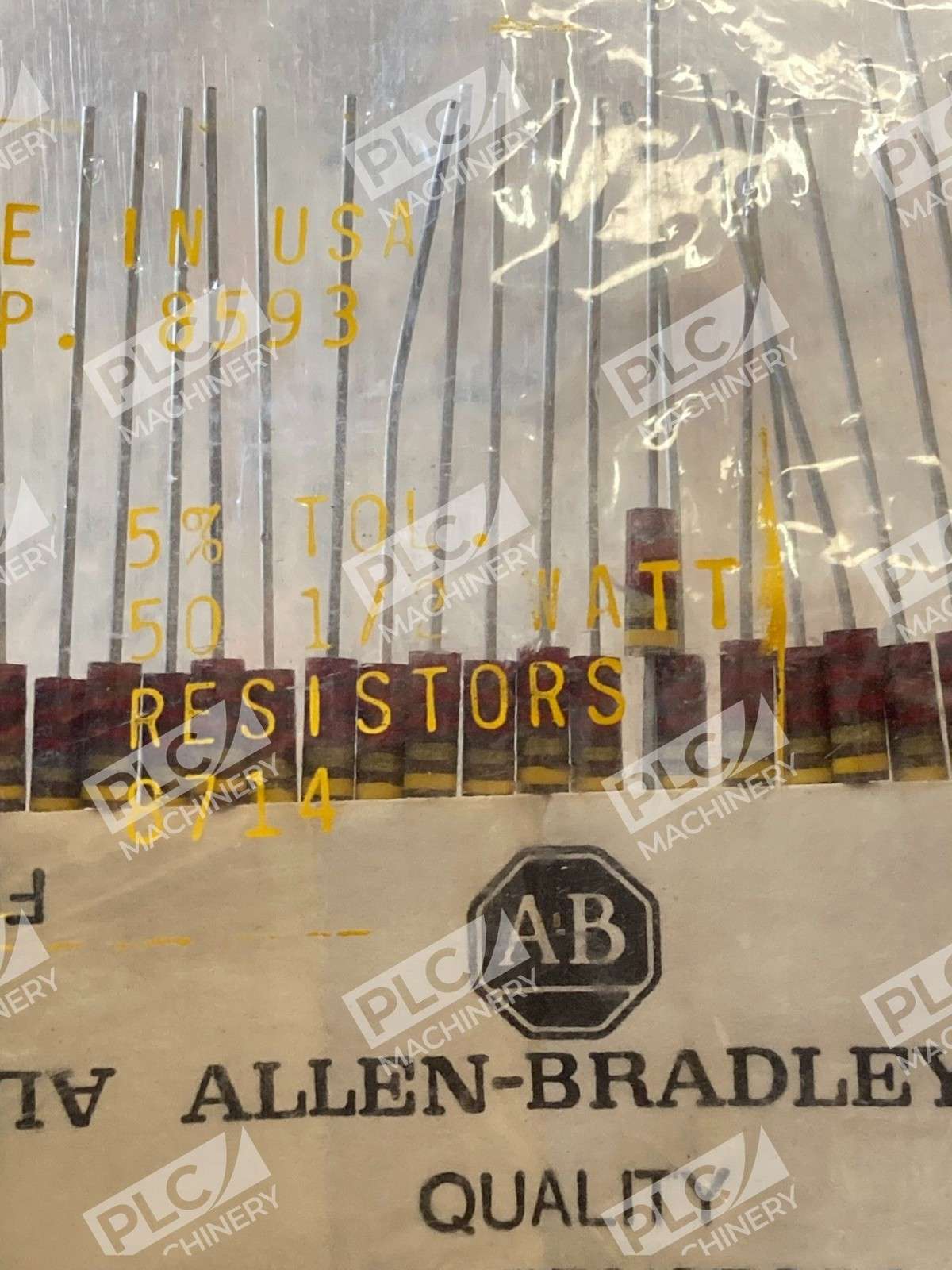

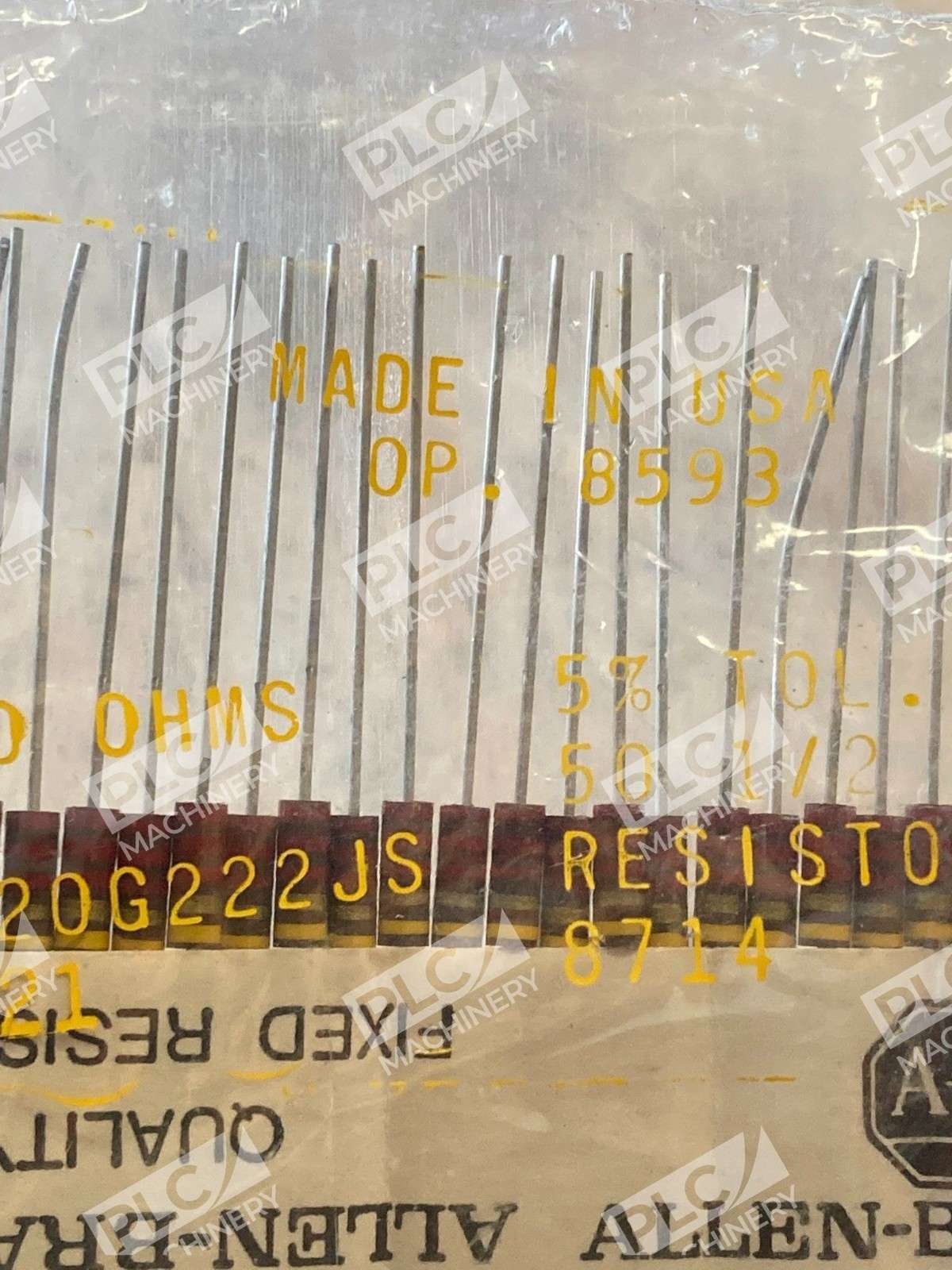

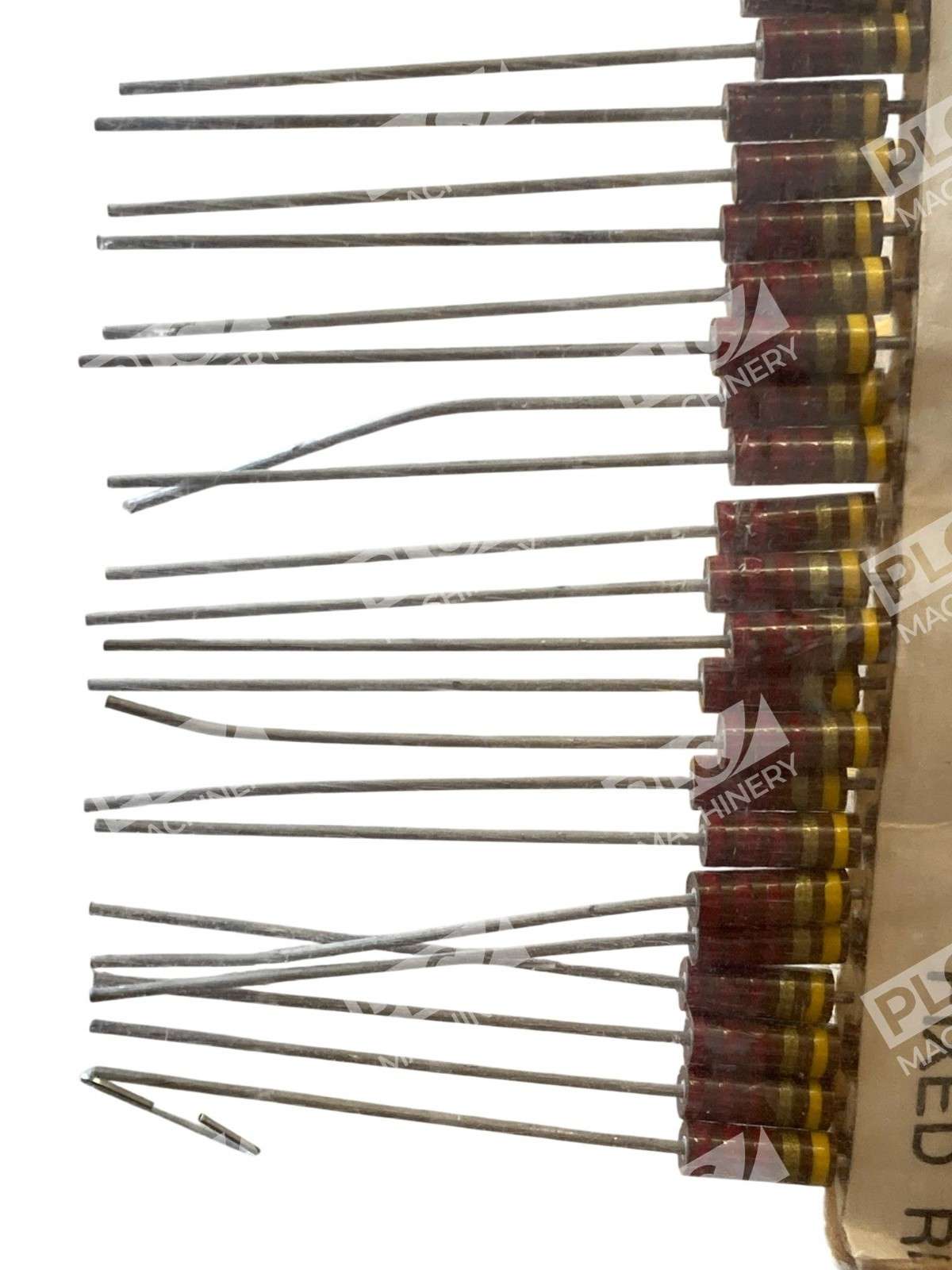

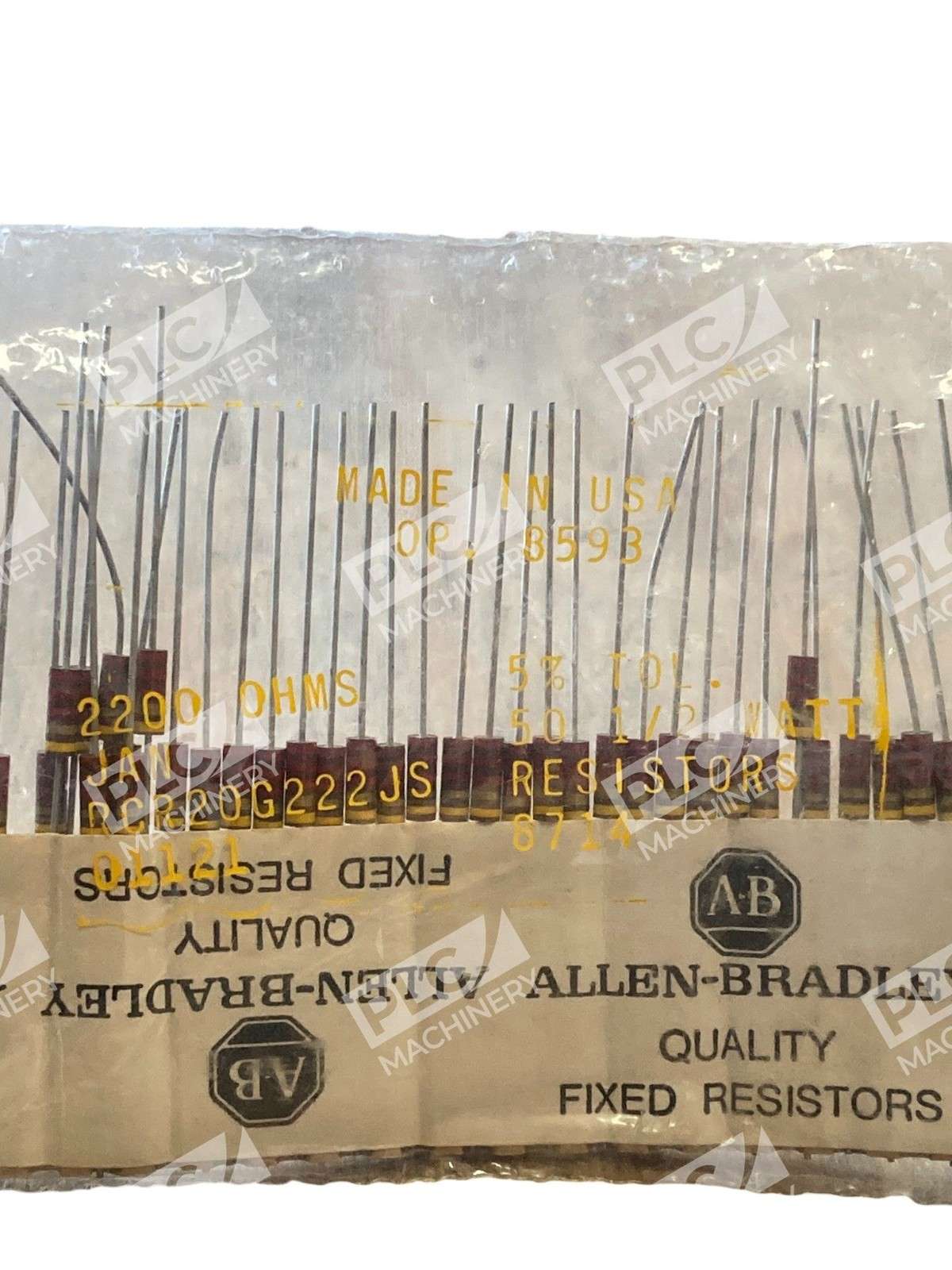

The Allen-Bradley RCR20G222JS is a premium hot-molded carbon composition resistor featuring 2.2kΩ resistance, 1/2W (0.5W) power rating, and ±5% tolerance. These MIL-SPEC grade resistors are engineered for rugged industrial, aerospace, and military applications where reliability and stability are critical. Pack of 50 units, ready for immediate deployment in circuit repair and manufacturing.
Key Features
- Hot-Molded Construction: Exceptional durability and pulse-withstanding capability for demanding environments
- Low Inductance Design: Ensures stable performance at high frequencies with minimal ringing and signal distortion
- MIL-SPEC Grade: Meets military and aerospace reliability standards; proven performance in legacy equipment
- Oxygen-Free Copper Leads: Superior connectivity and corrosion resistance
- Wide Operating Temperature Range: Rated to 70°C, suitable for industrial and enclosed environments
Technical Specifications
- Resistance Value: 2.2 kΩ (2,200 Ω)
- Power Rating: 0.5 W (1/2W)
- Tolerance: ±5%
- Construction Type: Carbon Composition (hot-molded)
- Lead Material: Oxygen-free copper
- Maximum Operating Temperature: 70°C

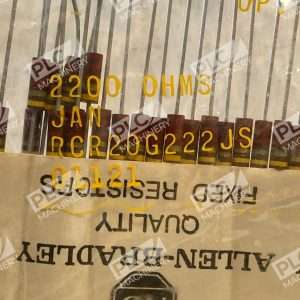

- Part Number Format: RCR20G222JS (RCR = resistor, 20 = wattage class, G = tolerance band, 222 = 2.2k value, JS = MIL-SPEC grade)
- Package Quantity: 50 units
- Condition: New in Box
Typical Applications
- Aerospace and military electronics repair and new builds
- Legacy industrial control systems and PLC circuit boards
- Audio and RF signal conditioning circuits
- Power supply filtering and bias networks
- Test equipment and measurement instrumentation
- Tube amplifier and vintage equipment restoration
Compatibility & Replacements
The RCR20G222JS is a direct replacement for equivalent Allen-Bradley 2.2kΩ 1/2W 5% composition resistors. While carbon composition resistors are no longer manufactured by most suppliers, the RCR20G222JS remains the industry standard for MIL-SPEC compliance in legacy and aerospace systems. For modern designs, metal film or thick-film alternatives may offer improved tolerance and temperature coefficients; however, direct substitution into existing boards requires no PCB modification. Verify mounting and pinout compatibility before installation in safety-critical applications.
