Overview

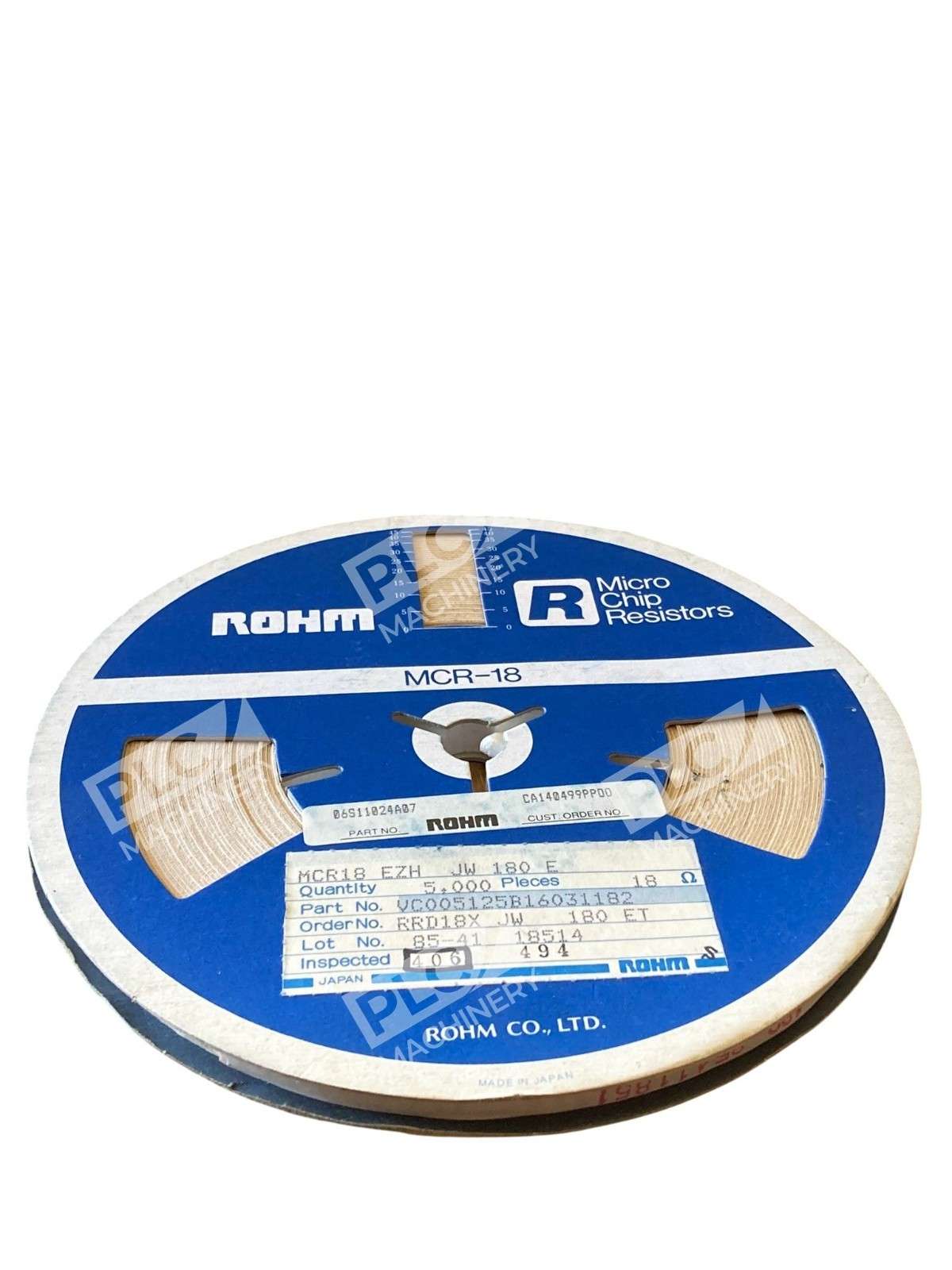

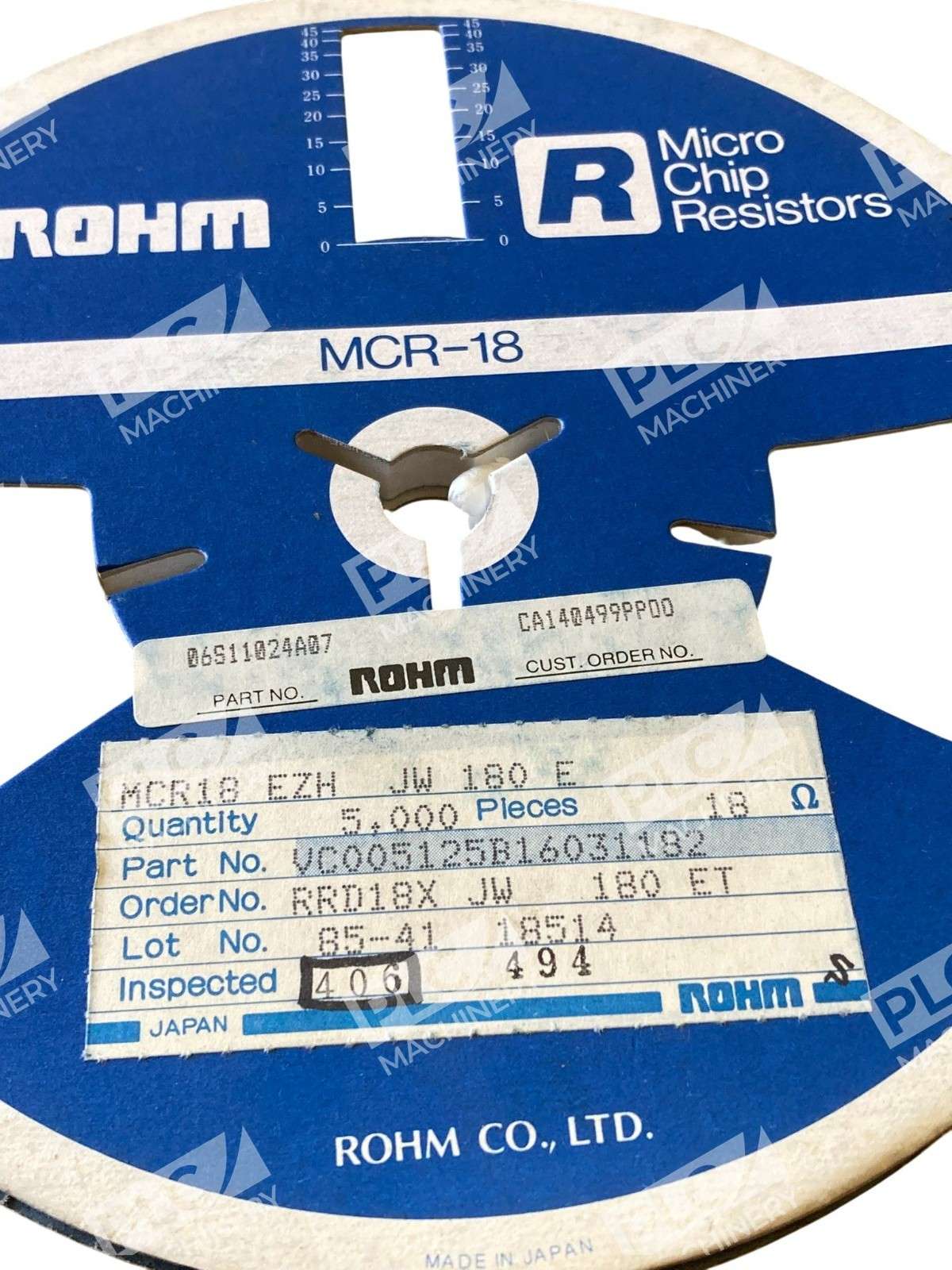

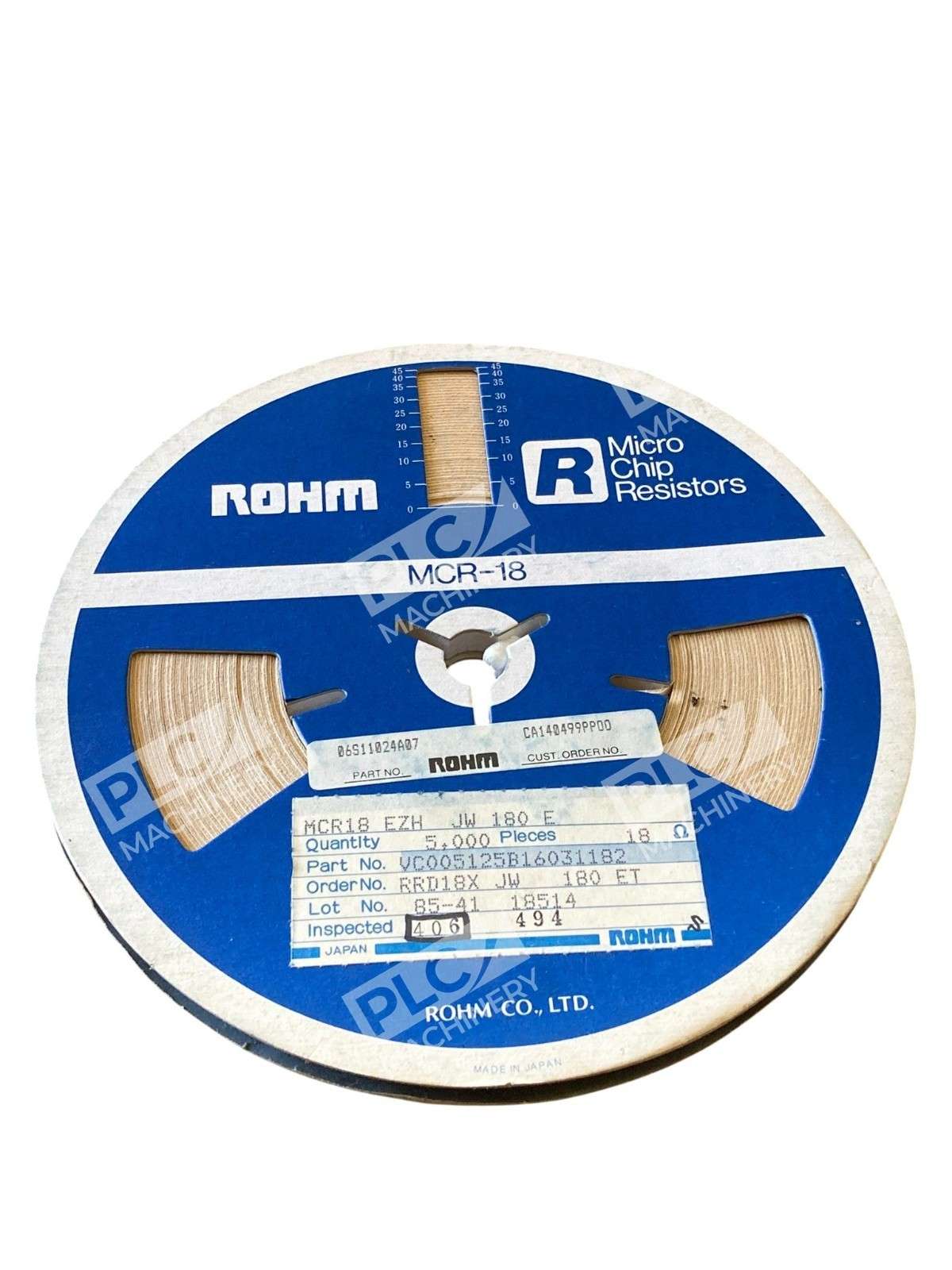

The ROHM MCR-18 EZH JW 180 E is a general-purpose thick film chip resistor offering 180-ohm nominal resistance with ±5% tolerance (J-grade). This surface-mount component uses metal-glaze technology to ensure stable performance across temperature extremes. The MCR-18 EZH series ships on paper tape (4mm pitch) wound on 180mm reels, making it ideal for high-volume assembly and automated pick-and-place operations.
Key Features
- Metal-glaze thick film construction for temperature stability and long-term reliability
- RoHS-compliant lead-free design (E suffix indicates lead-free termination)
- 3216 (1206) surface-mount package — standard footprint with wide component availability
- Paper tape reel packaging (EZH code) compatible with JEITA standard EIAJ ET-7200B
- ISO9001/ISO/TS16949 certified manufacturing process
Technical Specifications
- Nominal Resistance: 180 Ω
- Tolerance: ±5% (J-grade per ROHM coding)
- Package Size: 3216 [1206]
- Resistive Element: Metal-glaze thick film
- Termination: Nickel-palladium-gold (lead-free)
- Tape Pitch: 4mm
- Reel Diameter: 180mm (7 inch)
- Basic Ordering Unit: 5,000 pieces per reel
- Operating Temperature Range: −55 to +155°C
- Insulation Resistance: ≥1000 MΩ
Typical Applications
- Current-sensing circuits in automotive and industrial power supplies
- Voltage dividers and biasing networks in amplifier stages
- Signal conditioning and analog filter networks
- General-purpose discrete component applications requiring high-volume automated assembly
Compatibility & Replacements
Compatible With
- Surface-mount assembly processes (reflow soldering recommended)
- JEITA standard tape-and-reel format EIAJ ET-7200B
- Standard 1206 land patterns on PCBs
Replaces / Drop-In Replacement For
- Other 180 Ω ±5% 3216 (1206) metal-film or metal-glaze resistors from competing manufacturers (Vishay, Panasonic, Yageo)
- Verify footprint and thermal ratings with your schematic before substitution
Works With
- Automated pick-and-place and reflow soldering equipment
- Standard PCB design tools (KiCad, Altium, Eagle) supporting 1206 footprints
- Component datasheets available from ROHM (www.rohm.com)
