Overview

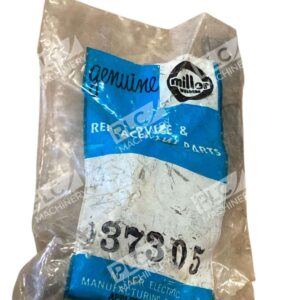

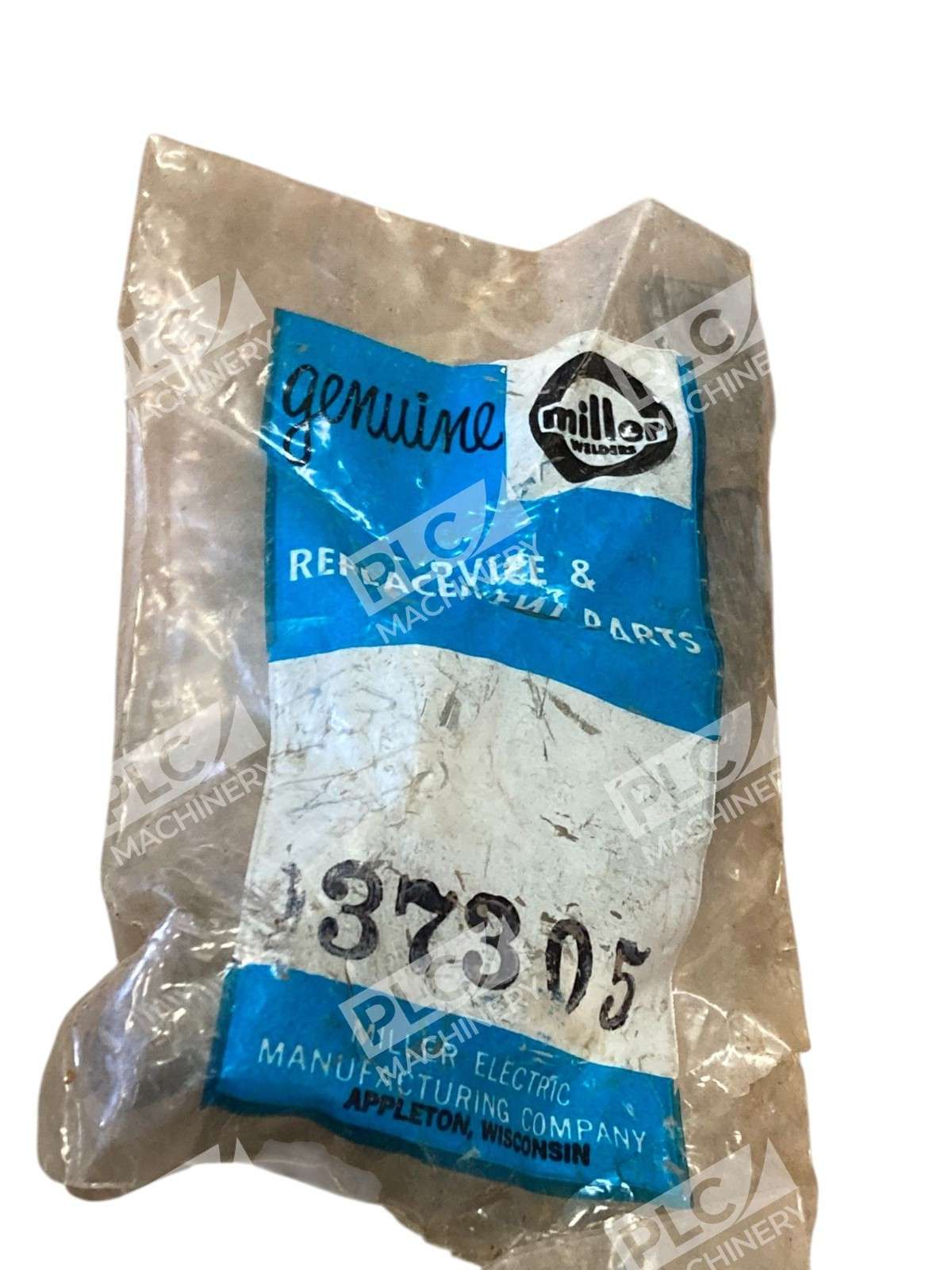

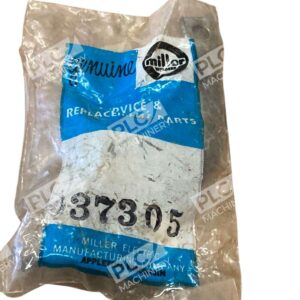

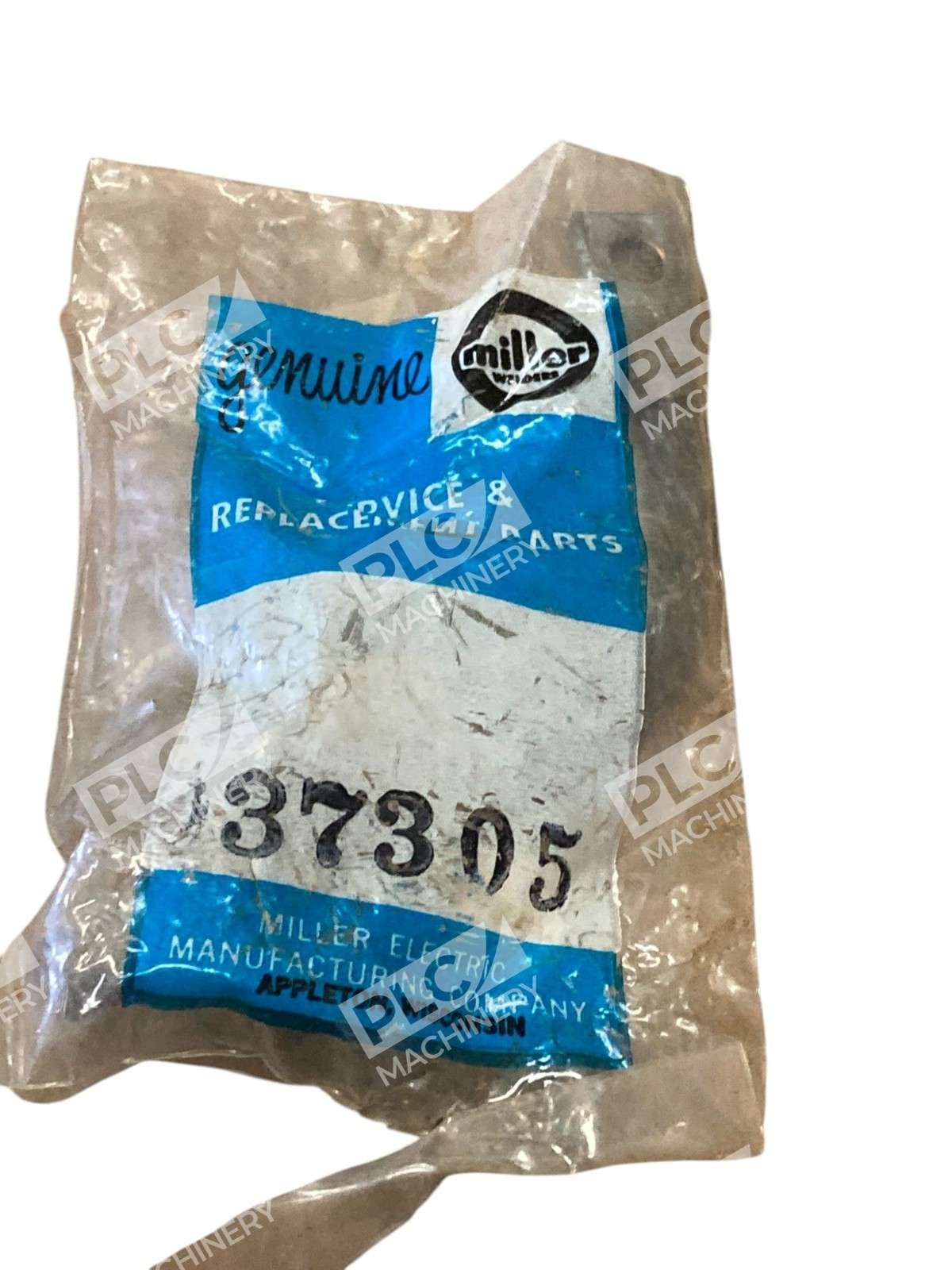

The Miller 037305 rectifier diode is a high-reliability semiconductor component engineered for welding equipment. This 150-Amp 300V straight polarity diode is rated for demanding duty cycles in industrial arc welding systems. The DO-8 package configuration and robust mechanical construction make it suitable for both new installations and field replacements in Miller welding generators.
Key Features
- 150-Amp current rating with 300V peak reverse voltage rating
- Straight polarity (SP) configuration for standard welding rectifier circuits
- DO-8 package with 3/8″ stud and 5 1/2″ length for standard mounting
- Rated for continuous industrial duty in arc welding applications
- Compatible with Auto Arc MW4150 and MW4200 welding systems
Technical Specifications
- Part Number: 037305
- Manufacturer: Miller Electric
- Current Rating: 150 Amps
- Voltage Rating: 300V
- Polarity: Straight Polarity (SP)
- Package Type: DO-8
- Stud Size: 3/8″
- Overall Length: 5 1/2″
- Device Length: 4 1/2″
Typical Applications
The Miller 037305 rectifier diode is used in:
- Auto Arc MW4150 and MW4200 welding generator systems
- Miller welding equipment rectifier assemblies
- DC arc welding power supplies requiring 150A/300V rectification
- Field replacements and repair kits for vintage and current Miller welders
- Industrial and commercial welding shops requiring OEM-quality components
Compatibility & Replacements
Compatible With
- Auto Arc MW4150 Welding Generator
- Auto Arc MW4200 Welding Generator
- Miller welding equipment with straight polarity DO-8 rectifier requirements
Replaces / Drop-In Replacement For
- Miller 037305 (direct equivalent)
- OEM replacement for Auto Arc MW4150 rectifier assemblies
- OEM replacement for Auto Arc MW4200 rectifier assemblies
Works With
- Miller welding control systems and feeder units
- Millermatic 30B Control/Feeder assemblies
- DC welding circuits requiring 150A rectification at 300V
