Overview

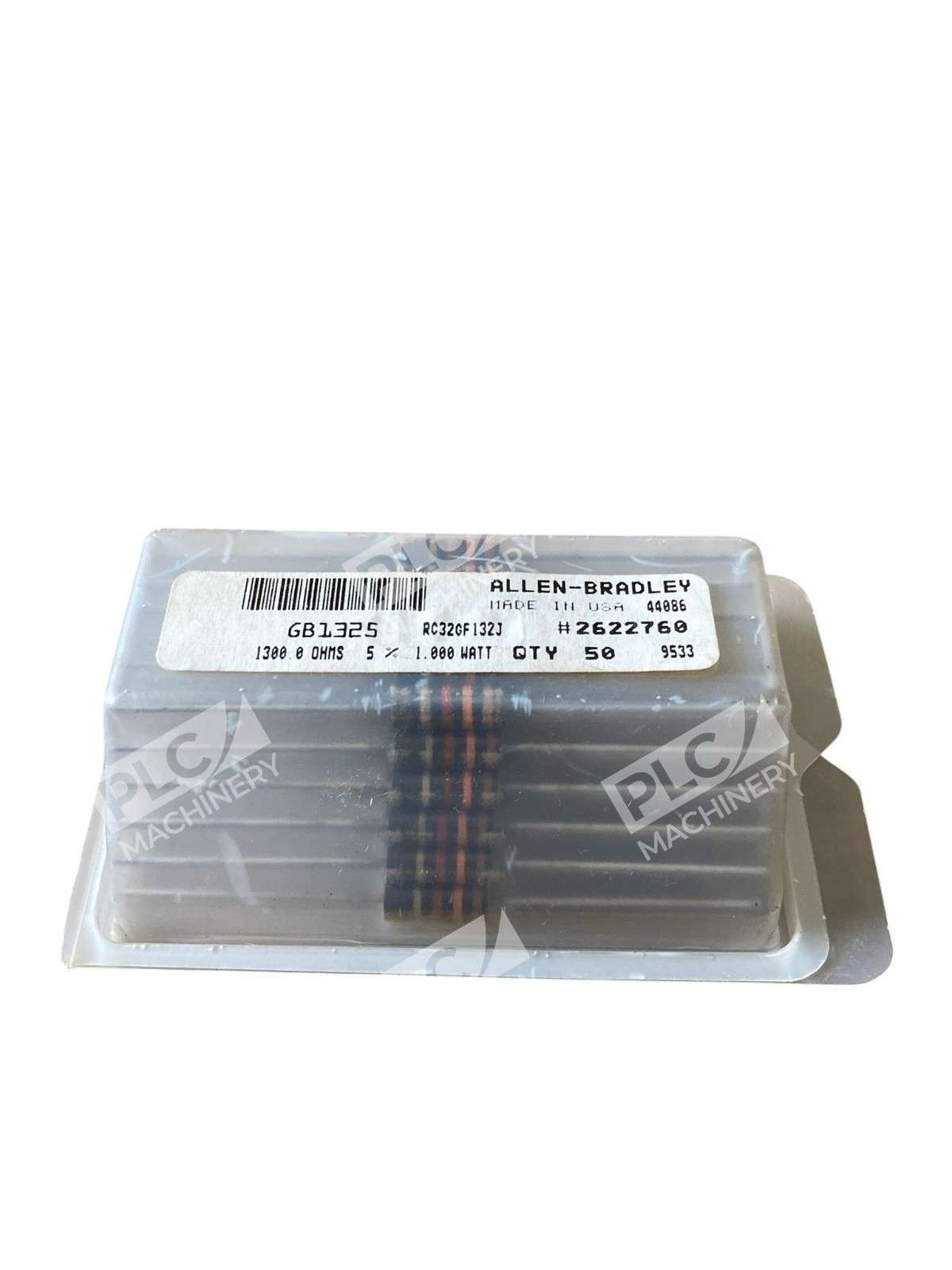

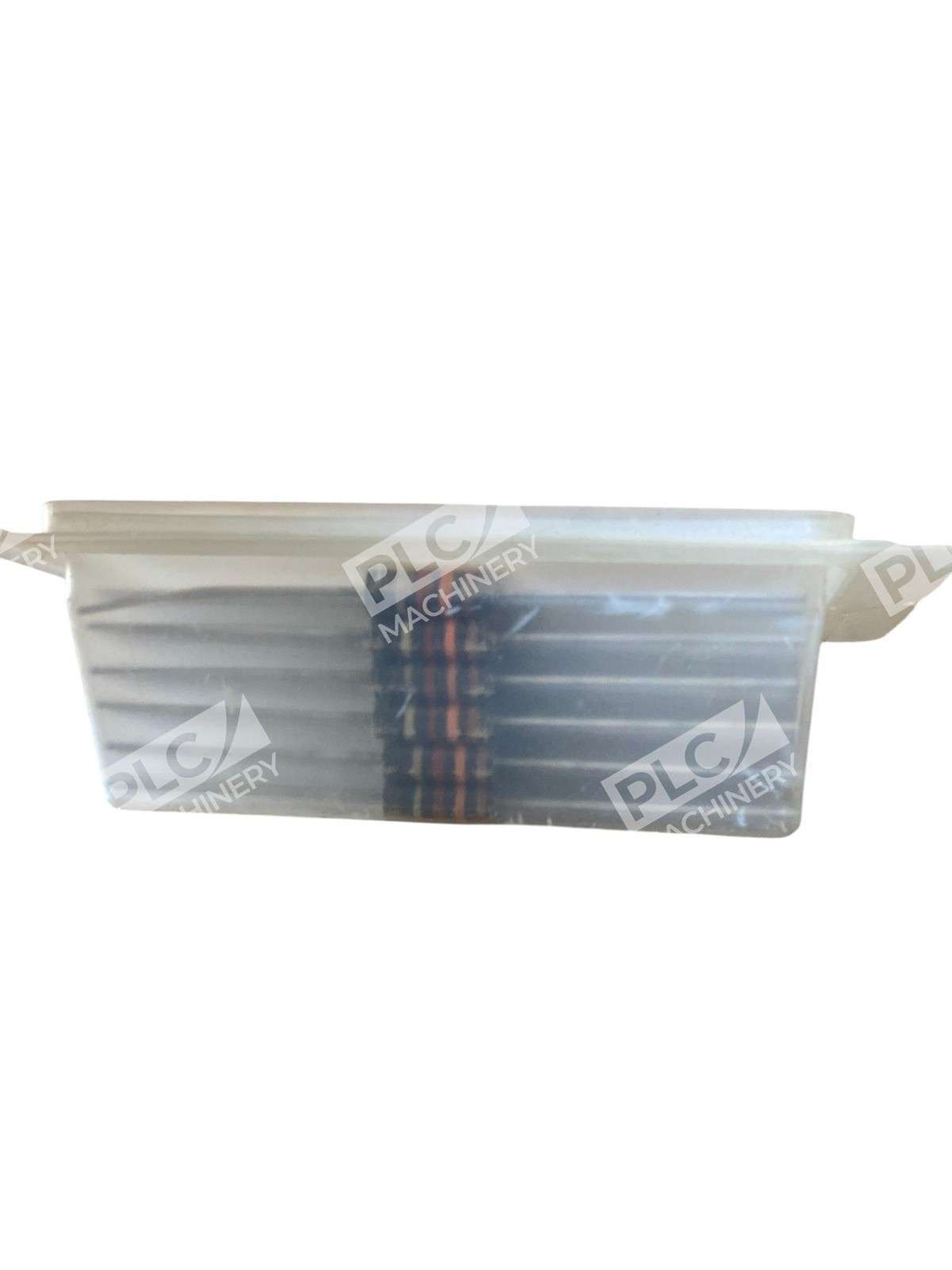

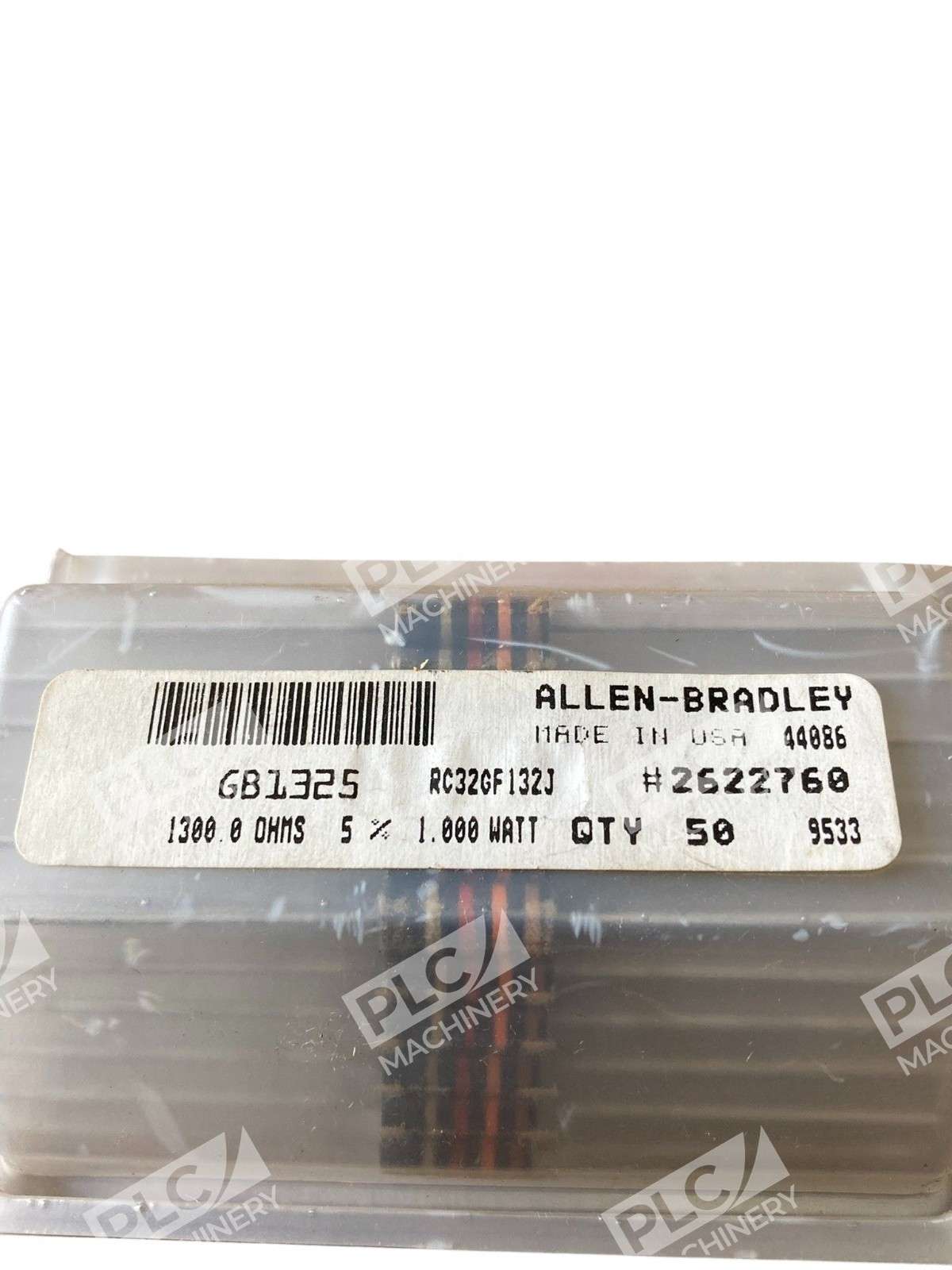

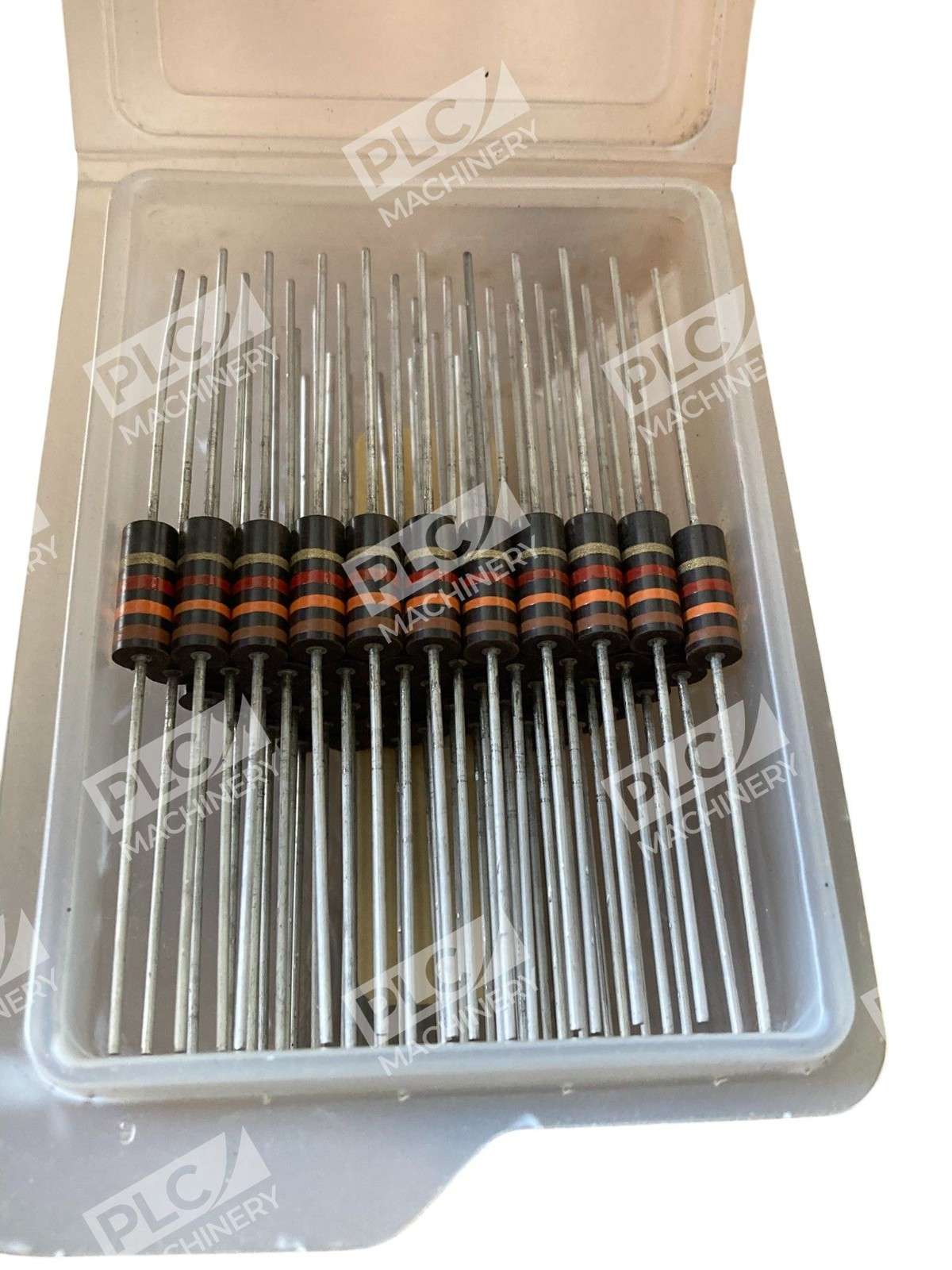

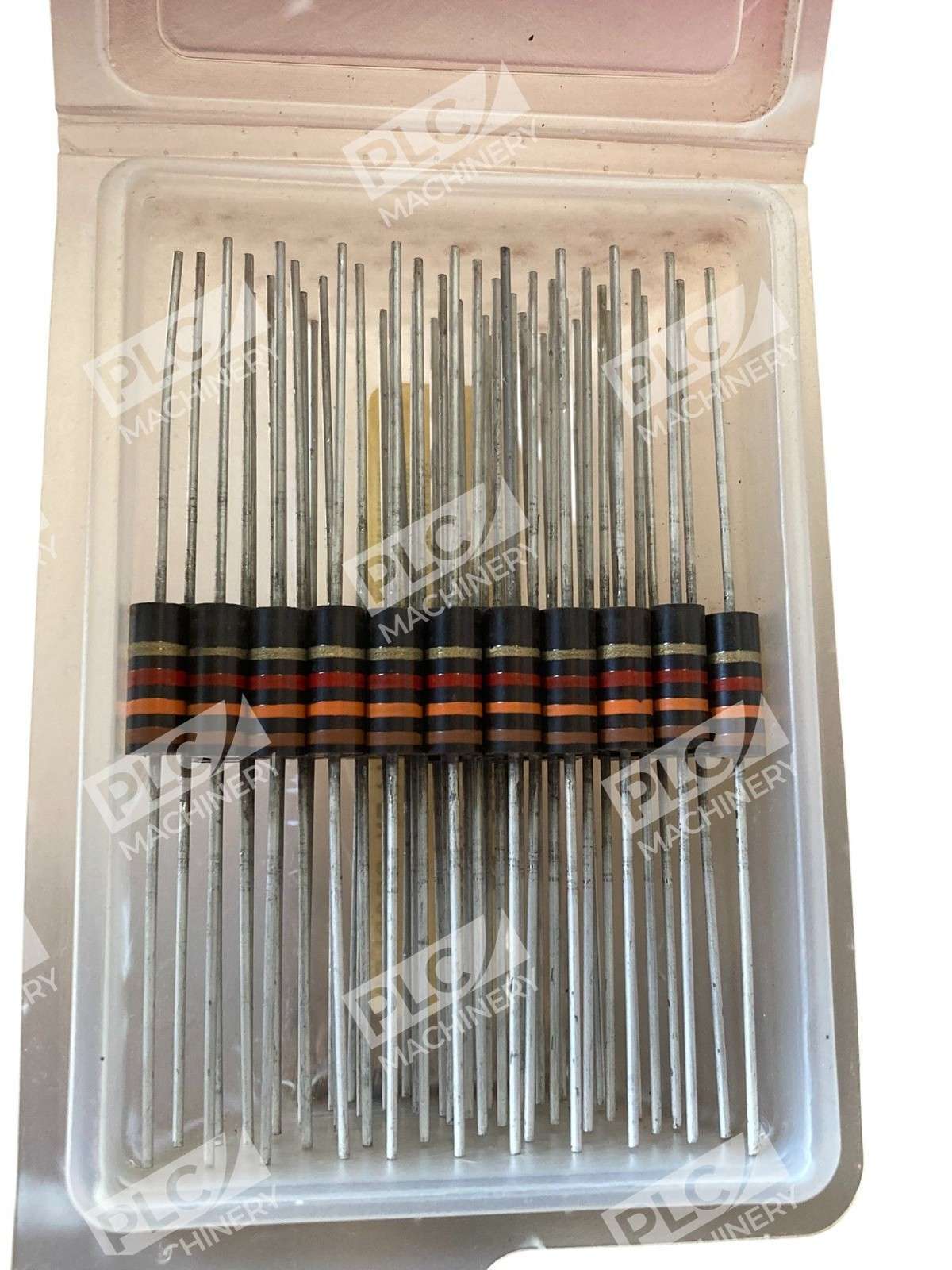

The Allen-Bradley RC32GF132J is a 1-watt, 1300-ohm fixed resistor with 5% tolerance, manufactured to MIL-SPEC standards for superior industrial reliability. Supplied as a lot of 50 units, these carbon composition resistors deliver proven pulse-withstanding capability, low inductance, and stable performance across extended temperature ranges. Built with oxygen-free copper leads and rugged hot-molded carbon construction, the RC32GF132J is ideal for repair, rebuilds, and new control panel builds requiring dependable passive components.
Key Features
- MIL-SPEC Reliability – Outstanding pulse-withstanding and power dissipation performance certified for industrial and military applications
- Hot-Molded Carbon Construction – Rugged design ensures mechanical durability and consistent electrical performance under stress
- Low Inductance – Non-inductive characteristics support high-frequency circuit stability and noise immunity
- Oxygen-Free Copper Leads – Corrosion-resistant leads for extended service life and superior soldering characteristics
- 5% Tolerance – Tight tolerance specification for precise circuit design and predictable performance
- Lot of 50 Units – Bulk packaging ensures spare inventory for maintenance programs and multiple system rebuilds
Technical Specifications
| Resistance Value | 1300 Ω (1.3 kΩ) |
| Tolerance | ±5% |
| Power Rating | 1 W |
| Resistor Type | Carbon Composition |
| Construction | Hot-Molded Carbon with Oxygen-Free Copper Leads |
| Operating Temperature Range | -55°C to +70°C |
| Maximum Operating Voltage | Dependent on power rating; standard industrial voltage to 500V DC |
| Lead Material | Oxygen-Free Copper |
| Compliance | MIL-R-39008 / MIL-SPEC |
| Quantity per Lot | 50 Units |
| Condition | New in Box (NOS – New Old Stock) |
Typical Applications
- Industrial PLC and drive control circuits requiring proven pulse-withstanding performance
- Snubber and damping circuits in motor control panels and frequency drives
- Maintenance and repair of legacy automation equipment and control systems
- Protective circuits in solid-state relays, contactors, and valve solenoid drivers
- High-frequency circuits requiring low-inductance passive components
- Bulk replacement inventory for system integrators and OEM technicians
Compatibility & Replacements
The RC32GF132J is an Allen-Bradley carbon composition resistor manufactured to strict MIL-SPEC standards. While direct substitution with modern film or wirewound resistors is not automatically recommended due to technology differences, equivalent Vishay Dale models and other MIL-compliant replacements are available for new designs. However, for legacy system repair and original equipment restoration, the RC32GF132J remains the preferred choice due to its proven pulse-withstanding capability and low-inductance characteristics. Always verify electrical and mechanical specifications before substitution in critical circuits. This lot of 50 provides ample spare inventory to support multiple system rebuilds without supply interruption.
