Overview

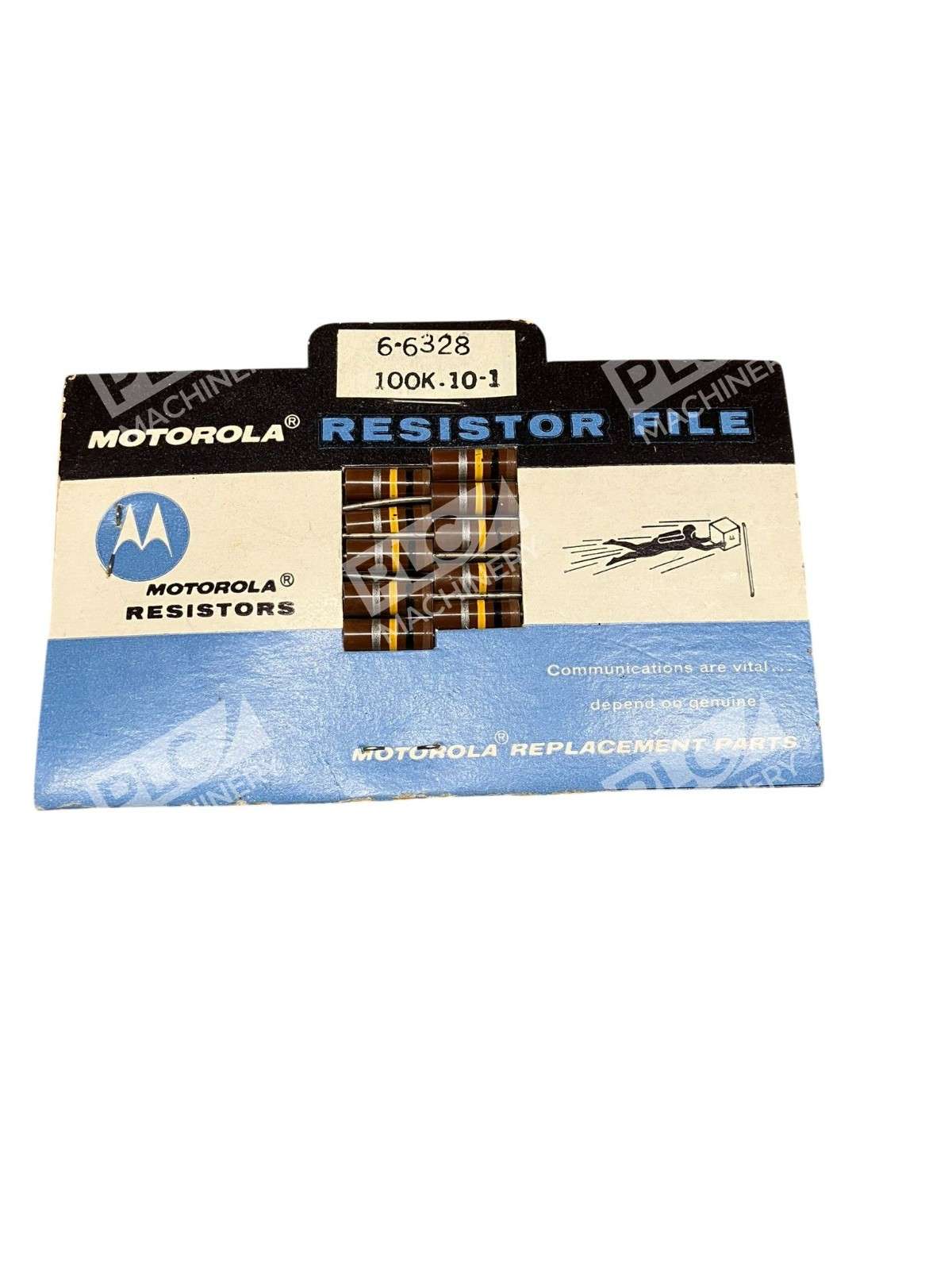

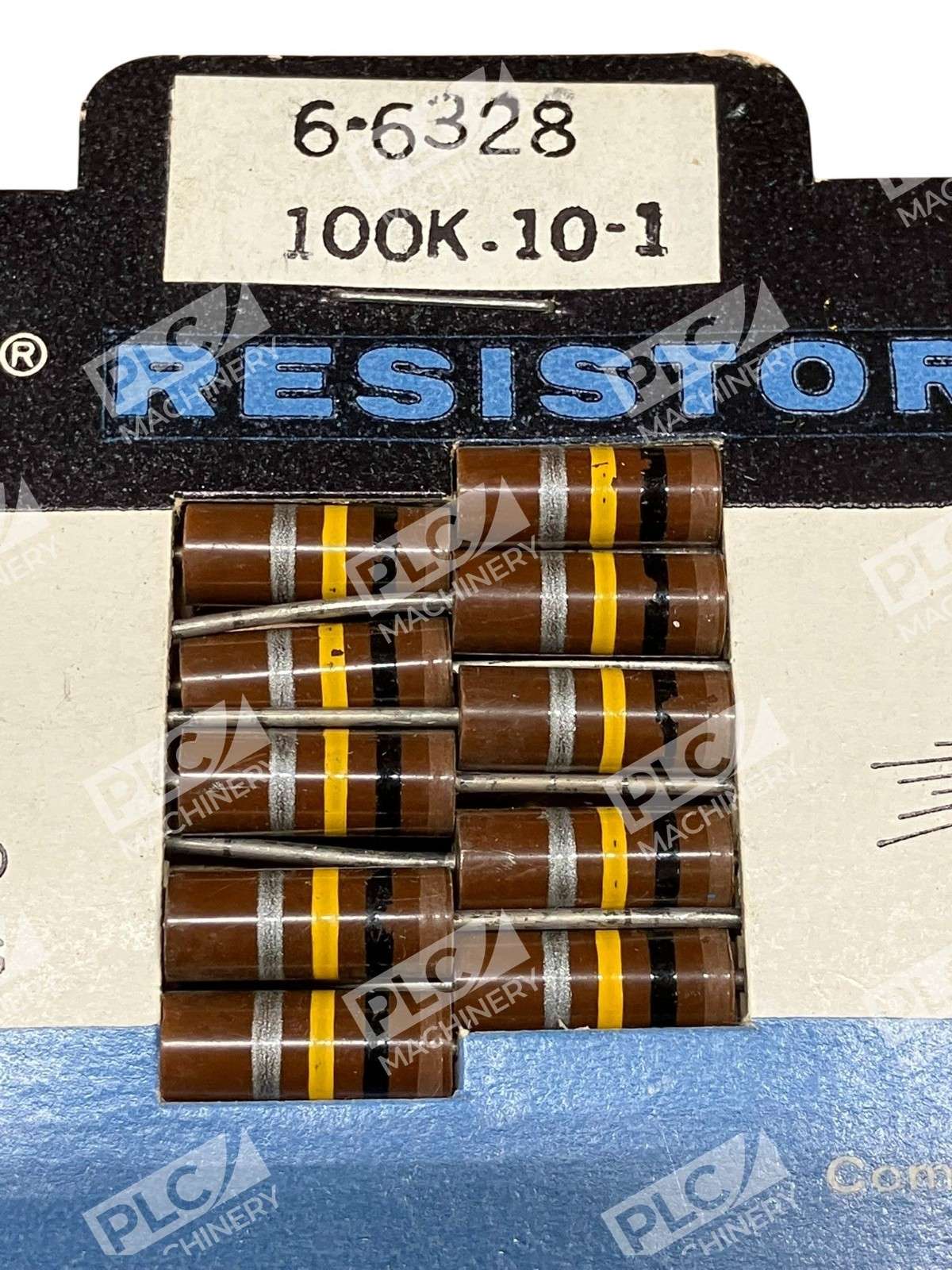

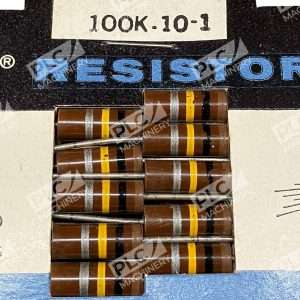

The Motorola 6-6328 is a vintage carbon composition fixed resistor offering 100kΩ resistance with 10% tolerance and 1W power dissipation capability. These axial-lead components were commonly used in mid-20th century consumer electronics, industrial controls, and audio equipment. This new-in-box file pack lot represents original stock ideal for restoration, repair, and vintage circuit reconstruction where period-correct components are required.
Key Features
- Resistance Value: 100kΩ with ±10% tolerance
- Power Rating: 1W continuous dissipation
- Construction: Carbon composition material with solid axial leads

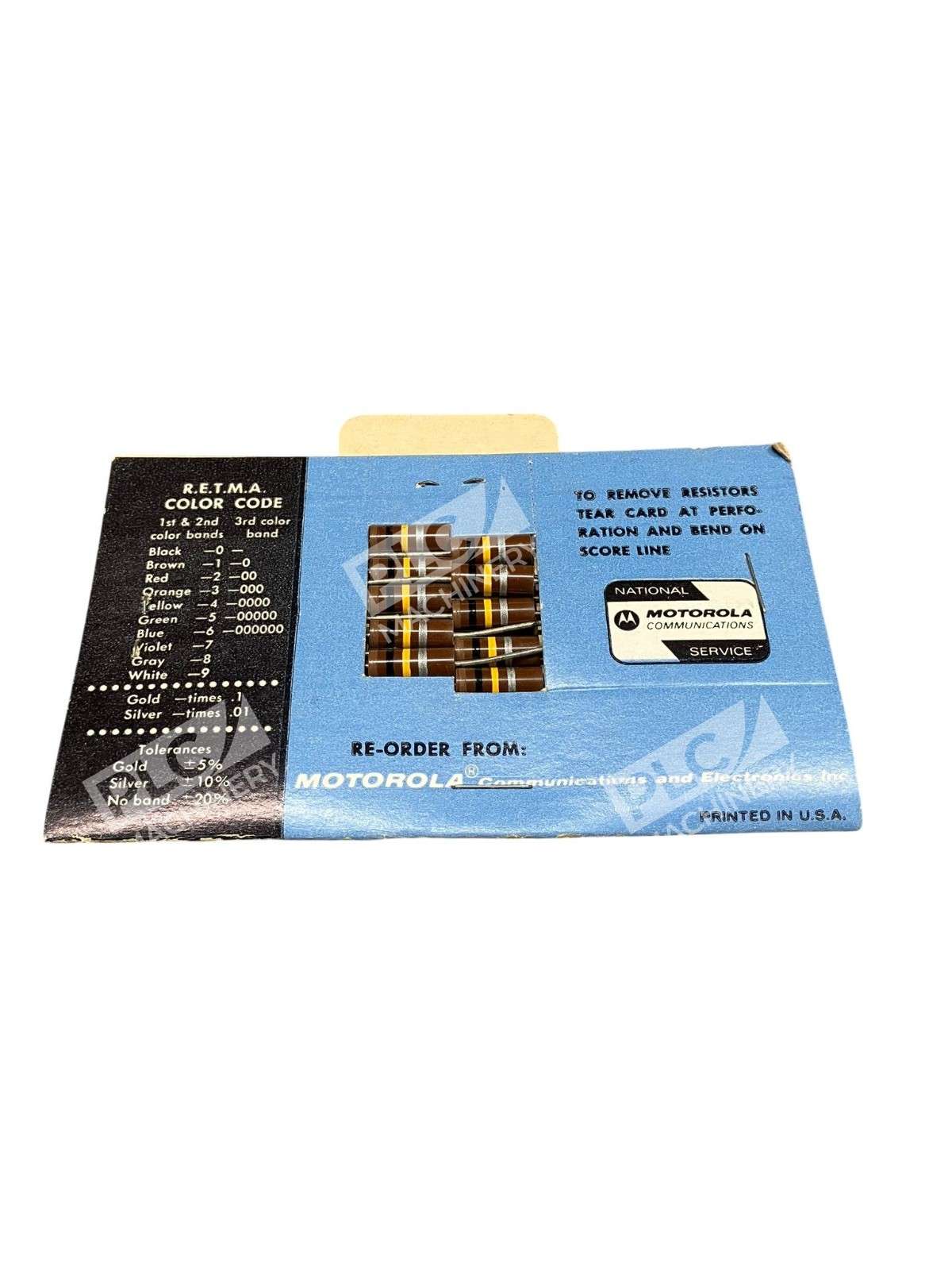

- Packaging: New in box vintage file pack lot
- Terminal Style: Tinned wire leads suitable for through-hole soldering
- Temperature Stable: Suitable for ambient operation in standard indoor environments
Technical Specifications
- Resistance: 100kΩ
- Tolerance: ±10%
- Power Rating: 1W
- Voltage Rating: Standard industrial rating (verify per circuit requirements)
- Lead Material: Tinned copper
- Body Style: Axial cylinder
- Operating Temperature: -55°C to +155°C (typical for carbon composition)
- Frequency Range: DC to RF
- Packaging: New in box vintage file pack
Typical Applications
- Vintage radio and television receiver restoration
- Tube amplifier and guitar amp repair
- Analog synthesizer and musical equipment restoration
- Industrial control and test equipment recapping projects
- Vintage computer and calculating machine restoration
- Audio equipment bias and load resistor replacement
Compatibility & Replacements
Compatible With
- Through-hole PCB designs (0.1″ grid standard)
- Breadboard prototyping layouts
- Point-to-point hand-wired circuits
- Vintage equipment restoration (radio, TV, audio, industrial)
- Any circuit requiring 100kΩ ±10% 1W dissipation
Replaces / Drop-In Replacement For
Motorola 6-6328 is a specific vintage part number. For modern equivalents in current production, any 100kΩ 1W carbon composition or carbon film resistor with ±10% tolerance can serve as a functional replacement, though vintage audio purists may prefer period-correct carbon composition types for tonal characteristics. Common modern replacements include generic 100kΩ 1W axial resistors from RCD Components, Arcol, or IRC.
Works With
- Vintage Motorola receiver and transmitter circuits
- Point-to-point construction and breadboard layouts
- Hand soldering and wave solder assembly (lead-based and lead-free)
- Low-frequency and RF applications up to standard industrial limits
- Any analog circuit requiring high-impedance resistor networks
