Overview

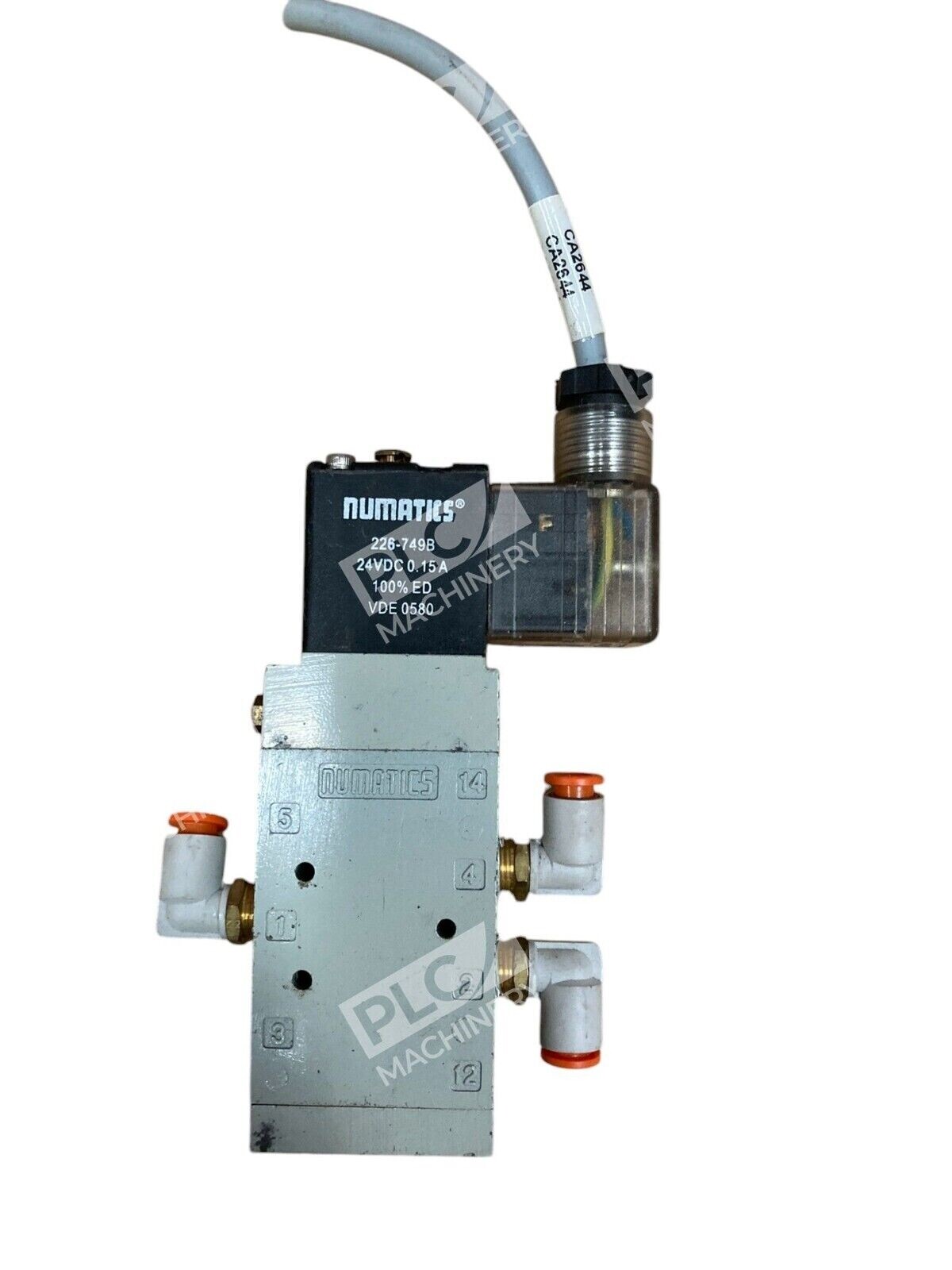

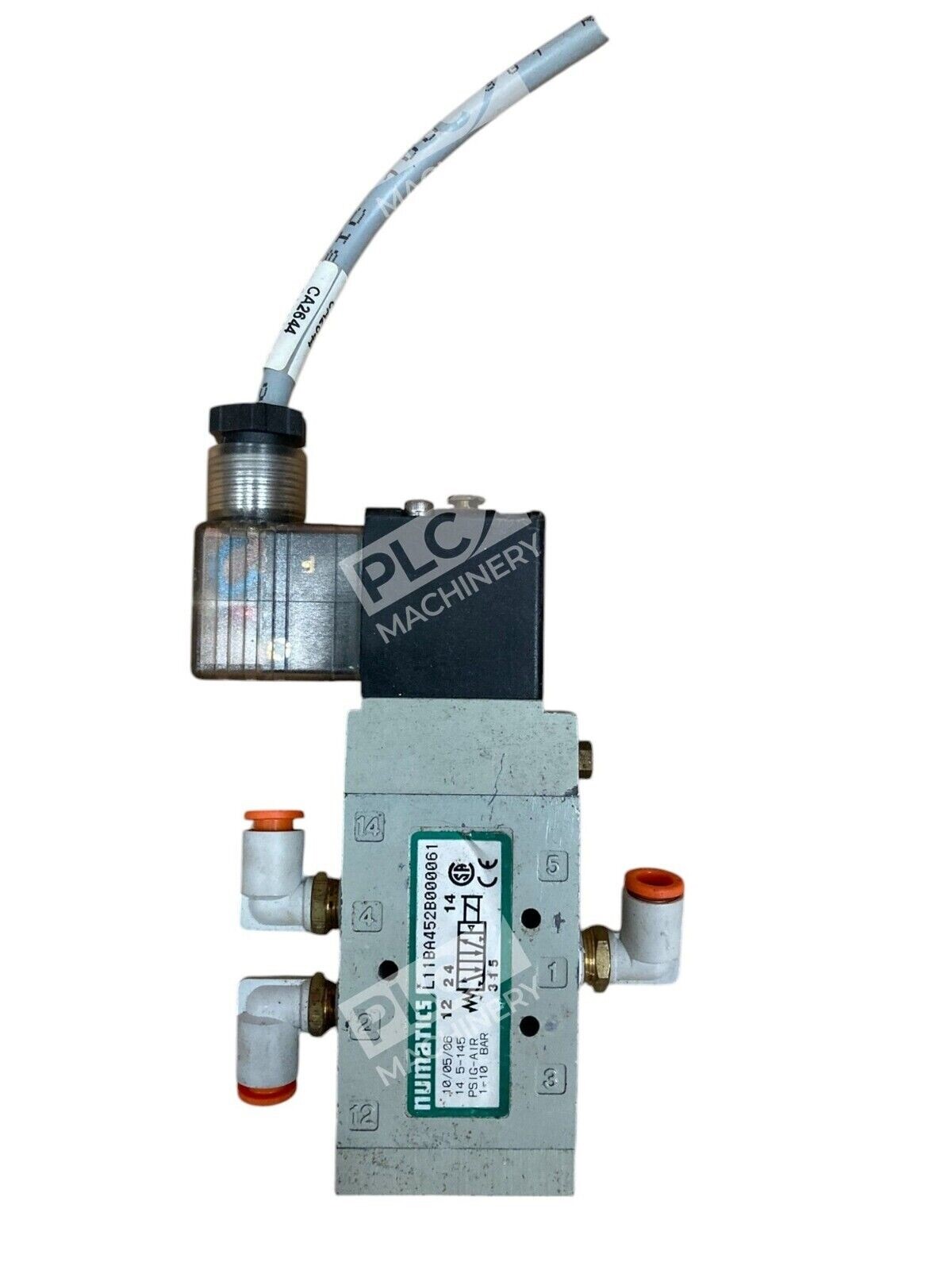

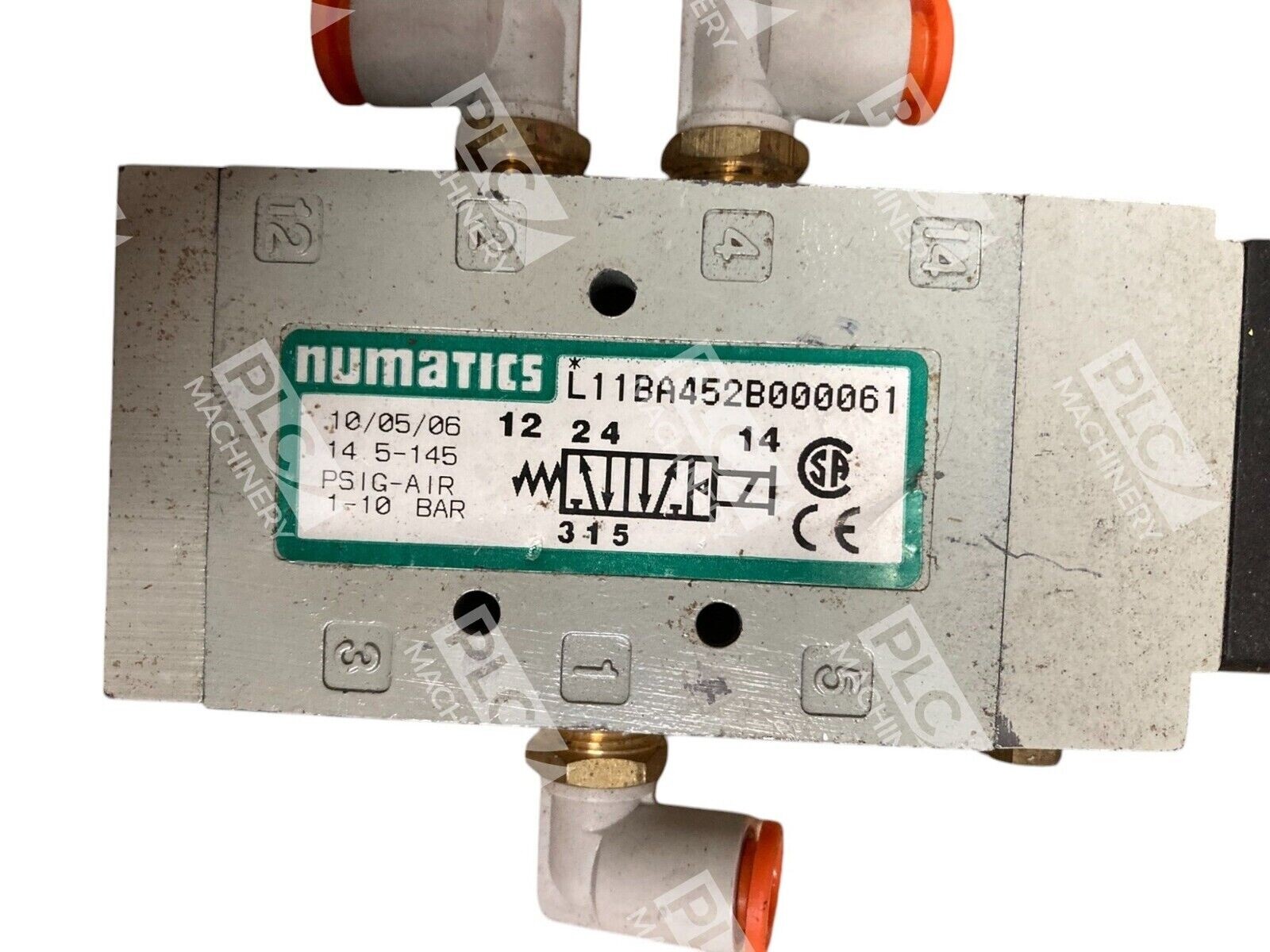

The Numatics L11BA452B000061 is an L1 Series single solenoid pilot-operated air valve engineered for pneumatic system control. This 5/2 proportional control valve offers compact inline mounting and is compatible with manifold systems. The valve operates via 24VDC solenoid actuation with spring return, providing reliable directional control for automated manufacturing, packaging, and machine tool applications.
Key Features
- L1 Series compact body width (.875″) for space-constrained installations
- Single solenoid pilot with spring return and flush locking override
- 5/2 directional control (2-position, 4-way configuration)
- 1/8″ FNPT ported connections for efficient flow
- 24VDC DIN plug-in solenoid with integrated indicator light
- Line-mountable with optional manifold adapter for multi-station configurations
Technical Specifications
- Operating Pressure Range: 1–10 bar (14.5–145 PSI)
- Valve Configuration: 2-Position, 4-Way (5/2)
- Port Size: 1/8″ FNPT
- Solenoid Voltage: 24VDC
- Solenoid Current: 0.15 A (holding)
- Mounting: Inline or manifold-compatible with adapter
- Body Width: 0.875″
- Temperature Range (Ambient): -10°F to +115°F (-23°C to +46°C)
- Coil Connection: DIN plug-in with indicator lamp
Typical Applications
- Pneumatic automation and control circuits
- Manufacturing and assembly line valve control
- Industrial machinery actuation systems
- Compact workstation pneumatic distribution
- Machine tool directional control
Compatibility & Replacements
Compatible With
- L1 Series manifold blocks (inline or manifold-mounted configurations)
- Standard pneumatic control systems operating 1–10 bar
- 24VDC industrial PLC and relay control circuits
- Standard NPT port industrial pneumatic plumbing
Replaces / Drop-In Replacement For
- Alternative L1 Series models with 1/8″ ports and 24VDC actuation
- ASCO 226-749B solenoid configurations
- Verify exact model compatibility with your system integrator before substitution
Works With
- Pneumatic pilot-operated solenoid valve systems
- Standard 24VDC control logic and safety circuits
- ISO 4401 (CETOP-05) pneumatic porting standards
- Inline manifold mounting frameworks from Numatics/Aventics
