Overview

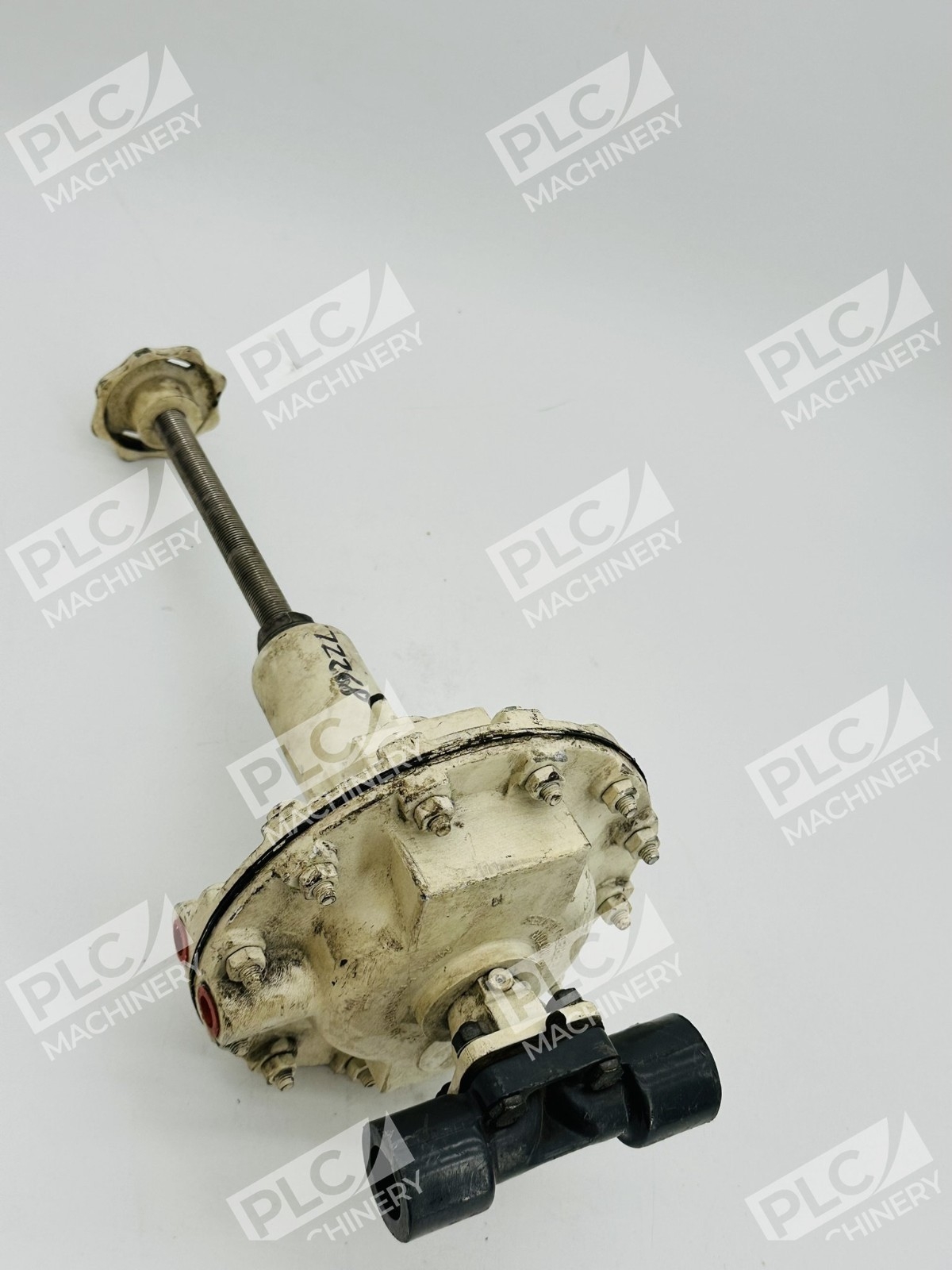

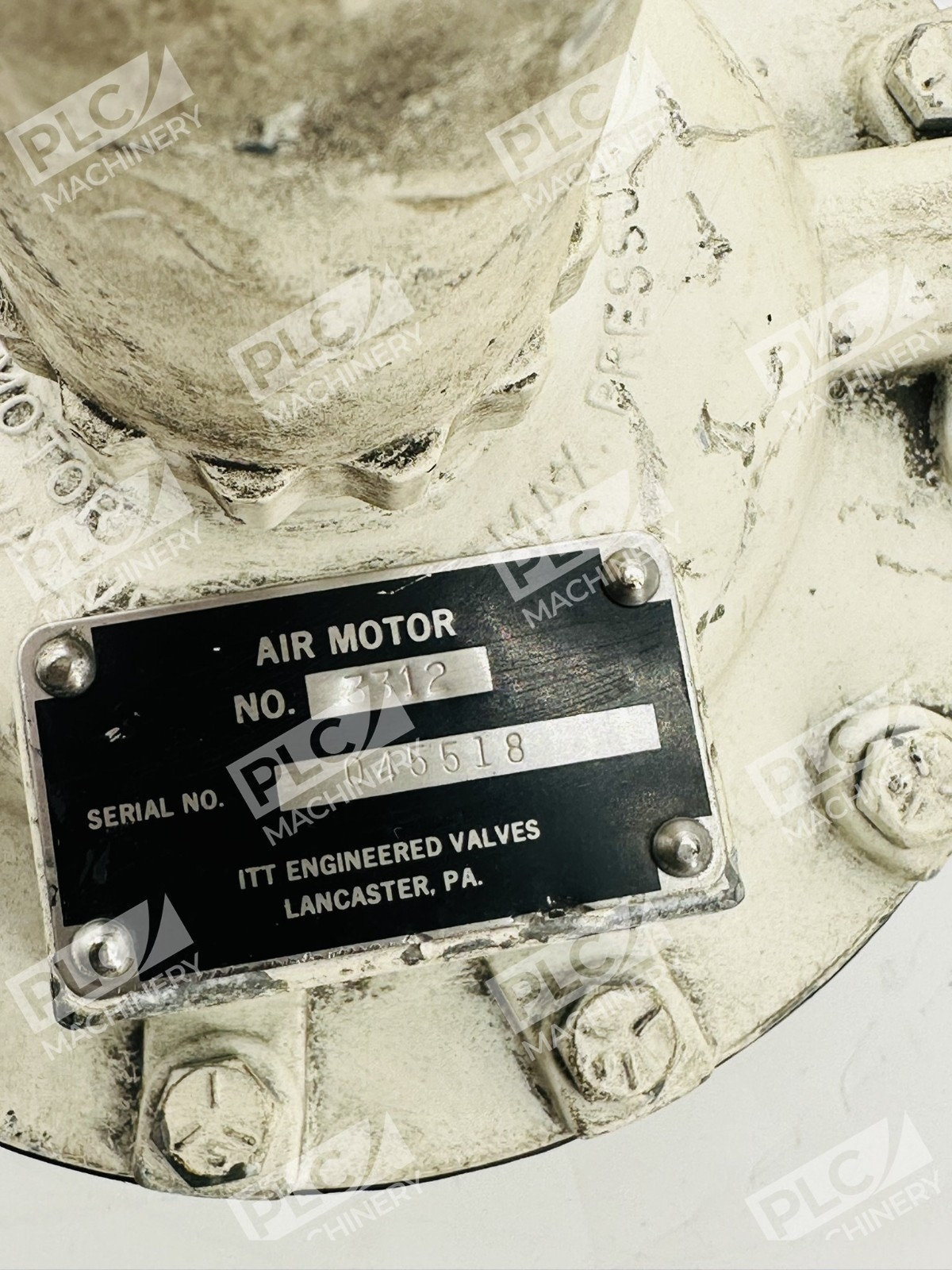

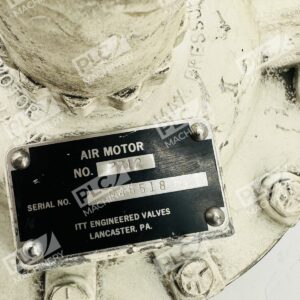

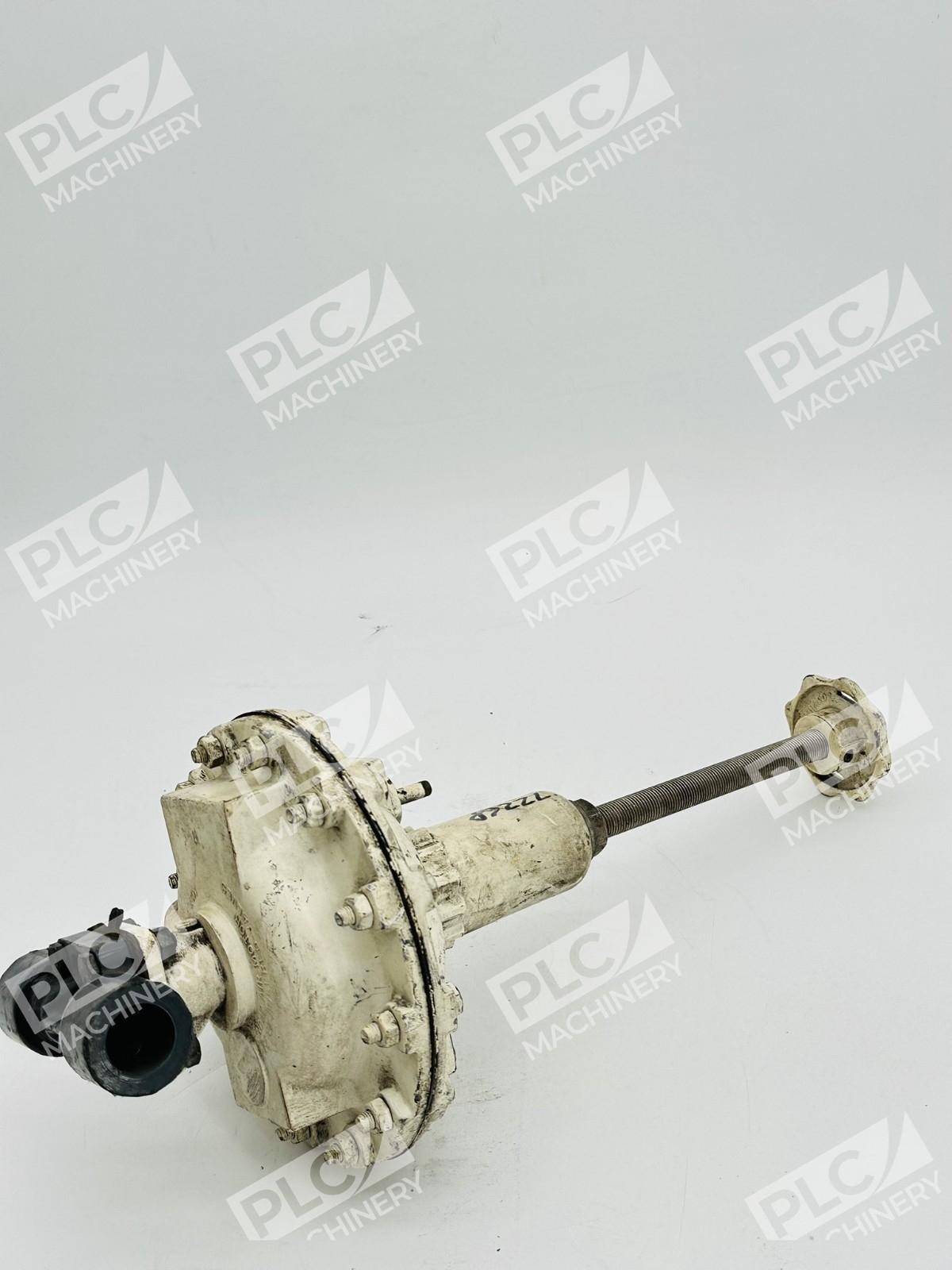

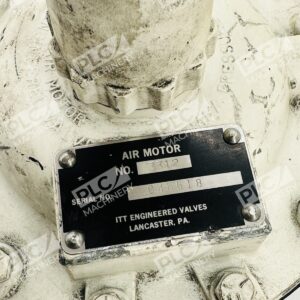

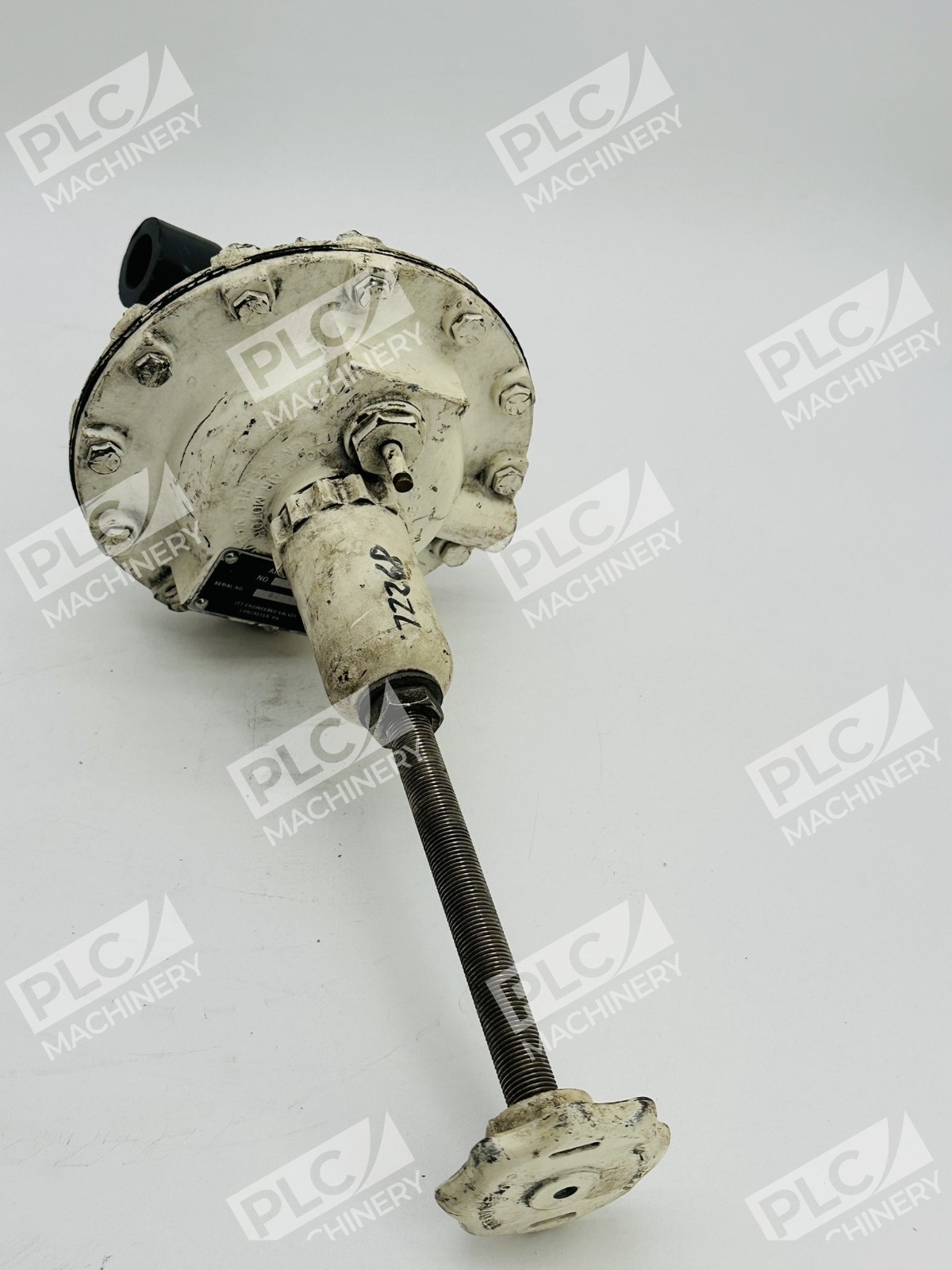

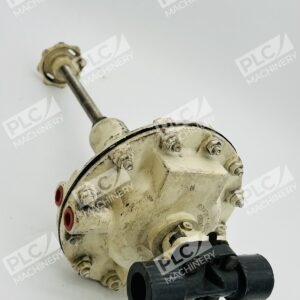

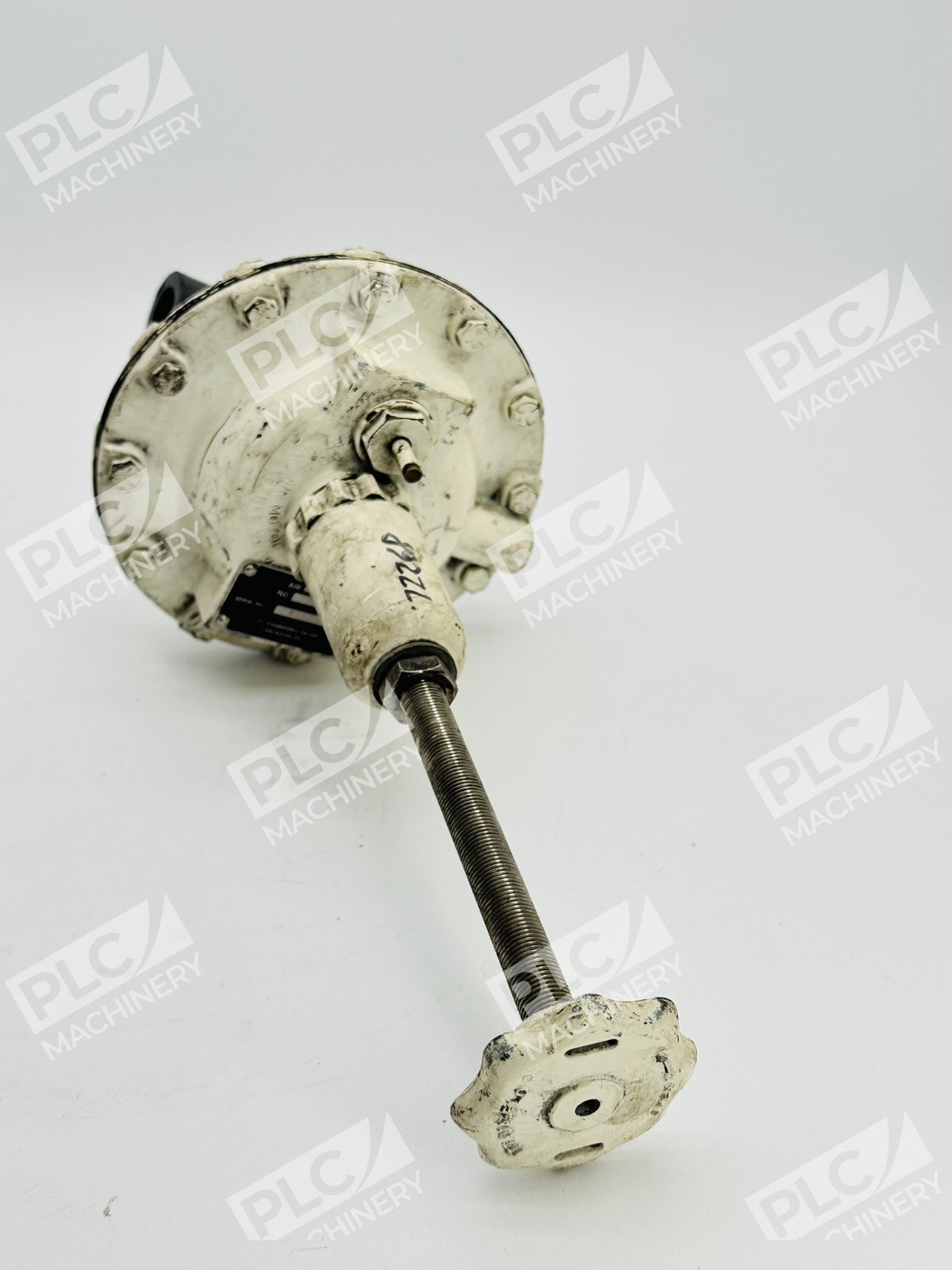

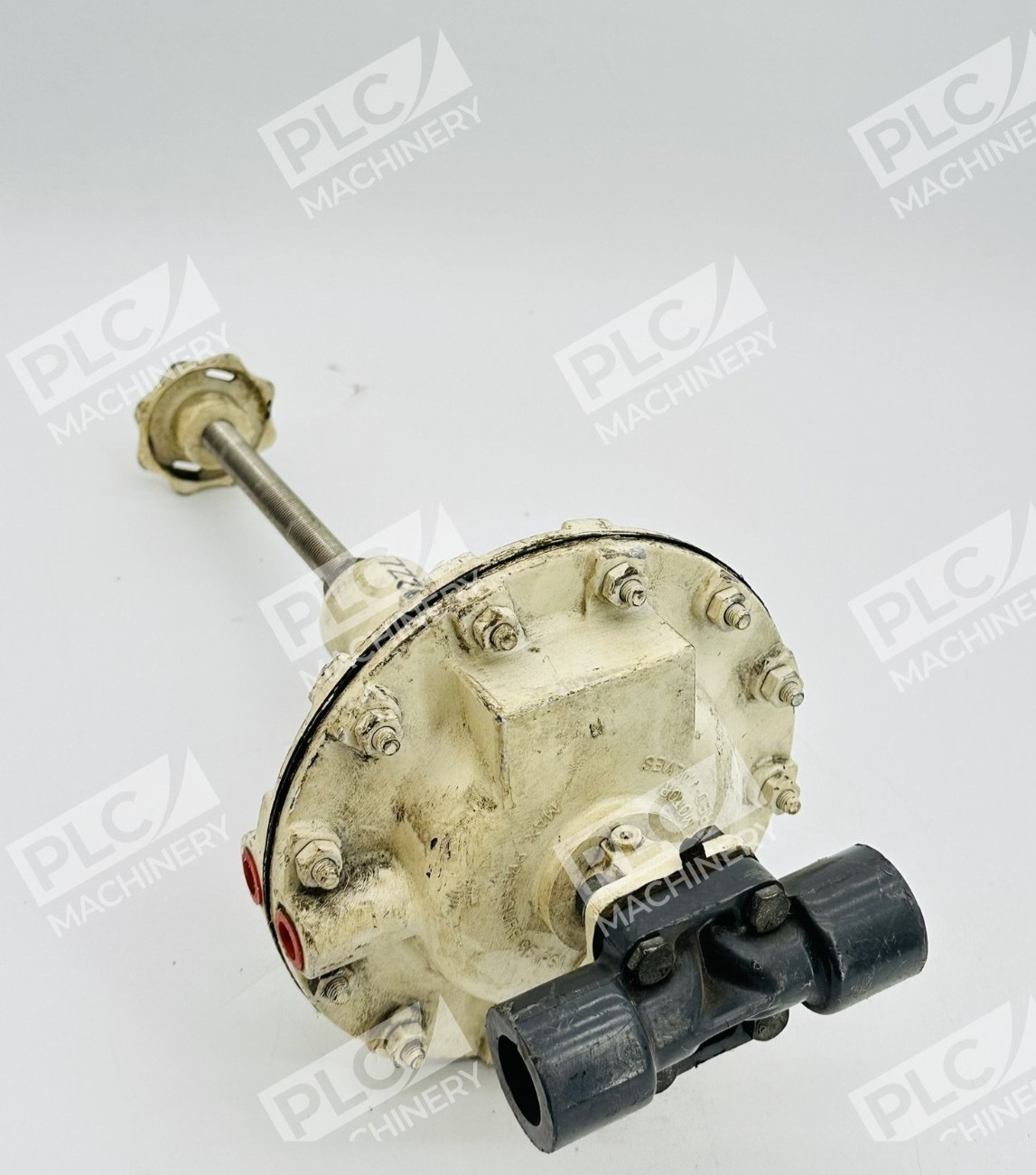

The ITT 3312 air motor actuator is a pneumatic-operated valve control assembly manufactured by ITT Engineered Valves. This double-acting air motor model is designed for reliable, precise valve operation in industrial piping and process control systems. As part of the ITT 3300 series, the 3312 combines compact design with durable construction to meet the demands of low-pressure pneumatic applications.
Key Features
- Double-acting pneumatic operation for bidirectional valve control
- Compact, lightweight design for space-constrained installations
- Durable construction suitable for sustained industrial use
- Smooth, repeatable actuator response
- Compatible with standard piping systems and diaphragm valves
- No stalling risk under continuous operation or pressure load
Technical Specifications
The following specifications apply to the ITT 3312 air motor actuator:
| Manufacturer | ITT Engineered Valves |
| Model Number | 3312 |
| Series | 3300 Series (Double-Acting Air Motors) |
| Actuator Type | Pneumatic Air Motor |
| Operation | Double-Acting |
| Media | Compressed Air |
| Power Source | Pneumatic (requires compressed air supply) |
| Diaphragm Material | Buna-N (standard) |
| Response | Instant start/stop capability |
| Seal Type | O-ring seals |
Typical Applications
- General industrial valve automation and process control
- HVAC systems requiring pneumatic valve actuation
- Water treatment and distribution networks
- Low-pressure piping systems (residential and commercial)
- Food processing and beverage applications
- On/off valve control in automated production lines
Compatibility & Replacements
Compatible With
- ITT Grinnell diaphragm valves and ball valves
- ITT Dia-Flo diaphragm valve assemblies
- Standard compressed air supply systems (low-pressure pneumatic networks)
- Industrial piping with NPT or BSP threaded connections
- Valve manifolds and control panel assemblies
- Position indicators, limit switches, and solenoid accessories
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The ITT 3312 may be compatible with other ITT 3300 series double-acting air motor models depending on valve size, diaphragm type, and connection specifications.
Works With
- Compressed air supply systems (low-pressure pneumatic piping)
- Control solenoid valves for automated on/off operation
- Position indicators and travel stops
- Limit switches and proximity switch assemblies
- Standard industrial valve configuration and assembly practices
