Overview

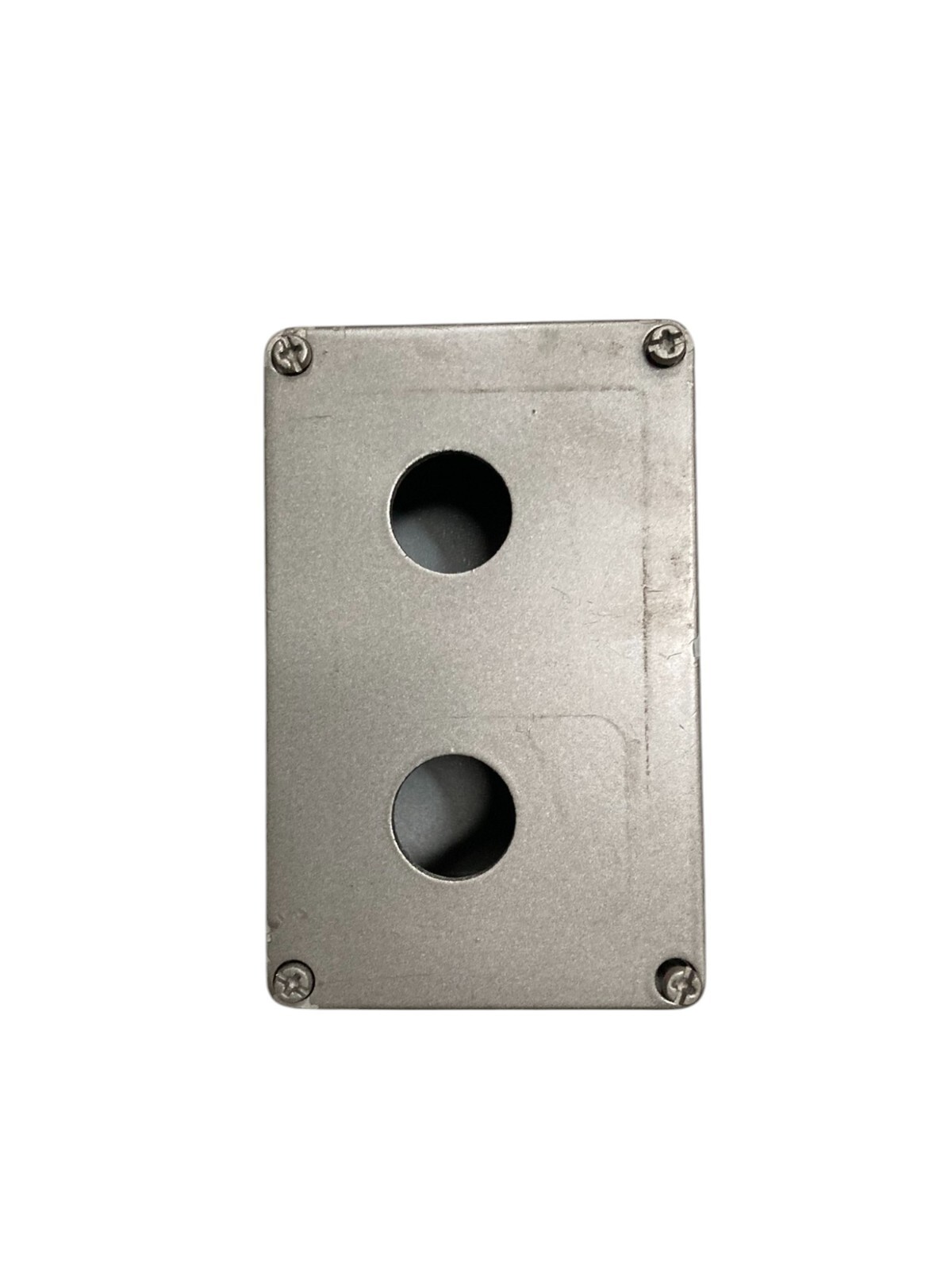

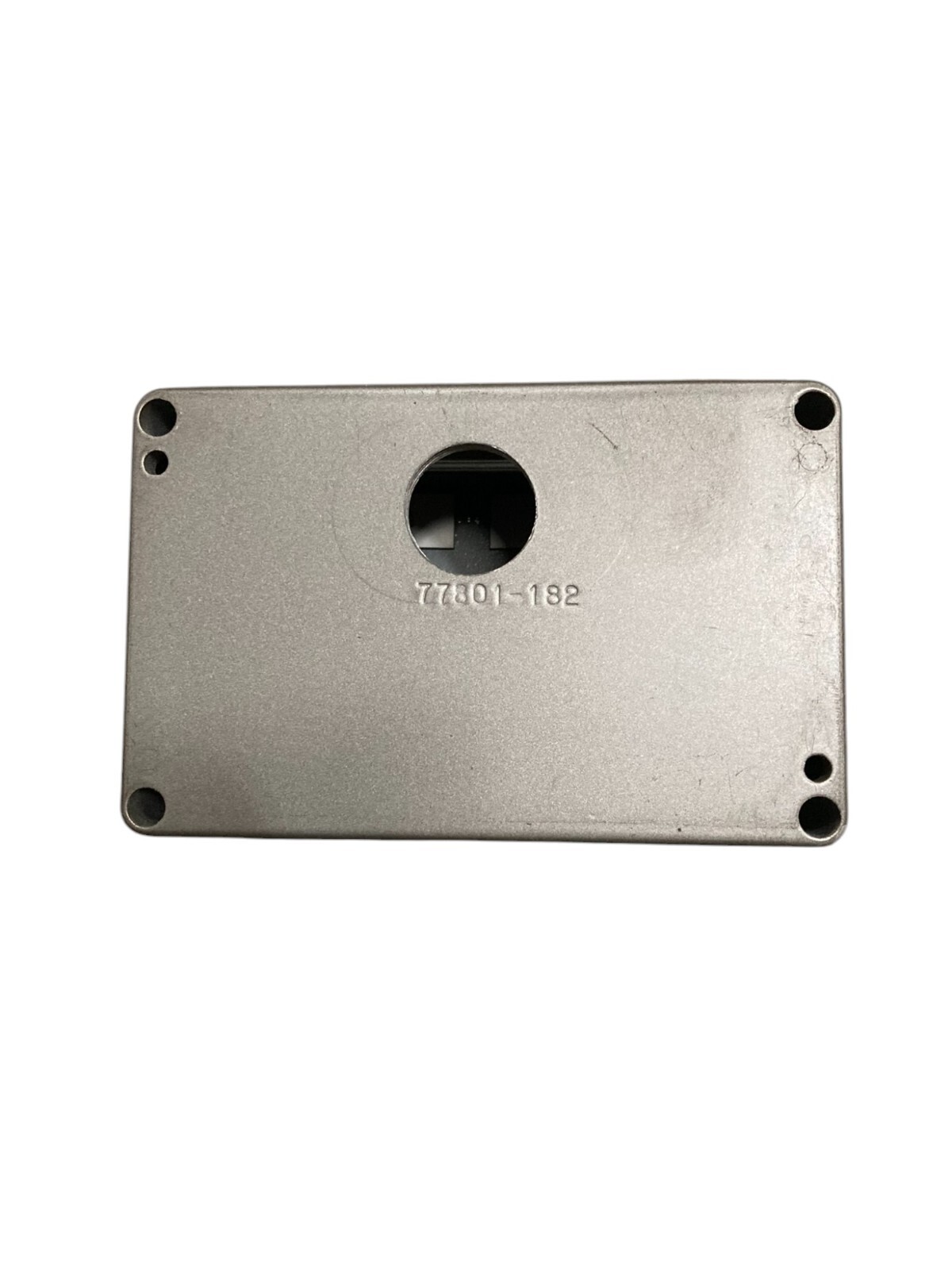

The BestTong 77301-182 is a small aluminum IP66 waterproof junction box engineered for outdoor and demanding electrical environments. This sealed metal enclosure features surface-mounted installation with two pre-drilled holes for easy wall or pole mounting. The compact form factor makes it ideal for cable transitions, wire terminations, and equipment protection in industrial, commercial, and residential applications.
Key Features
- IP66 waterproof and dustproof rating—complete protection against water jets and dust ingress
- Aluminum alloy construction—superior strength, fireproof, and corrosion-resistant compared to plastic alternatives
- Compact size (2.5″ × 2.2″ × 1.3″)—fits tight spaces and minimizes visual footprint
- Two pre-drilled mounting holes for secure wall or surface installation
- Grey anodized finish—enhances durability and UV resistance
- Sealed design—integrated gaskets and fasteners prevent environmental contamination
Technical Specifications
| Model Number | 77301-182 |
| Manufacturer | BestTong |
| Width | 2.5 inches (64 mm) |
| Height | 2.2 inches (58 mm) |
| Depth | 1.3 inches (35 mm) |
| Weight | 0.29 pounds |
| Material | Aluminum Alloy |
| Color | Grey |
| Mounting Holes | 2 |
| Protection Rating | IP66 (Waterproof, Dustproof) |
| Installation Type | Surface Mount |
| Mounting Method | Wall or Pole Mount |
Typical Applications
- Outdoor cable transition points and junction terminations
- HVAC and mechanical equipment electrical connections
- Industrial machinery control point enclosures
- Solar panel and renewable energy system wiring consolidation
- Telecommunications and network cable routing
- Water treatment and pump station electrical protection
- Marine and coastal environment installations where corrosion resistance is critical
Compatibility & Replacements
Compatible With
- Standard M4 and M5 mounting hardware
- AWG 14–2 gauge electrical wire
- Industrial-grade conduit and cable glands
- Outdoor electrical enclosure mounting systems
- Standard aluminum junction box installation practices
Replaces / Drop-In Replacement For
The BestTong 77301-182 serves as a direct replacement for comparable compact IP66 aluminum junction boxes of the same footprint. Verify compatibility with your system integrator before ordering to ensure hole placement and mounting specifications match your existing installation.
Works With
- Terminal blocks and DIN rail components
- Cable glands and conduit fittings rated IP66 or higher
- Gaskets and sealing compounds compatible with aluminum
- Standard electrical fasteners and hardware
- Industrial-grade weatherproofing sealants
