Overview

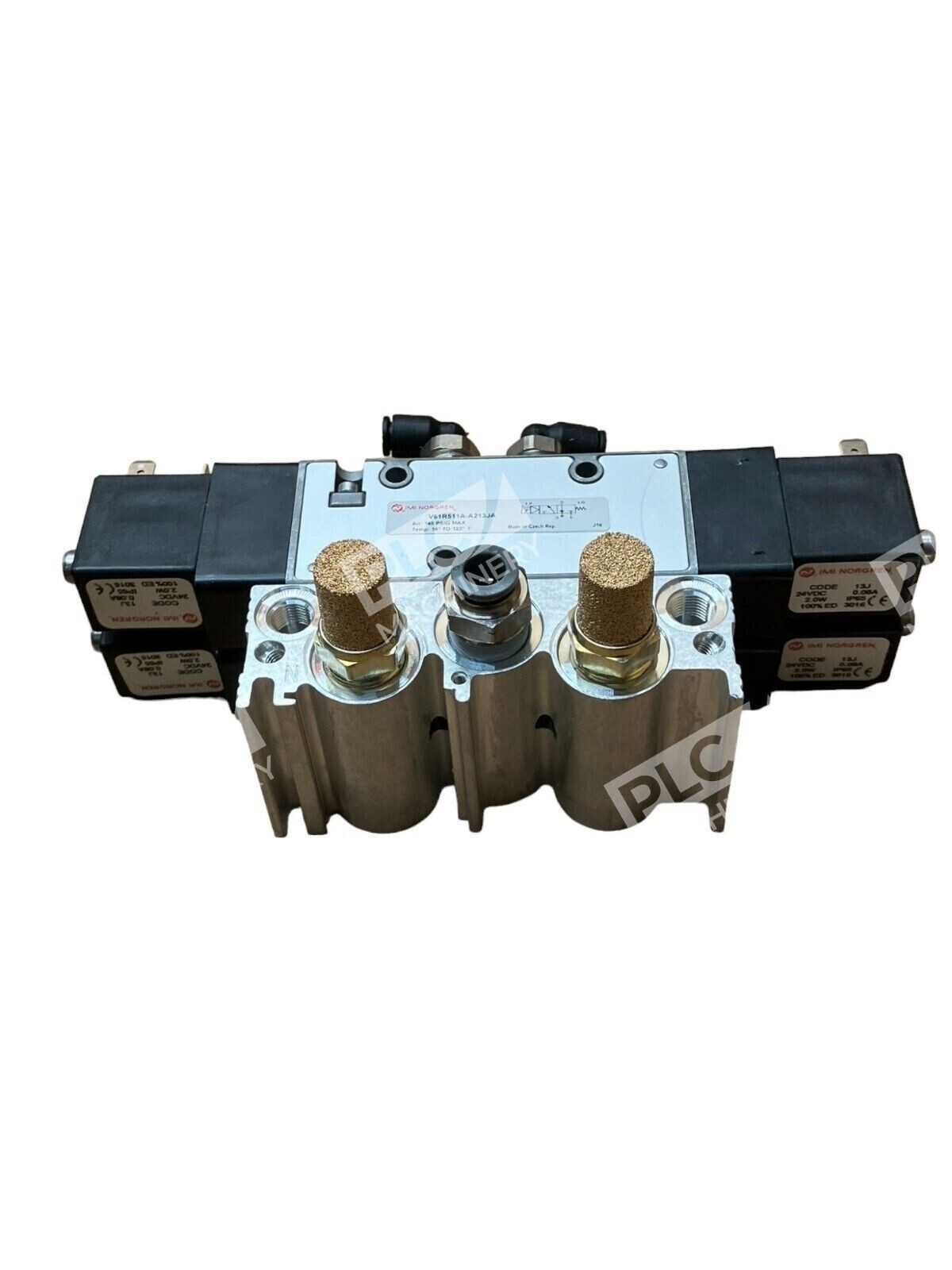

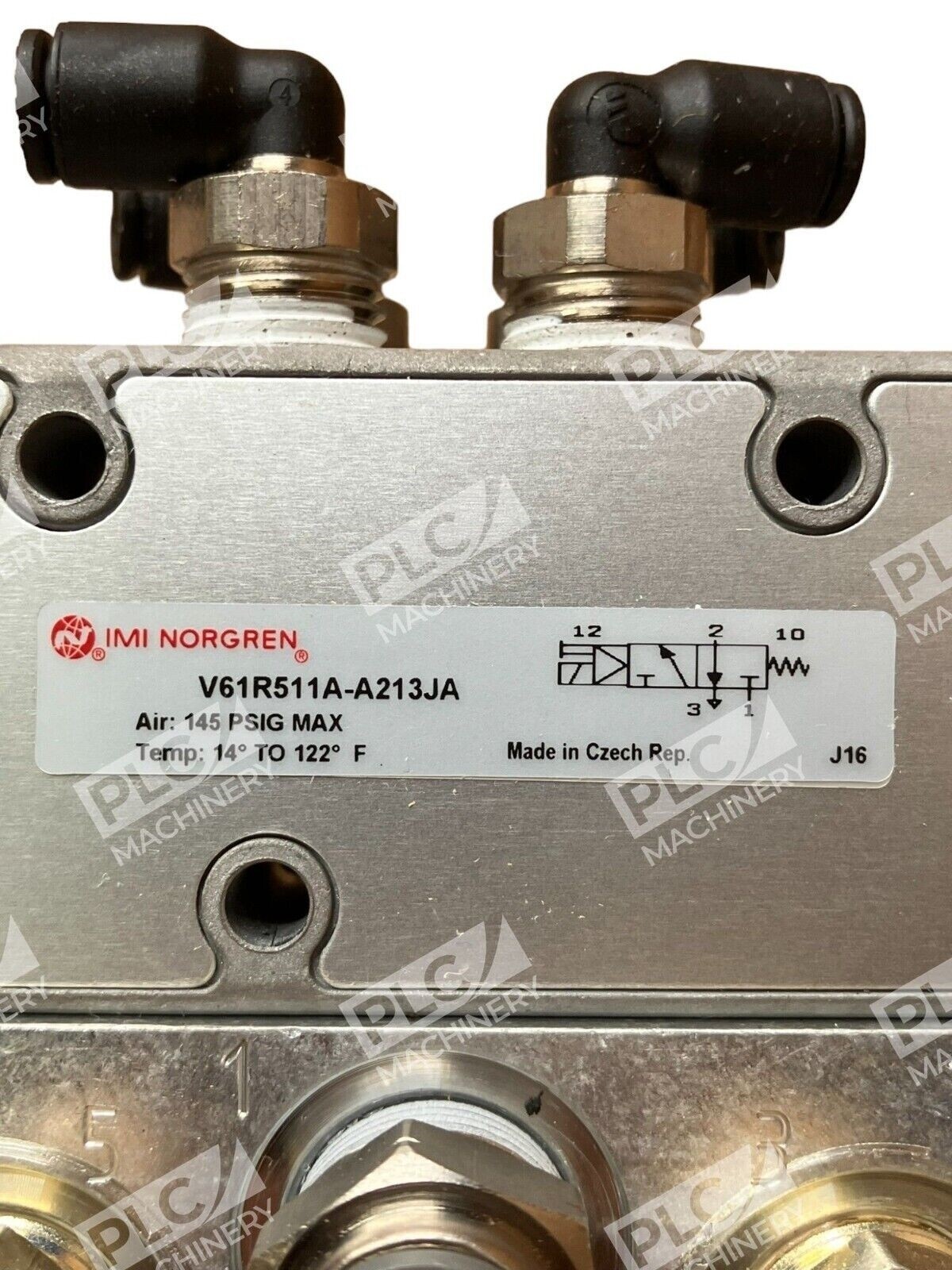

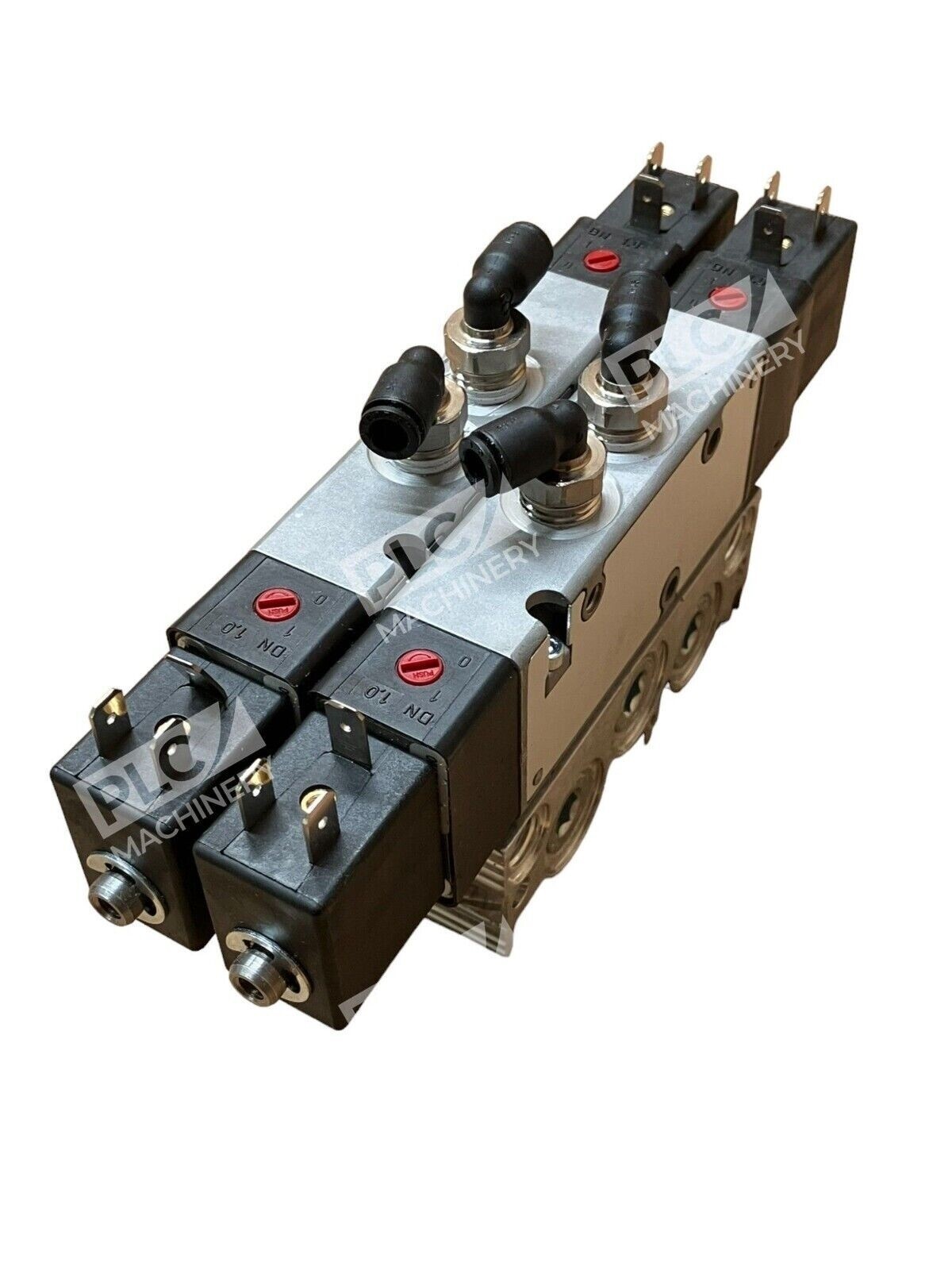

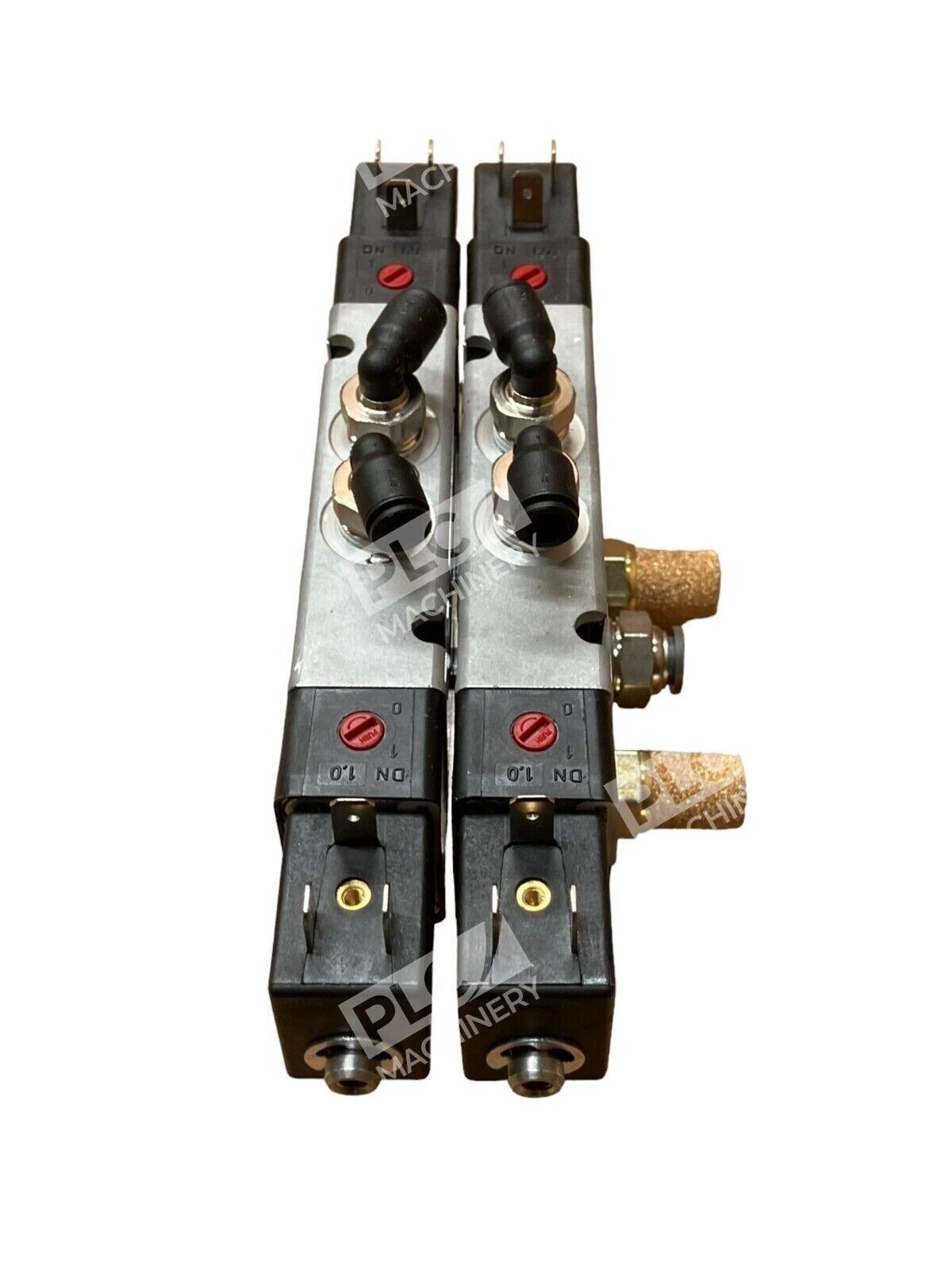

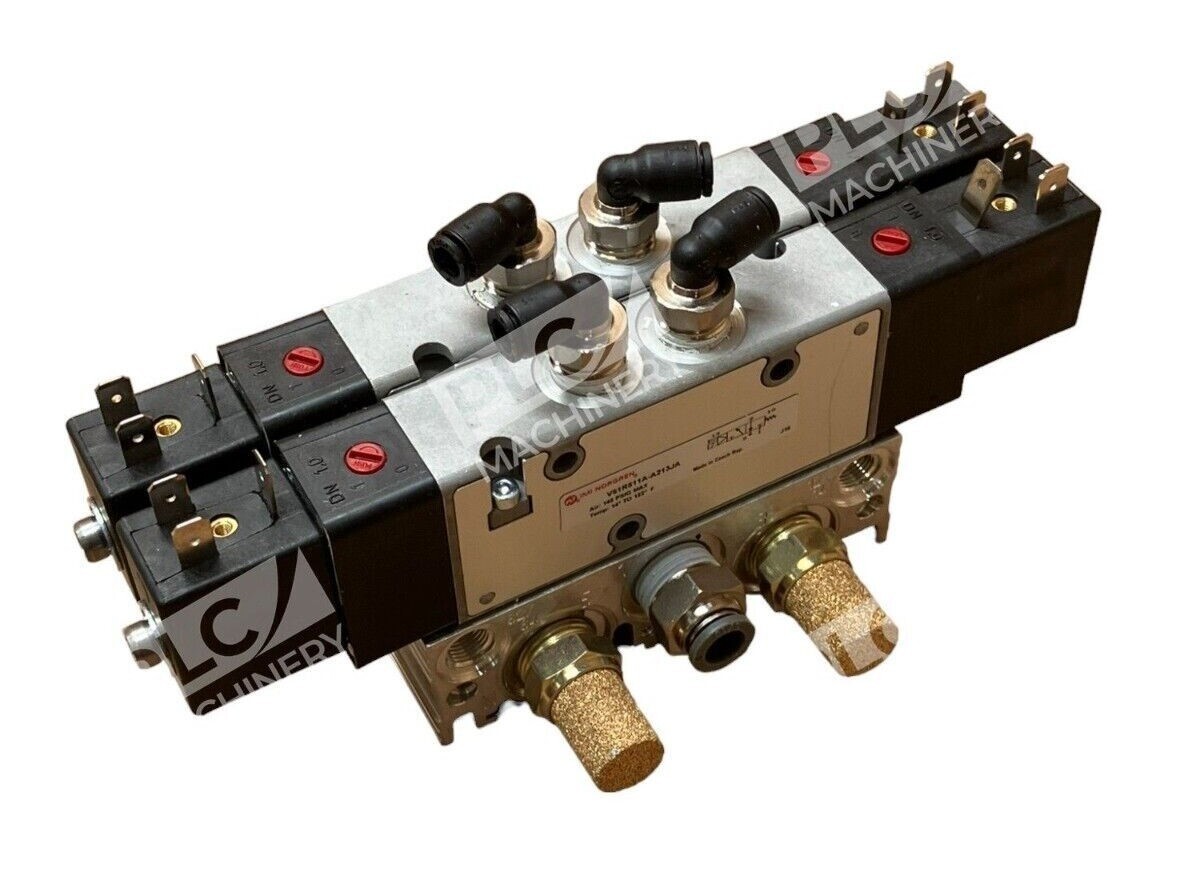

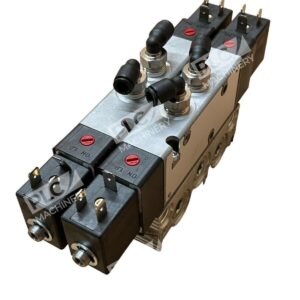

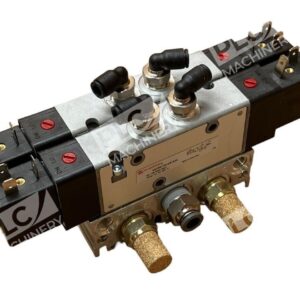

The IMI Norgren V61R511A-A213JA is a 5/2 solenoid-actuated directional control valve from the V60-V62 series, engineered for compressed air applications. This inline solenoid valve features 24VDC operation with low-power 2W continuous-duty solenoids and 1/4″ NPT ports. Operating pressures range from 2 to 10 bar (29–145 psi), making it suitable for both standard and high-pressure pneumatic systems. The aluminum housing and NBR seals ensure durability in industrial environments.
Key Features
- 5/2 Solenoid-Actuated Configuration: Provides reliable directional switching in pneumatic circuits
- Low Power Solenoids: 2W continuous-duty rating reduces electrical load and operating costs
- High Flow Capacity: 1300 L/min flow rate supports demanding pneumatic applications
- 1/4″ NPT Ports: Standard connection size for easy integration into existing systems
- IP65 Protection: Sealed solenoid coil resists dust and moisture ingress
- Aluminum Housing: Lightweight yet durable construction for industrial use
Technical Specifications

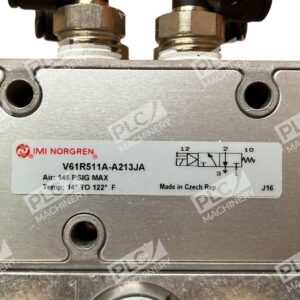

- Operating Pressure Range: 2–10 bar (29–145 psi)
- Flow Rate: 1300 L/min

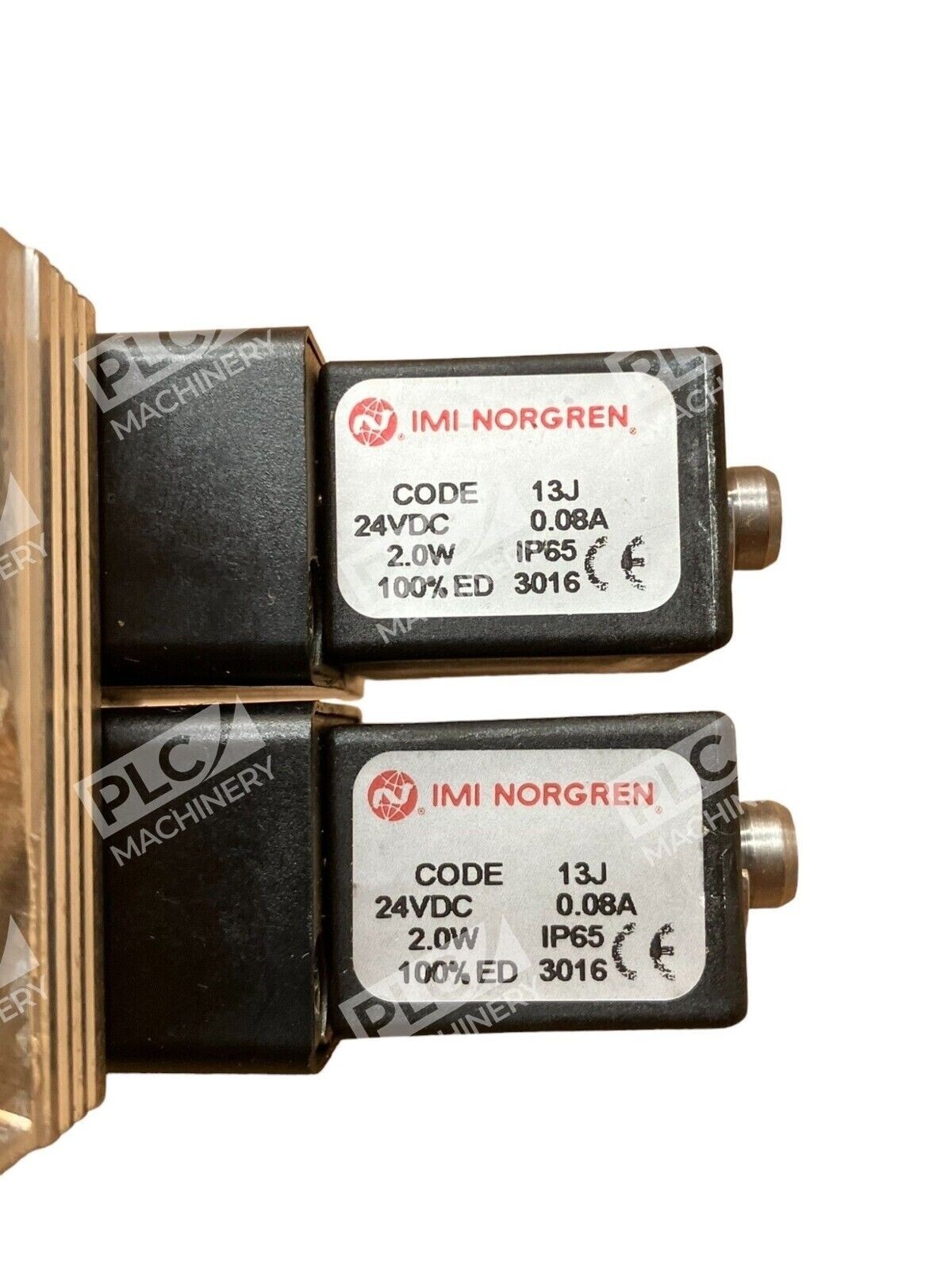

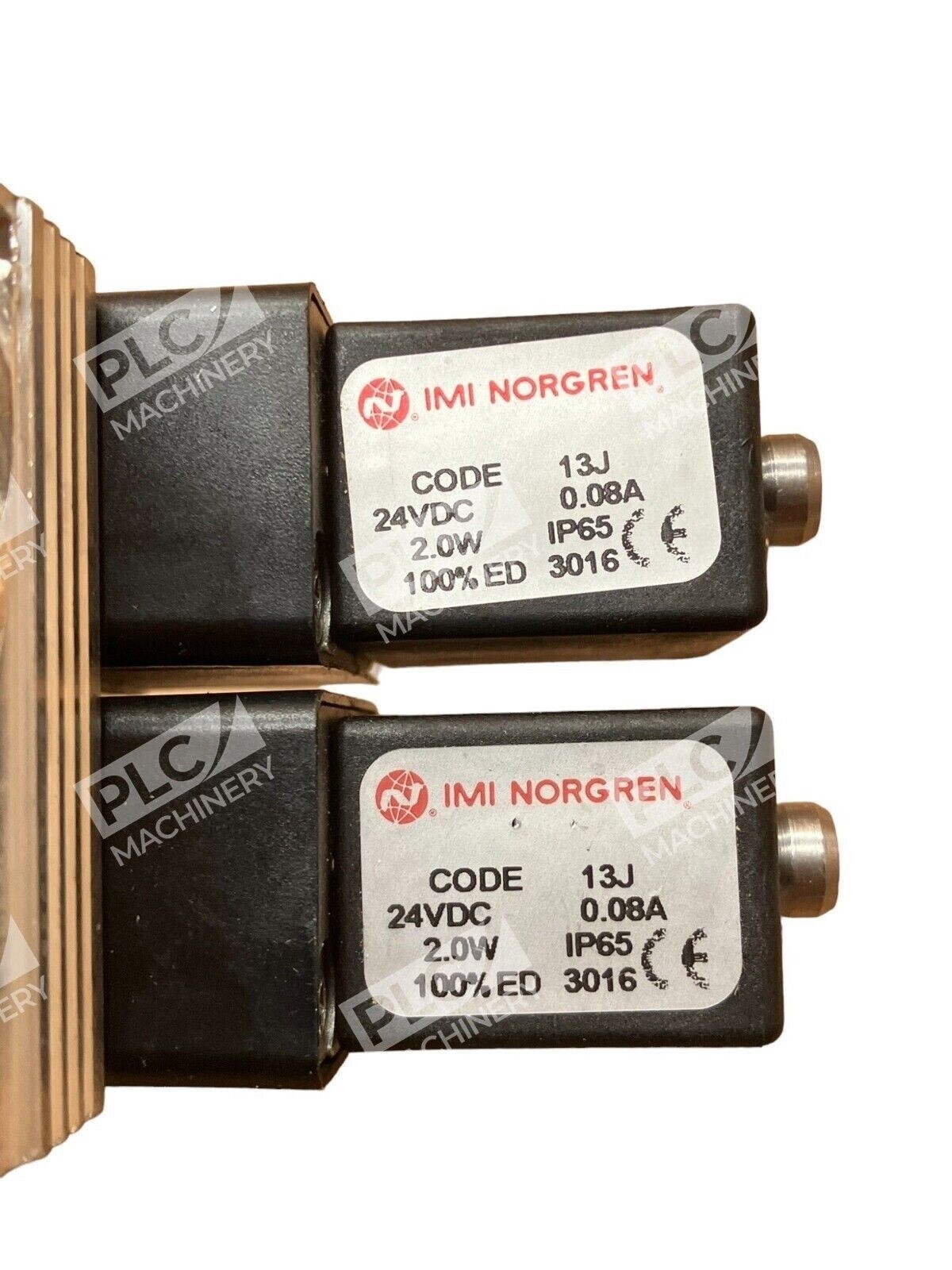

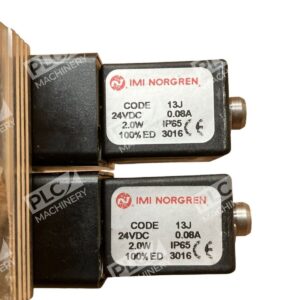

- Solenoid Voltage: 24VDC

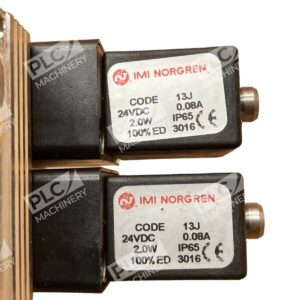

- Solenoid Power Rating: 2W continuous duty
- Fluid Temperature Range: -10 to 50°C (14 to 122°F)
- Port Size: 1/4″ NPT
- Valve Configuration: 5/2 directional control
- Actuation Method: Solenoid pilot/solenoid pilot
- Housing Material: Aluminum
- Seal Material: NBR
- Protection Rating: IP65
- Medium: Compressed air (filtered to 50 μm, lubricated or non-lubricated)
Typical Applications
The V61R511A-A213JA is well-suited for a range of industrial pneumatic applications, including:
- Industrial automation and assembly equipment
- Pneumatic actuator control circuits
- Material handling and conveyor systems
- Machine tool positioning and clamping systems
- Hydraulic pre-pilot and logic control circuits
- Equipment requiring low-power solenoid actuation with high flow rates
Compatibility & Replacements
Compatible With
- Standard pneumatic systems operating on compressed air filtered to 50 μm
- 24VDC control circuits and PLC outputs
- 1/4″ NPT ported manifolds and sub-bases
- Lubricated and non-lubricated air systems
Replaces / Drop-In Replacement For
- V61R511A-A213JB (alternative connector configuration)
- Other V60-V62 series 5/2 solenoid valves with identical port and voltage specifications
Works With
- IMI Norgren sub-bases and manifold mounts (0100563, 0101796)
- Compatible silencers (MS002A)
- Replacement solenoid coils (54469-02)
- Standard 1/4″ NPT fittings and adapters
- Industrial control systems using 24VDC switching logic
