Overview
The Hubbell Raco 2753 is a rugged 90-degree EMT conduit pull elbow engineered for reliable electrical installations in industrial and commercial settings. This female-to-female pull elbow is 3/4 inch trade size with die cast zinc construction, providing mechanical protection and durability in dry locations. Used with set screw fastening to couple two ends of EMT conduit, the 2753 eliminates the need for on-site conduit bending, making installation faster and more efficient.
Key Features
- 90-degree elbow rated for 3/4″ EMT conduit with female-to-female connection
- Die cast zinc construction for durability and consistent performance
- Set screw fastening for fast, tool-free assembly
- Suitable for dry locations where bending conduit is impractical

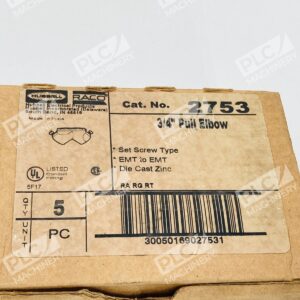

- Box quantity: 5 units per order
Technical Specifications
- Inner diameter: 15/16 in, Outer diameter: 1-3/16 in, Length: 1-13/32 in
- Material: Die cast zinc, Silver finish
- Connection Type: Female-to-female threaded
- Trade Size: 3/4 inch
- Angle: 90 degrees
Typical Applications
The Raco 2753 is ideal for:
- Factory and machine tool wiring
- Building electrical installations requiring fixed conduit offsets
- Panel and enclosure inlet connections
- Any dry location where EMT conduit routing requires directional changes
- Retrofit and maintenance applications where conduit bending is not feasible
Compatibility & Replacements
Compatible With
- 3/4″ EMT (Electrical Metallic Tubing) conduit systems
- Female-threaded conduit hubs and connectors rated for 3/4″ trade size
- Standard electrical boxes and enclosures with 3/4″ knockout openings
- Dry indoor locations per NEC guidelines
Replaces / Drop-In Replacement For
Verify compatibility with your electrical contractor or system integrator before ordering alternate or equivalent models.
Works With
- 3/4″ EMT conduit and fitting systems
- Standard set screw fastening tools
- UL-listed and CSA-certified electrical installations
