Overview

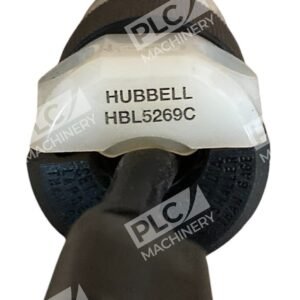

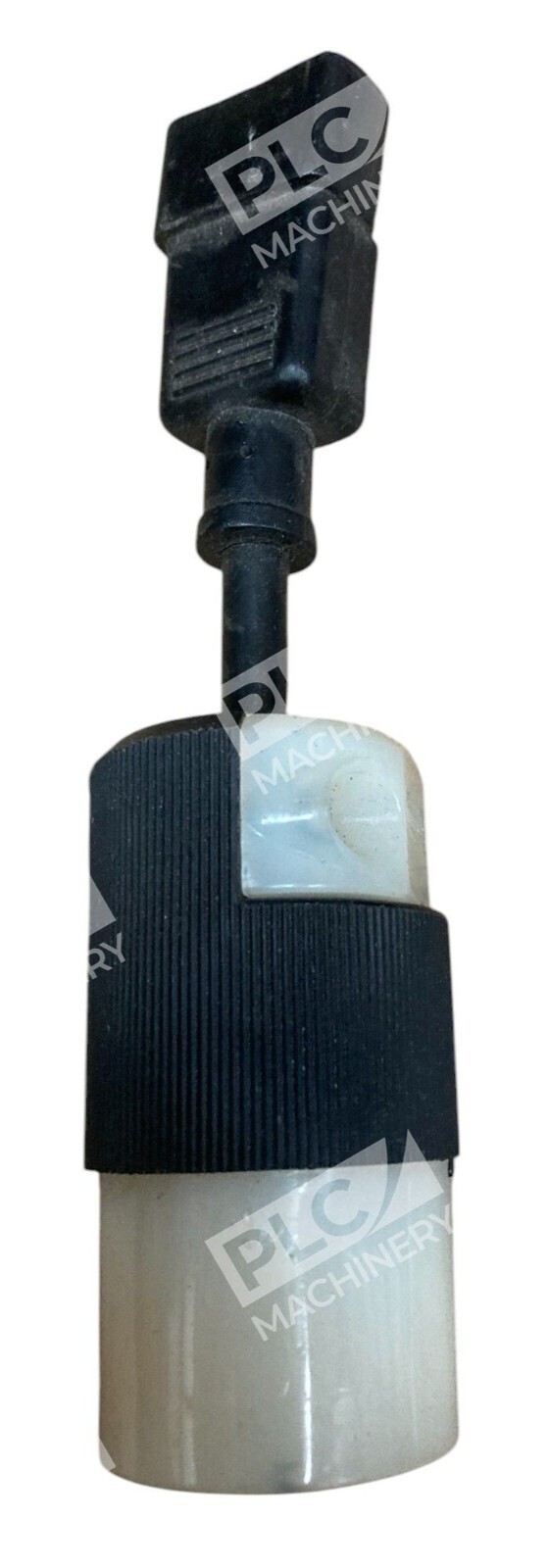

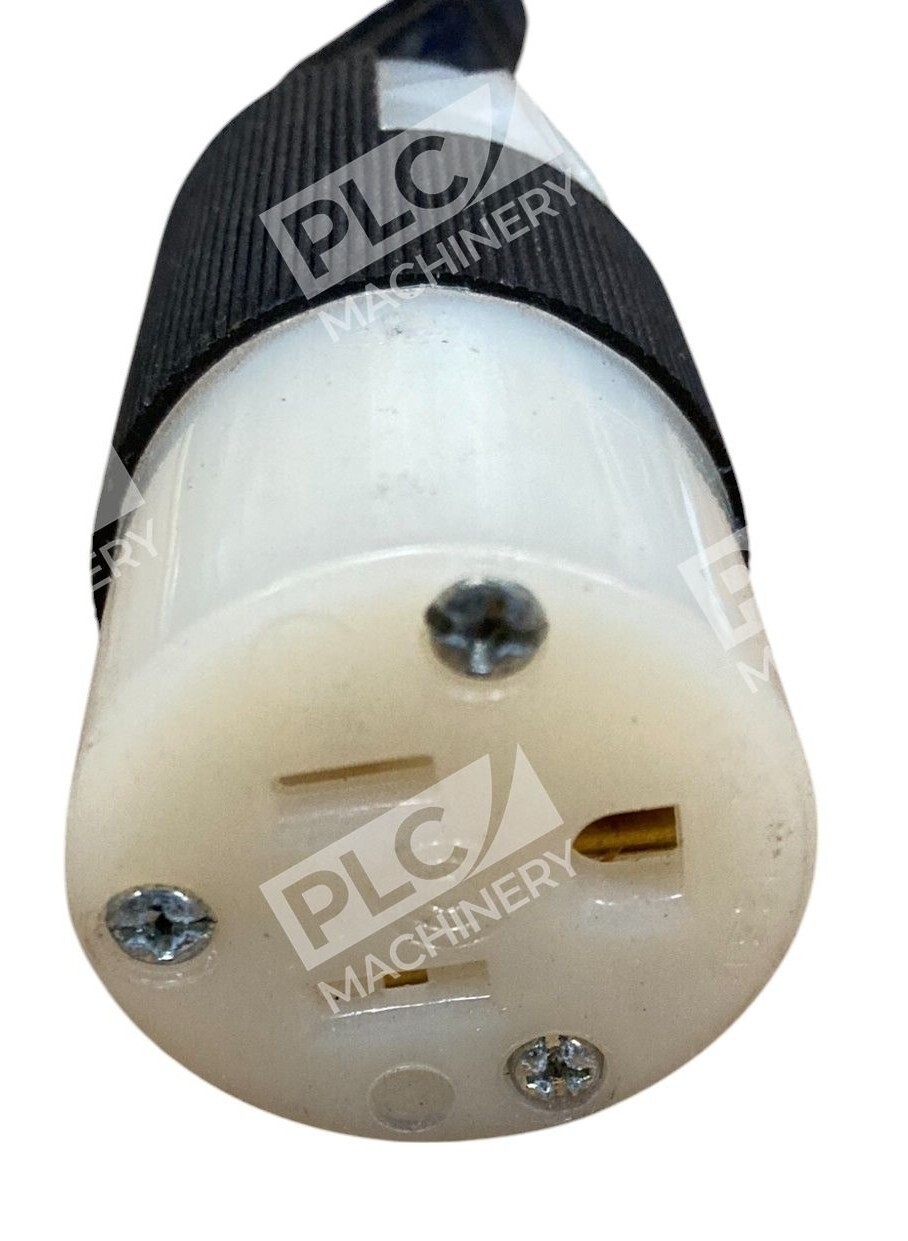

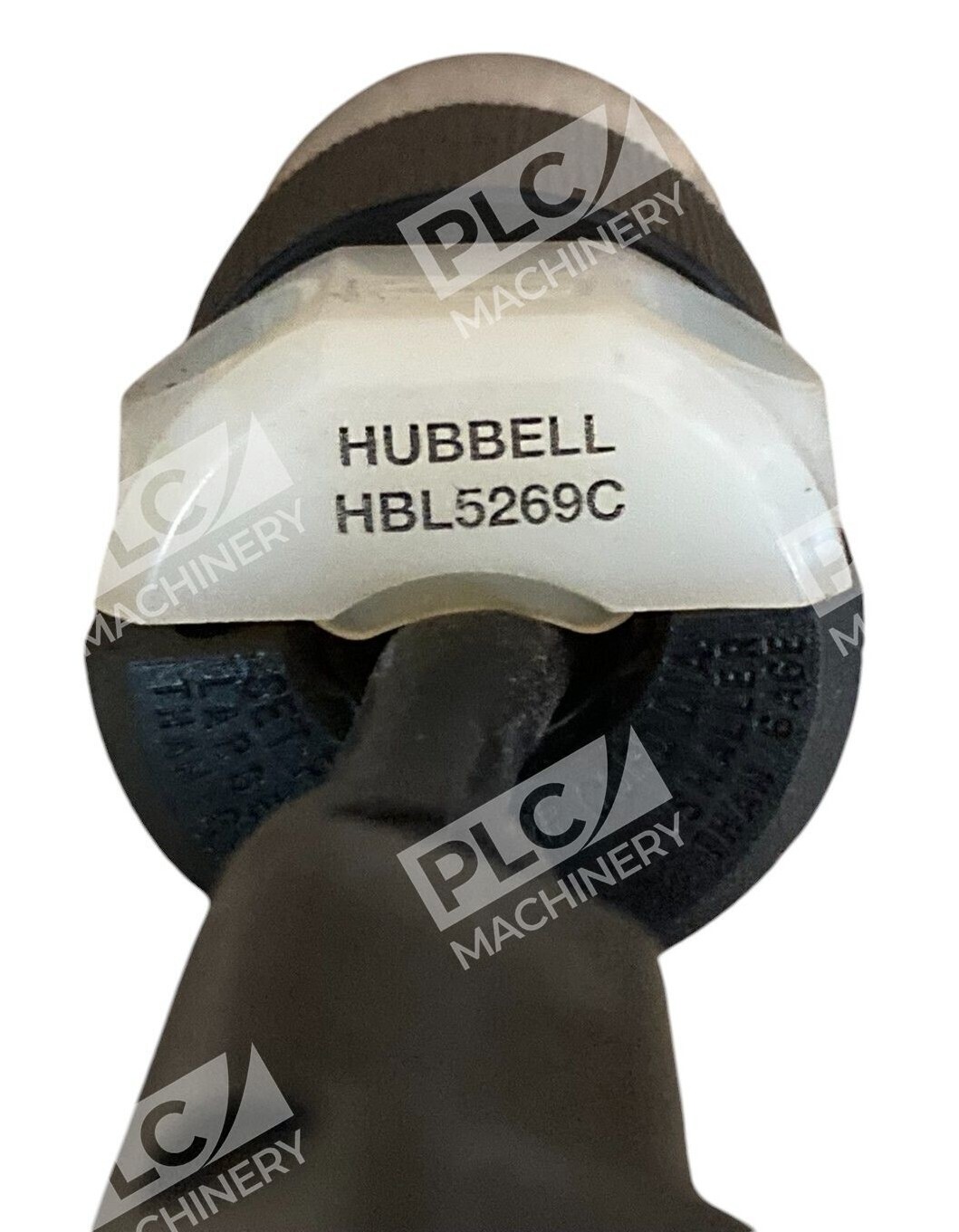

The Hubbell HBL5269C is an Insulgrip® heavy-duty straight blade power connector receptacle designed for industrial and commercial electrical applications. Rated at 15A 125V with NEMA 5-15R configuration, this cord-mounted female connector provides a secure, grounded connection with polycarbonate and nylon construction that withstands demanding environments. The connector features screw/clamp terminals for reliable power distribution.
Key Features
- 15A, 125V AC rated, 2-pole 3-wire grounding configuration
- NEMA 5-15R straight blade standard for universal compatibility
- Insulgrip® heavy-duty industrial/commercial grade construction
- Screw terminal connections for #18–#10 AWG solid copper wire
- Polycarbonate retainer with nylon housing and cord clamp
- Beveled housing design prevents snagging during installation
- UL Listed (UL498 File E1706) and CSA Certified (C22.2 No. 42 File 280)
- Operating temperature range: –40°C to +75°C
- 0.5 HP rating
Technical Specifications
- Amperage: 15A
- Voltage: 125V AC
- NEMA Rating: 5-15R
- Poles/Wires: 2-pole, 3-wire grounding
- Body Style: Straight blade, cord-mounted
- Terminal Type: Screw/clamp, pressure screw
- Wire Size: #18–#10 AWG (14–12 AWG typical)
- Cord Range: 0.300″–0.660″ (7.6–16.8 mm)
- Housing Material: Nylon (black), polycarbonate retainer
- Power Contacts: 0.040″ (1.0 mm) copper alloy
- Terminal Screws: #8–32 brass with multiple drive
- Dielectric Voltage: 2,000V minimum
- Operating Temperature: –40°C to +75°C
- Dimensions: 2.78″ length, 1.527″ diameter
- Weight: 0.15 lb
- Certifications: UL Listed, CSA Certified
- Standards: NEMA WD-6 compliant
Typical Applications
The Hubbell HBL5269C receptacle is ideal for industrial machinery, stage lighting, audio-visual equipment, portable power applications, and any commercial or industrial setup requiring a standard 15A 125V connection. Its heavy-duty Insulgrip construction makes it suitable for harsh environments where durability and reliability are critical. Commonly used in manufacturing facilities, entertainment venues, data centers, and general MRO (maintenance, repair, operations) applications.
Compatibility & Replacements
Compatible With
- Standard NEMA 5-15P plugs and power cords
- Any equipment rated for 15A 125V AC service
- Industrial and commercial electrical systems
- Portable generators and temporary power distribution
- Overhead power systems and cable assemblies
Replaces / Drop-In Replacement For
- Other NEMA 5-15R straight blade receptacles (verify mounting footprint)
- Hubbell Insulgrip female connectors with equivalent NEMA 5-15R rating
- Standard industrial 15A 125V receptacles in existing installations
Works With
- NEMA 5-15P male plugs (standard configuration)
- Standard North American 125V power systems
- Cordsets and power distribution equipment rated 15A 125V
- Portable and stationary equipment requiring grounded power connections
