Overview

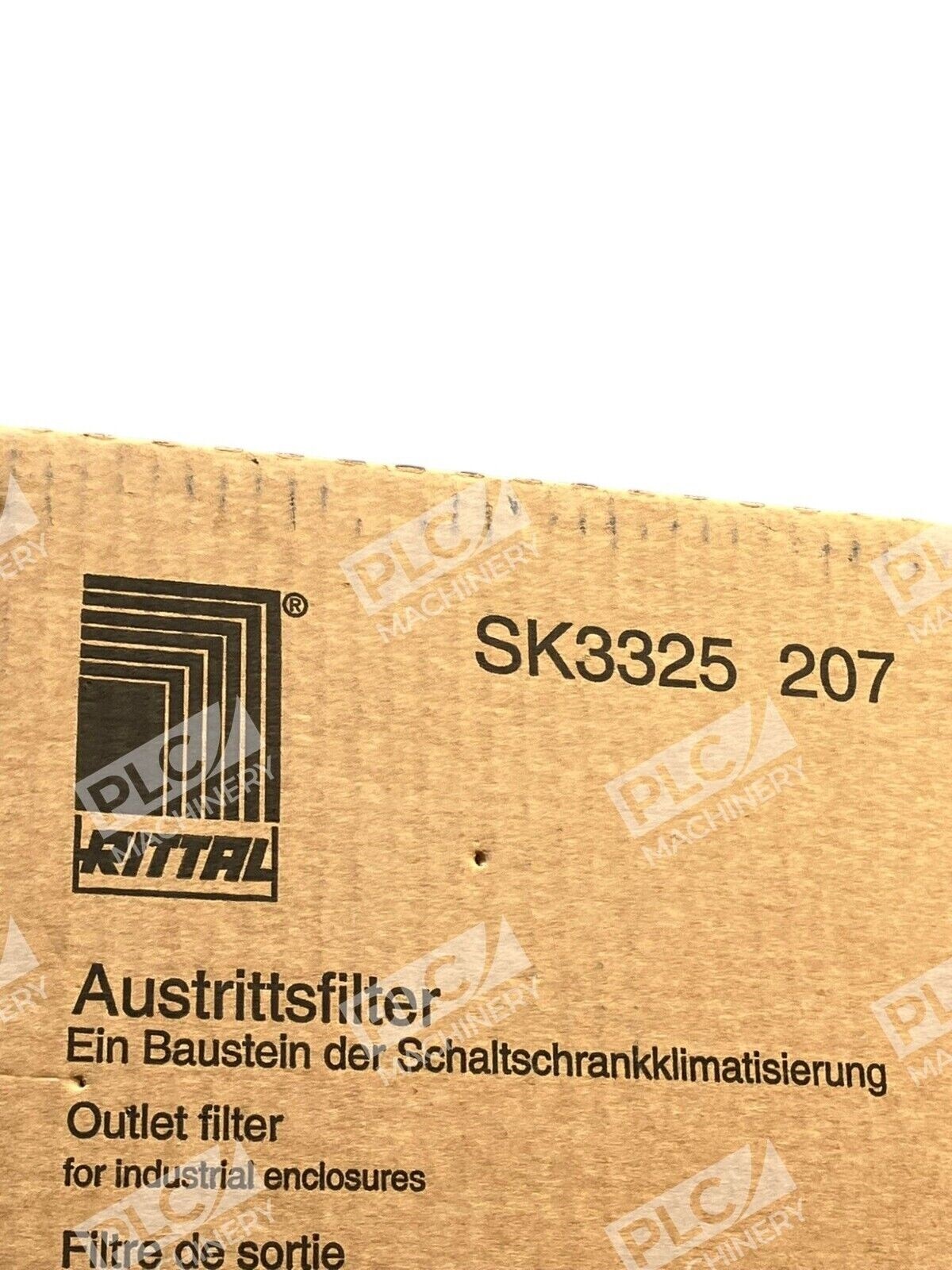

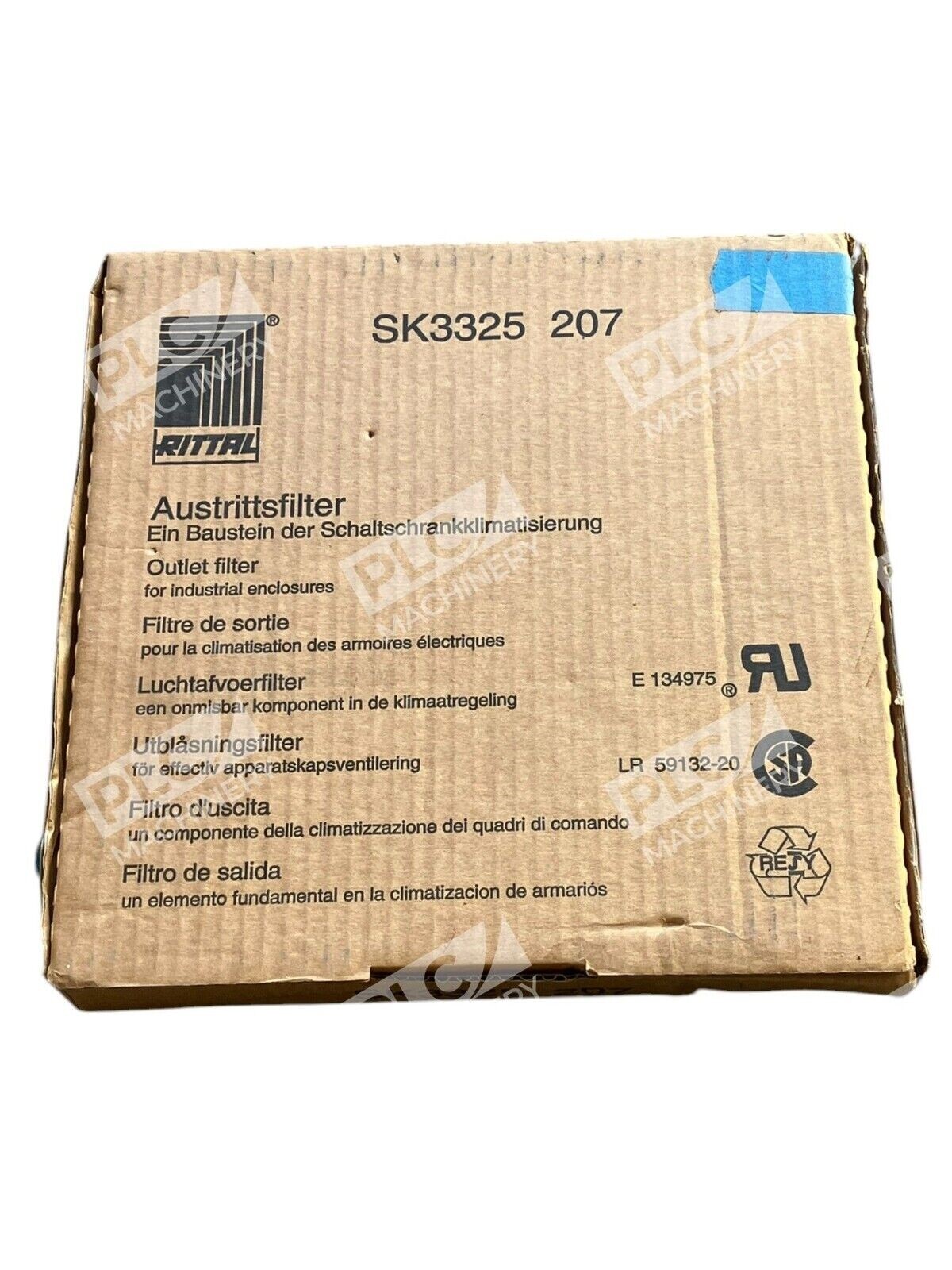

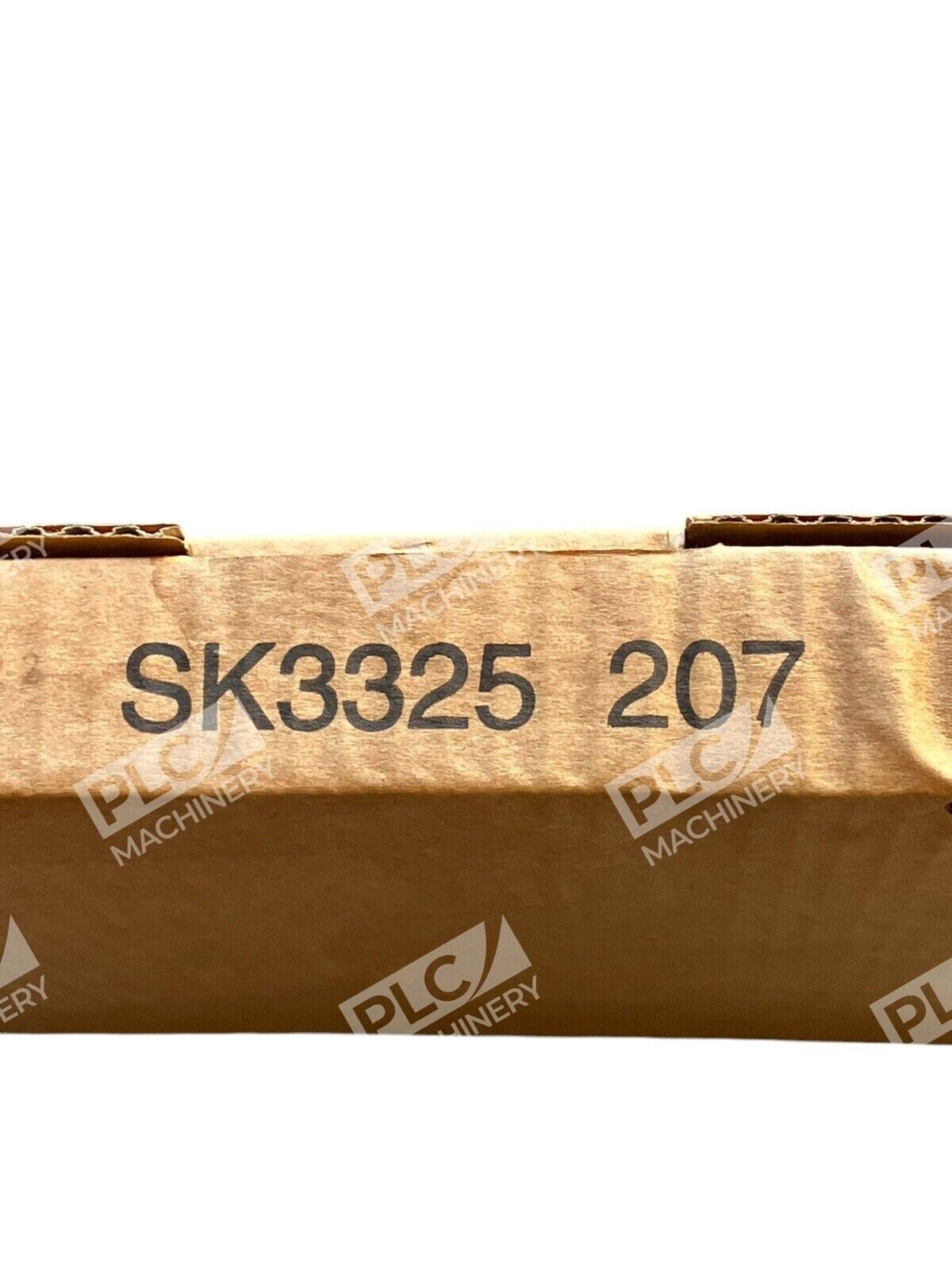

The Rittal SK3325-207 outlet filter is engineered for industrial enclosure applications requiring dependable air filtration. With external dimensions of 10″ x 10″ x 1.25″ and an 8.82″ square cutout, this filter integrates seamlessly into Rittal 3325XXX series enclosures. The SK3325-207 maintains consistent performance across demanding industrial environments while protecting sensitive equipment from airborne contaminants and dust.
Key Features
- 10×10″ overall dimensions with 1.25″ depth for compact installation
- 8.82″ x 8.82″ cutout size for precise fit in Rittal enclosures
- Suitable for fan and filter unit applications
- Operating temperature range: -10°C to +55°C
- IP54 protection class rating
- Light grey finish (RAL 7035)
Technical Specifications
- Exterior Dimensions: 10″ x 10″ x 1.25″ (255mm x 255mm)
- Cutout Size: 8.82″ x 8.82″ (224mm x 224mm)
- Operating Temperature Range: -10°C to +55°C
- Protection Class: IP54
- Color: Light Grey (RAL 7035)
- Series: SK3325
- Mounting: Direct fit for Rittal 3325XXX enclosures
Typical Applications
The SK3325-207 is ideal for:
- Control enclosures requiring filtered ventilation
- Industrial automation and manufacturing environments
- Electrical enclosures with high dust exposure
- HVAC systems in enclosed equipment cabinets
- Facilities requiring IP54-rated protection
Compatibility & Replacements
Compatible With
- Rittal 3325XXX series enclosures
- Rittal fan and filter units
- Industrial enclosures with 8.82″ square mounting cutout
Replaces / Drop-In Replacement For
- Direct replacement for original Rittal SK3325-207 filters
- Compatible with standard Rittal SK3325 series filter applications
Works With
- Rittal KX, KY, and TS enclosure series (with compatible dimensions)
- Standard 10×10″ filter mounting plates
- Industrial ventilation and climate control systems
