Overview

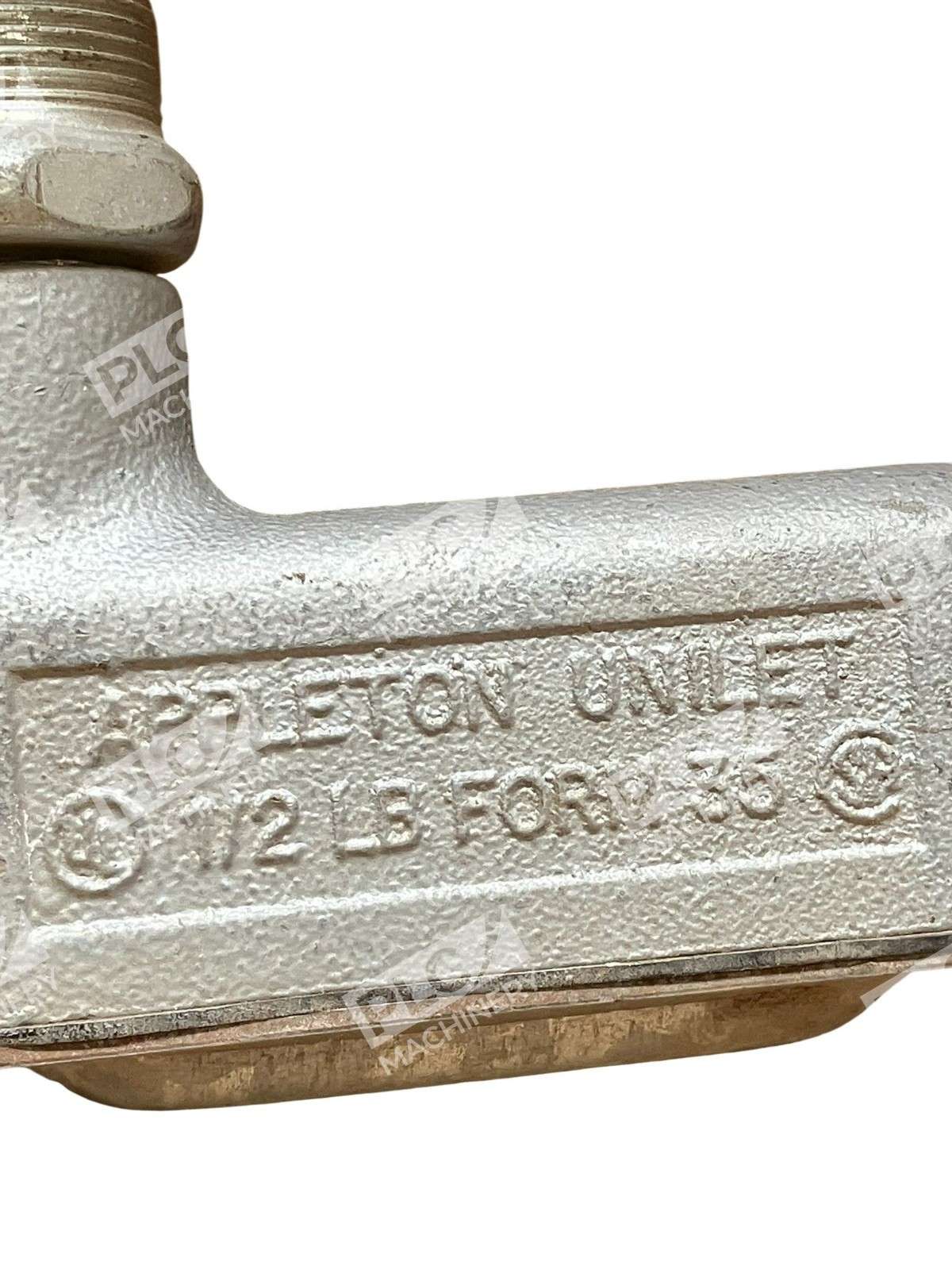

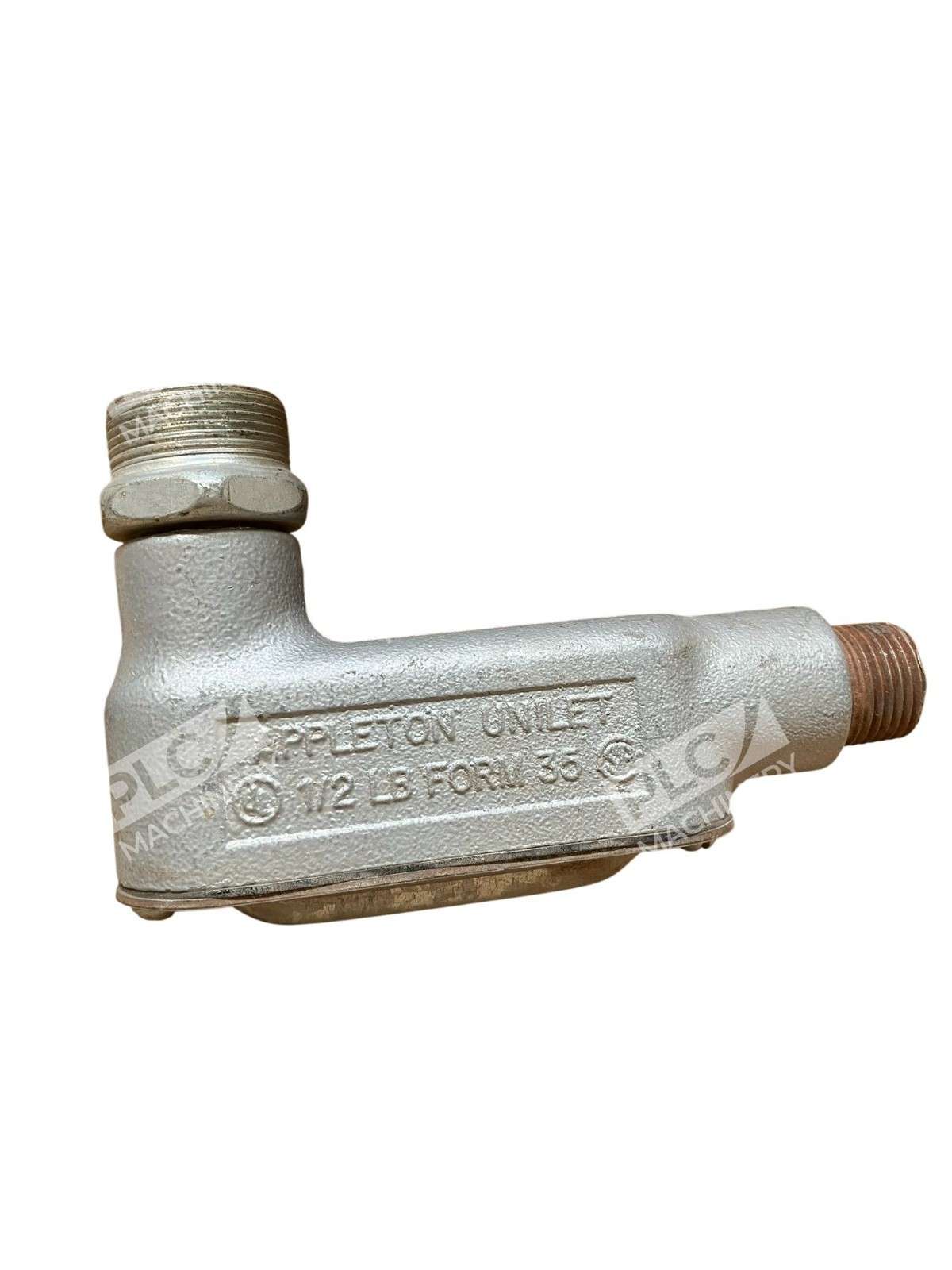

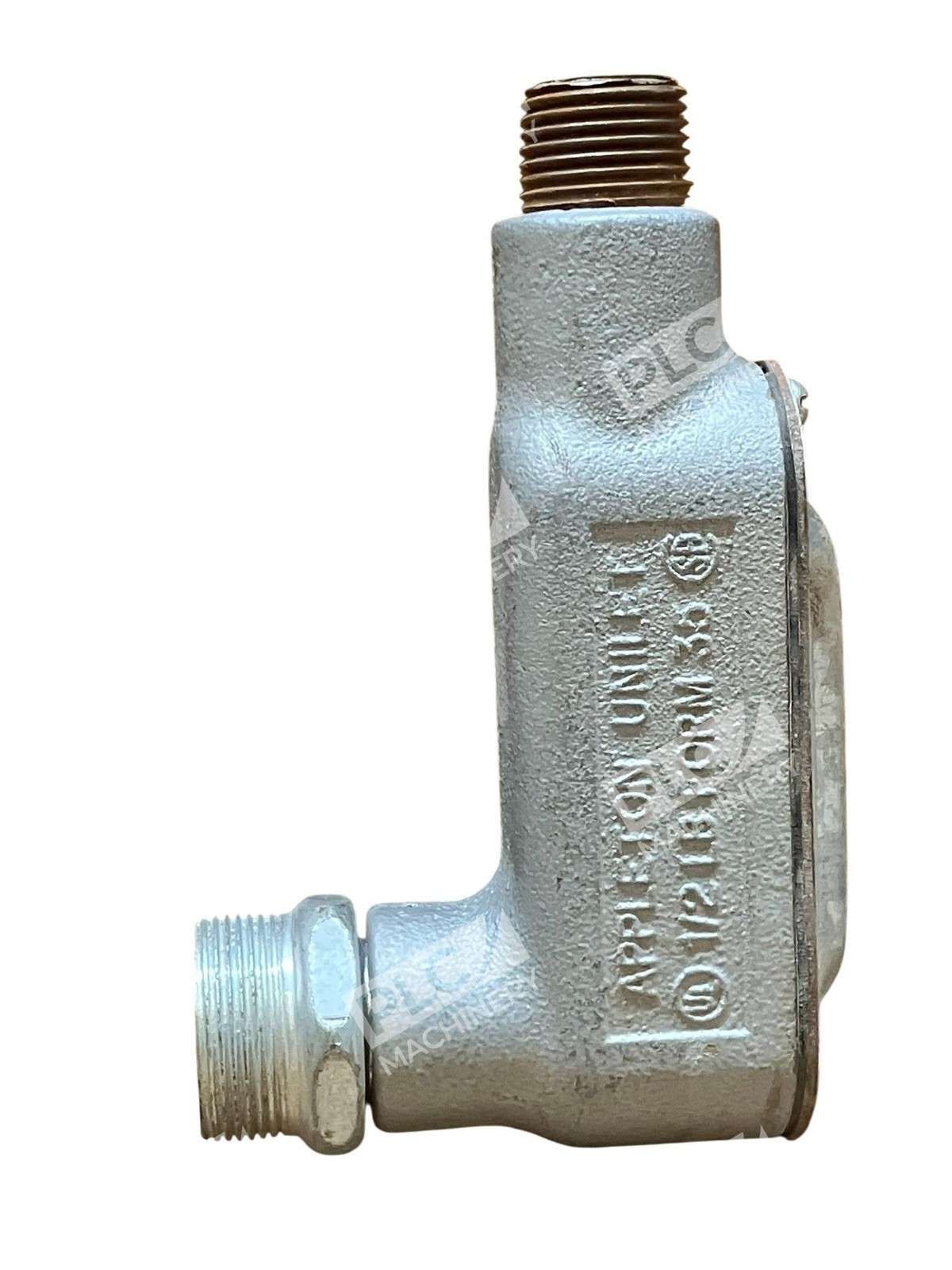

The Appleton 1/2″ LB conduit body is a pressure-cast aluminum fitting designed for connecting and changing direction of conduit runs in rigid metal conduit (RMC) and intermediate metal conduit (IMC) systems. This Form 85 Unilet configuration includes an integrated O-Z Gedney outlet cover and gasket, providing a complete, sealed connection point for electrical conduit installations. The LB (long body) configuration allows for branch run connections and serviceable access to pull in and protect electrical conductors in industrial, commercial, and hazardous location applications.
Key Features
- Complete assembly with integrated outlet cover and gasket—no separate purchase required
- Aluminum construction (copper-free) for corrosion resistance
- Form 85 Unilet design for standardized, reliable performance
- Supports branch run connections and conduit direction changes
- Suitable for Class I, Division 2 hazardous locations (per NEC 501.10(B)(4))
- Complies with NEMA Standard FB-1 and FB-2.10
Technical Specifications
- Hub Size: 1/2″
- Body Type: LB (Long Body)
- Material: Pressure cast aluminum (copper-free)
- Form: Form 85

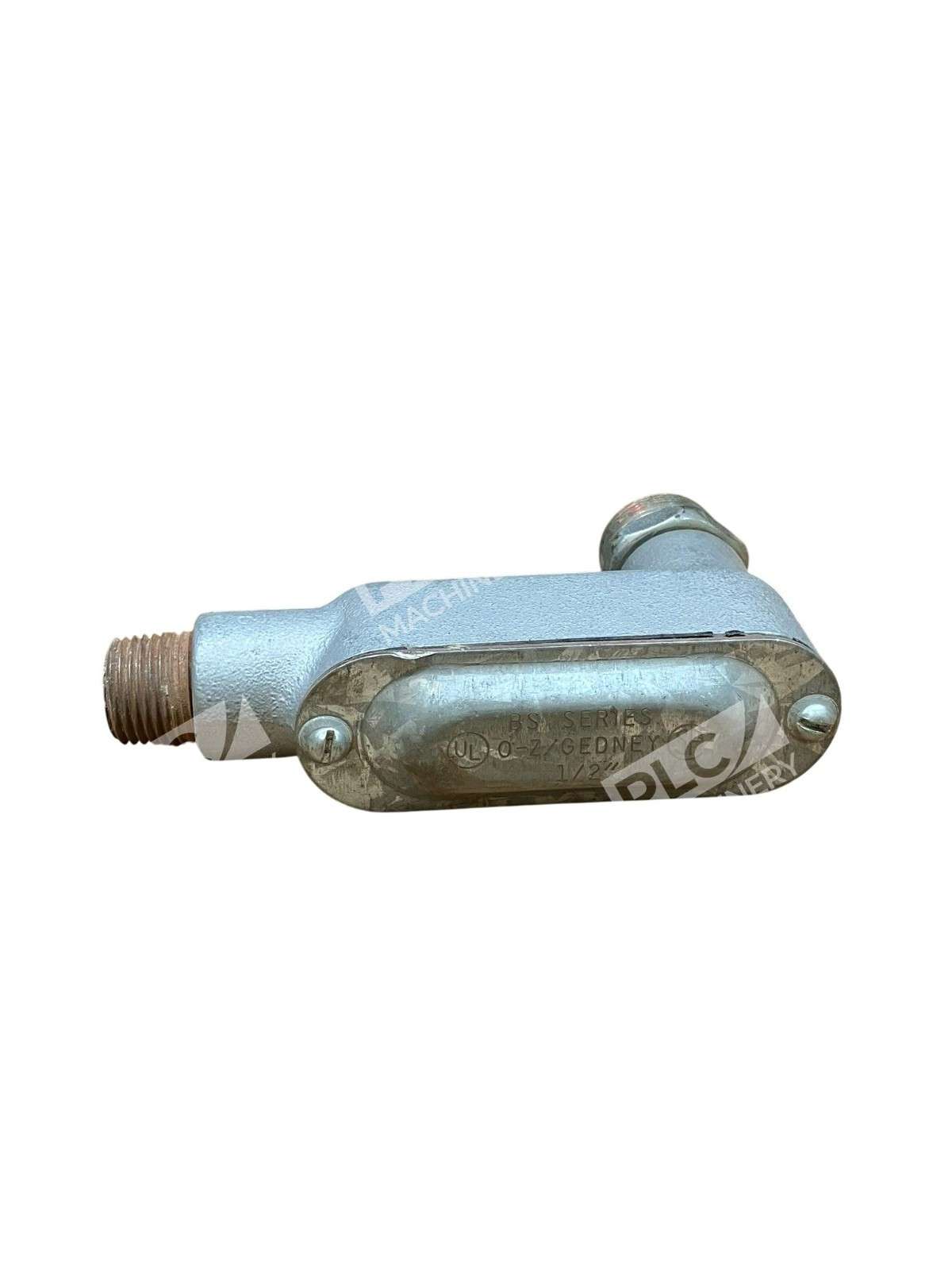

- Cover/Gasket: Integrated O-Z Gedney outlet cover with gasket included
- Conduit Type: Rigid Metal Conduit (RMC) and Intermediate Metal Conduit (IMC)
- NEMA Standard: FB-1, FB-2.10
- Maximum Wire Fill (1/2″ Hub): Per NEC Annex C – Table C8
- Connection: Tapered female threads
Typical Applications
This conduit body is used in a wide range of electrical installations including:
- Light industrial facilities and manufacturing plants
- Commercial building electrical distribution systems
- Conduit junction and transition points
- Branch run connections where pull-in access is required
- Class I, Division 2 hazardous locations (Groups B, C, D)
- Outdoor and corrosive environments (aluminum construction)
Compatibility & Replacements
Compatible With
- Rigid Metal Conduit (RMC) systems
- Intermediate Metal Conduit (IMC) systems
- Standard electrical conductor pull-in and routing
- Form 85 Unilet series components
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Appleton 1/2″ LB conduit bodies are available in multiple forms (Form 7, Form 35, Form 85); ensure form and cover style match your original specification.
Works With
- All standard rigid conduit and IMC installations
- O-Z Gedney and Appleton-brand electrical fittings
- Standard NEC-compliant electrical systems
- Hazardous location conduit systems (Class I, Division 2)
