Overview

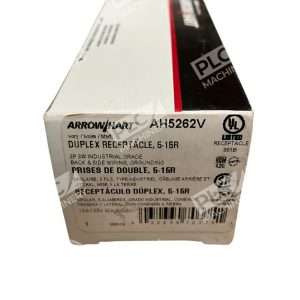

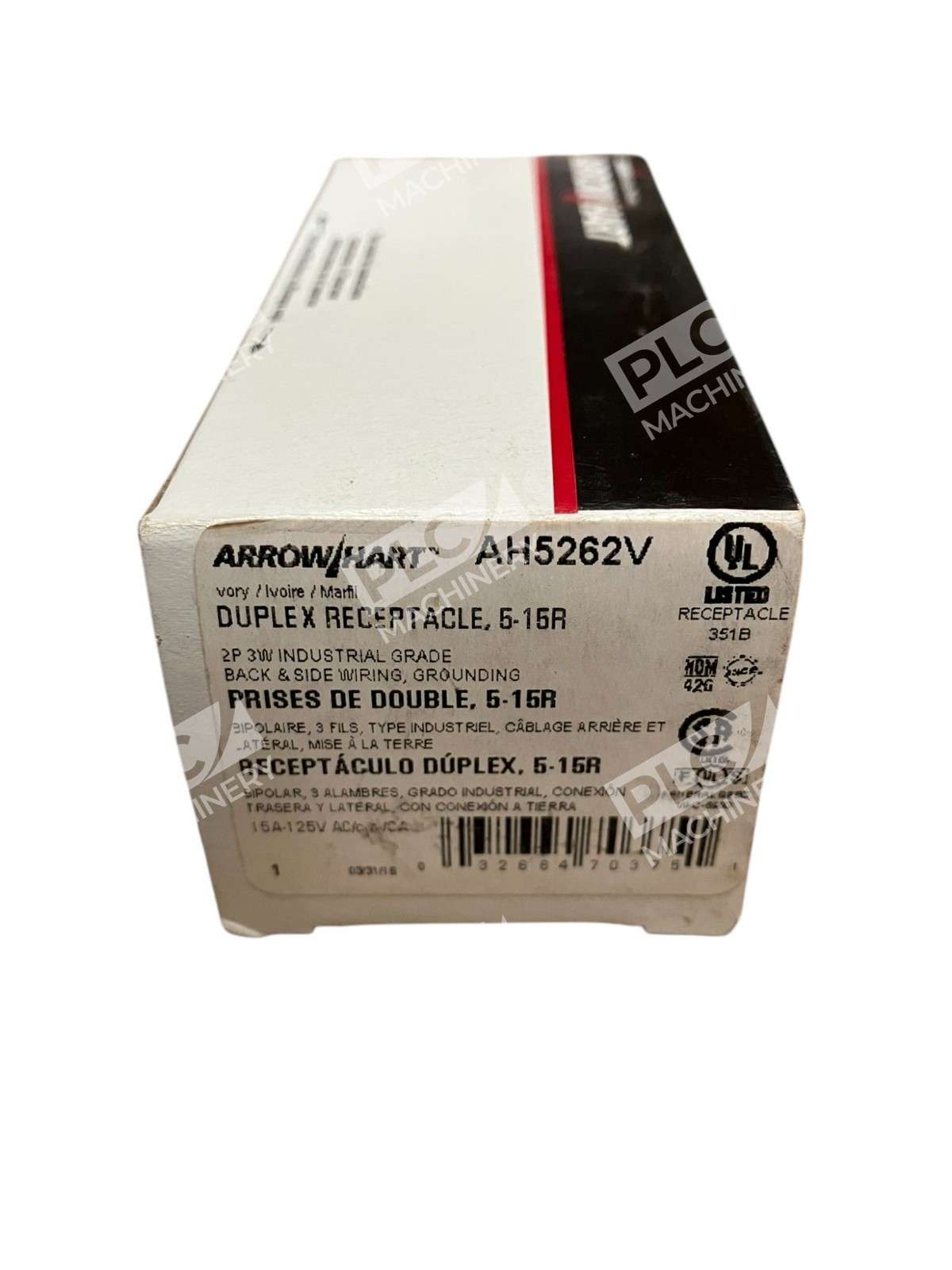

The Arrow Hart AH5262V duplex receptacle is an extra heavy-duty industrial specification-grade outlet designed for demanding commercial and industrial environments. Built by Eaton (formerly Cooper Wiring), this NEMA 5-15R straight blade receptacle delivers reliable power distribution with robust brass contacts and durable construction suitable for continuous-duty applications.
Key Features
- Extra heavy-duty industrial specification grade construction
- 15A / 125V rating with NEMA 5-15R straight blade configuration
- Brass contacts and terminals for superior conductivity and corrosion resistance
- Glass-filled nylon base and ivory nylon face for durability
- Screw-terminal connection for #14–10 AWG conductors
- Flush-mounted design with back-and-side wiring access
Technical Specifications
- Voltage Rating: 125V AC
- Amperage: 15A
- Configuration: 2-pole, 3-wire (NEMA 5-15R)
- Conductor Size: #14–10 AWG
- Blade Type: Straight blade (5-15R)
- Contact Material: Brass
- Body Material: Glass-filled nylon base; nylon face
- Color: Ivory
- Connection Type: Screw terminal
- Mounting: Flush wall mount
- Series: Eaton Arrow Hart industrial grade

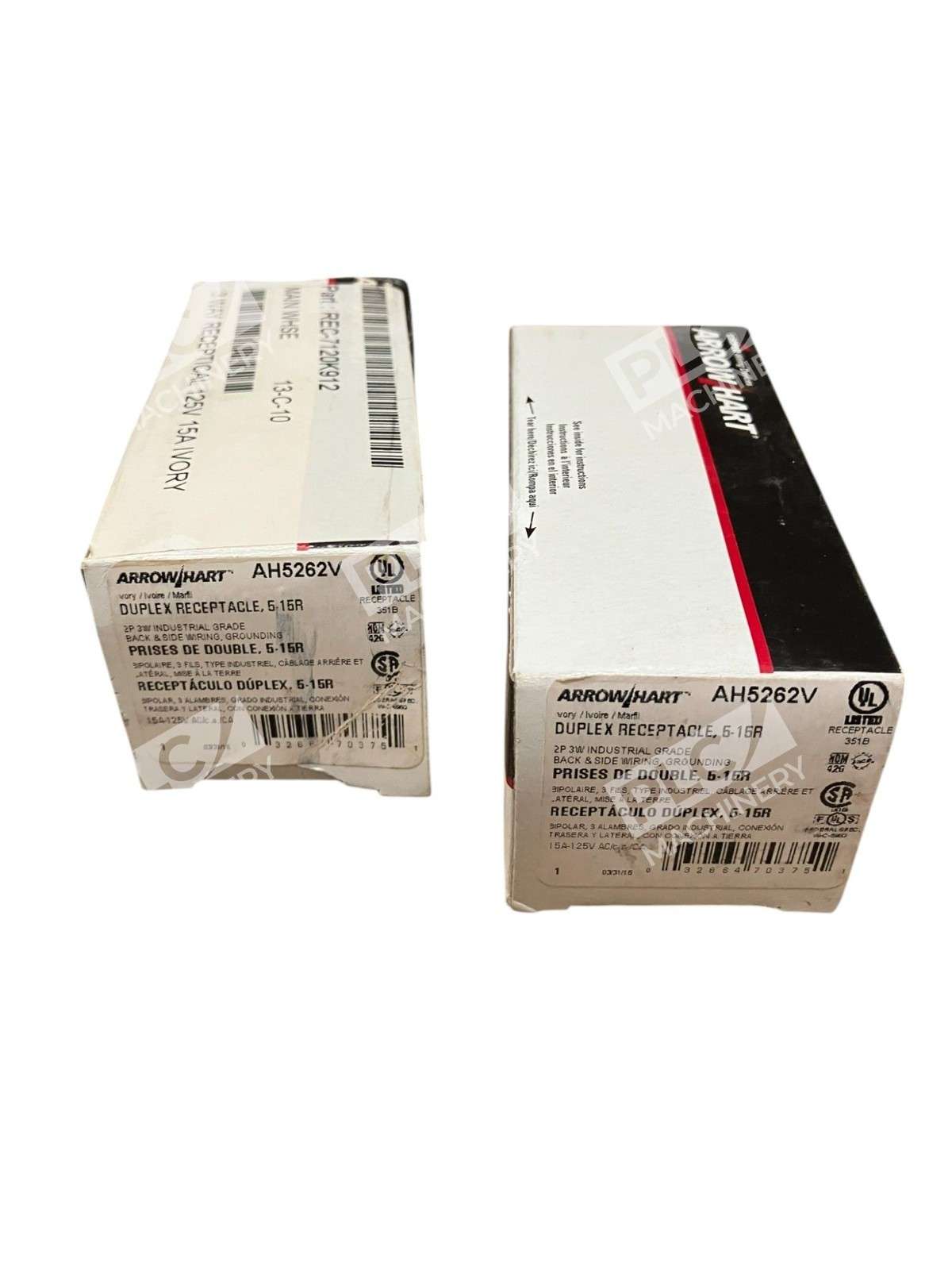

- Quantity in Lot: 2 units
Typical Applications
The AH5262V is specified for use in industrial control panels, factory production lines, data centers, hospitality facilities, healthcare environments, and commercial office buildings. These receptacles are commonly installed in areas requiring reliable, continuous power distribution and frequent equipment connection cycles. Industrial maintenance teams often specify them for HVAC systems, motor control centers, and backup power panel upgrades.
Compatibility & Replacements
Compatible With
- Standard 125V industrial power systems (North America)
- Electrical panels rated for 15A circuits
- NEMA 5-15P plugs and standard straight-blade equipment cords
- Commercial and industrial wiring systems
- Wall box installations with standard 2-gang openings
Replaces / Drop-In Replacement For
- Eaton Arrow Hart 5262V (standard industrial grade variant)
- Earlier Arrow Hart duplex receptacles with 5-15R configuration
- OEM industrial receptacles with matching NEMA 5-15R rating
Works With
- NEMA 5-15P plugs (straight blade)
- Standard 125V industrial power circuits
- Commercial and industrial electrical wiring (Romex, conduit, cable tray)
- Equipment rated 15A or less at 125V
