Overview

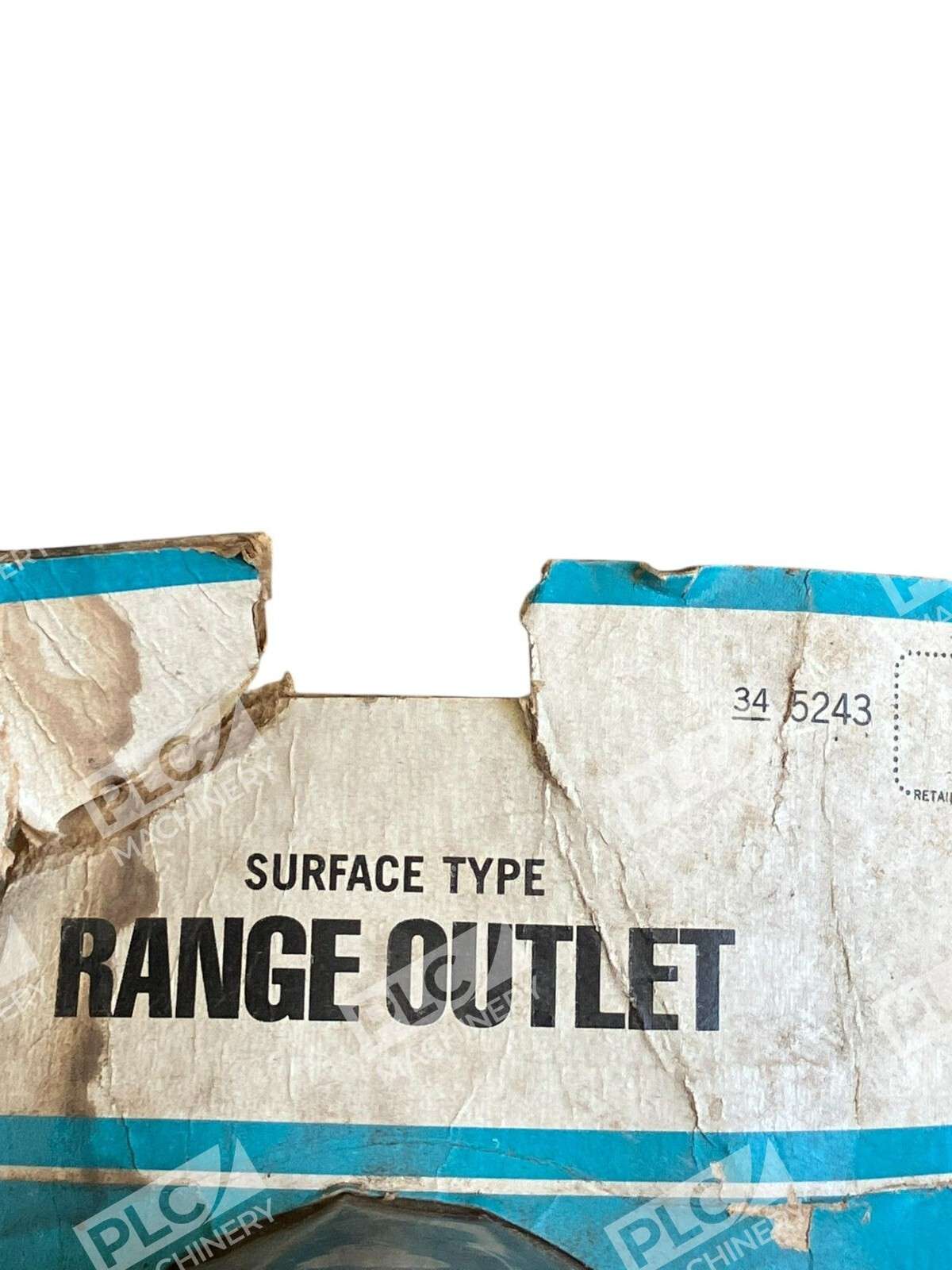

The Leviton 5050 is a rugged, surface-mounting receptacle rated for 50 amps at 125/250 volts, complying with NEMA 10-50R specifications. Designed for electric ranges, dryers, and other high-load circuits, this non-grounding receptacle delivers industrial-grade durability and reliable performance in residential and commercial applications.
Key Features
- Heavy-gauge copper alloy contacts for superior electrical conductivity and long service life
- Durable thermoplastic construction resists corrosion and wear
- Marked terminals for fast, error-free wiring and installation
- Side-wire configuration accommodates #4–#8 AWG conductors
- Steel mounting strap for secure surface installation
- UL Listed and meets NEC/CSA safety standards
Technical Specifications
- Amperage Rating: 50 A
- Voltage Rating: 125/250 V
- NEMA Configuration: 10-50R (3P, 3W)
- Blade Type: Straight blade
- Mounting Style: Surface mount
- Termination: Side-wire
- Wire Accommodation: #4–#8 AWG
- Torque Range: 25 in-lbs
- Material: High-impact thermoplastic with copper alloy contacts
- Color: Black
- Grounding: Non-grounding
- Certifications: UL Listed, CSA C22.2 No. 86
Typical Applications
The Leviton 5050 is ideal for:
- Electric range and cooktop circuits
- Electric dryer outlet installations
- Industrial and commercial high-amperage loads
- Retrofit and replacement projects where NEMA 10-50R compatibility is required
Compatibility & Replacements
Compatible With
- NEMA 10-50P plugs (straight-blade range and dryer plugs)
- Electric ranges rated 50 A, 125/250 V
- Electric dryers rated 50 A, 125/250 V
- Standard 2.15″ diameter center-hole wallplates
- Residential and commercial electrical distribution panels
Replaces / Drop-In Replacement For
- Leviton 5050 (all versions)
- Sears-labeled Leviton 10-50R units (original equipment)
- Older NEMA 10-50R surface-mount receptacles meeting these voltage and amperage specifications
Works With
- Standard electrical conduit and wiring (Romex, THHN, aluminum/copper wire)
- NEC (National Electrical Code) compliant installations
- Canadian Electrical Code (CSA C22.2)
- Any electric range or dryer with a NEMA 10-50P plug connector
