Overview

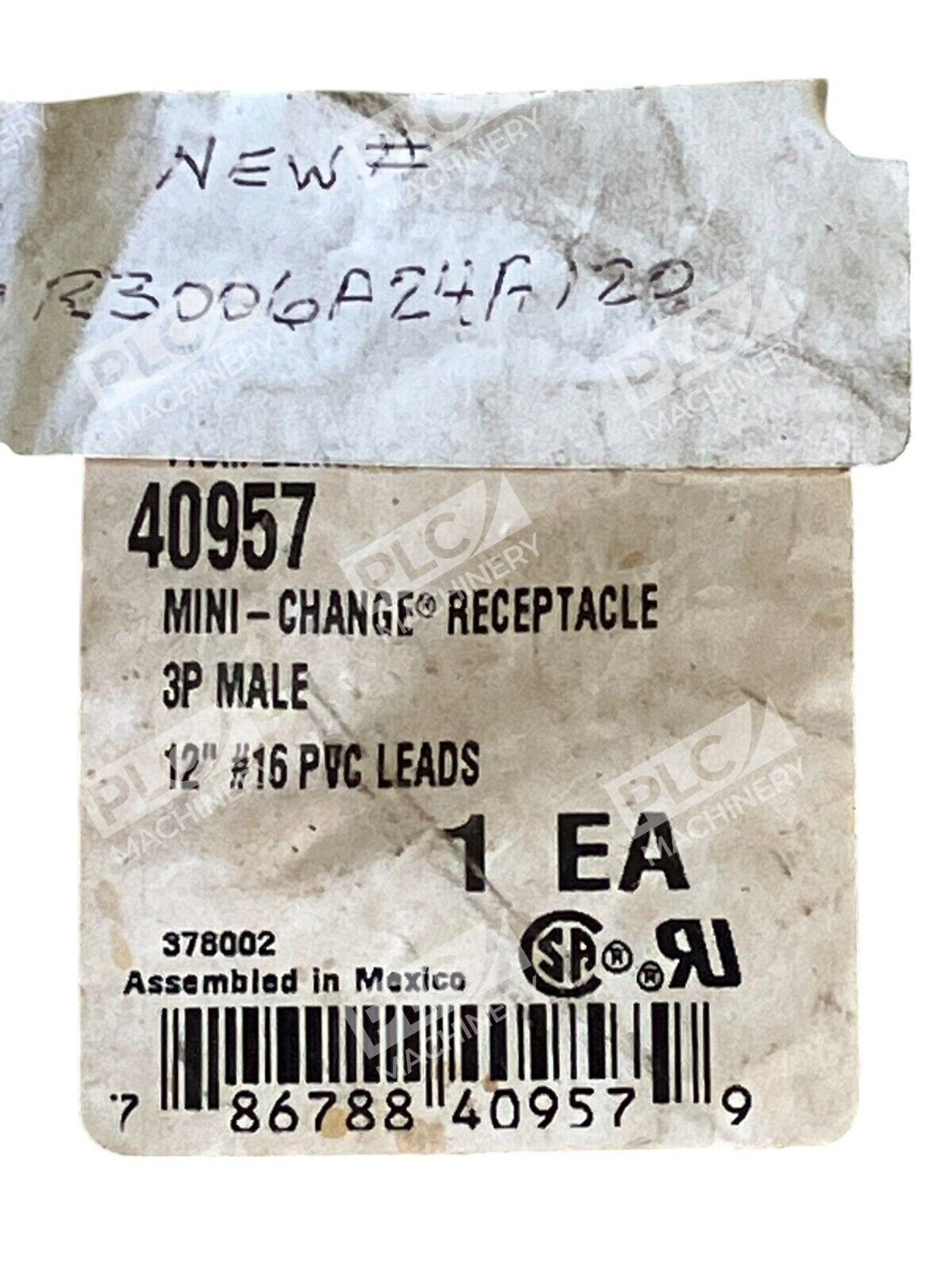

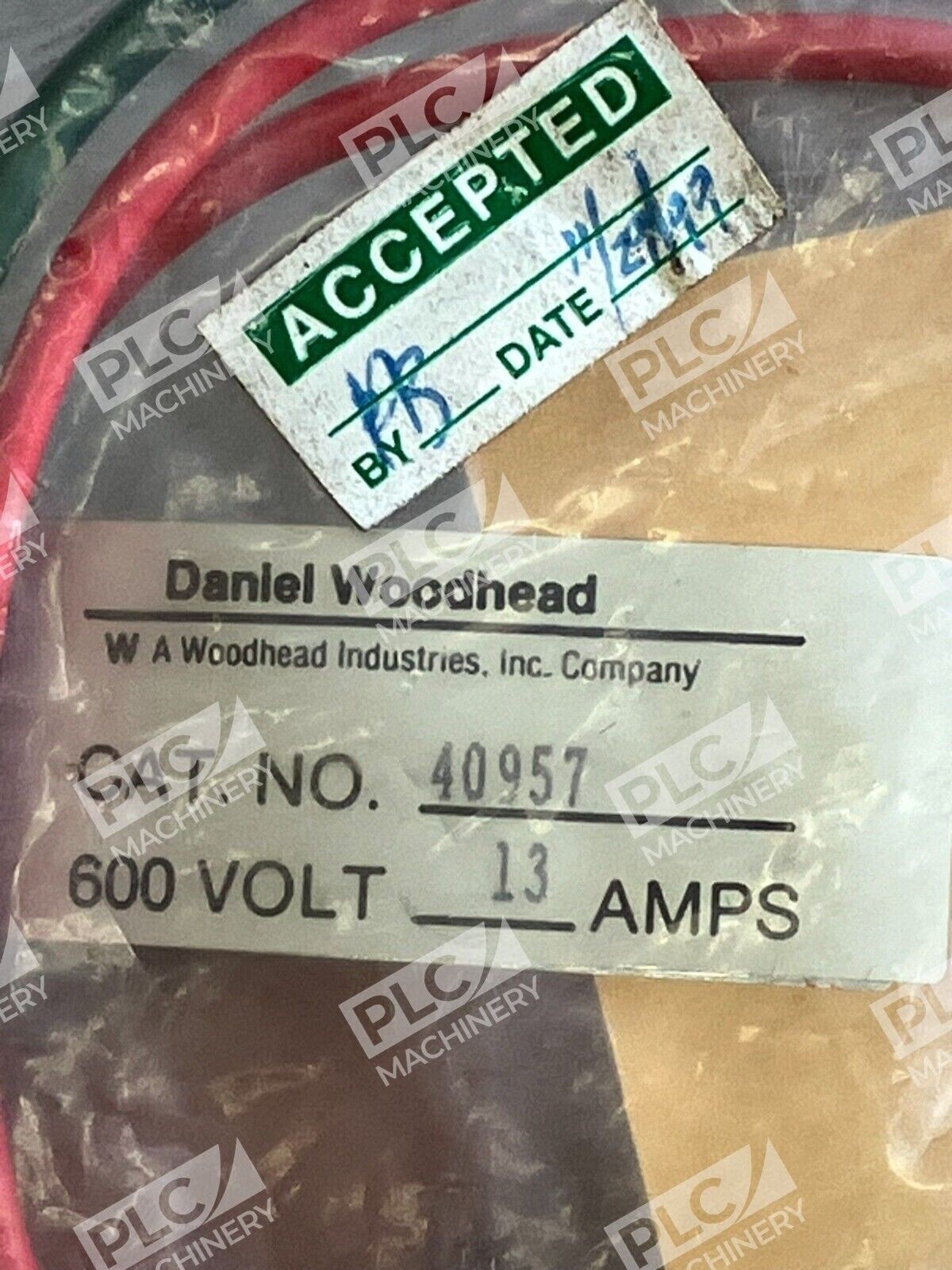

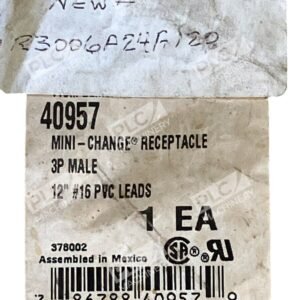

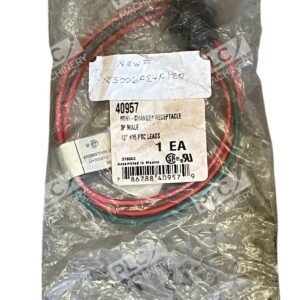

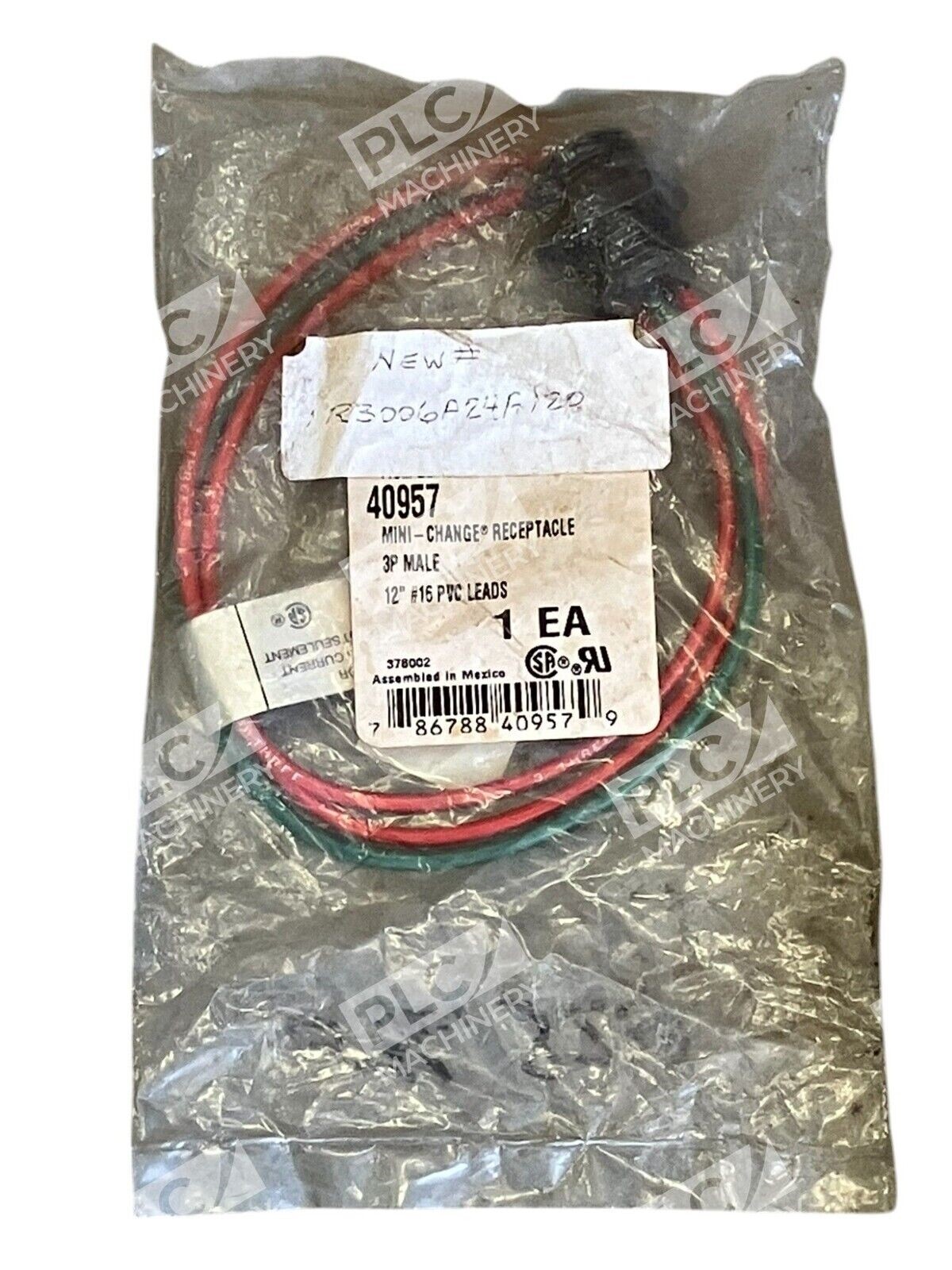

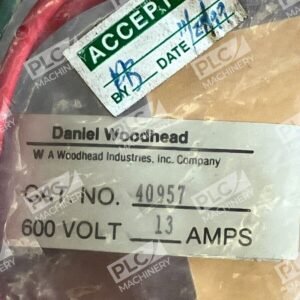

The Daniel Woodhead 1R3006A24A120 (model 40957) is a 3-pin male mini-change receptacle designed for industrial cordset applications. This straight connector features 12″ leads with 16/1 PVC cable and is part of Woodhead’s industry-standard mini-change cordset family. Rated for 13 Amperes at 600V AC/DC, it delivers secure connectivity for automation control systems, variable frequency drives, servo motors, and motion control equipment.
Key Features
- 3-pin A-size male straight receptacle
- 12-inch PVC leads with 16/1 conductor configuration
- 13 Ampere, 600V AC/DC rating
- NEMA 6P environmental rating for sealed applications
- Integral contact design for reliable mating cycles
- Drop-in replacement for equivalent mini-change receptacles
Technical Specifications
- Manufacturer: Woodhead Industries (Daniel Woodhead)
- Part Number: 1R3006A24A120
- Model: 40957
- Configuration: 3-pin male straight
- Lead Length: 12 inches
- Cable Type: 16/1 PVC
- Amperage: 13 A
- Voltage: 600V AC/DC
- Contact Size: A-Size
- NEMA Rating: 6P (sealed/submersible)
- Connector Style: Mini-Change cordset
Typical Applications
This male receptacle is commonly used in:
- Industrial motion control and servo drive systems
- Programmable Logic Controller (PLC) power distribution
- Variable Frequency Drive (VFD) interconnects
- Automation panel-to-equipment power cordsets
- Factory floor machinery and robotic control systems
- Sealed outdoor or washdown environment installations
Compatibility & Replacements
Compatible With
- Mini-change female receptacles (3-pin A-size)
- Woodhead mini-change cordset systems
- Industrial automation control panels
- Sealed connector applications (NEMA 6P rated)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 40957 series receptacle is functionally equivalent to other 3-pin mini-change male straight connectors with 12″ leads in the Woodhead lineup.
Works With
- Woodhead 40958, 40959, 40960 series cordsets
- Mini-change female panel receptacles
- 3-pin sealed power distribution systems
- Industrial automation control cables and cordsets
