Overview

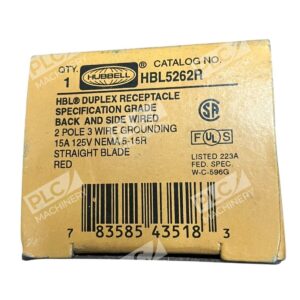

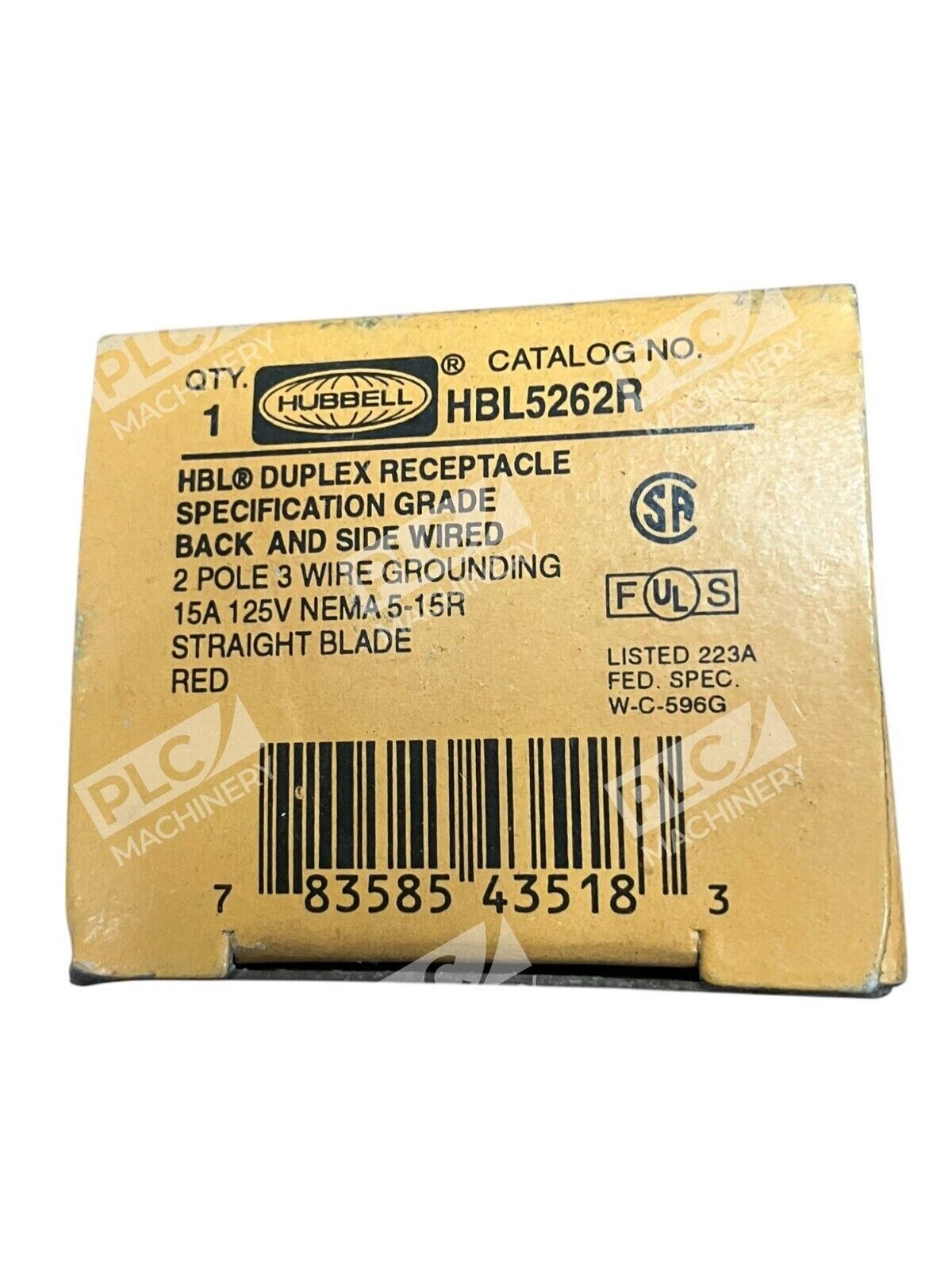

The Hubbell HBL5262R duplex receptacle is a heavy-duty straight blade outlet designed for industrial, commercial, and institutional applications. This 2-pole 3-wire grounding device is rated for 15 amps at 125 volts and complies with NEMA 5-15R specifications. The receptacle features a one-piece brass integral ground strap and self-grounding design for enhanced safety and reliability in harsh operating environments.
Key Features
- Oversized “bell” shaped ground contacts minimize grounding system damage during abrupt pullout
- Nickel plated steel retaining shields protect contacts and improve durability
- One-piece brass integral ground strap ensures consistent grounding performance
- Back wired ground terminal allows faster, easier installation
- Self-grounding design with finder groove face for circuit identification
- High-impact thermoplastic construction resists abusive applications
- Deep body design with circuit ID marking surface standard
Technical Specifications
- Amperage Rating: 15 Amps
- Voltage Rating: 125 VAC
- Configuration: 2-Pole 3-Wire Grounding (5-15R)
- Phase: Single Phase (1φ)
- Horsepower Rating: 0.5 HP
- Mounting Type: Screw Mount (Flush)
- Terminal Type: Back & Side Wired
- Body Material: Nylon/High-Impact Thermoplastic
- Operating Temperature: -40°C to +75°C
- Outlet Configuration: Duplex (2 Outlets)
- Certifications: UL 498 Listed, CSA C22.2 No. 42, RoHS Compliant
- Series: HBL® Extra Heavy Duty Max Industrial Series
Typical Applications
- Factory and manufacturing facility wiring
- Office building and commercial installations
- School and educational institution electrical systems
- Industrial workbenches and equipment power
- Locations requiring heavy-duty, specification-grade receptacles
- Environments where durability and reliability are critical
Compatibility & Replacements
Compatible With
- Standard 125V single-phase AC circuits
- Electrical wiring rated for 15A 125V service
- NEMA 5-15P plugs and standard two/three-prong cords
- Installation in duplex outlet boxes and gang boxes
- Buildings requiring industrial-grade receptacle specifications
Replaces / Drop-In Replacement For
- Hubbell HBL5262 (brown version) – direct functional replacement
- Standard 15A 125V duplex receptacles requiring upgrade to specification grade
Works With
- Duplex outlet mounting plates and box covers (1-2 gang)
- Stainless steel cover plates for industrial installations
- Standard electrical boxes and wiring conduit systems
- NEC compliant installation practices and codes
