Overview
The Hoffman CSD20208SS is part of the CONCEPT Series of industrial control panel enclosures, engineered for reliability in harsh environments. This Type 4X wall-mount enclosure is made of Type 304 or 316L stainless steel with a smooth #4 brushed finish. It is designed for indoor or outdoor applications that require corrosion protection from chemicals and water. Measuring 20″ × 20″ × 8″, the enclosure provides ample space for electrical and pneumatic component housing while maintaining a compact wall-mount profile suitable for manufacturing floors, chemical plants, food processing facilities, and coastal installations.
Key Features
- Streamlined styling with attractive stroked finish and flush quarter-turn latches for secure closure
- Minimum-width body flange provides maximum body opening; mounting holes in back of body for direct mounting or external mounting brackets
- Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Type 316 stainless steel hidden hinges promote clean aesthetic appearance
- Seams for each enclosure are continuously welded and ground smooth with no holes and knock-outs
- Panel-mounting studs fit optional CONCEPT™ panels and accessories
Technical Specifications
- NEMA Rating: Type 3R/4/4X/12/13, IP66
- Material: Type 304 or 316L stainless steel
- Finish: #4 smooth brushed
- Dimensions: 20″ H × 20″ W × 8″ D
- Door Type: Hinged with removable clip-style hinge pins
- Latch Style: Quarter-turn with flush slotted insert
- Gauge: 16 gauge (door/body)

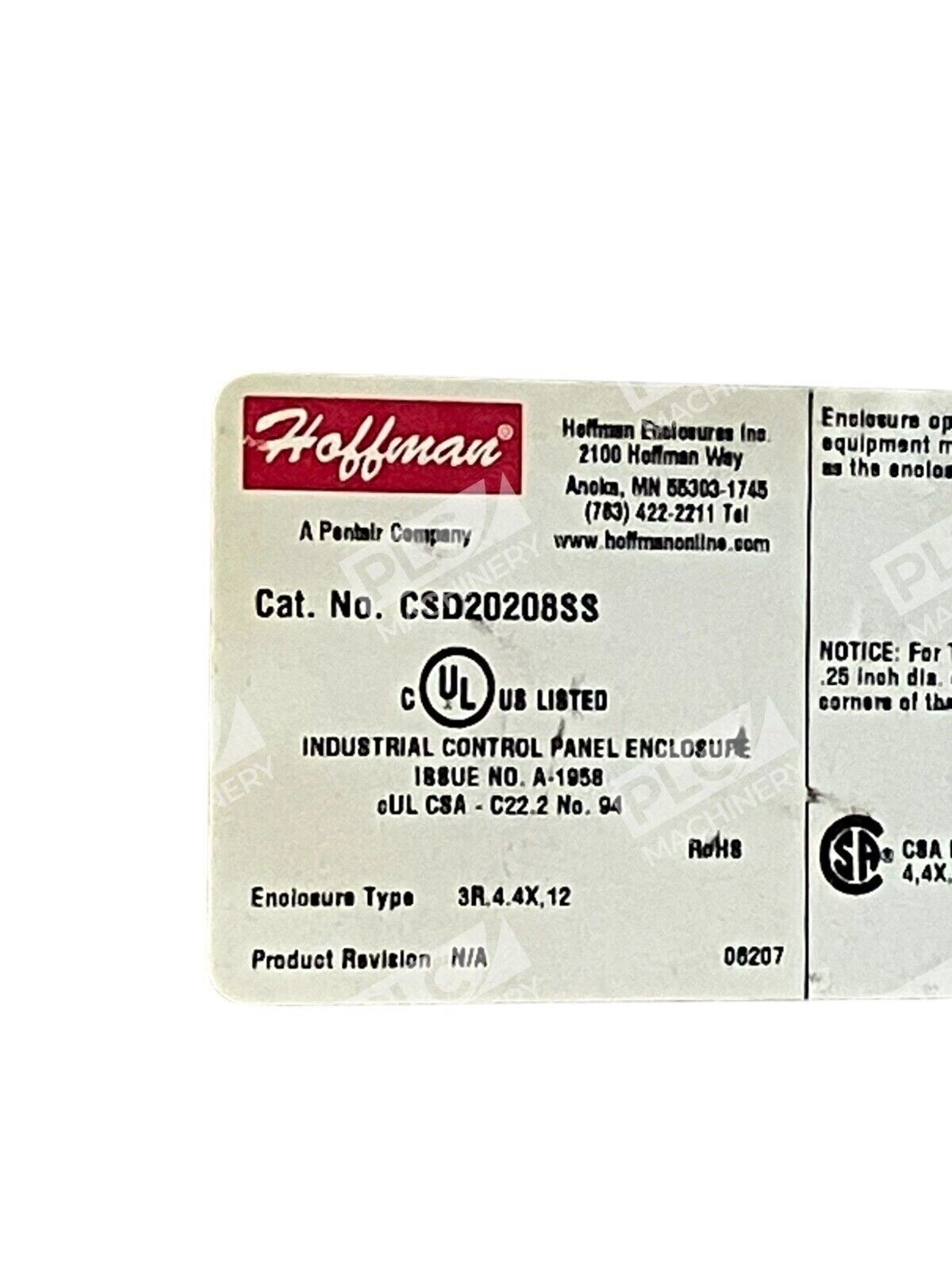

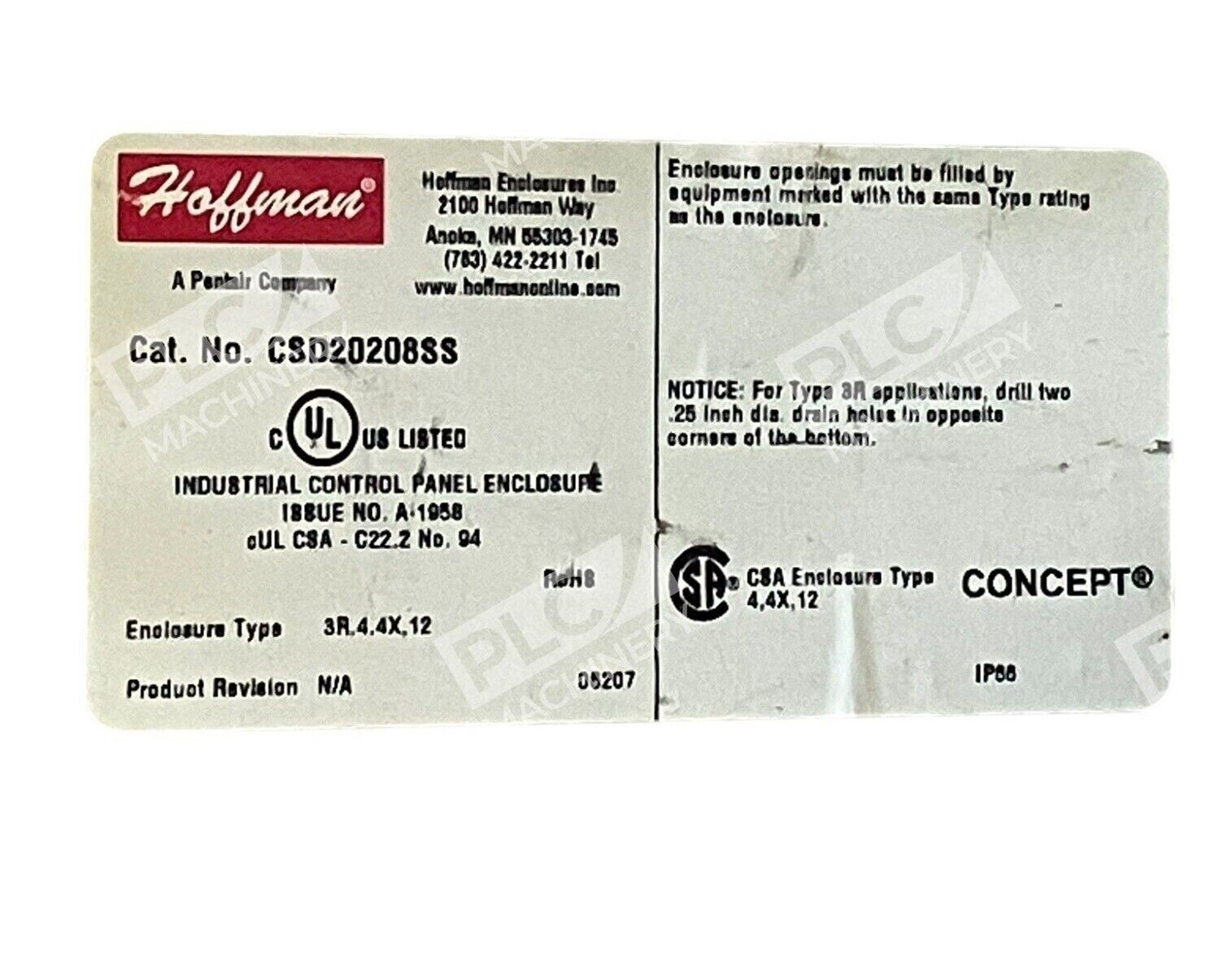

- Approvals: UL 508A, CUL, CSA C22.2
Typical Applications
For indoor or outdoor applications that require protection from chemicals and water, CONCEPT Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Common installations include:
- Chemical and petrochemical processing facilities
- Food and beverage production environments
- Coastal and marine installations requiring salt-spray protection
- Wastewater treatment plants
- Pharmaceutical manufacturing
- General industrial control panel mounting
Compatibility & Replacements
Compatible With
- CONCEPT™ panel-mounting studs and accessories
- Optional external mounting brackets
- Optional doorstop kits
- Thermoplastic data pockets (except window-door models)
- Standard industrial control components (PLCs, drives, contactors, terminals)
Replaces / Drop-In Replacement For
The CSD20208SS is a current production model in the Hoffman CONCEPT Series. For replacement of discontinued enclosures, verify compatibility with your system integrator before ordering. Related Hoffman enclosure models in similar sizes include the CSD16206SS, CSD18208SS, and CSD24208SS series.
Works With
- Hoffman optional CONCEPT™ panel accessories
- Standard industrial mounting hardware and DIN rail systems
- UL 508A listed control panels
- Industrial automation and process control systems
