Overview

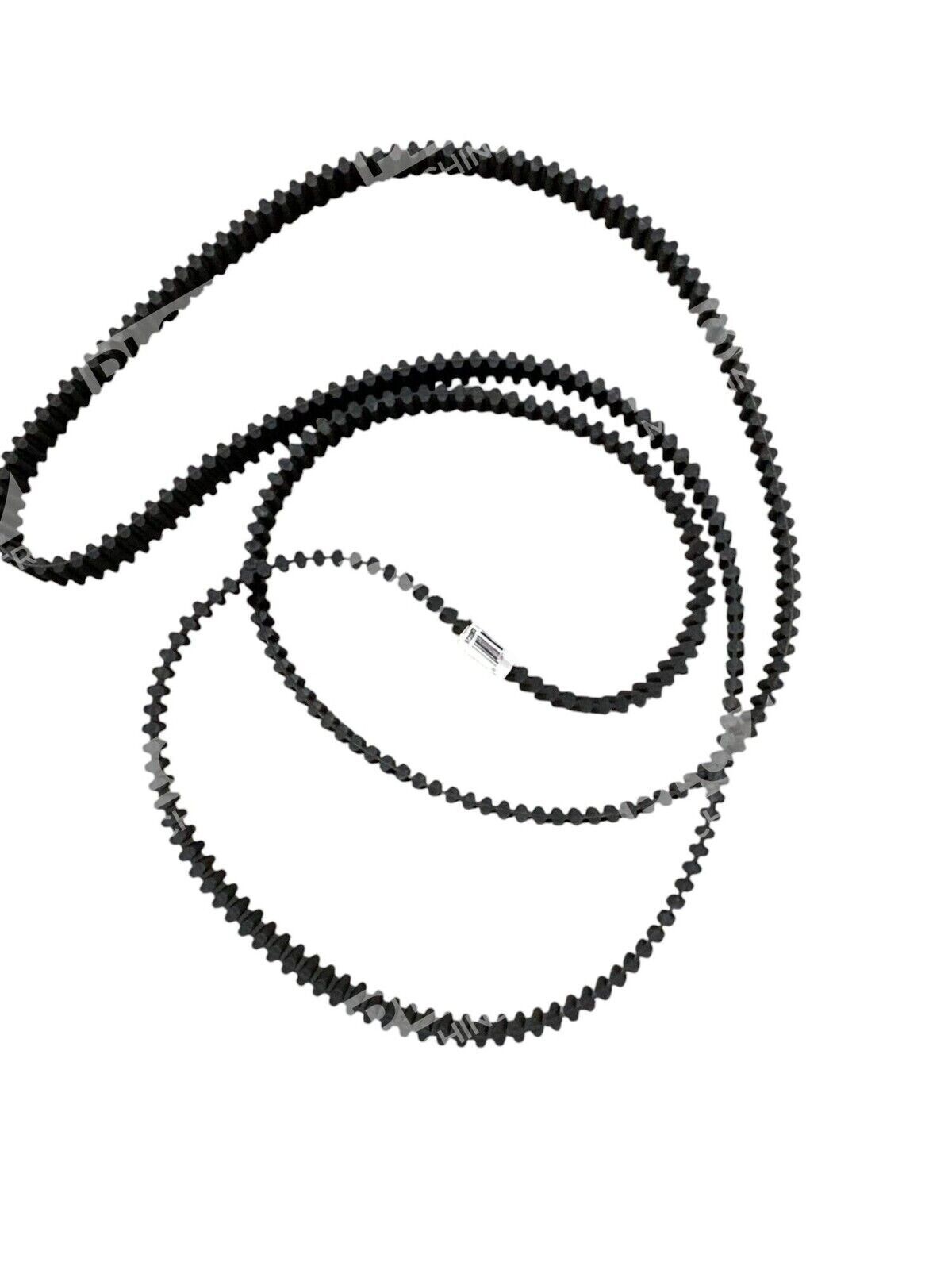

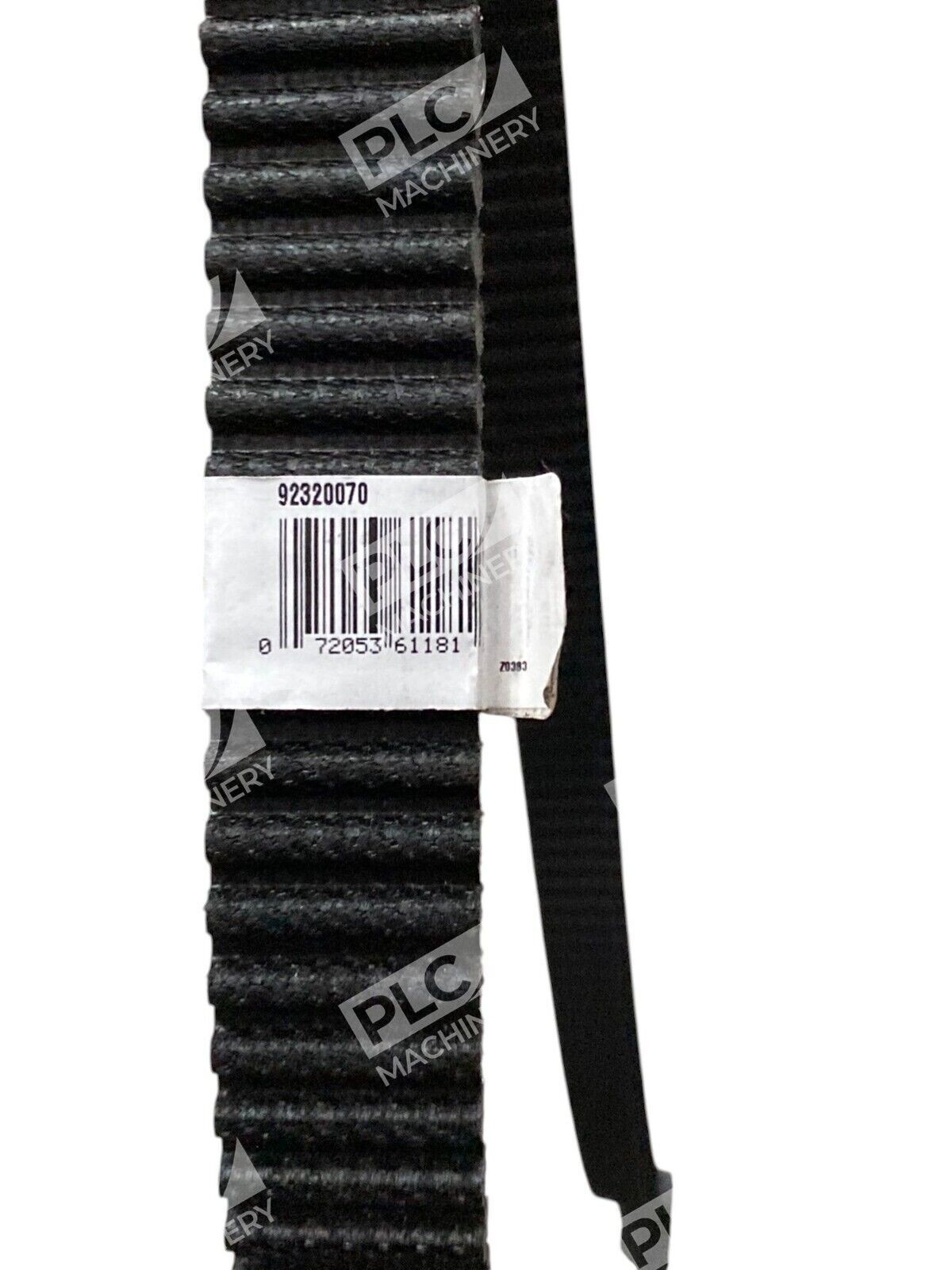

The Gates TP2450-08M PowerGrip GT2 Twin Power timing belt is a synchronous belt designed for reliable power transmission in industrial and heavy equipment applications. PowerGrip GT2 Twin Power Belts feature dual-sided teeth to provide equal load carrying capacity on either belt surface, enabling synchronization from both driving surfaces. This model features an 8mm pitch (8MGT) and is manufactured to Gates’ precision specifications.
Key Features
- Dual-Sided Design: Provides equal load carrying capacity on either belt surface for contra-rotating drives and ensures smooth running and high flexibility.
- High Load Capacity: Fiberglass tensile cord provides high strength and high stretch resistance with double loading capacity over equivalent Twin Powerâ„¢ PowerGripâ„¢ HTDâ„¢.
- Temperature Range: Temperature range: -30°C to +100°C (-22°F to +212°F).
- Durable Materials: Neoprene body resists moisture and contaminants.
- Quiet Operation: Characterized by low-running noise, with a larger tooth profile for increased performance capacity.
- Positive Drive: Non-slip positive drive running at low noise.
Technical Specifications
- Belt Type: PowerGrip GT2 Twin Power synchronous belt
- Pitch: 8mm (8MGT)
- Belt Length: 2450mm (TP2450 designation)
- Width: As specified by model designation
- Body Material: Polychloroprene (Neoprene)
- Tooth Cover: Nylon
- Tensile Cord: Fiberglass
- Operating Temperature: -30°C to +100°C (-22°F to +212°F)
- Profile Compatibility: Gates proprietary GT tooth profile; compatible with HTD profile pulleys
Typical Applications
Gates Twin Power PowerGrip GT2 belts are designed to perform at high speeds and are widely used in:
- Contra-rotating machinery and transmission systems
- High-speed industrial equipment requiring positive drive indexing
- Power transmission systems demanding low maintenance
- Applications where synchronous accuracy and quiet operation are critical
- Systems requiring high load capacity with flexible belt operation
Compatibility & Replacements
Compatible With
- Gates PowerGrip GT2 sprockets and idlers (8mm pitch)
- HTD profile pulleys (compatible fit per Gates specifications)
- Industrial belt drive systems requiring 8mm pitch synchronous belts
- Contra-rotating and dual-drive applications
Replaces / Drop-In Replacement For
Verify specific replacement compatibility with manufacturer documentation or your system integrator before ordering, as timing belt interchangeability depends on exact pulley pitch, width, and drive configuration specifications.
Works With
- Gates PowerGrip GT2 system components (standard across all GT2 pitches)
- Fiberglass and steel tensile cord systems
- Industrial automation and power transmission systems
- Standard timing belt tensioners and idler assemblies
