Overview

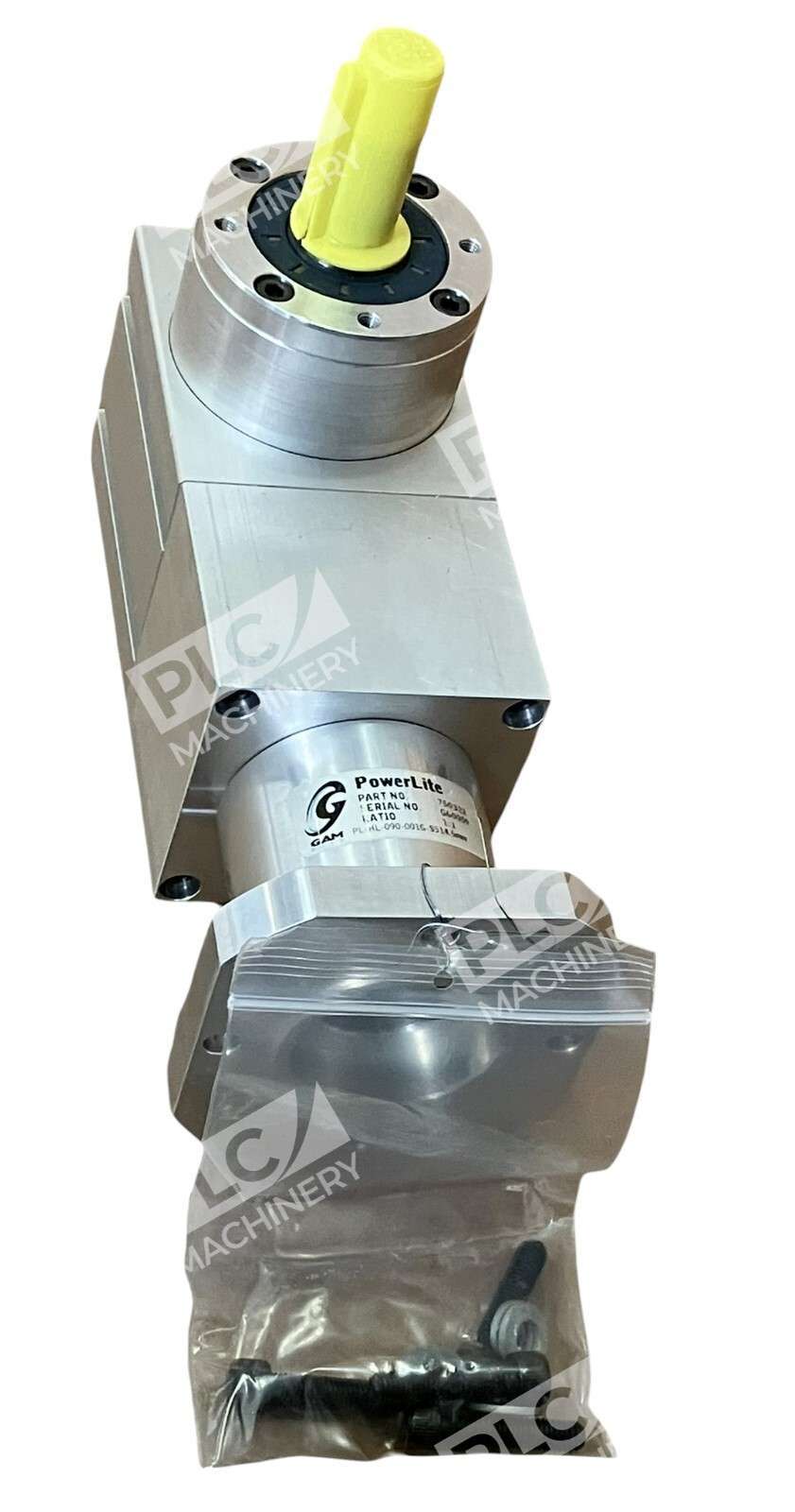

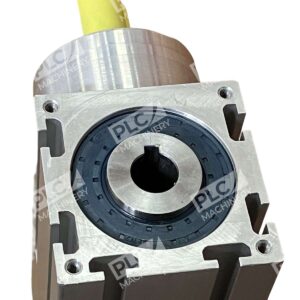

The GAM Gear PL-HL-090-001G-S514.5mm is a PowerLite right-angle gearbox engineered for reliable torque and motion transmission in industrial automation and mechanical drive systems. This compact unit features a 1:1 ratio design, making it ideal for applications where input and output shaft speeds must remain synchronized. Available in new, open box condition, this gearbox combines proven GAM Gear durability with immediate availability for your production environment.
Key Features
- Right-angle design for compact mounting in confined spaces
- 1:1 speed ratio for synchronized input/output performance
- Robust construction rated for industrial duty cycles
- Direct coupling compatibility with standard motor mounts
- Low maintenance operation with sealed bearing design
- New condition with original protective packing
Technical Specifications
- Gear Ratio: 1:1
- Configuration: Right Angle

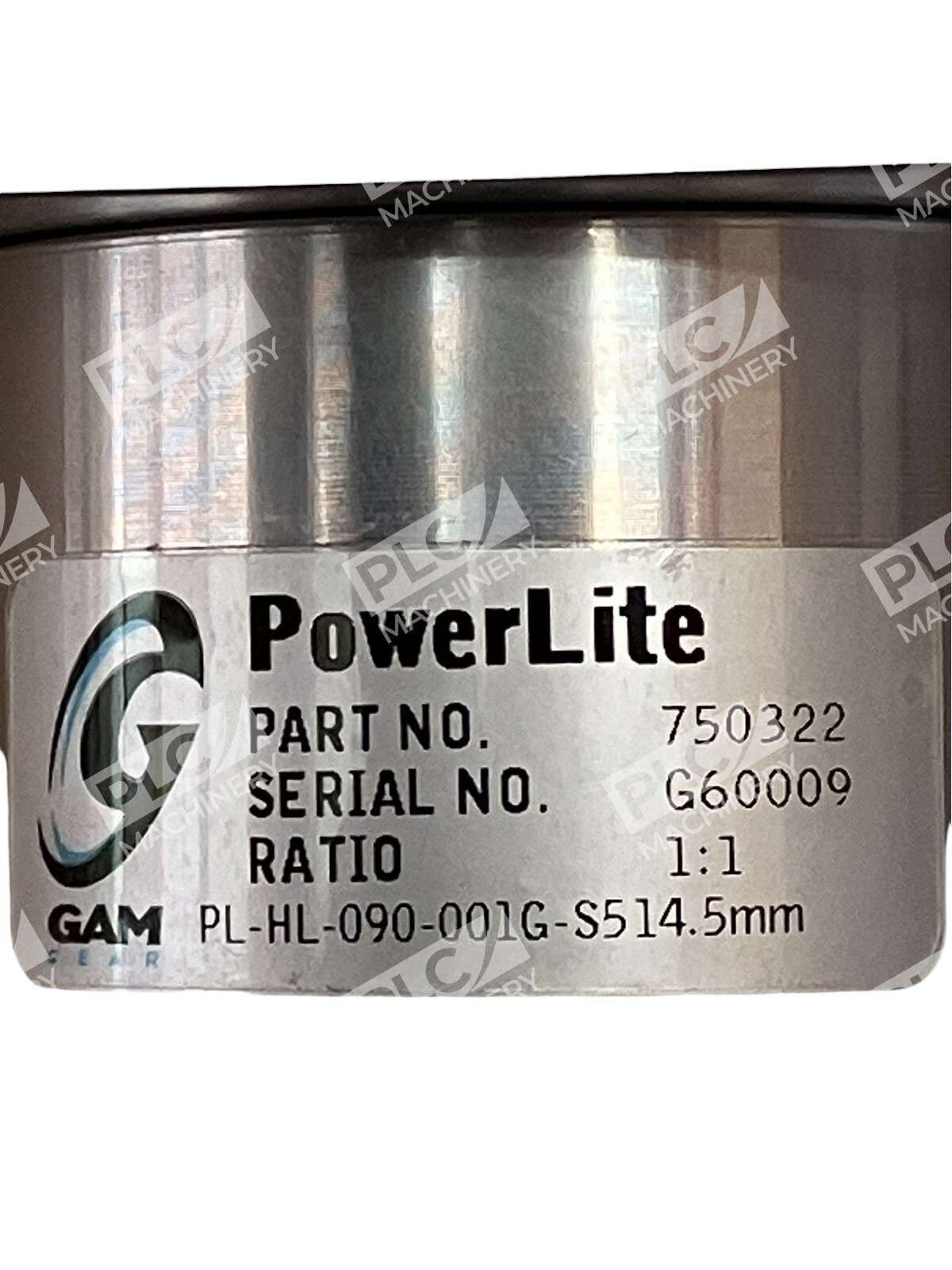

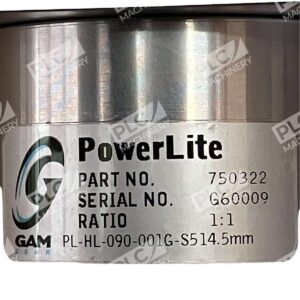

- Model Number: PL-HL-090-001G-S514.5mm
- Manufacturer: GAM Gear
- Series: PowerLite (Type 750322)
- Output Shaft Diameter: 51mm (nominal)
- Weight: 16.0 lbs

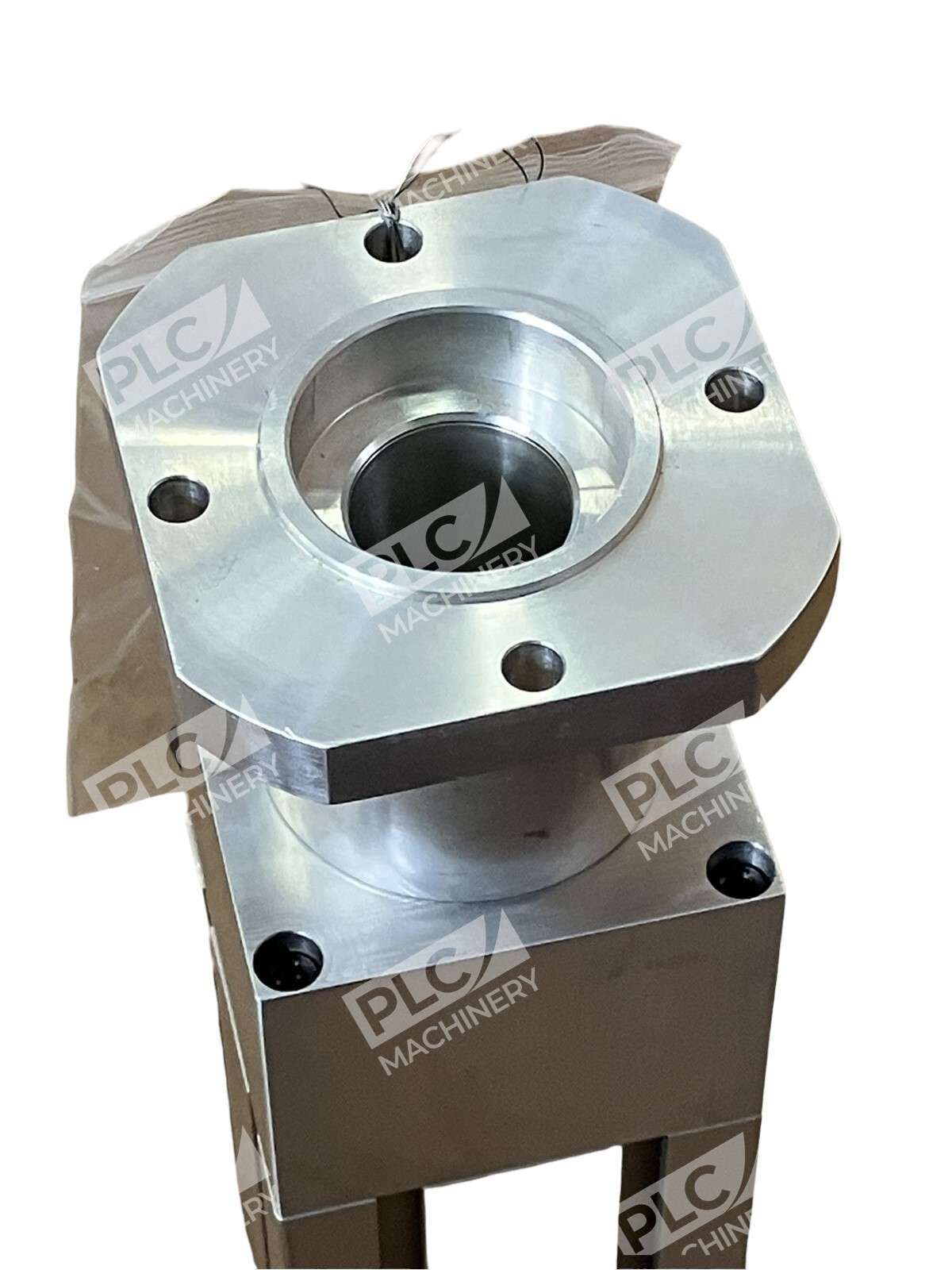

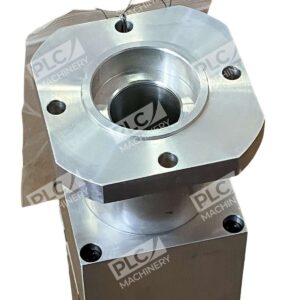

- Mounting: Flange mount compatible
- Condition: New – Open Box
Typical Applications
- Conveyor belt drives and material handling equipment
- Industrial pump and fan motor coupling
- Precision machine tool rotary tables
- Packaging machinery and automation systems
- Overhead crane and hoist mechanisms
- HVAC and ventilation system drives
Compatibility & Replacements
Compatible With
- Standard three-phase industrial motors (0.75 kW to 7.5 kW typical range)
- Direct drive couplings and flexible shaft connectors
- NEMA-style motor mounting faces
- Flange-mount reducer installations
- Industrial motion control systems requiring synchronized output
Replaces / Drop-In Replacement For
- Similar GAM Gear right-angle 1:1 ratio units requiring PL-HL-090 base platform
- Verify exact coupling and shaft specifications with original equipment documentation before replacement
Works With
- Flexible jaw couplings (elastomeric and metallic)
- Rigid shaft couplings with appropriate bore sizing
- Sealed bearing cartridge assemblies
- Standard motor control relays and VFD soft-start systems
- Industrial safety interlocks and load-sensing devices
