Overview

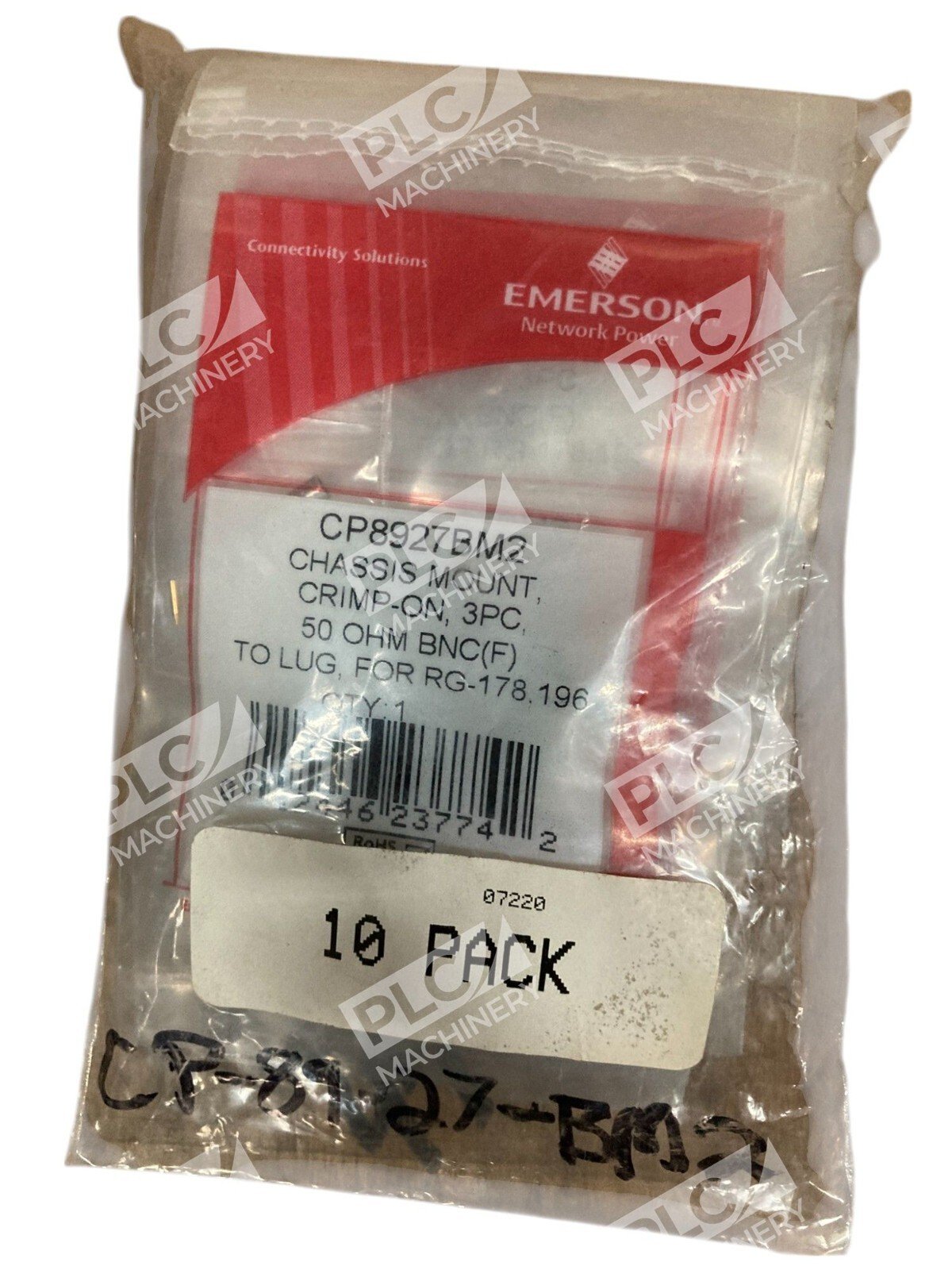

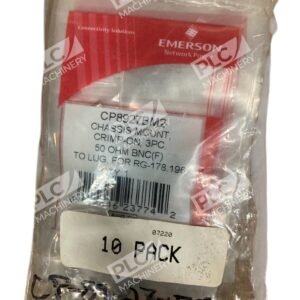

The Emerson CP8927BM2 is a professional-grade BNC female chassis mount connector designed for RF and coaxial cable applications. Manufactured by AIM Cambridge under the Emerson Network Power brand, this connector delivers reliable signal transmission in surveillance systems, test equipment, and broadcast applications where 50 ohm impedance matching is critical.
Key Features
- 50 Ohm Impedance: Maintains proper impedance for standard RF coaxial cables and systems
- Straight Bulkhead Design: Panel or chassis mount configuration for secure, permanent installation
- Gold-Plated Contacts: Brass contacts with gold plating ensure corrosion resistance and excellent signal integrity
- Solder Termination: Reliable solder connection method for secure mechanical and electrical attachment
- 4 GHz Frequency Rating: Supports broadband RF applications up to 4 GHz
- Bulk Package: Supplied in a bag of 10 units for convenient stock and system integration
Technical Specifications
- Connector Type: BNC Coaxial, Female Jack
- Body Style: Straight Bulkhead
- Mounting Type: Panel/Chassis Mount
- Impedance: 50 Ohms
- Contact Material: Brass, Gold Plated
- Termination Method: Solder Cup
- Frequency Range: DC to 4 GHz
- RoHS Compliant: Yes
- Quantity Per Package: 10 Units
- Manufacturer: Emerson (AIM Cambridge)
Typical Applications
- Security camera systems and surveillance installations
- Broadcast and video distribution networks
- RF test and measurement equipment
- Coaxial signal interconnection in industrial control systems
- Cable termination in instrumentation and data acquisition systems
Compatibility & Replacements
Compatible With
- Standard 50 ohm coaxial cable systems (RG59, RG58, RG6 and equivalent)
- RF and broadband signal distribution networks
- Video surveillance and CCTV systems
- Test and measurement instrumentation requiring BNC connectors
- Industrial control and monitoring equipment with coaxial signal paths
Replaces / Drop-In Replacement For
Verify compatibility with your specific installation or system integrator before ordering. The CP8927BM2 is a standard BNC female bulkhead connector suitable as a replacement for equivalent 50 ohm BNC female chassis mount connectors from other manufacturers.
Works With
- Any standard 50 ohm coaxial cable (RG-family, LMR, 9913, and equivalent)
- Standard BNC male connectors and cable plugs
- Video, RF, and data transmission systems using coaxial interconnects
- Surveillance and broadcast signal distribution equipment
