Overview

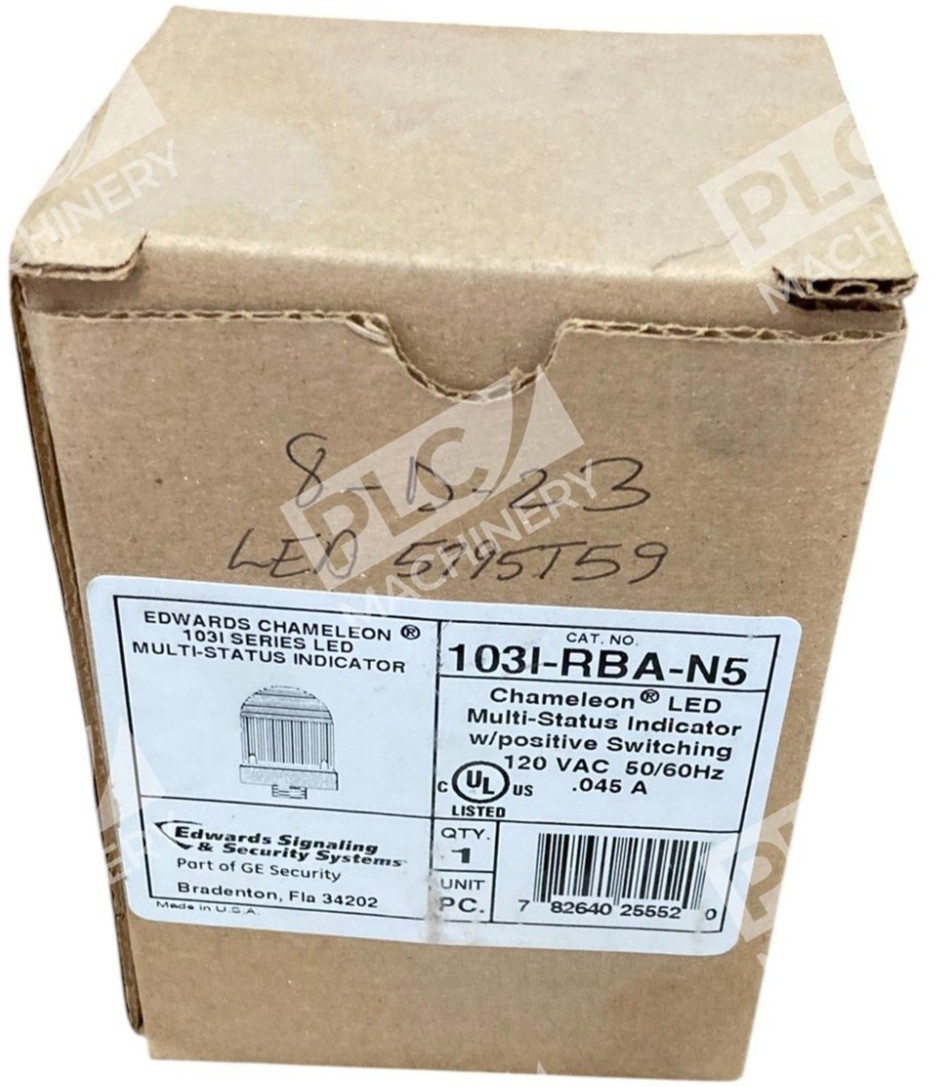

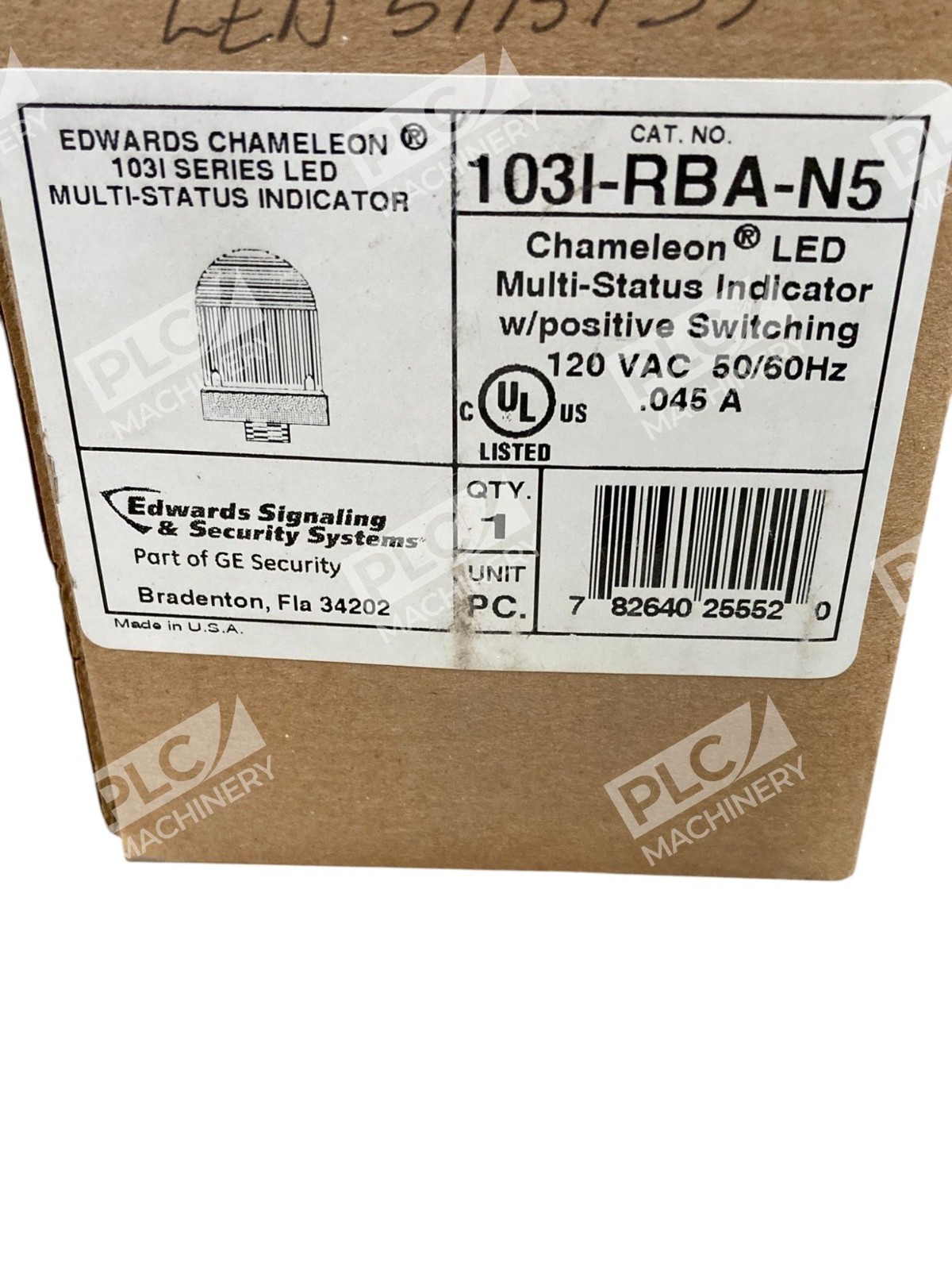

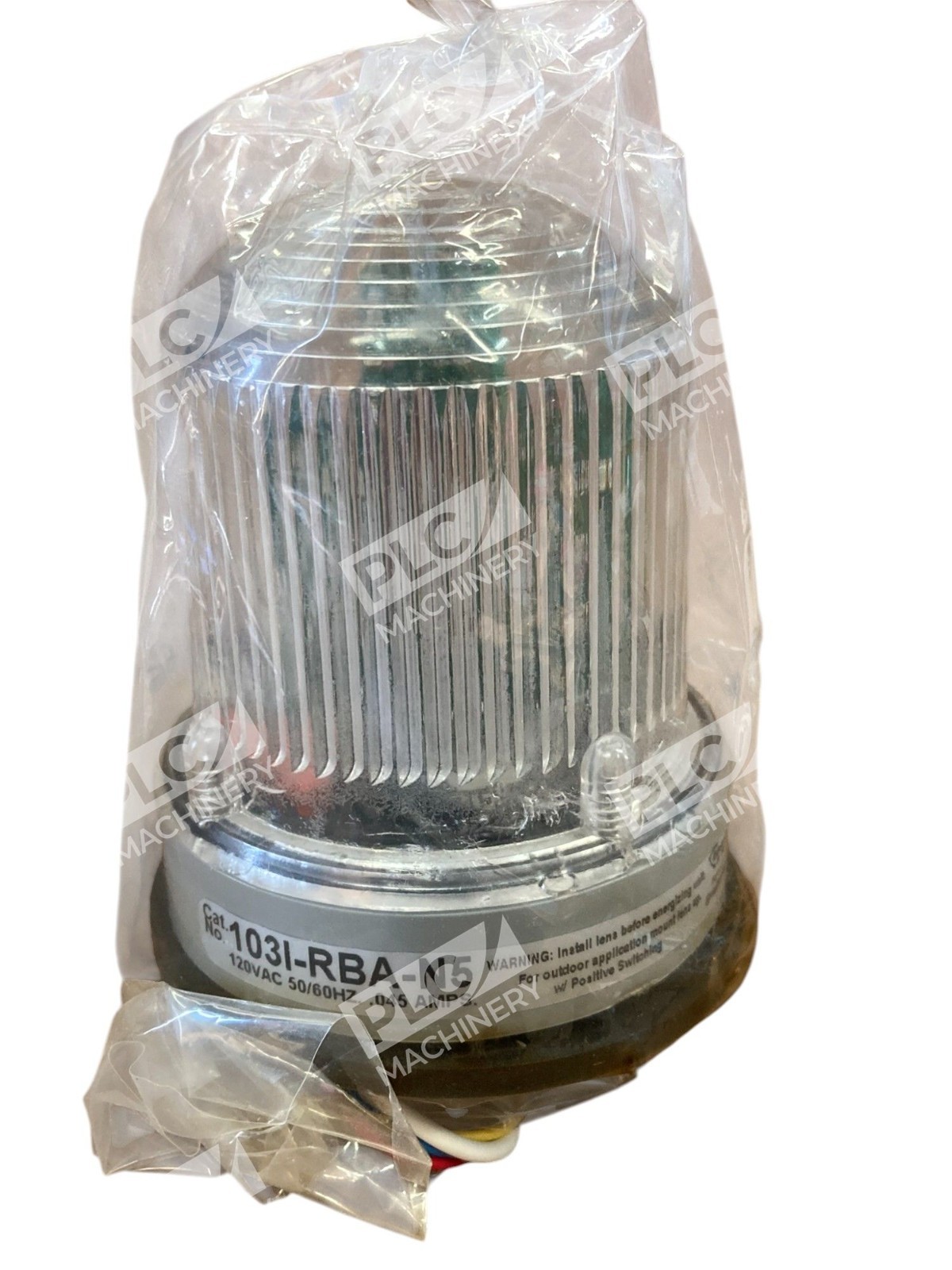

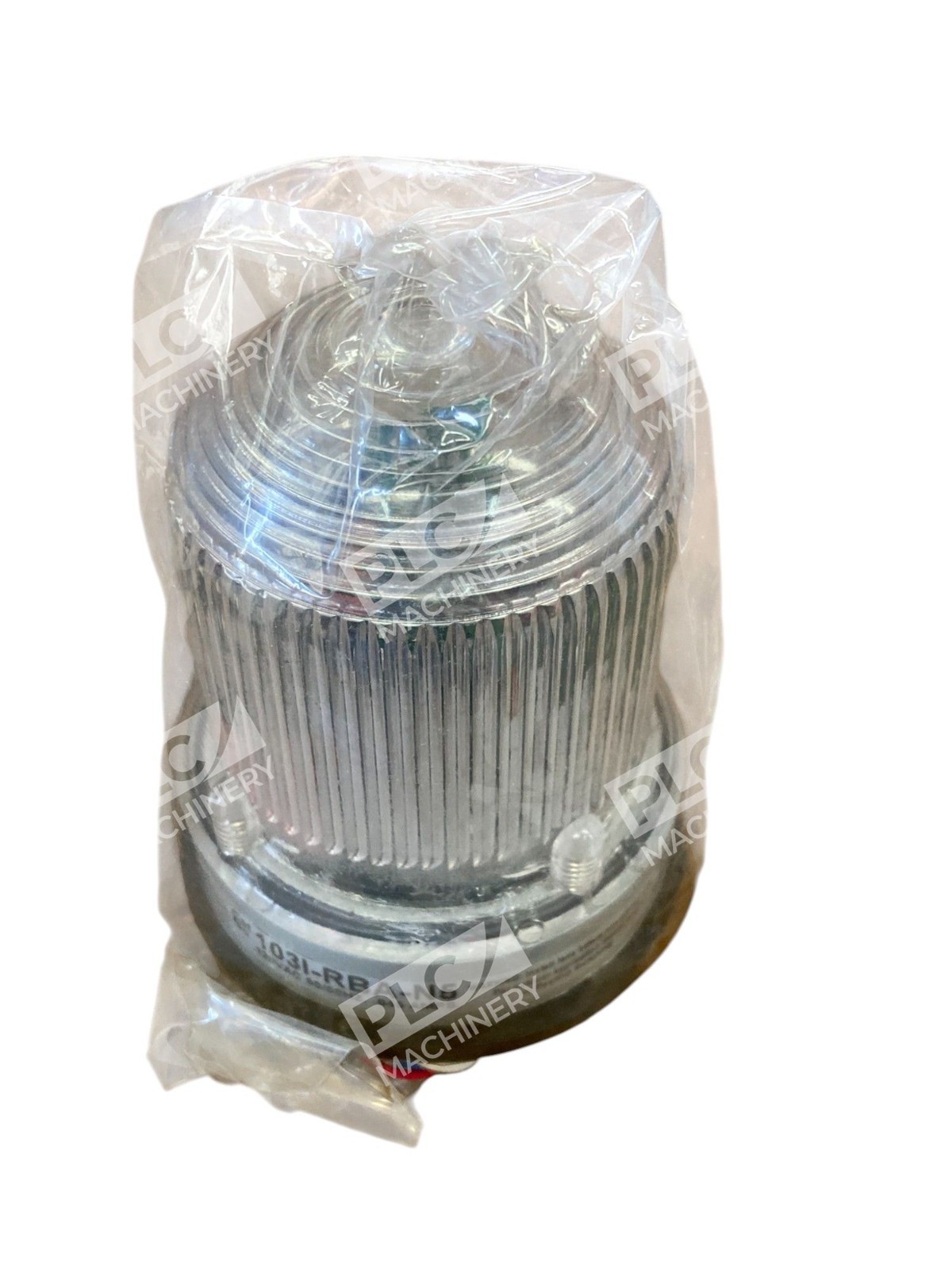

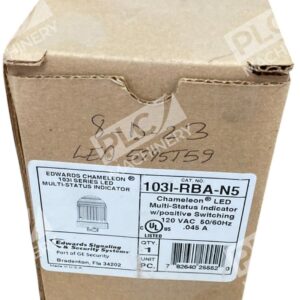

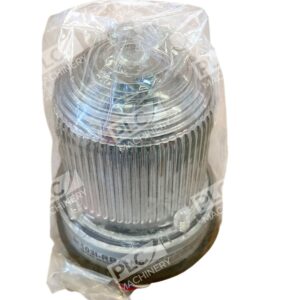

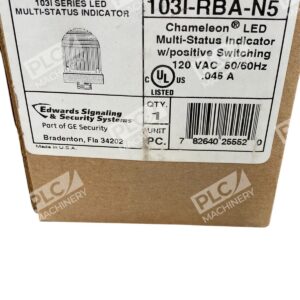

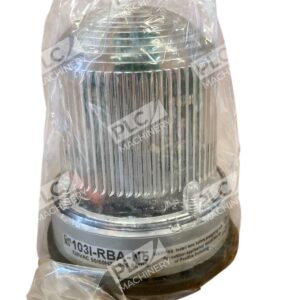

The Edwards 103I-RBA-N5 is a Chameleon series LED multi-status indicator designed for industrial control and signaling applications. Three color LED light operates as either a steady or flashing signal activated by either a PLC or contact closure. A third activation cause the Chameleon to cycle between all three colors: red, amber, and green or red, amber, and blue. The RBA variant cycles red, blue, and amber for flexible status indication in process monitoring, alarm systems, and equipment diagnostics.
Key Features
- Multi-Status LED Design: Cycles between red, green and amber or red, blue and amber.
- Long Service Life: 100,000 hour LED life.
- Industrial Rating: UL Listed, Type 4X Enclosure, cUL Listed.
- Flexible Mounting: An intergral double‑threaded (internal/external) mounting nipple accommodates 3/4″ (19mm) or 1/2″ (13mm) conduit mounting.
- PLC Compatible: This device is PLC compatible and may be operated by PLCs with output characteristics that match the input load requirements of this signal.
Technical Specifications

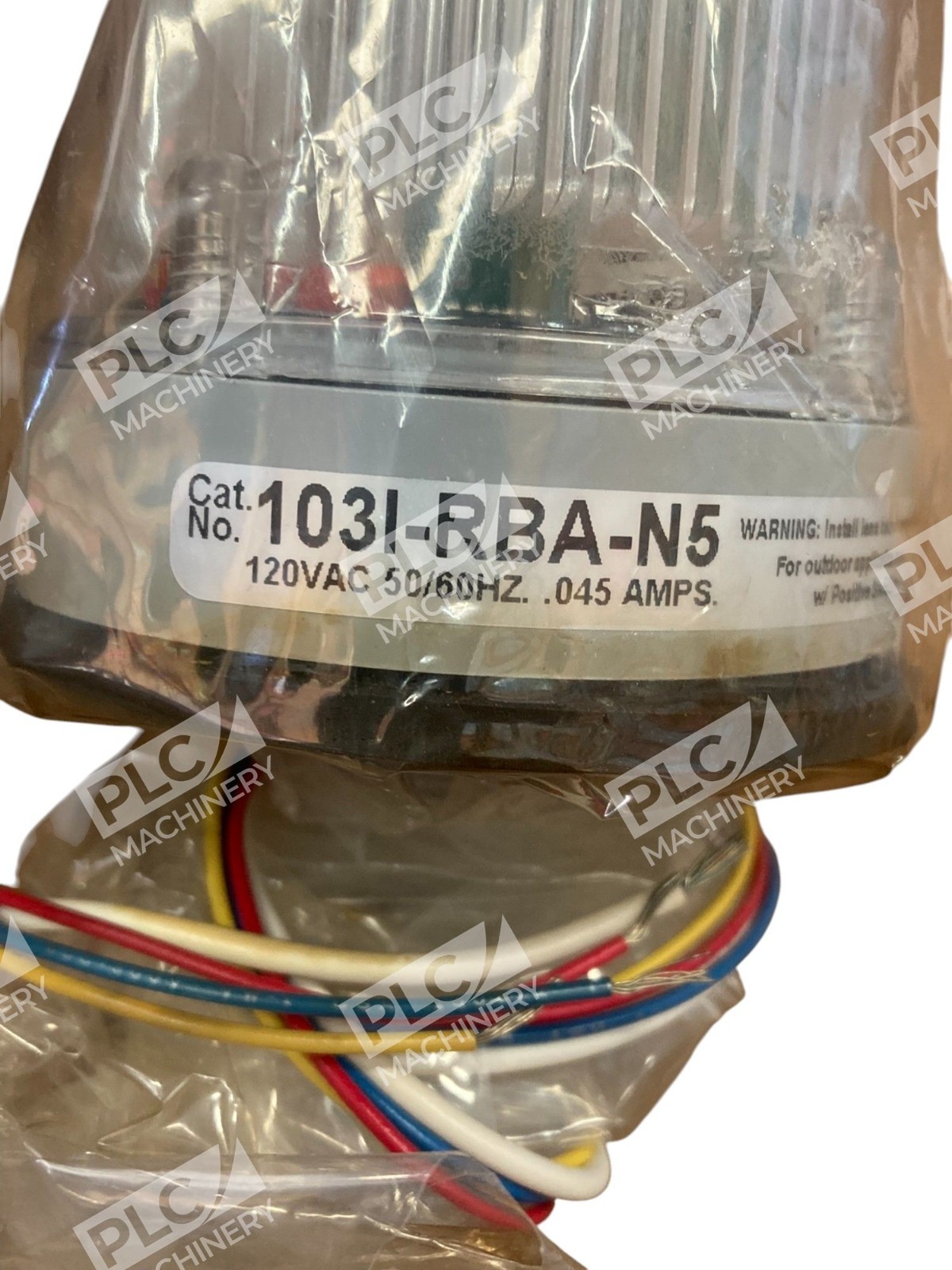

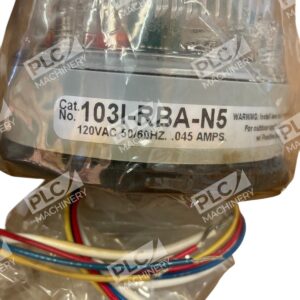

- Supply Voltage: 120VAC, 50/60 Hz
- Operating Current: 45mA (continuous)
- Lamp Type: LED
- Color Options: Red, Blue, Amber (cycling)
- LED Current per Color: 5mA
- Enclosure Rating: NEMA 4X
- Lens Diameter: 82.6mm
- Unit Height: 98.4mm
- Mounting Options: Panel or conduit mount (3/4″ or 1/2″)
- LED Life Expectancy: 100,000 hours
- Certifications: UL Listed, cUL Listed
Typical Applications
The Edwards 103I-RBA-N5 is suitable for use in:
- Industrial machinery status indication and multi-state monitoring
- Fire alarm and emergency signaling systems
- Process control and equipment diagnostics
- PLC-driven status displays for manufacturing environments
- Facilities where compact, high-visibility color indication is required
Compatibility & Replacements
Compatible With
- PLC systems with output characteristics matching the signal input load requirements
- Contact closure activation systems
- 120VAC control circuits and industrial control panels
- Standard 3/4″ and 1/2″ conduit installations
Replaces / Drop-In Replacement For
- Edwards 103-RBA-N5 (non-“I” variant)
- Other Edwards Chameleon 103 series indicators requiring red/blue/amber cycling
Works With
- Allen-Bradley CompactLogix, MicroLogix, and ControlLogix PLCs
- Siemens S7-1200, S7-1500 PLCs
- Mitsubishi FX, Q series PLCs
- Omron CJ and CP series controllers
- Any PLC with 120VAC digital output capability
- Standard industrial relay circuits and contact closures
