Overview

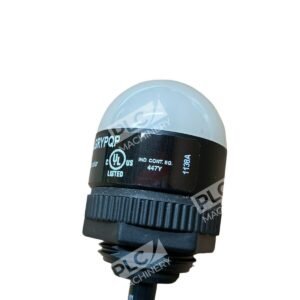

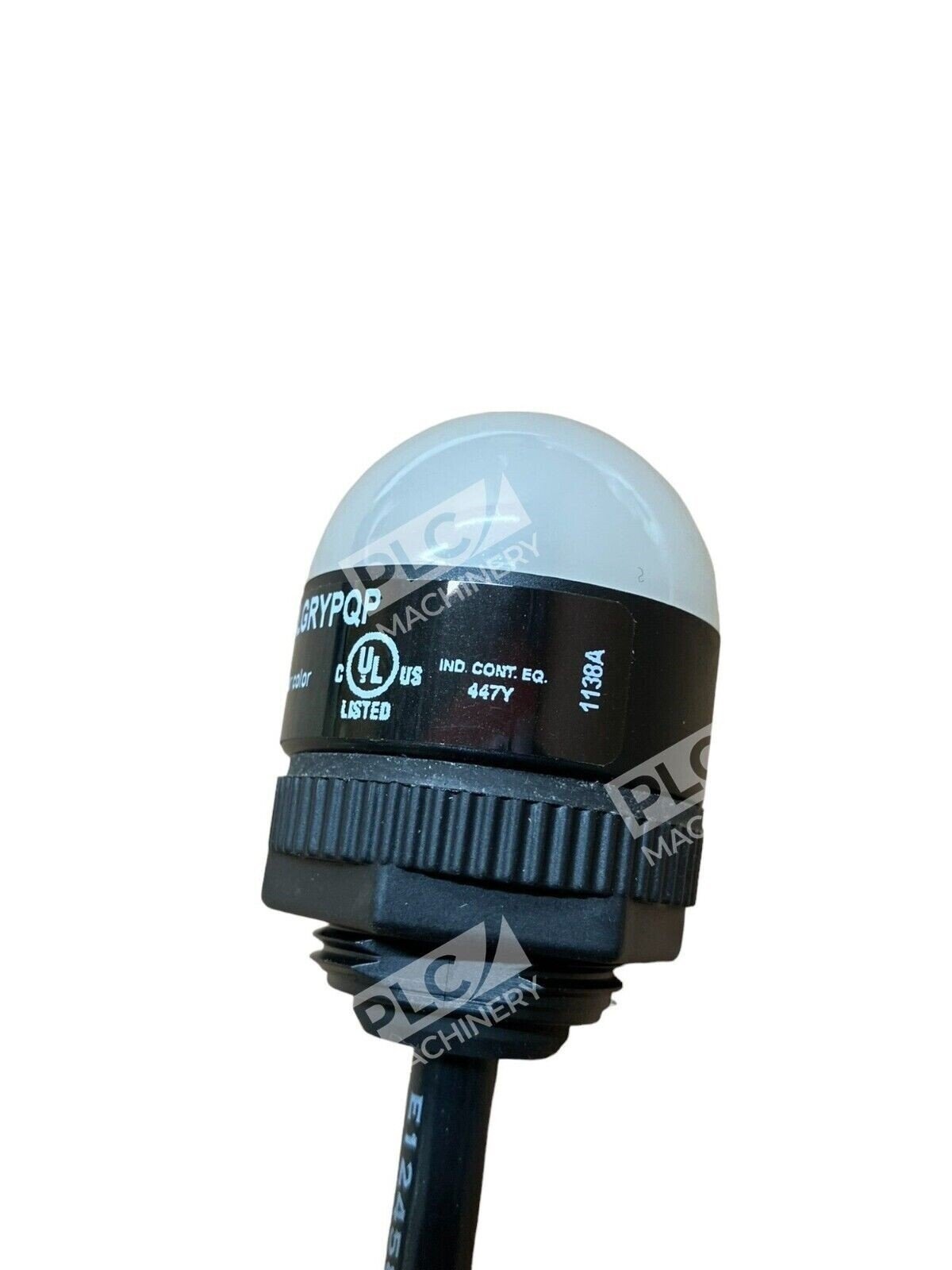

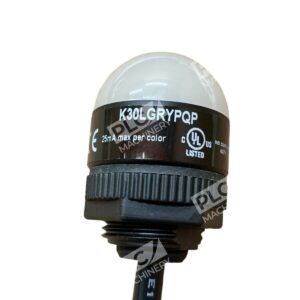

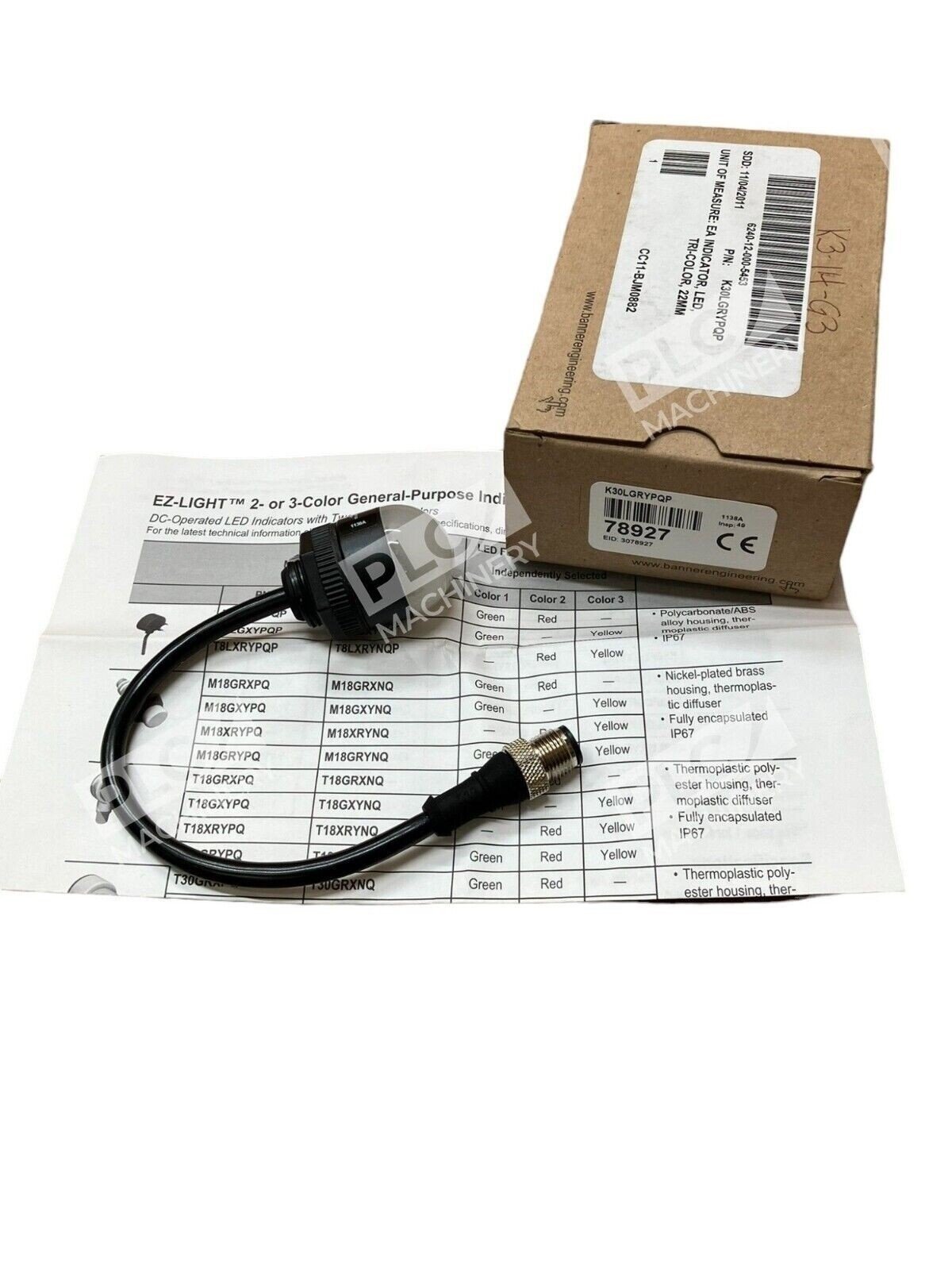

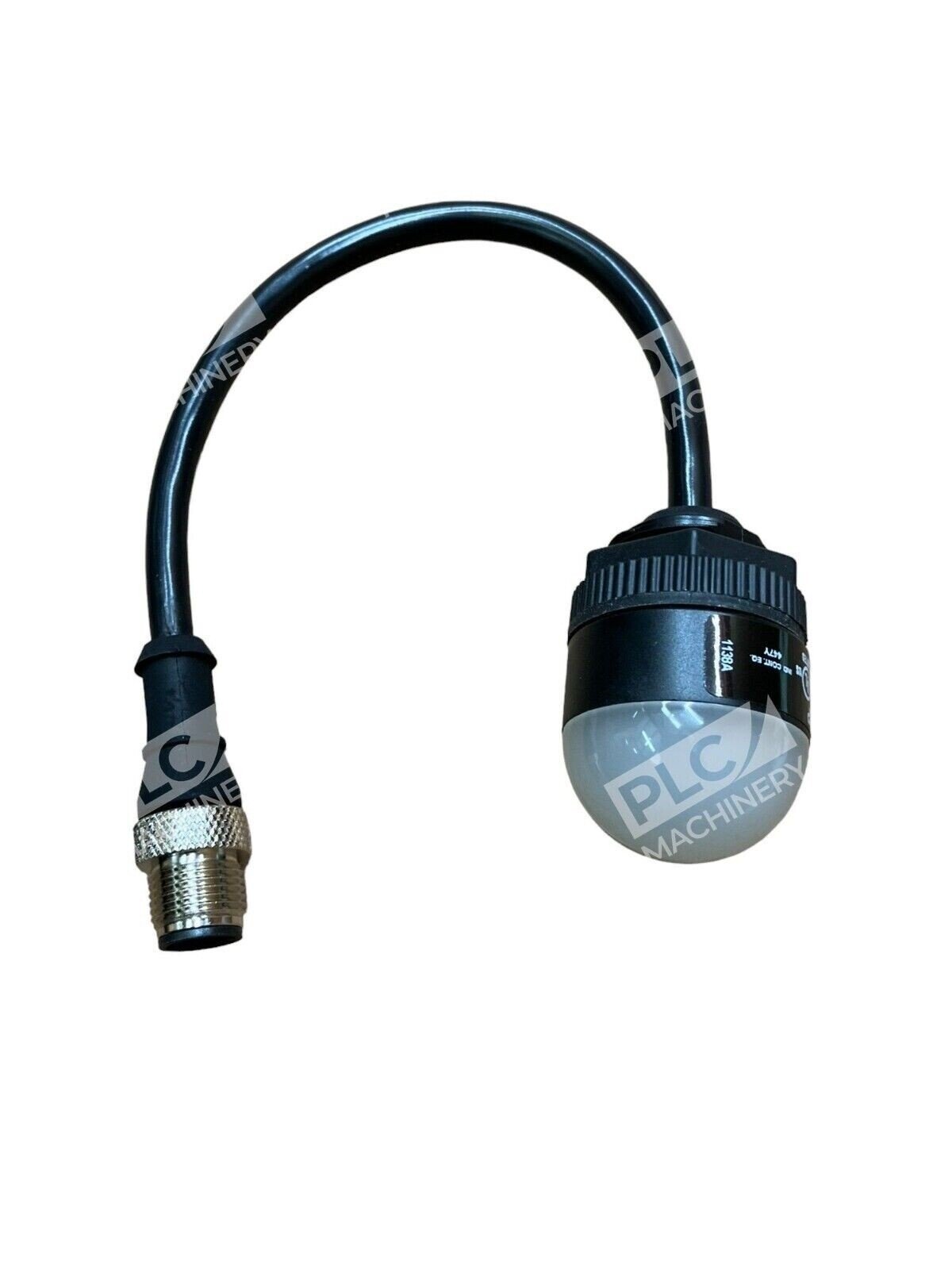

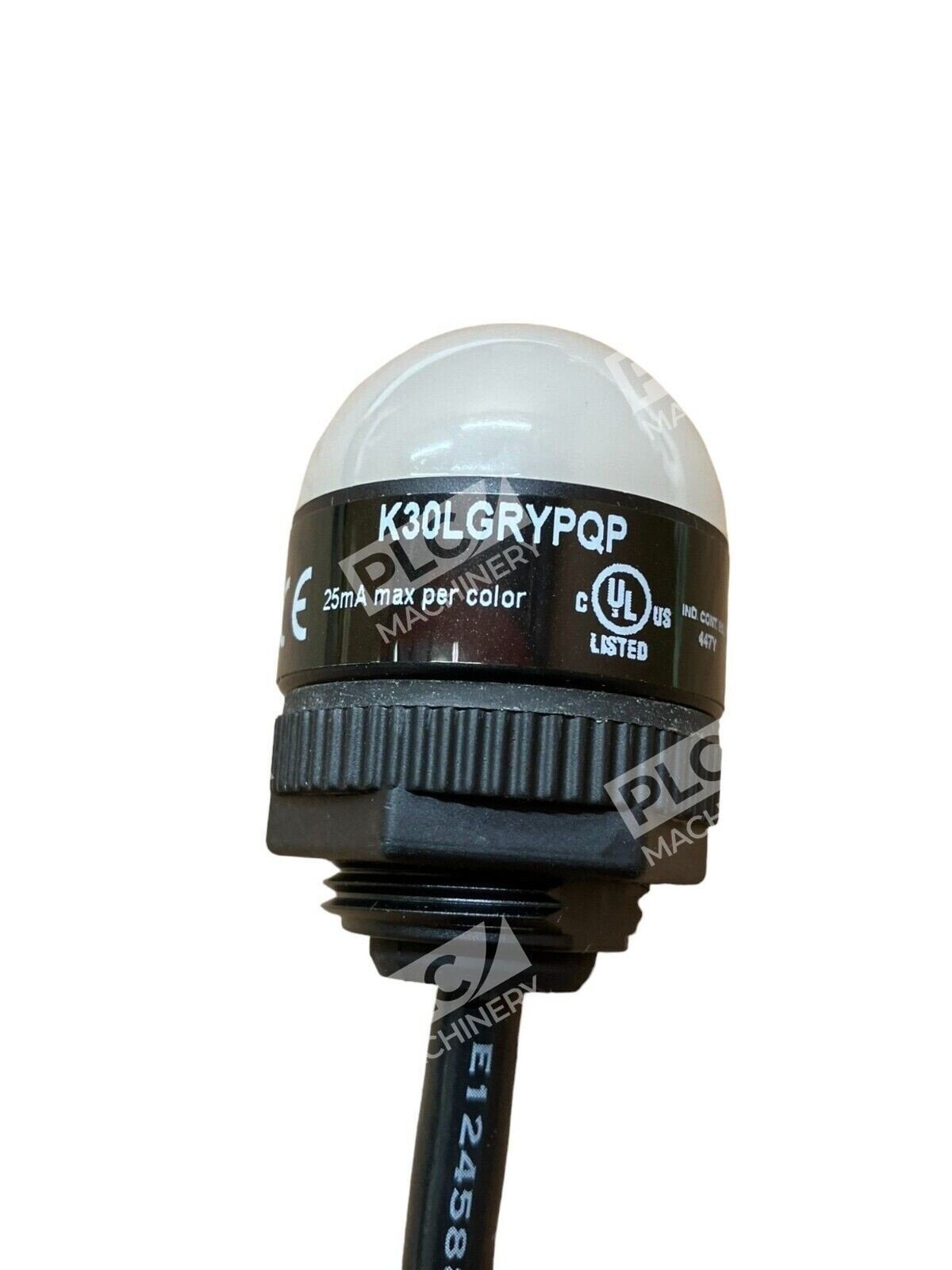

The Banner K30LGRYPQP is a 30 mm tri-color EZ-LIGHT general-purpose LED indicator from Banner Engineering’s K30 Series. Part number 78927, this compact indicator delivers three independent color outputs—green, yellow, and red—for clear machine state signaling in industrial control applications. The unit features a polycarbonate housing with dome window and comes equipped with a 150 mm (6 in) PVC pigtail quick-disconnect terminal, making installation and panel mounting straightforward.
Key Features
- Three independent LED color outputs: green, yellow, red for flexible status indication
- Wide voltage range: 10–30 VDC with 25 mA maximum per LED color
- IP67/IP69K environmental rating for washdown and harsh industrial environments
- PNP input logic with 1 ms maximum response time
- Polycarbonate housing and lens for durability and optical clarity
- Quick-disconnect pigtail terminal for fast installation and serviceability
Technical Specifications
- Voltage: 10–30 V DC
- Current: 25 mA maximum per LED color
- Colors: Green, Yellow, Red
- Housing: Polycarbonate, black
- Lens: Polycarbonate dome

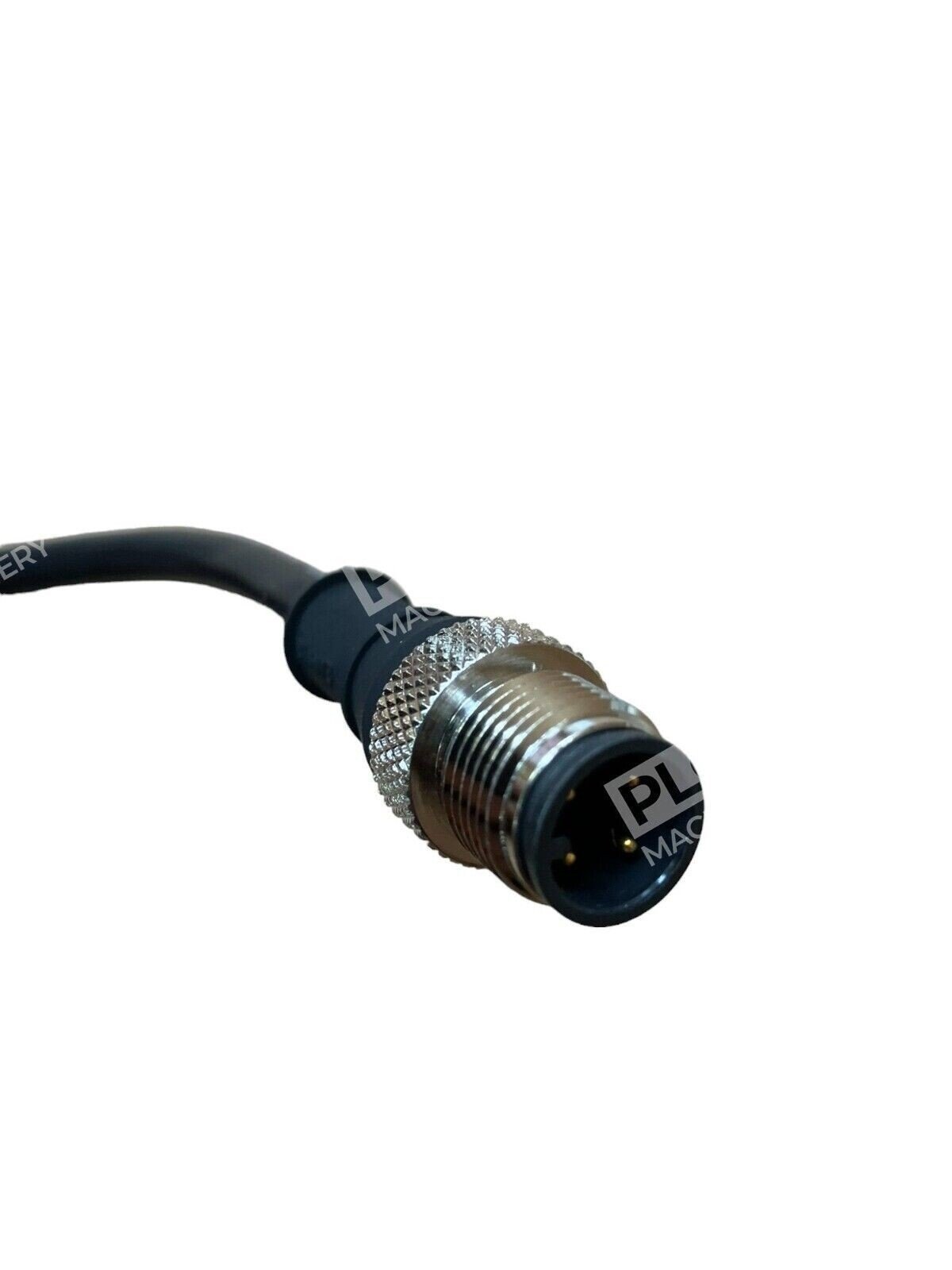

- Terminal Type: 150 mm PVC pigtail with QD connector
- Input Logic: PNP
- Response Time: 1 ms maximum (ON/OFF)
- Operating Temperature: –40 °C to +50 °C
- Enclosure Rating: IP67, IP69K
- NEMA Type: 4X, 13
- Diameter: 30 mm
- Height: 44.5 mm

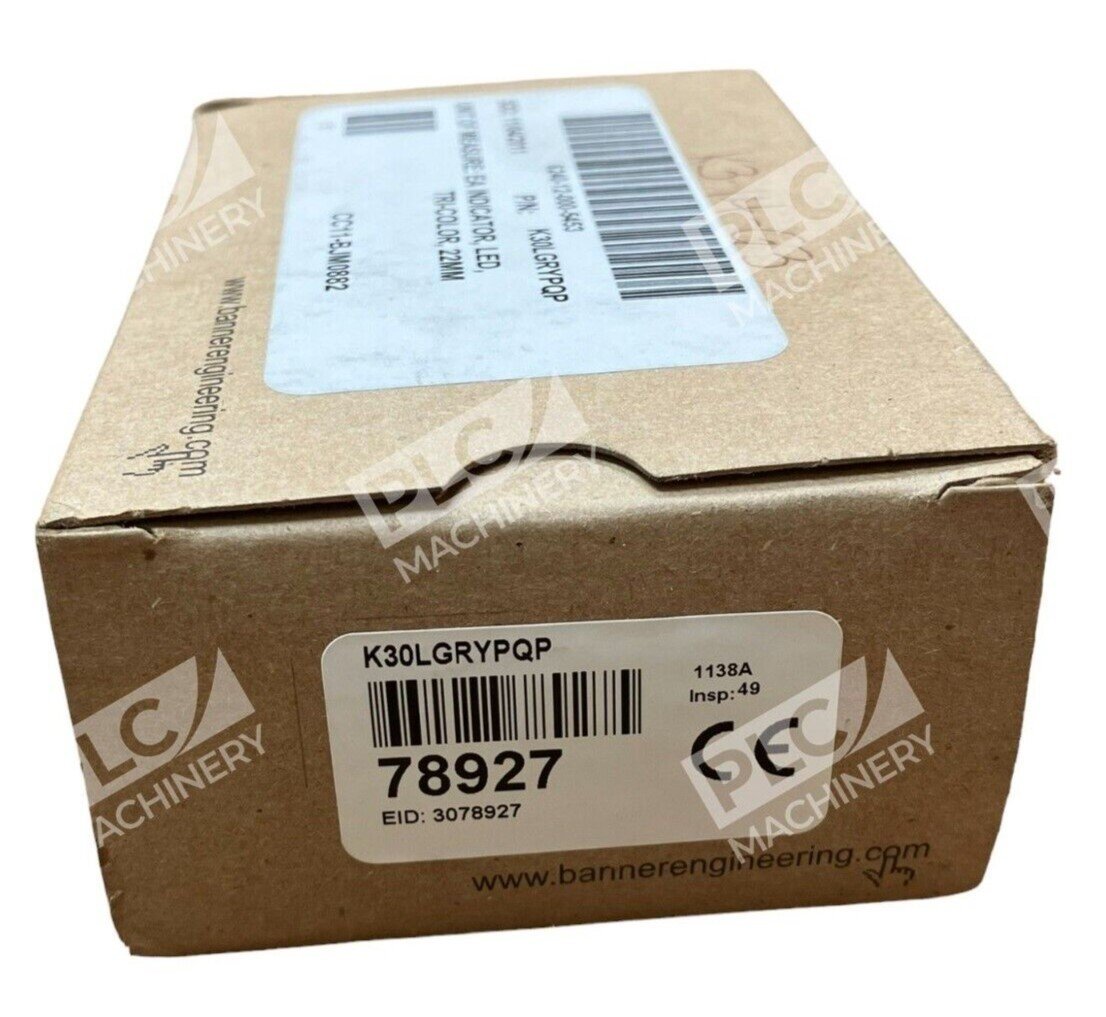

- Part Number: 78927
Typical Applications
The K30LGRYPQP is ideal for operator guidance, machine status indication, visual process communication, and control feedback in manufacturing automation, packaging machinery, automotive assembly, pharmaceutical equipment, and food processing systems. Its compact 30 mm footprint, rugged construction, and multicolor output make it well suited for equipment panels, control cabinets, and production line installations where clear, visible state indication is critical.
Compatibility & Replacements
Compatible With
- PLC and industrial controller discrete 24 VDC outputs
- 3-wire and 4-wire sensor outputs
- Banner automation control systems and logic
- Standard industrial 10–30 VDC power supplies
- EtherNet/IP and standard hardwired control networks
Replaces / Drop-In Replacement For
- K30LGRYP (integral cable version; K30LGRYPQP uses pigtail QD instead)
- K30LGRYPQ (M12 integral QD version; check terminal compatibility)
Works With
- Studio 5000 (Logix Designer) via discrete output modules
- TIA Portal (Siemens) via standard 24 VDC digital outputs
- Mitsubishi GX Works and Q Series PLCs
- Omron CX, NX, and NY Series controllers
- Standard hardwired relay circuits and sensor interfaces
