Overview

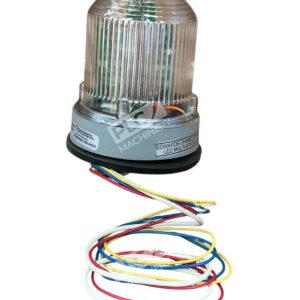

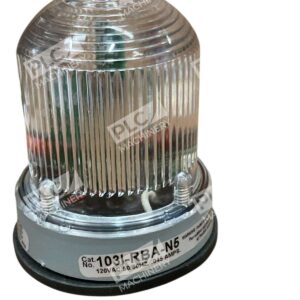

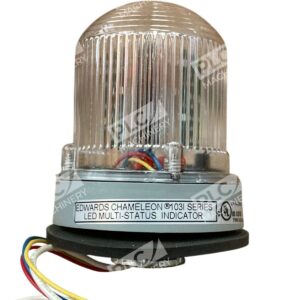

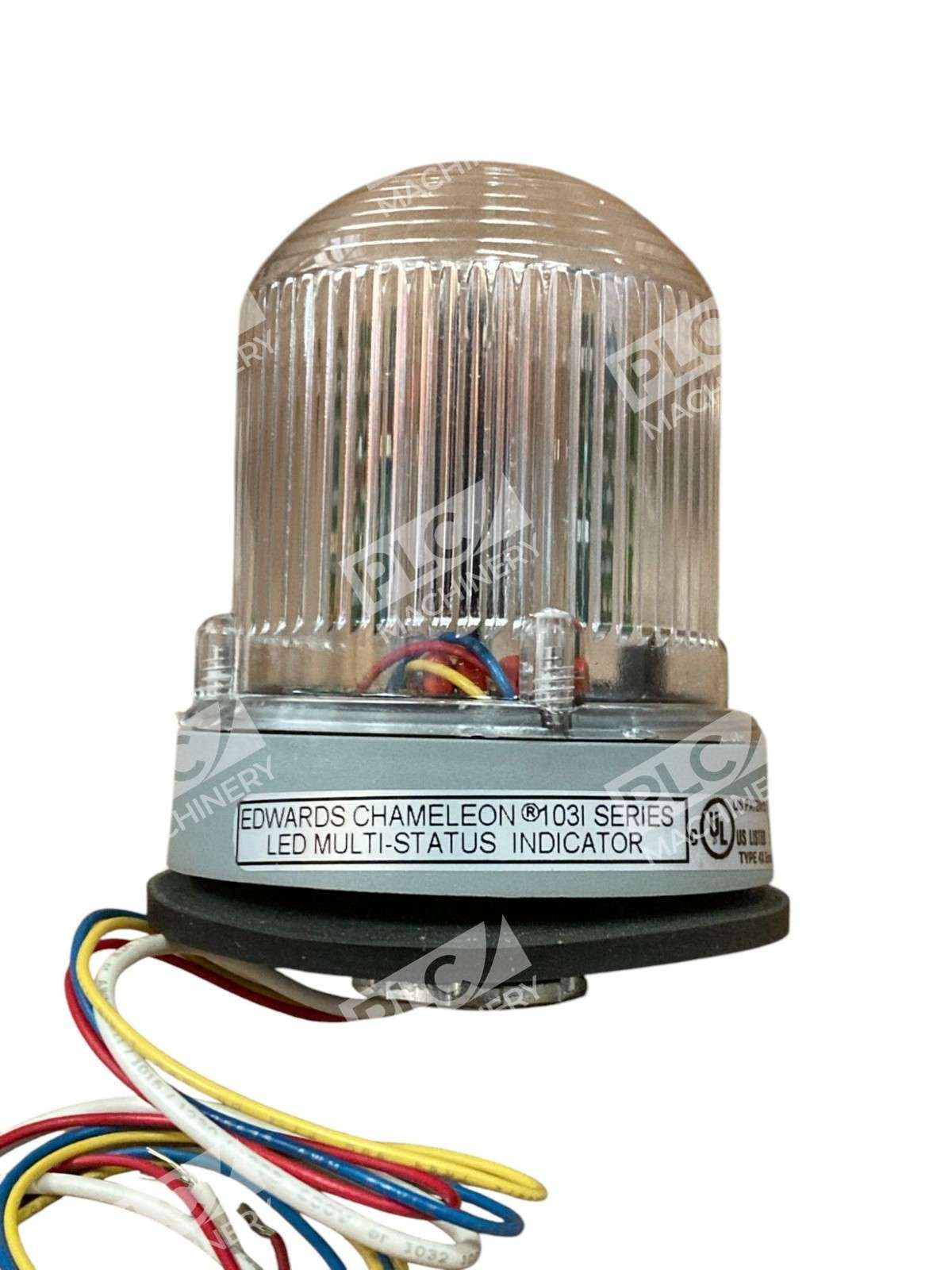

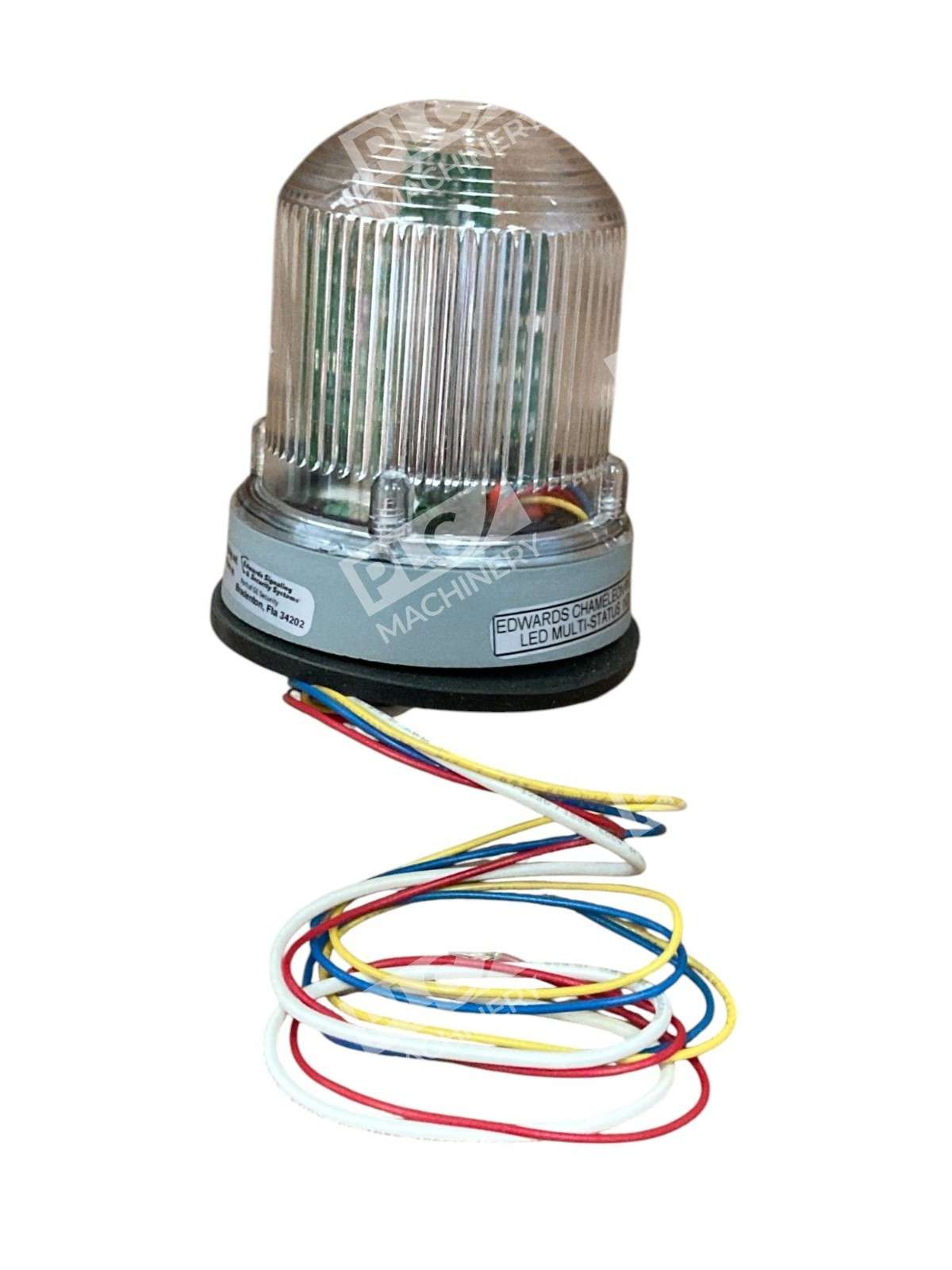

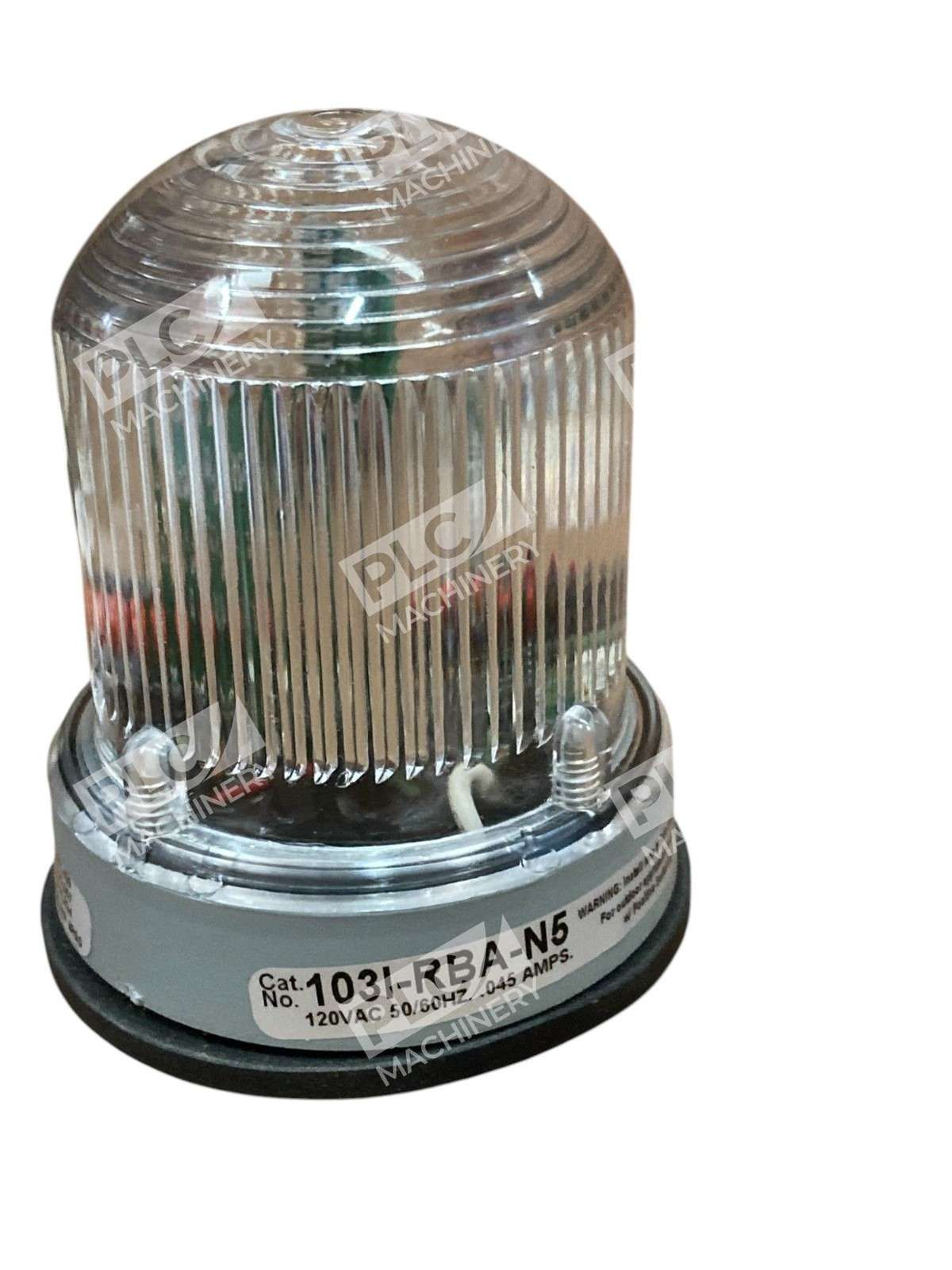

The Edwards Signaling 103I-RBA-N5 is a three-color LED multi-status indicator light engineered for reliable industrial automation and control applications. The Chameleon 103I Series features an onboard processor with an internal jumper that allows the unit to function as either a steady or flashing visual signal, designed such that any one or all three lights can be activated by either a PLC or contact closure. This unit provides clear, visible status indication for process monitoring, equipment state, and emergency signaling in manufacturing and control environments.
Key Features
- The first light activated will illuminate either steady or flashing (set by an internal jumper), and if a second light is activated, the Chameleon cycles between the two colors; a third activation causes the Chameleon to cycle between all three colors: red, amber, and green or red, amber, and blue.
- 100,000 hour LED life
- UL Listed, Type 4X Enclosure, cUL Listed
- 3/4″ and 1/2″ conduit or locknut mounting
- PLC compatible and may be operated by PLCs with output characteristics that match the input load requirements of this signal
- Onboard processor with internal jumper configuration for flexible operation
Technical Specifications
The 103I-RBA-N5 accommodates the following operational parameters:
- Operating Voltage: 24V DC or 120V AC
- LED Colors: Red, Amber, Green (or Red, Amber, Blue)
- Supply Current: 45mA at 120VAC
- LED Lifespan: 100,000 hours
- Enclosure Rating: Type 4X (weatherproof, corrosion-resistant)
- Certifications: UL Listed, cUL Listed
- Mounting Options: 1/2″ and 3/4″ conduit or locknut mounting
- Lens Size: 1/2″ (13mm)
Typical Applications
The Edwards Signaling 103I-RBA-N5 is commonly deployed in:
- Manufacturing process control and machine status indication
- Assembly line production monitoring
- Equipment state and operational status display
- Emergency and warning signal applications
- PLC-controlled automation systems requiring visual feedback
- Industrial and outdoor environments requiring Type 4X rated enclosures
Compatibility & Replacements
Compatible With
- Allen-Bradley PLCs and control systems
- Siemens SIMATIC controllers
- Mitsubishi FX and Q-series PLCs
- Omron CJ and CP series controllers
- Any PLC with dry contact or solid-state output matching input load requirements
- 24VDC and 120VAC industrial control circuits
Replaces / Drop-In Replacement For
- 103-RBA-N5 (non-intelligent variant of the same series)
- Earlier Edwards Signaling 103 Series models with compatible mounting and voltage
Works With
- Studio 5000 (Allen-Bradley) ladder logic programs
- TIA Portal (Siemens) automation engineering
- Mitsubishi GX Developer and GX Works engineering suites
- Omron CX-Programmer and Sysmac Studio
- Contact closure-based control circuits
- Dry contact switching from PLC outputs
