Overview

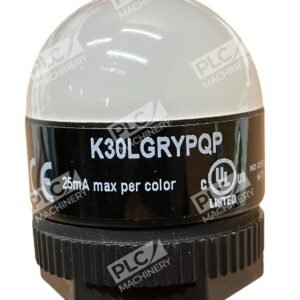

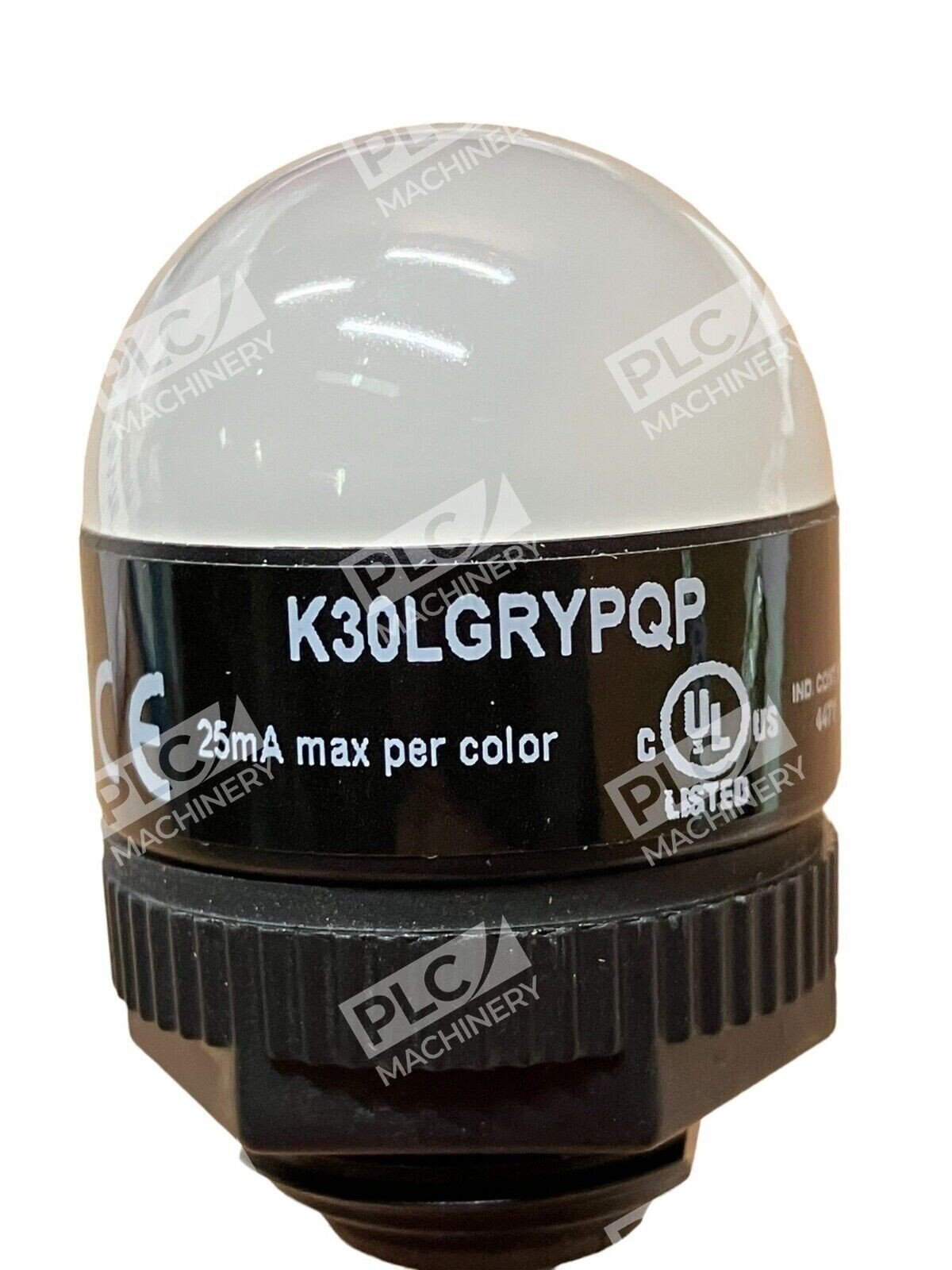

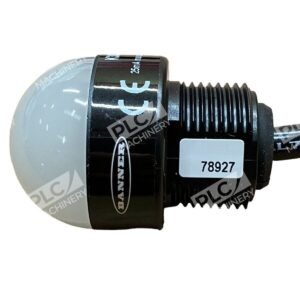

The Banner K30LGRYPQP is part of Banner’s EZ-LIGHT K30L series of general-purpose DC-operated panel mount indicators. This LED indicator is a rugged, cost-effective device designed for panel mounting in 22.5mm holes and displays up to three colors. The unit features a 30mm dome-shaped thermoplastic housing with 22.5mm threaded mounting, energy-efficient low power consumption with a long life of 100,000 hours typical, and IP67 rated fully encapsulated design. It operates on a standard 10–30 VDC supply with PNP input configuration, making it compatible with most industrial control systems and programmable logic controllers.
Key Features
- Tri-Color LED Display: Green, red, and yellow illumination for multi-state status indication
- Long-Life LEDs: 100,000 hours typical operating life ensures extended maintenance intervals
- Industrial Enclosure Rating: IP67/IP69K NEMA 4X/13 rated for water ingress and chemical splash resistance
- PNP Input Logic: Direct compatibility with standard 24 VDC industrial control circuits and relay modules
- Compact Design: 30mm diameter dome housing measuring 44.5mm height fits standard panel cutouts
- M12 Quick-Disconnect Terminal: Integral M12 QD connector for fast connection and replacement
Technical Specifications
The following specifications define the Banner K30LGRYPQP’s operational parameters and physical characteristics:
- Series: K30 EZ-LIGHT
- Supply Voltage: 10 to 30 VDC
- Operating Current: 25 mA
- Input Type: PNP
- Colors: Green/Red/Yellow Lens
- Housing Material: Polycarbonate with black bezel
- Lamp Type: LED
- Dimensions: 30mm diameter × 44.5mm height
- Mounting Style: Threaded mounting in 22.5mm hole

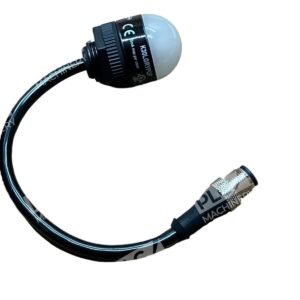

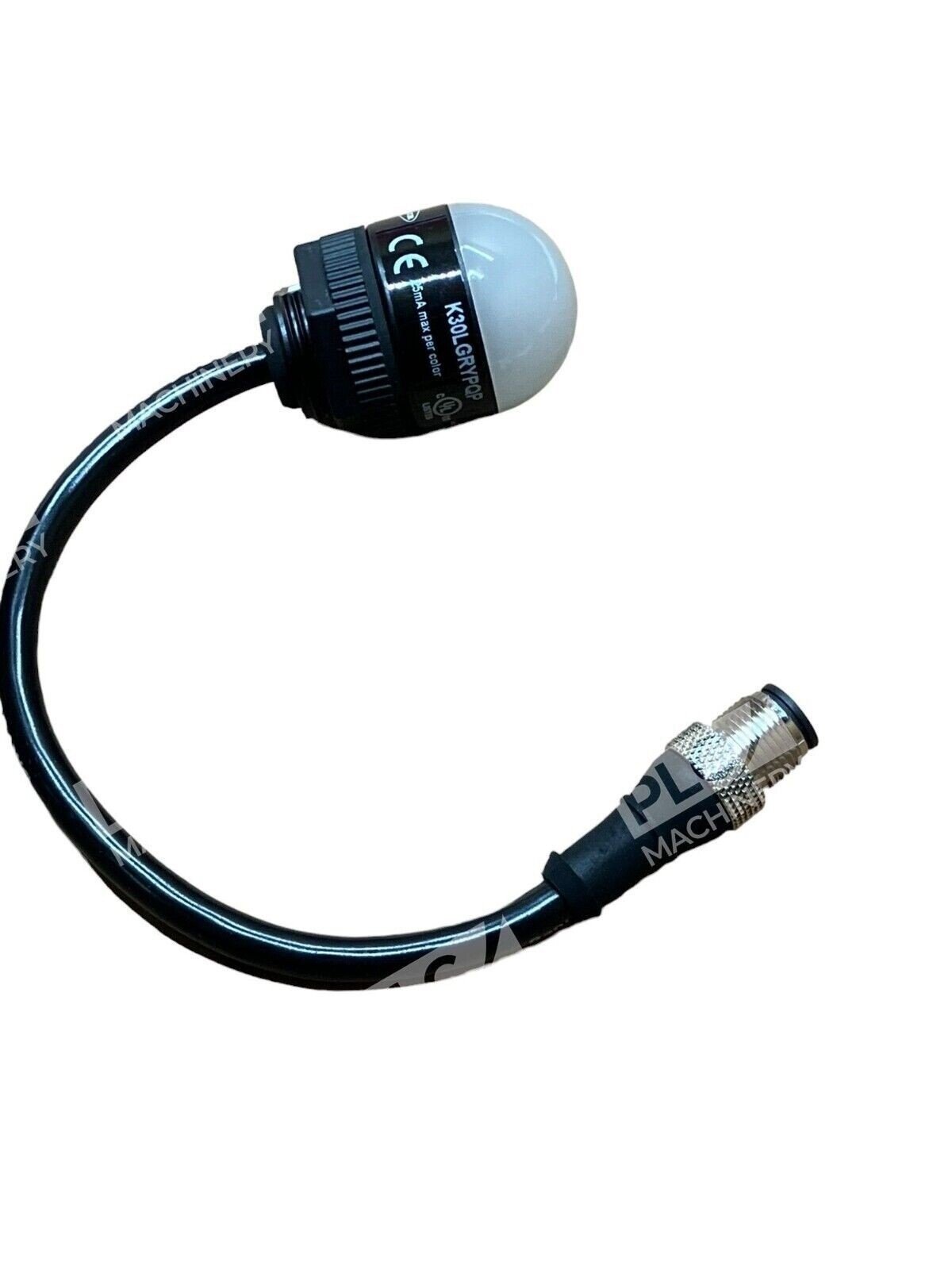

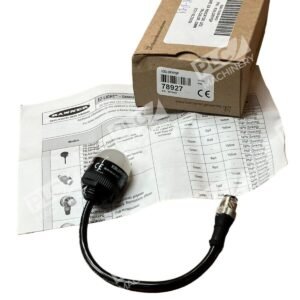

- Termination: M12 Quick-Disconnect (pigtail) connector with cable
- Enclosure Rating: NEMA 4X/13, IP67, IP69K
- Operating Temperature: –40 to +50°C
- Lamp Life: 100,000 hours typical

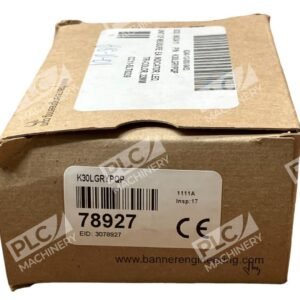

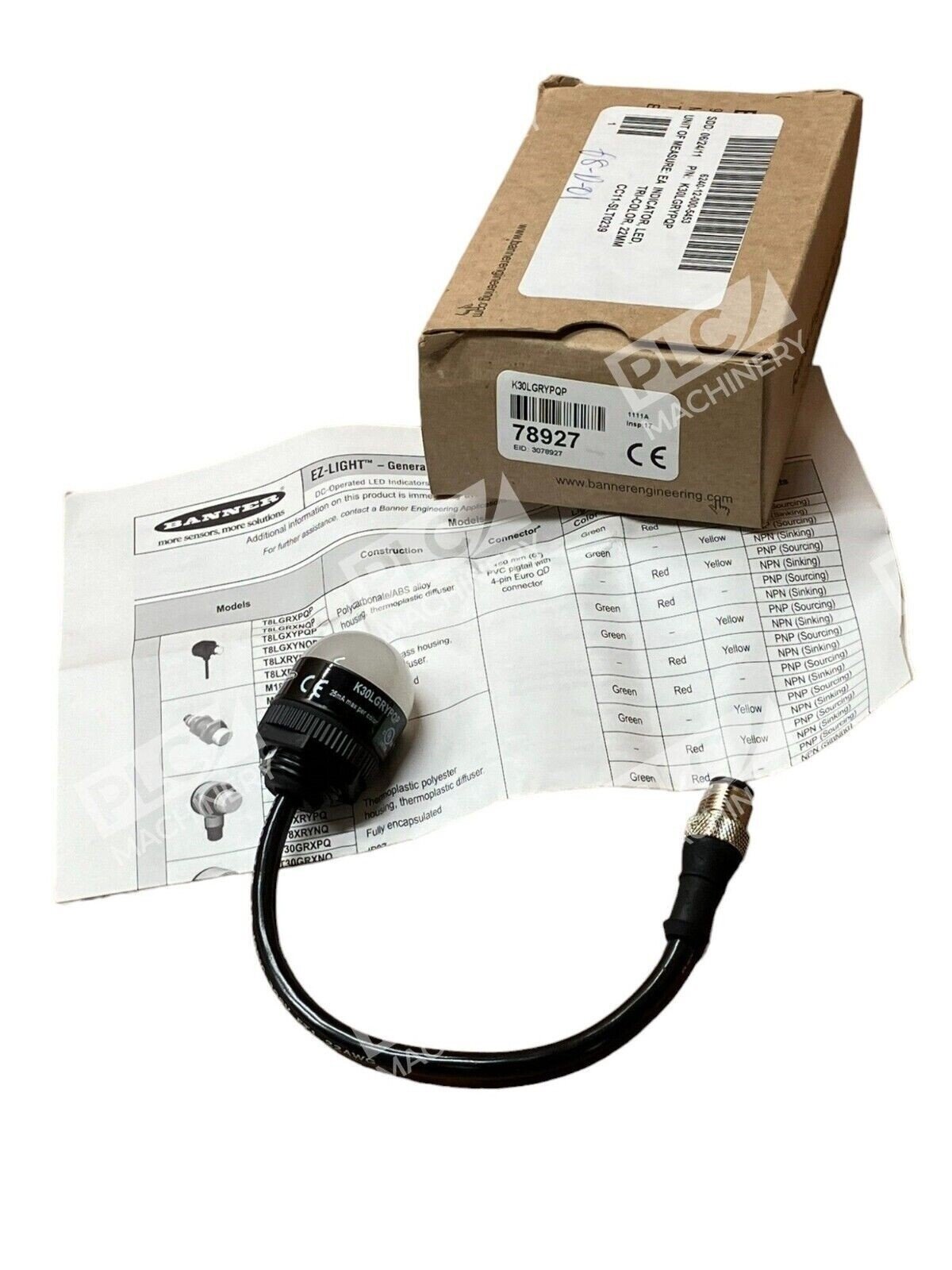

- Manufacturer Part Number: K30LGRYPQP (Banner internal reference: 78927)
Typical Applications
The K30LGRYPQP is commonly deployed in manufacturing, packaging, and process automation environments where intuitive multi-color status indication is required. Standard use cases include:
- Machine run/stop/alarm status displays on control enclosures
- System diagnostics and fault indication panels
- Production line equipment condition monitoring
- Material handling systems and conveyor status lights
- Testing and quality control station indicators
- Industrial equipment emergency and safety signaling
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and MicroLogix PLCs with 24 VDC outputs
- Siemens S7-1200 and S7-1500 systems with digital output modules
- Mitsubishi FX series and iQ-F PLCs
- Omron CP1E and CJ2 controllers
- Standard industrial relay modules and power supply banks (10–30 VDC)
- 24 VDC distributed control networks and IP67-rated industrial environments
- EtherNet/IP and PROFINET gateway systems for integrated diagnostics
Replaces / Drop-In Replacement For
- Banner K30LGRYP (pigtail cable variant of same series)
- Banner K30LGRYPQ (earlier QD connector configuration)
- Other 22.5mm tri-color LED indicators requiring IP67 enclosure rating and M12 termination
Works With
- Studio 5000 and RSLogix 5000 (Rockwell) — via standard digital output configuration
- TIA Portal (Siemens) — with PROFIBUS or PROFINET gateway modules
- GX Works3 and GX Developer (Mitsubishi) — using standard 24 VDC output cards
- CX-Programmer (Omron) — with PLC relay output logic

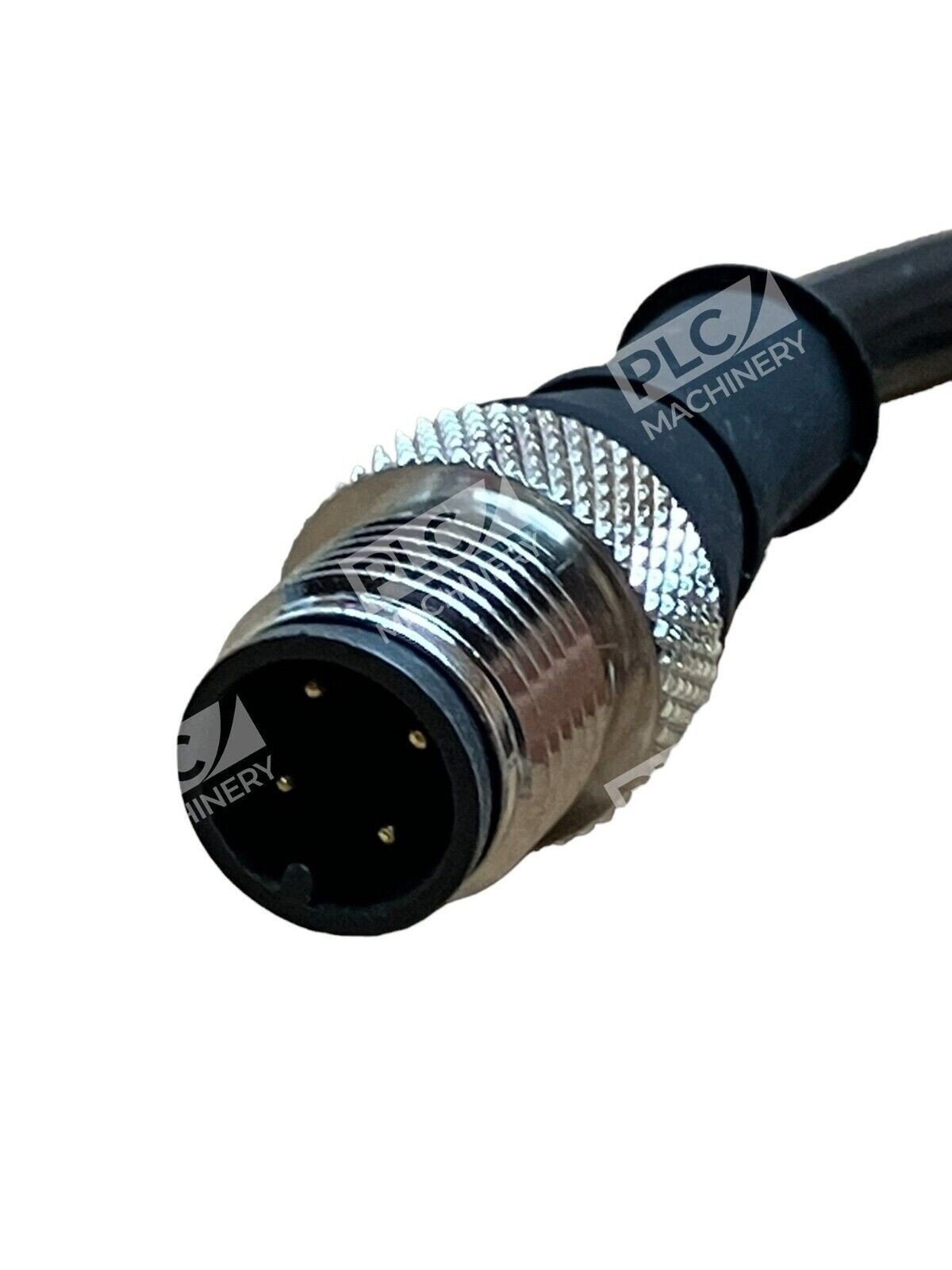

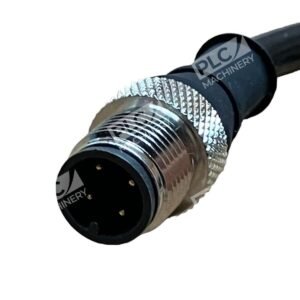

- M12 5-pin A-coded connectors and standard industrial cordsets (widely available)
- PROFINET and EtherNet/IP networks when paired with gateway modules
