<h2>Overview</h2>

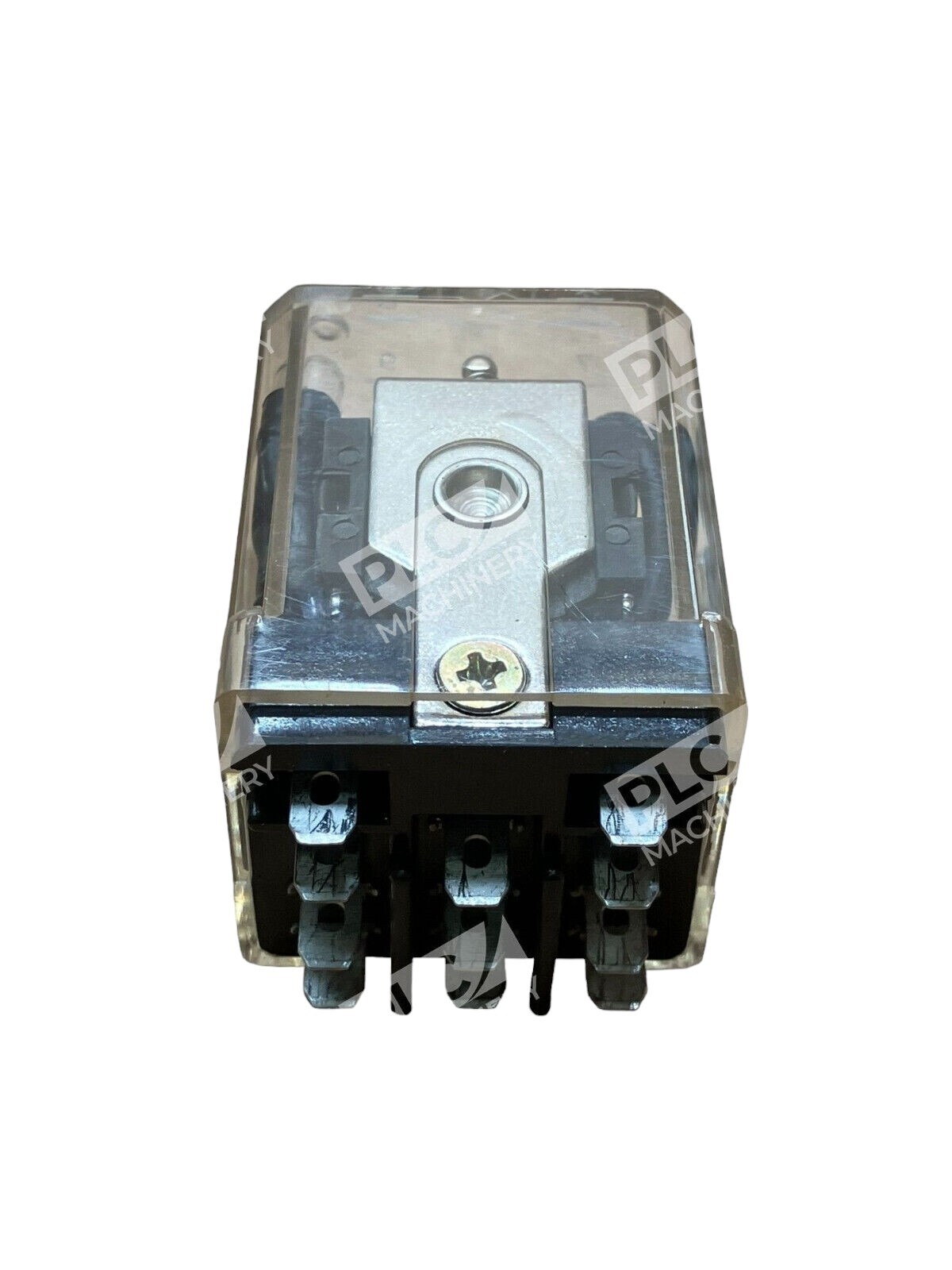

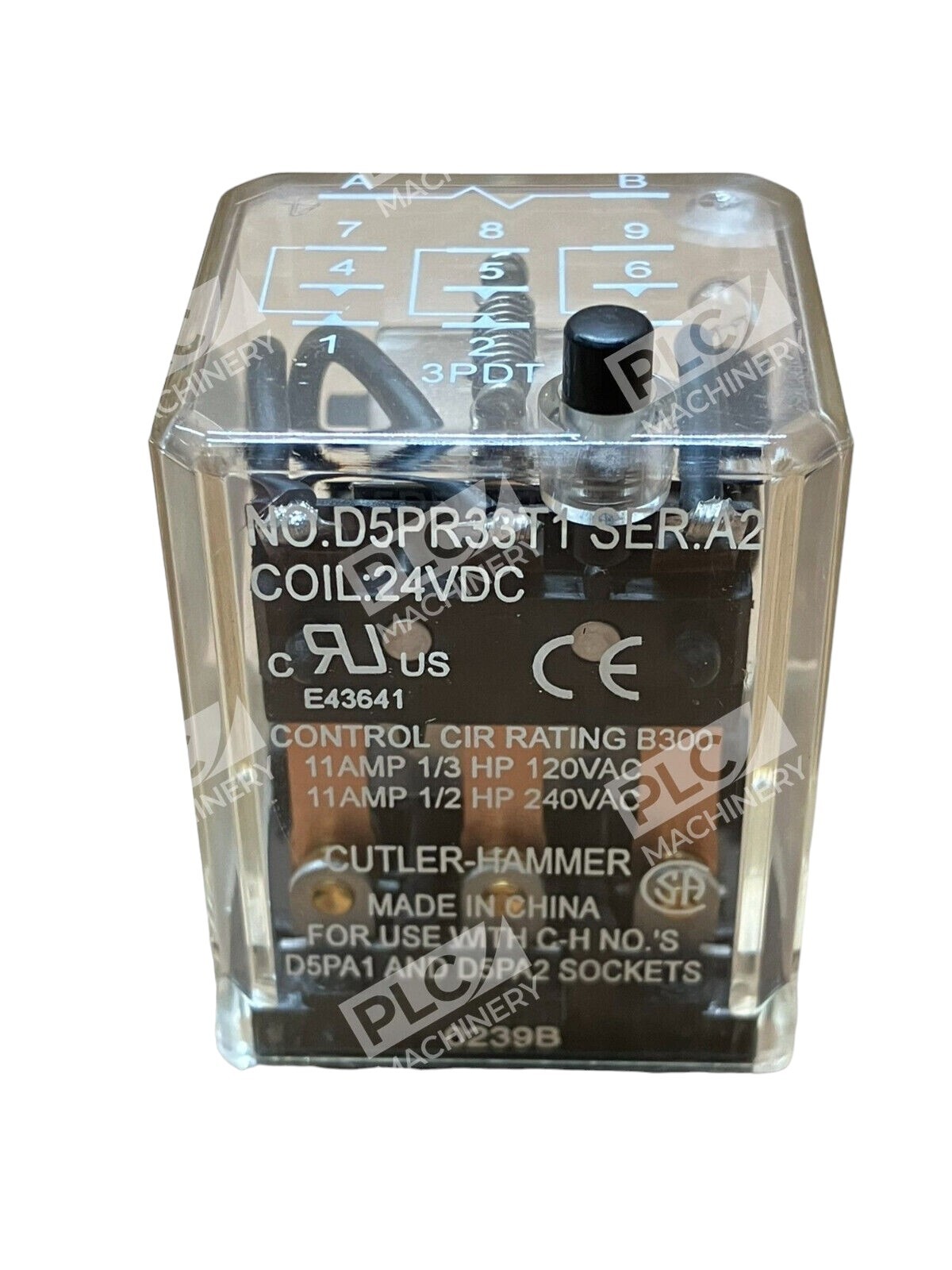

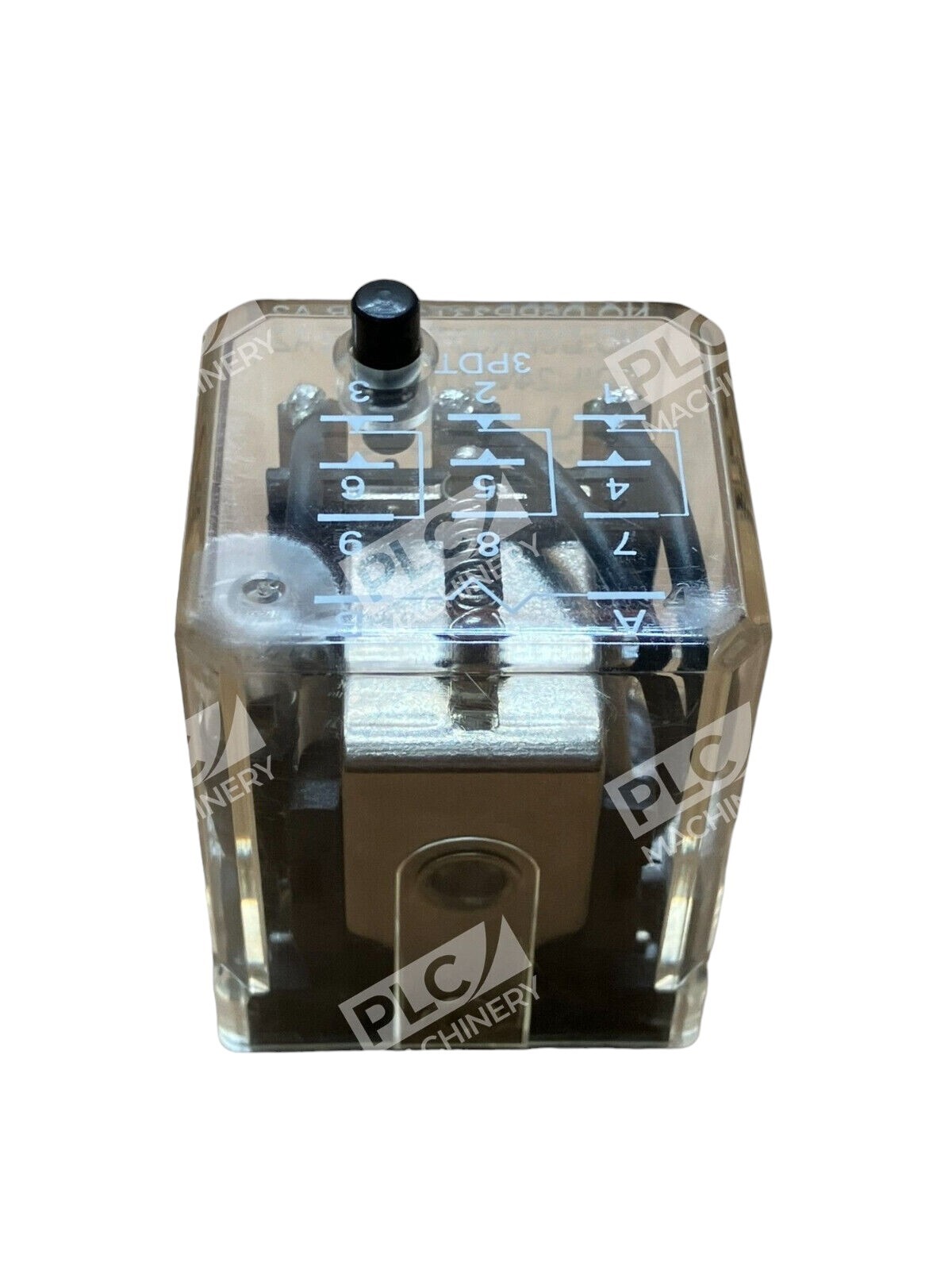

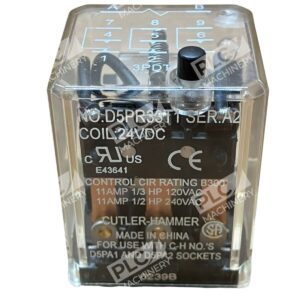

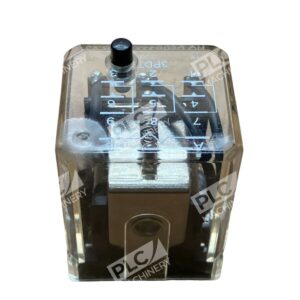

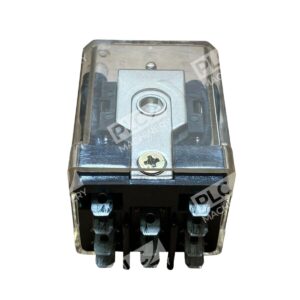

<p>The <strong>Eaton Cutler-Hammer D5PR33T1 A2</strong> is a plug-in general purpose relay designed for reliable control switching in industrial automation and motion control systems. This 3PDT (3 Pole Double Throw) relay includes an integrated test button and LED indicator light, making it ideal for maintenance technicians and control engineers who need quick status verification during troubleshooting and testing.</p>
<h2>Key Features</h2>
<ul>
<li>3PDT contact configuration for flexible switching applications</li>
<li>120 VAC coil voltage with standard operating ratings</li>
<li>Integrated test button for circuit verification without system shutdown</li>
<li>LED indicator light for visual status confirmation</li>
<li>Plug-in design for quick removal and replacement in relay sockets</li>
<li>Compact form factor suitable for panel mount installations</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Contact Configuration:</strong> 3PDT (3 Pole Double Throw)</li>
<li><strong>Coil Voltage:</strong> 120 VAC</li>
<li><strong>Features:</strong> Test button, LED indicator light, finger-grip cover, lock-down door</li>
<li><strong>Mounting:</strong> Plug-in socket mount (8 blade)</li>
<li><strong>Series:</strong> D5PR General Purpose Relay</li>
<li><strong>Manufacturer:</strong> Eaton Corporation (Cutler-Hammer)</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>PLC output control circuits</li>
<li>Pilot duty switching for contactors and solenoids</li>
<li>Industrial control panel logic circuits</li>
<li>Automation equipment sequencing</li>
<li>Motor starter interlocking circuits</li>
<li>System status monitoring and alarming</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Eaton D5PR series relay sockets</li>
<li>Industrial control panels using 120 VAC relay logic</li>
<li>PLC discrete output modules (through proper interfacing)</li>
<li>Standard 8-blade plug-in relay sockets</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>D5PR33T1 (exact same part number across revisions)</li>
<li>D5PR3A1 (similar 3PDT configuration, verify coil voltage)</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Eaton ControlLogix and CompactLogix PLCs</li>
<li>Allen-Bradley RSLogix 5000 / Studio 5000 programming software</li>
<li>Standard industrial 120 VAC control circuits</li>
<li>Discrete I/O modules and signal conditioning hardware</li>
</ul>
