Overview

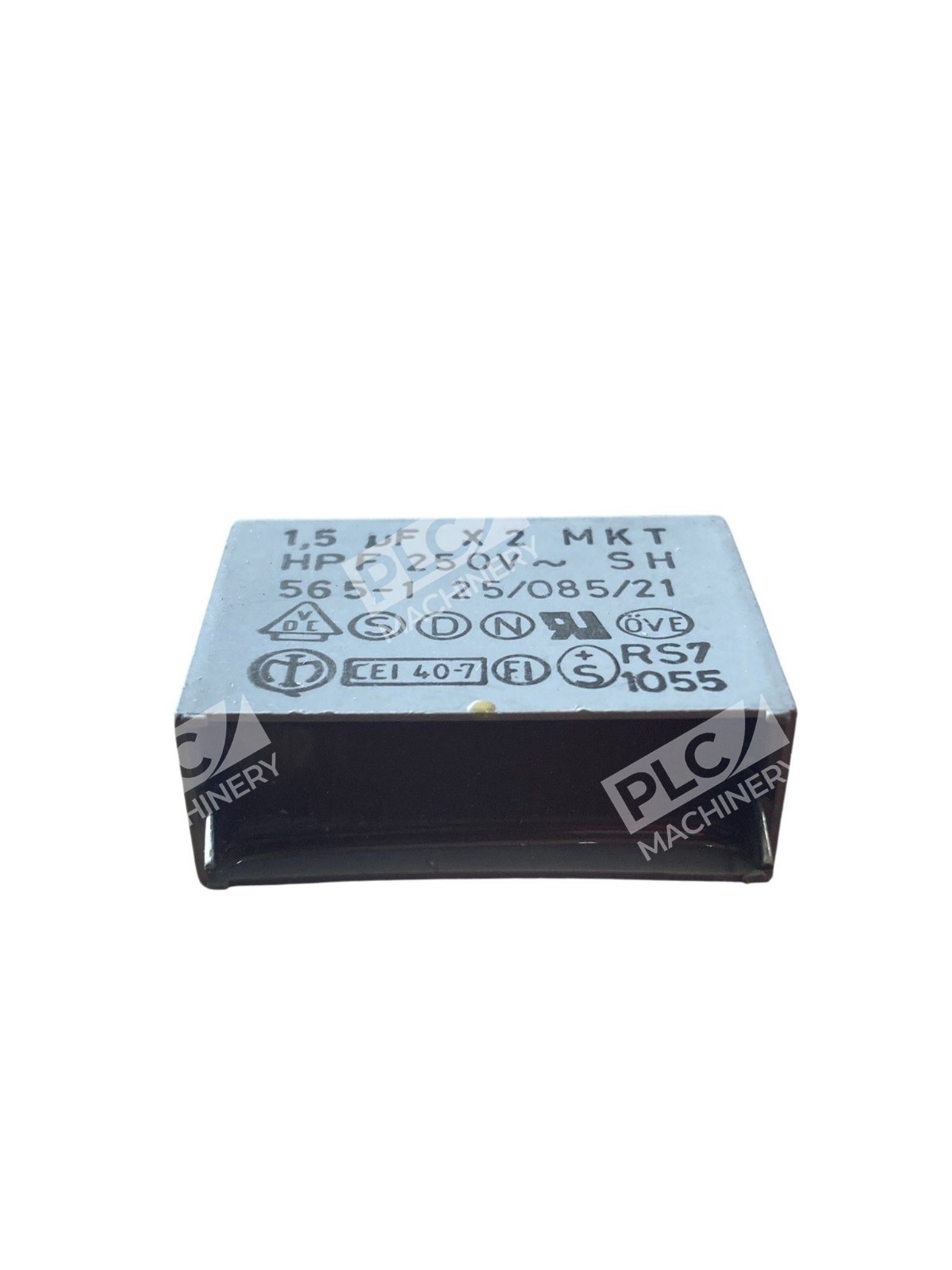

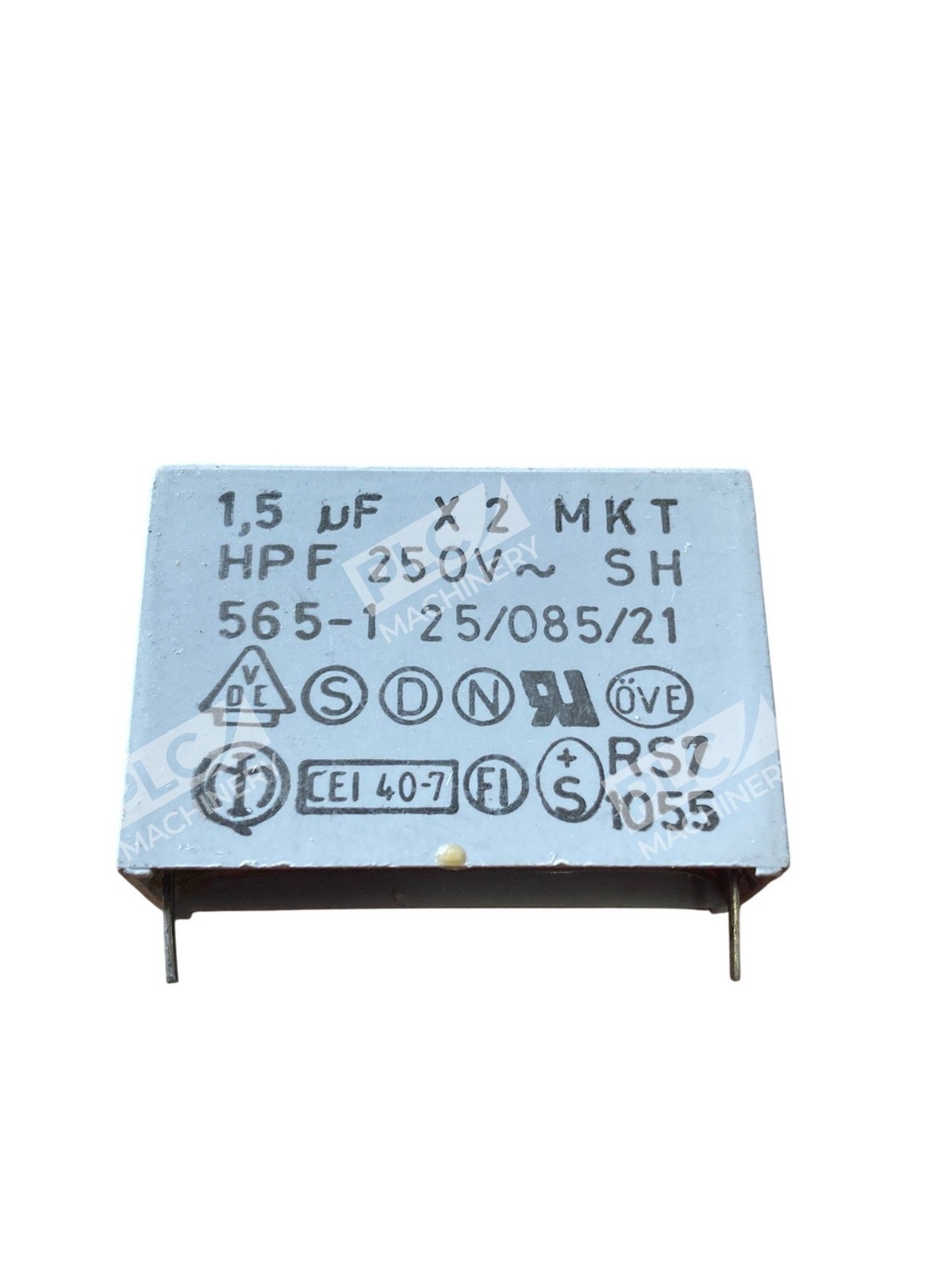

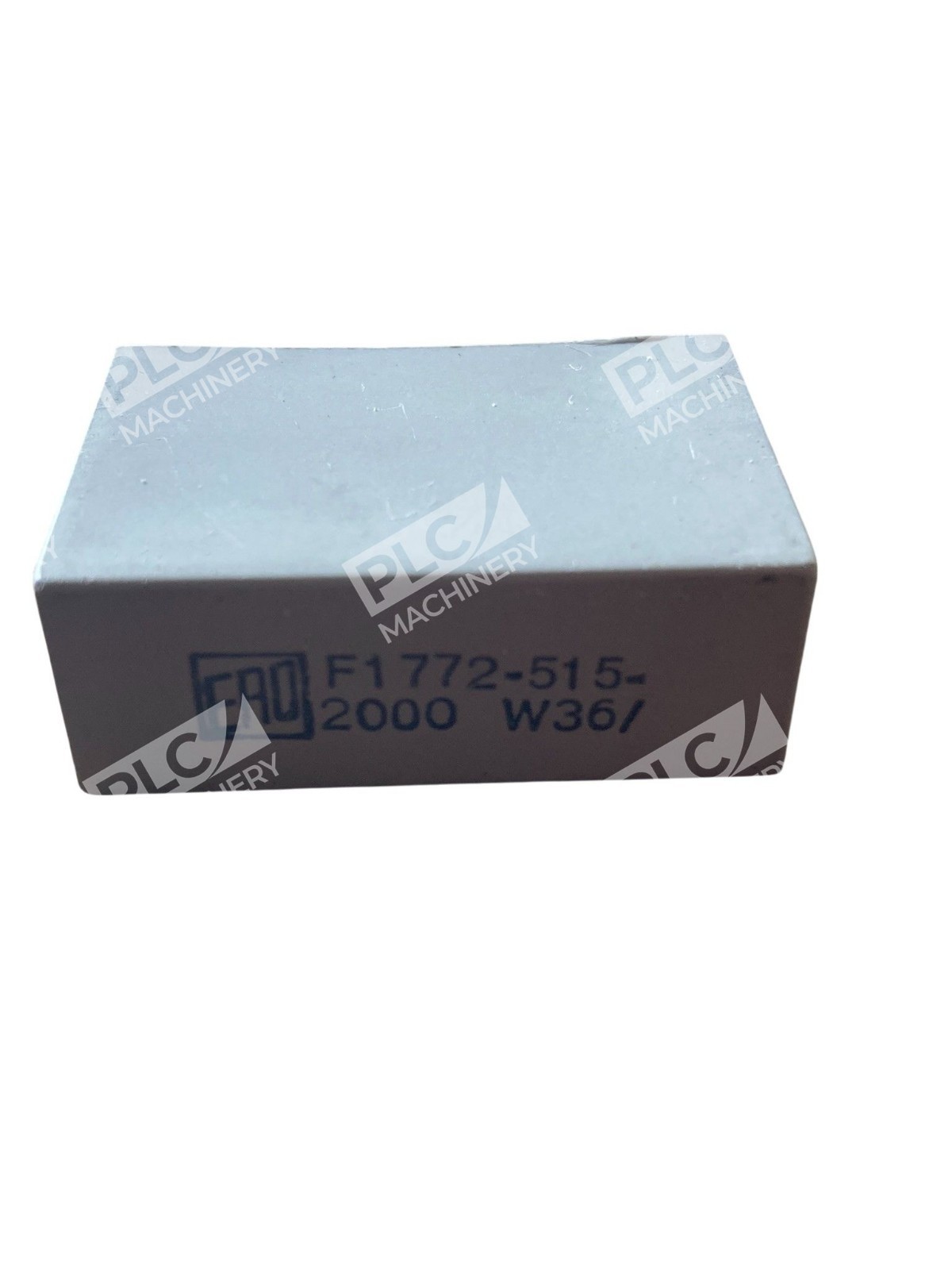

The Vishay ERO F1772-515-2000 is an X2-class metalised polyester film capacitor designed for AC power-line interference suppression. With a capacitance rating of 1.5µF and maximum operating voltage of 250VAC, this through-hole suppression capacitor meets international safety standards and is ideal for retrofit and new-build applications in industrial control circuits, switching power supplies, and appliances.
Key Features
- Class X2 rated — approved for direct connection between phase conductors or phase-to-neutral in AC mains circuits
- Polyester dielectric (MKT) — metallised film construction with inherent self-healing properties
- ±10% tolerance — consistent performance across production batches
- High DC withstand voltage (630V) — permits safe use in overvoltage transient conditions
- Radial lead design — standard 27.5mm pitch for PCB mounting and automatic insertion
- UL/CSA approved — meets EN 132400, VDE 0565-1, and international suppression standards
Technical Specifications
- Capacitance: 1.5µF ±10%
- Voltage Rating: 250VAC (AC mains)
- Dielectric: Polyester film (metallised)
- Class: X2 Interference Suppression
- DC Withstand Voltage: 630VDC
- Lead Pitch: 27.5mm
- Lead Diameter: 0.8mm
- Operating Temperature Range: −40°C to +110°C
- Mounting: Through-hole, PCB radial
- Certifications: UL/CSA 250VAC, IEC 60065, VDE 0565-1
Typical Applications
- AC mains noise filtering in industrial control systems and motor drives
- EMI suppression in switching power supplies
- Phase-to-neutral filtering in household appliances and lighting circuits
- Replacement capacitor for legacy equipment refurbishment
- General-purpose AC line suppression in automation and test equipment
Compatibility & Replacements
Compatible With
- Any AC mains or power circuit requiring class X2 suppression rated at 250VAC
- Standard PCB footprints with 27.5mm radial lead pitch
- Automatic capacitor insertion equipment and bandolier tape systems
- Industrial control, power supply, and appliance designs compliant with EN 132400 and IEC 60065
Replaces / Drop-In Replacement For
- ERO F1772-515-2000 (Exact OEM part)
- Roederstein F1772-515-2000
- Other equivalent 1.5µF 250VAC class X2 suppression capacitors with matching lead pitch
Works With
- PCB assembly processes (hand insertion and automatic pick-and-place)
- Power supply design tools and EMC simulation software
- Standard AC mains filter networks and snubber circuits
- Any system requiring IEC 60065 or VDE 0565-1 compliance
