Overview

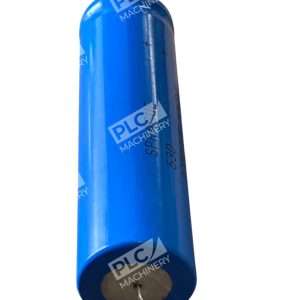

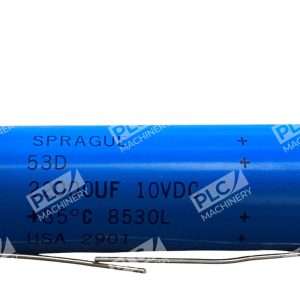

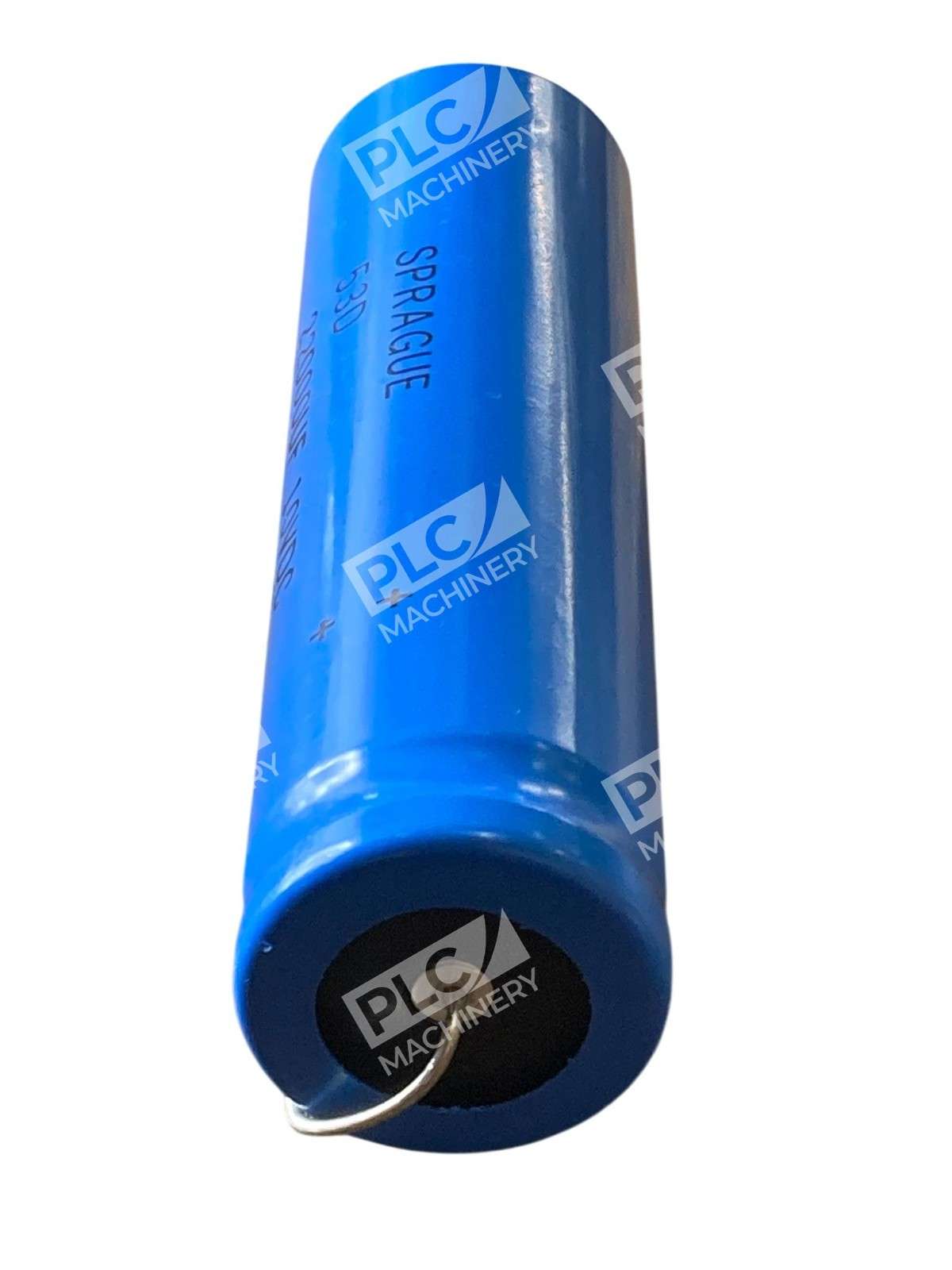

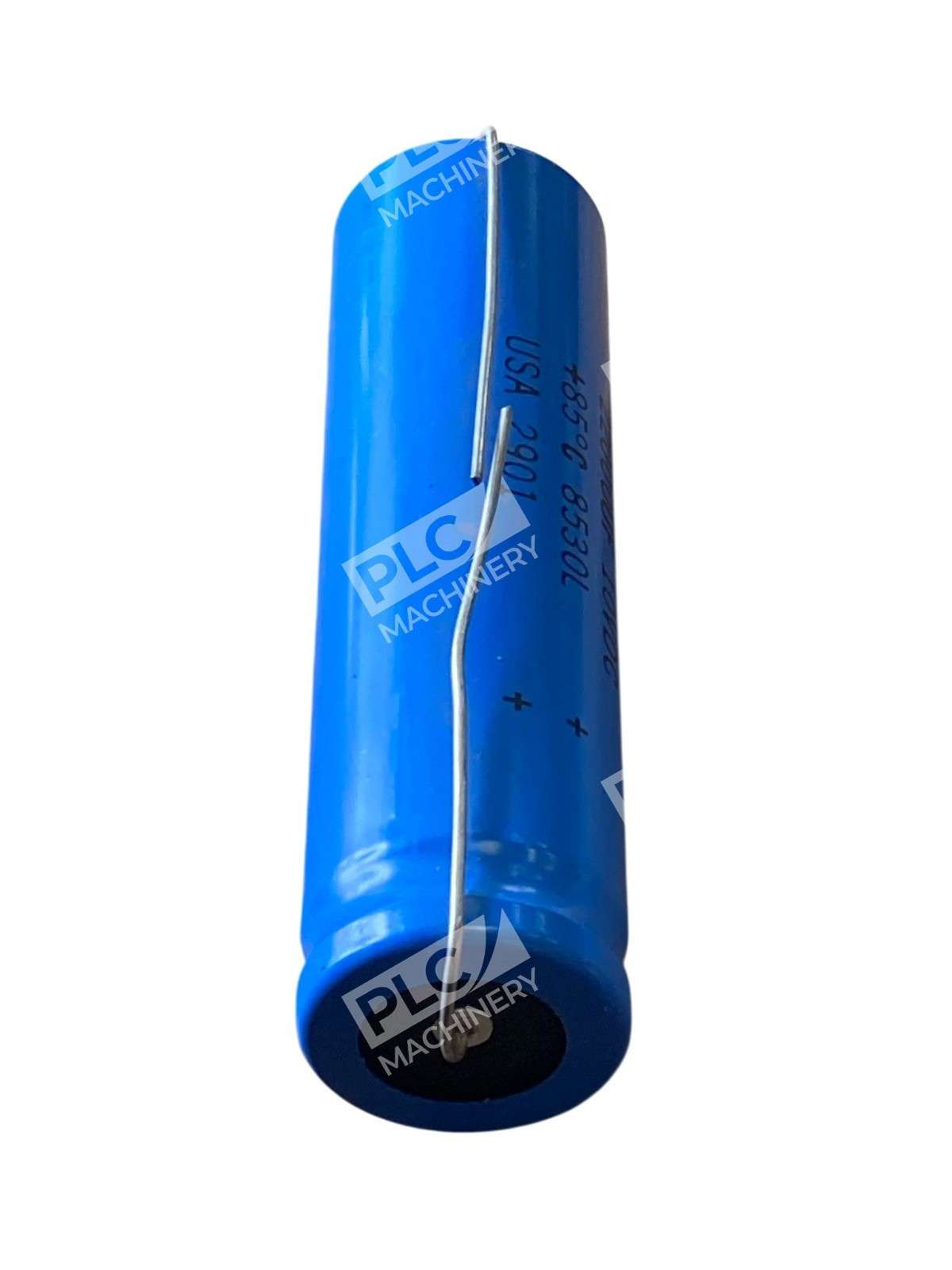

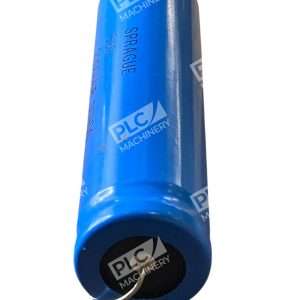

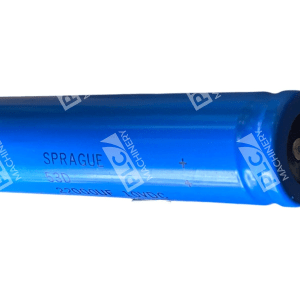

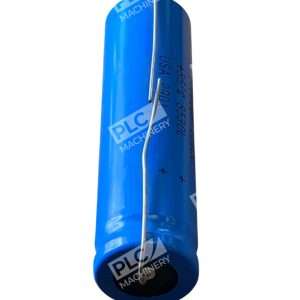

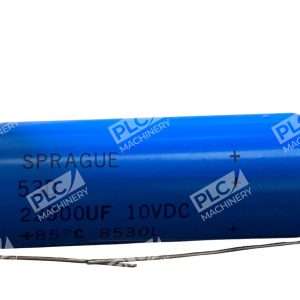

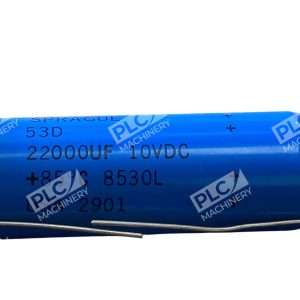

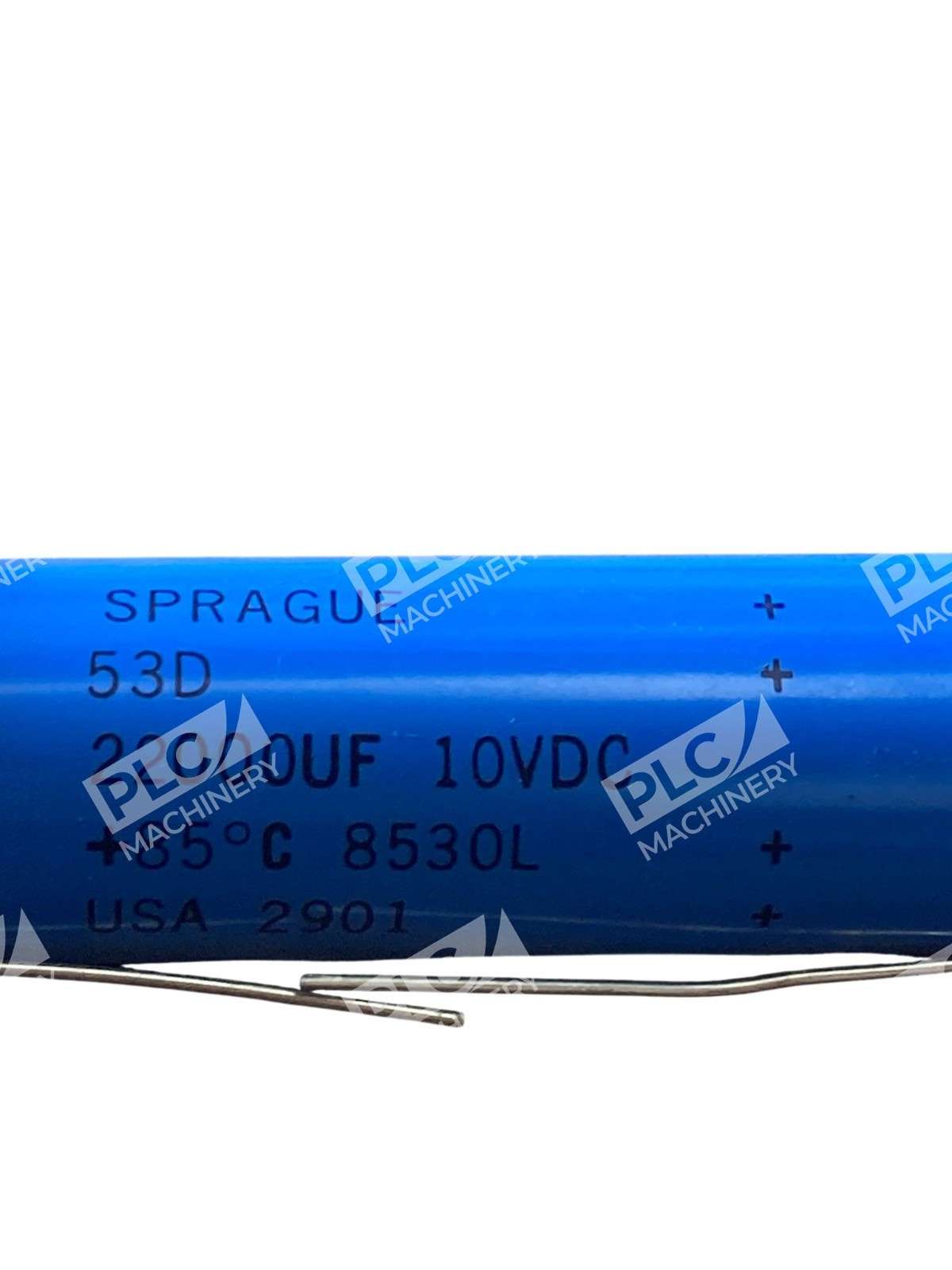

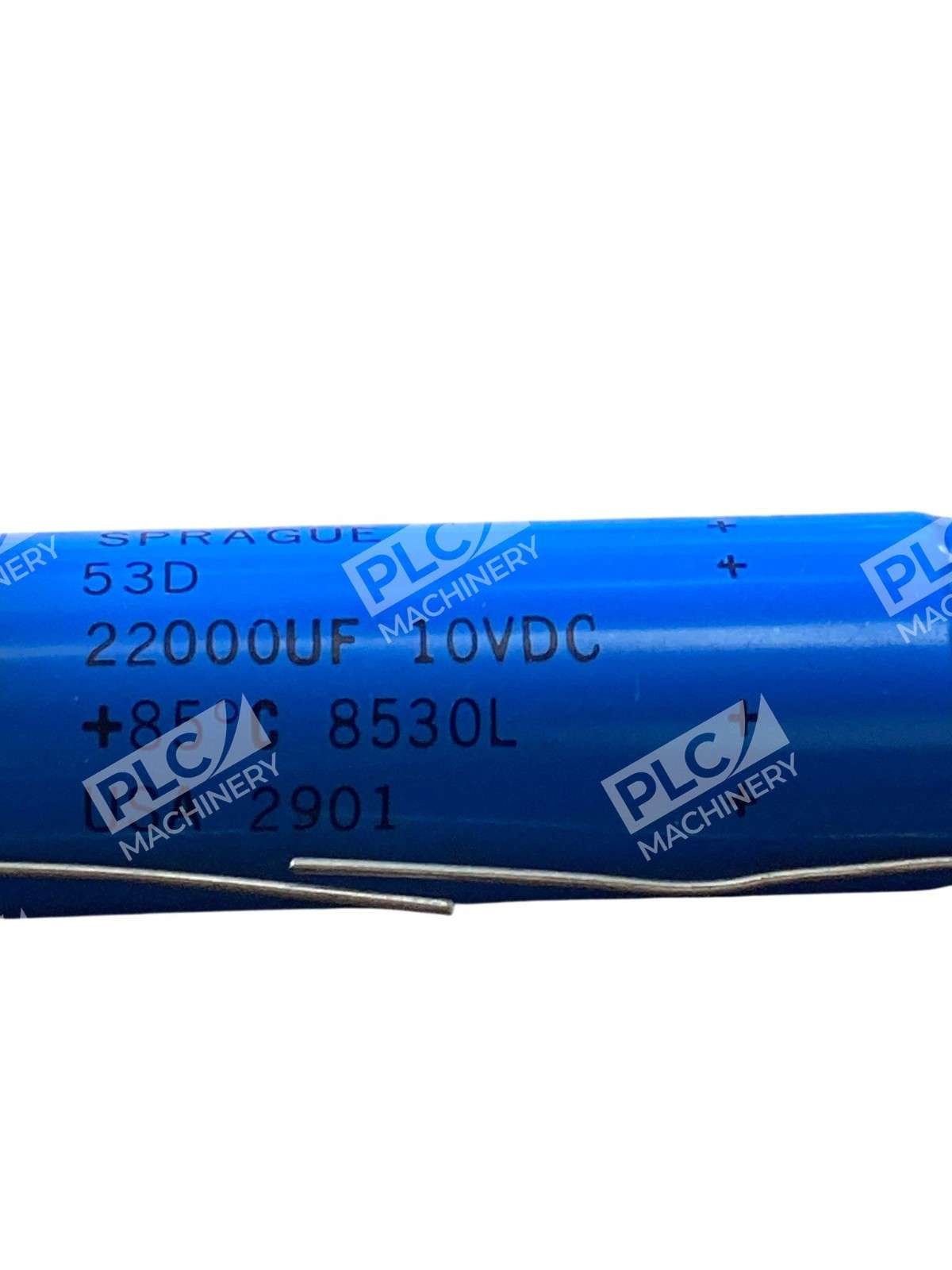

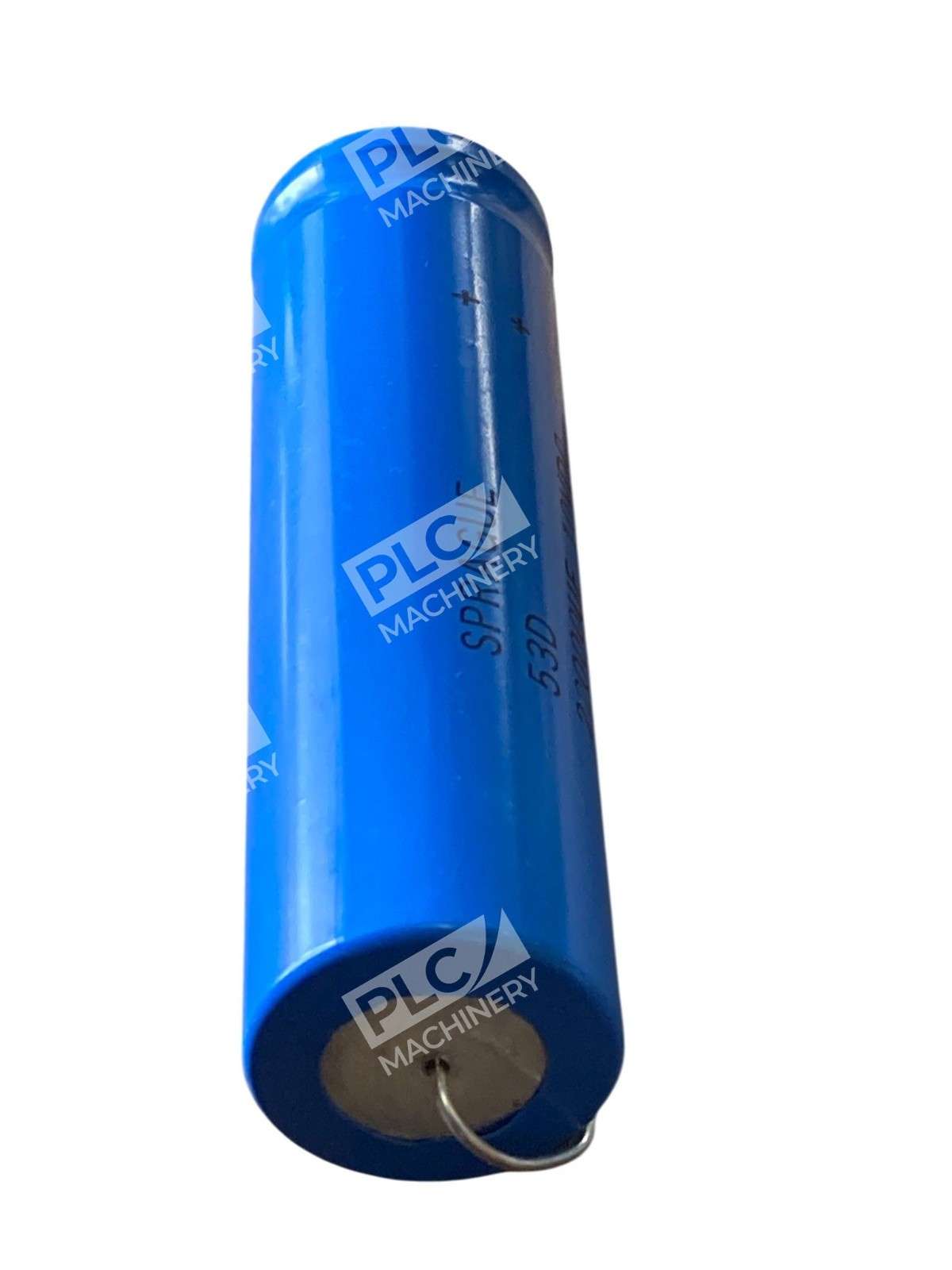

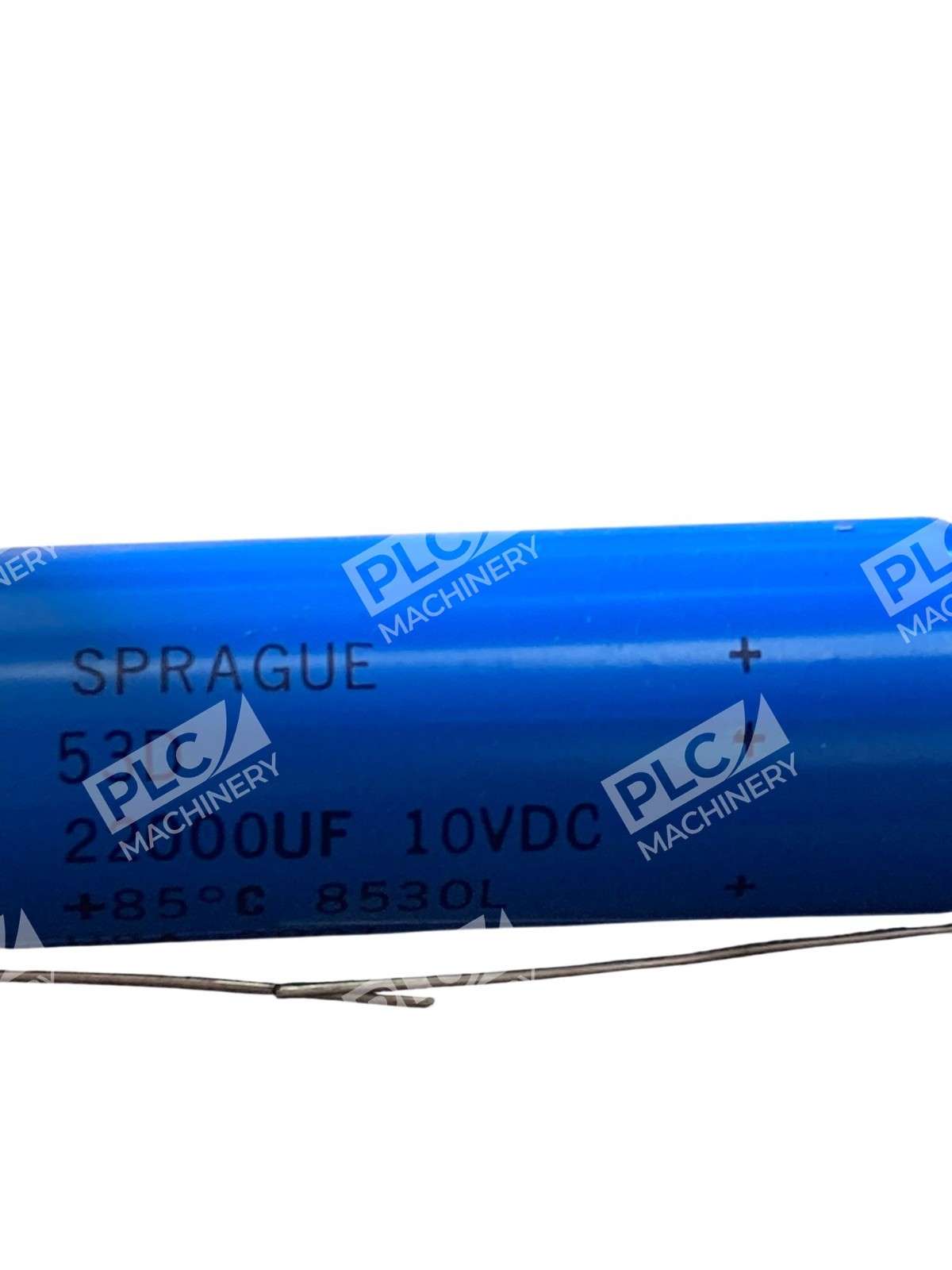

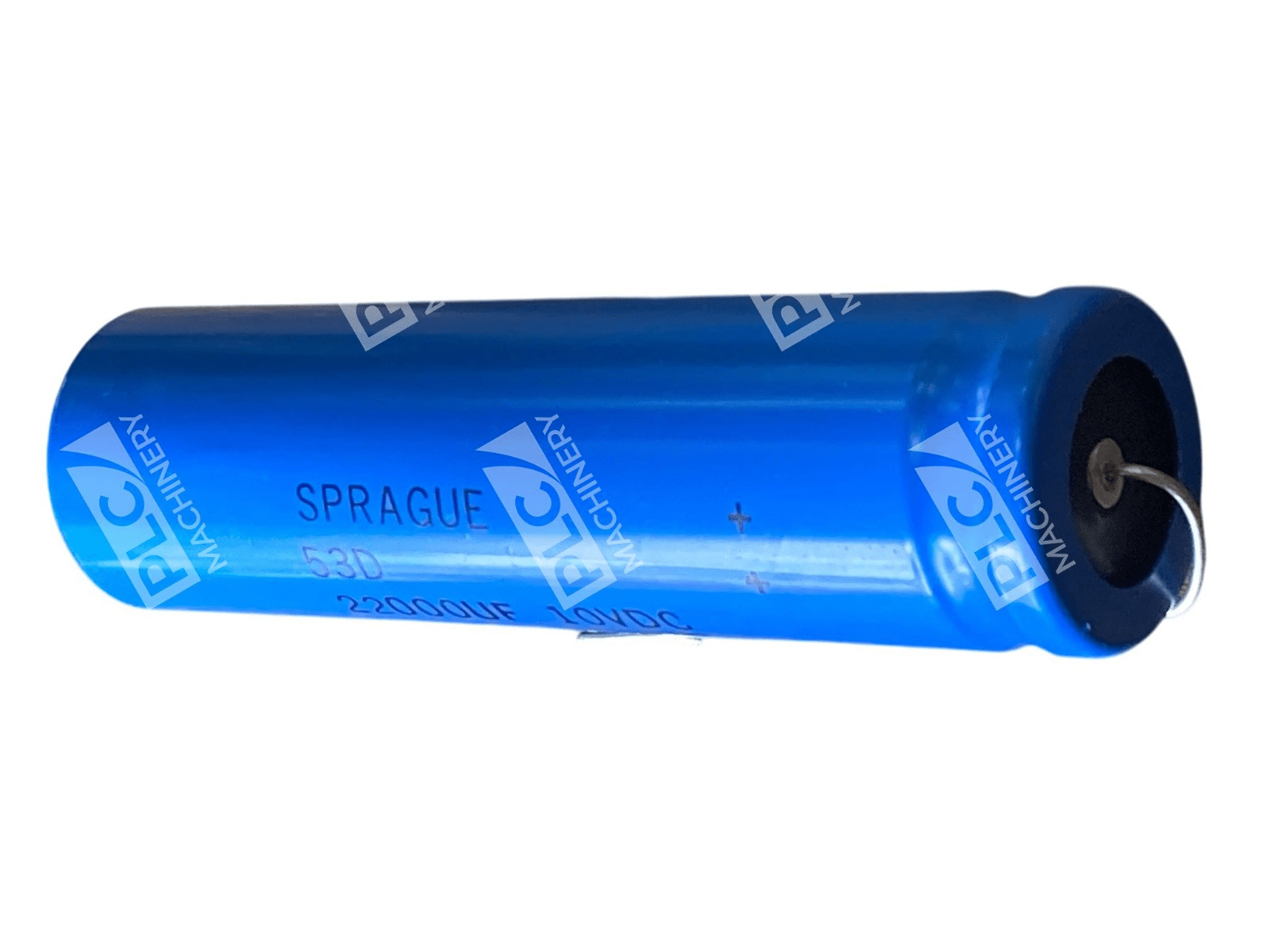

The Sprague 53D 22000UF 10VDC axial electrolytic capacitor is a precision-engineered aluminum capacitor designed for demanding electrical applications. With a 10-volt rating and 22,000-microfarad capacitance, this axial-lead component offers reliable energy storage and filtering across industrial equipment, vintage electronics, audio amplifiers, and test instrumentation. The 85°C temperature rating ensures stable operation in moderate thermal environments.
Key Features
- 10VDC voltage rating with 22,000µF capacitance
- 85°C temperature tolerance for reliable continuous operation
- Axial lead configuration for easy PCB mounting and through-hole assembly
- Low leakage current and proven long-term stability
- Ideal for industrial controls, power supplies, audio systems, and legacy equipment repair

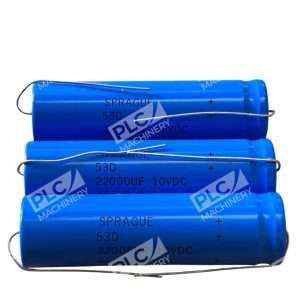

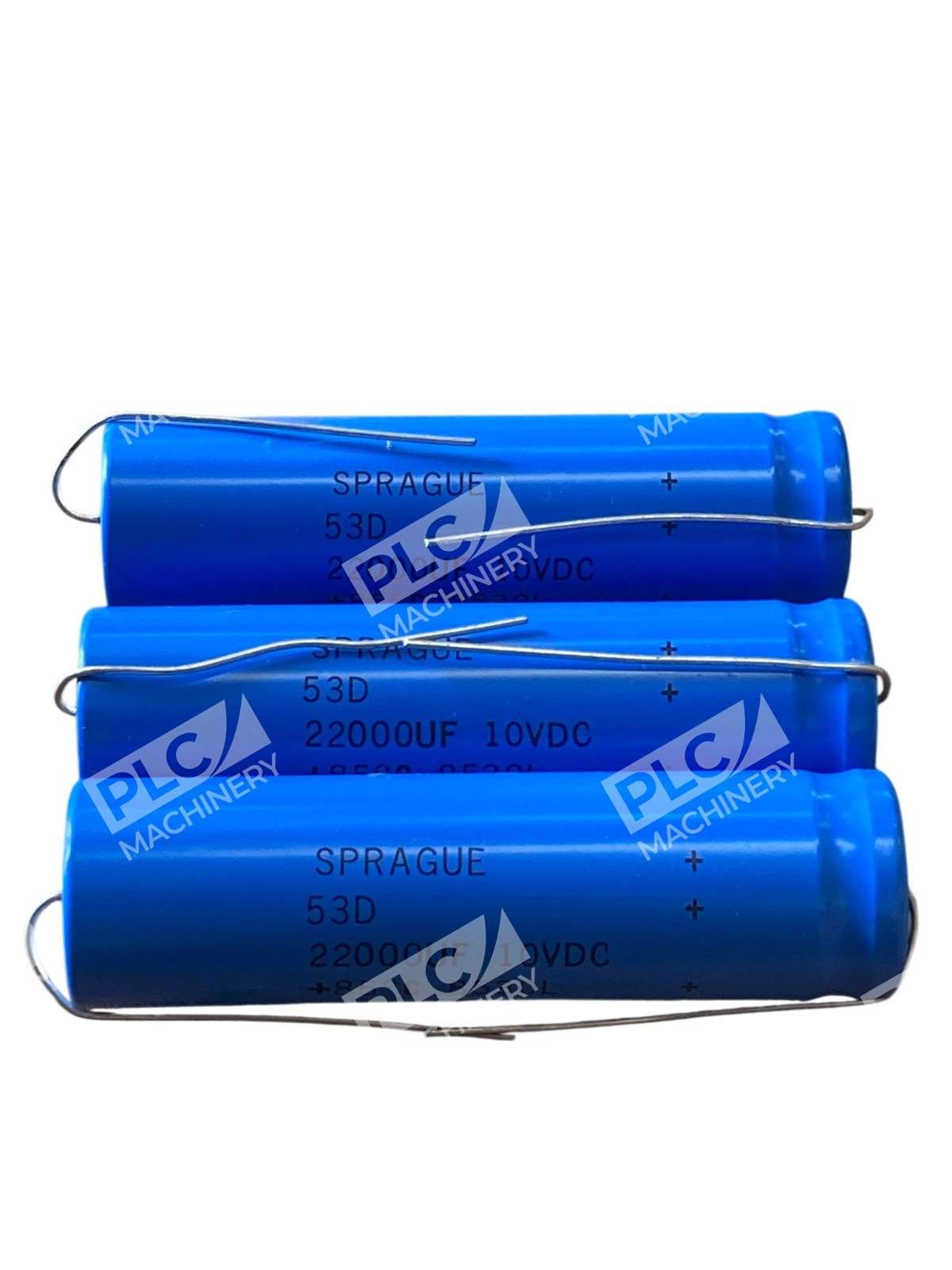

- Supplied as a lot of 3 units for multiple applications or redundancy
Technical Specifications
- Capacitance: 22,000 µF
- Voltage Rating: 10 VDC
- Temperature Rating: 85°C
- Lead Style: Axial
- Dielectric: Aluminum Electrolytic
- Leakage Current: Typical low leakage (per manufacturer datasheet)
- Series: 53D
- Quantity: Lot of 3
Typical Applications
- DC power supply filtering in industrial control systems and variable frequency drives
- Energy storage in test equipment and laboratory instruments
- Audio amplifier coupling and bypass circuits in vintage and contemporary audio gear
- Electronic equipment repair and restoration of vintage radios, TVs, and audio equipment
- General-purpose filtering and decoupling in analog and mixed-signal circuits
Compatibility & Replacements
Compatible With
- Industrial power supplies and DC-biased filtering circuits
- Vintage and contemporary audio amplifier designs
- Test and measurement equipment requiring stable DC energy storage
- General industrial control and automation equipment
Replaces / Drop-In Replacement For
The Sprague 53D 22000UF 10VDC is compatible with applications originally specified for Sprague 53D or equivalent axial aluminum electrolytic capacitors in the 22000µF, 10V range. For specific model cross-reference or drop-in replacement compatibility, verify with your equipment documentation or system integrator before ordering.
Works With
- Standard through-hole PCB assembly methods and manual soldering
- Industrial power system designs operating at low DC voltages (under 10V)
- Legacy and modern audio amplifier circuit topologies
- Vintage electronic equipment restoration and repair workflows
