Overview

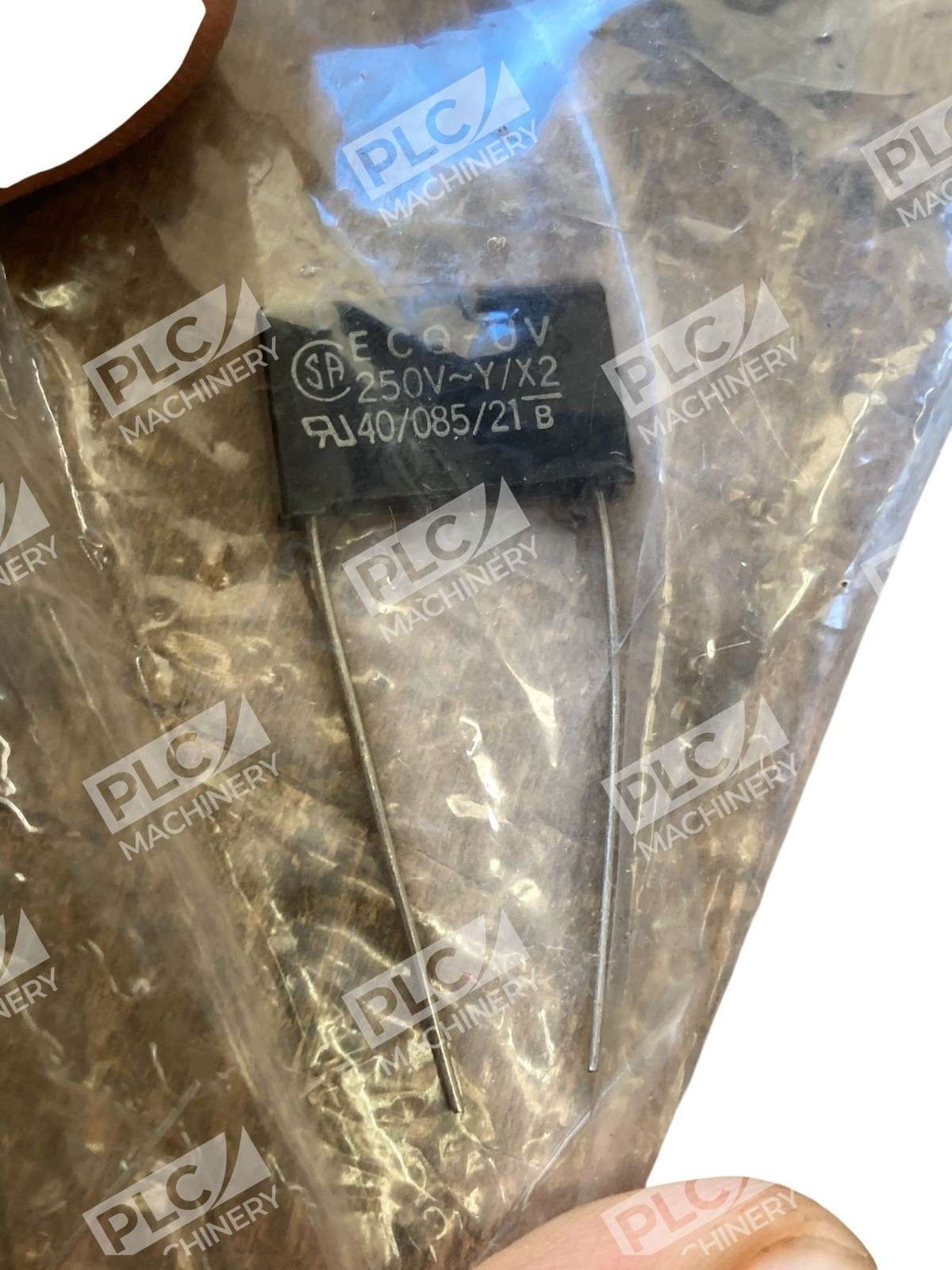

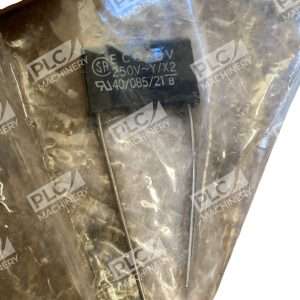

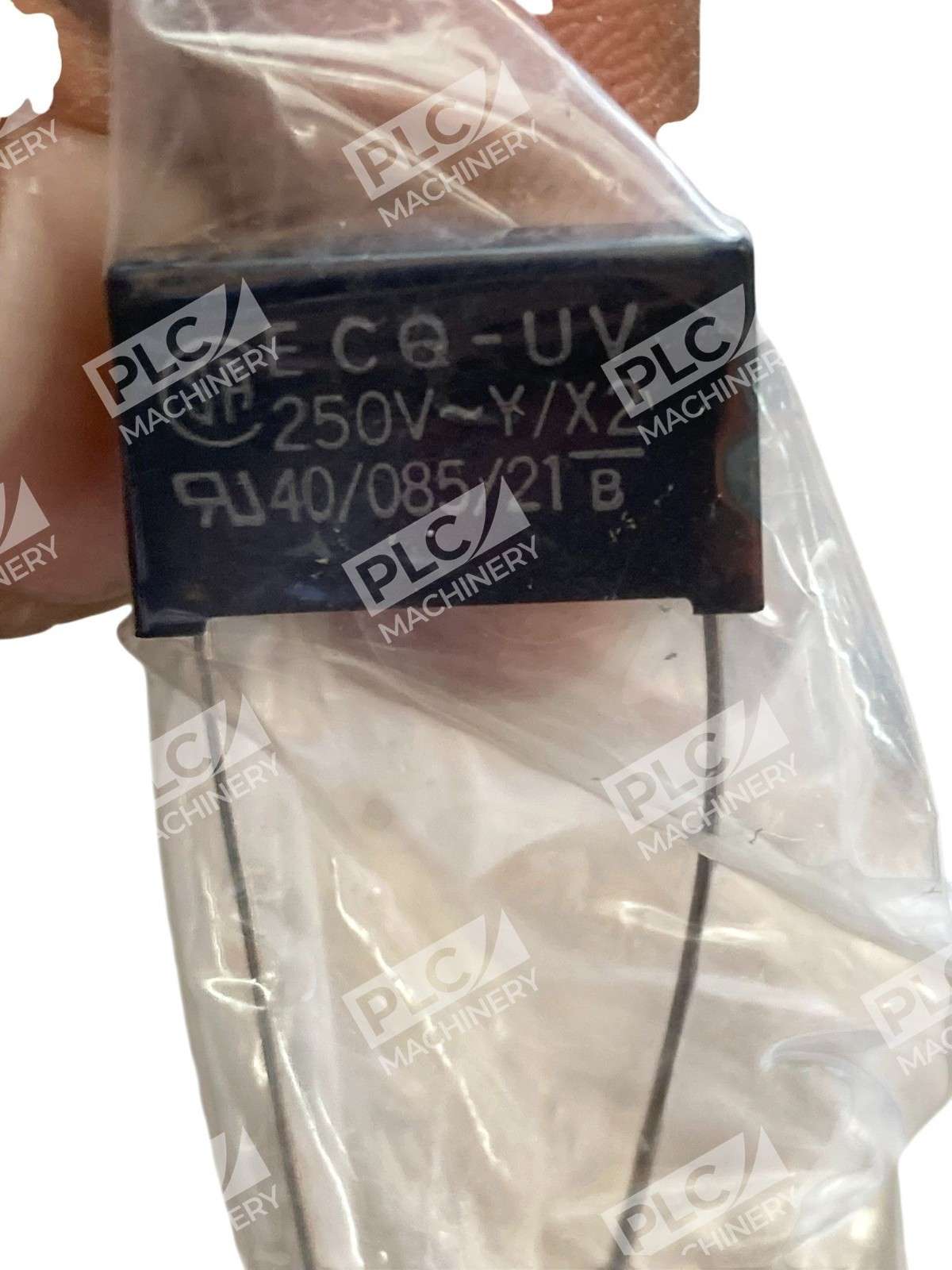

The Panasonic ECQ-UV is a Class X2 dual-rated safety film capacitor designed for across-the-line interference suppression in AC-powered equipment. The capacitor features metallized polyester dielectric construction with flame-retardant plastic case and non-combustible resin, making it suitable for noise filtering in a wide range of electrical and industrial applications. Rated for 250VAC with capacitance range from 0.001 to 1.0µF, the ECQ-UV meets both UL/CSA and European safety standards for Class X2 safety-rated components.
Key Features
- Compact design with overvoltage stress withstanding capability
- Flame-retardant plastic case and non-combustible resin construction
- Class X2 certification in accordance with UL/CSA and European safety regulations
- Metallized polyester film for reliable long-term performance
- Through-hole radial mounting for standard PCB applications

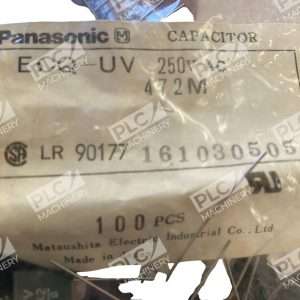

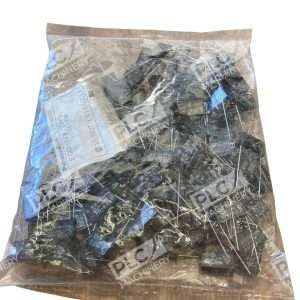

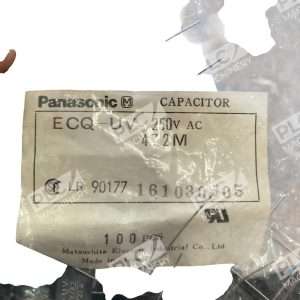

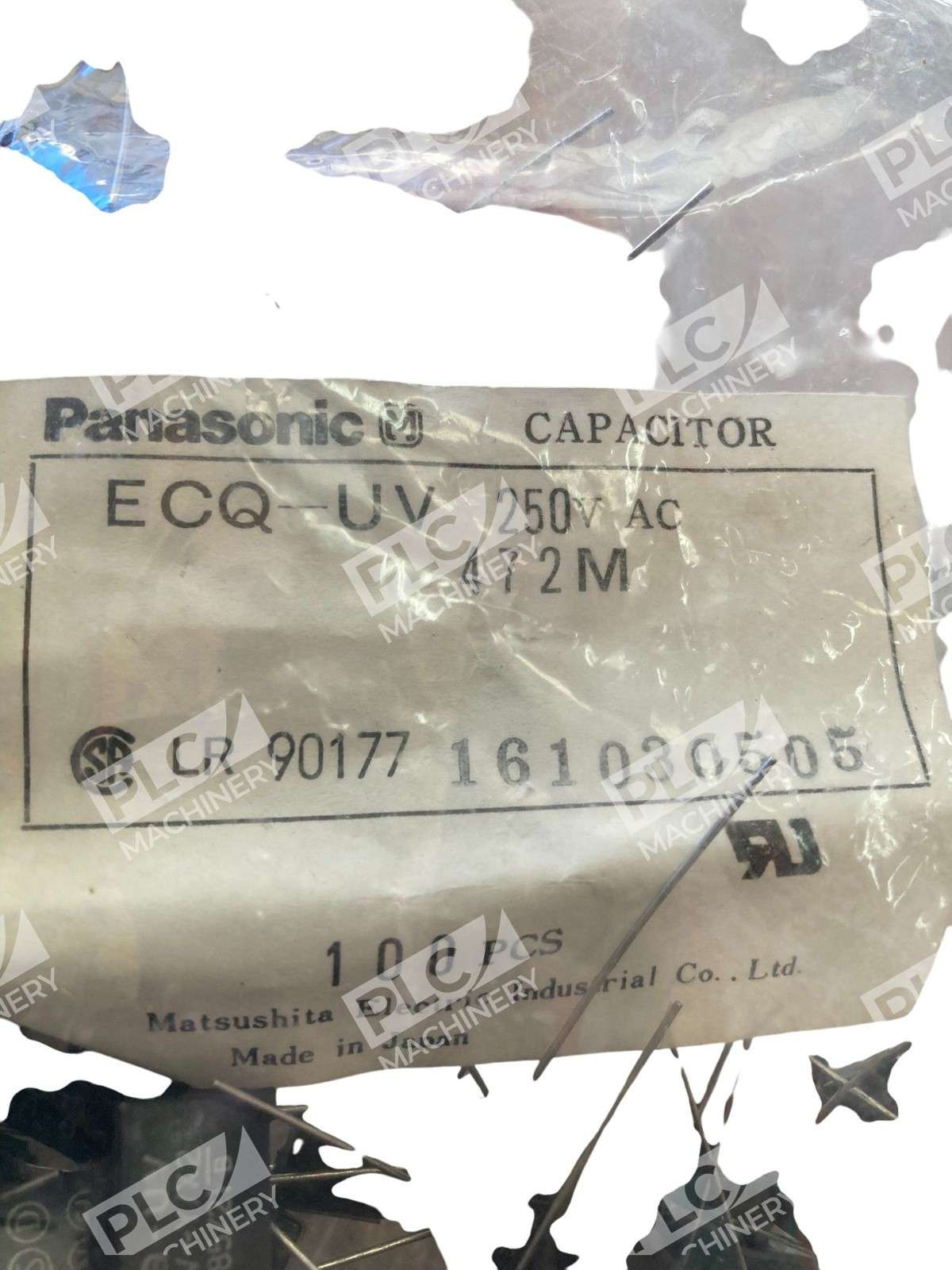

- Supplied as a pack of 100 units for production runs and service stock
Technical Specifications
- Voltage Rating (AC): 250VAC (UL1414: 125VAC)
- Capacitance Range: 0.001 to 1.0µF (E12 series)
- Tolerance: ±10% (K), ±20% (M)
- Dielectric Material: Metallized polyester film
- Safety Classification: Class X2 for interference suppression
- Operating Temperature Range: -40°C to +85°C
- Mounting Type: Through-hole radial
- Insulation Resistance (≤0.33µF): ≥15,000 MΩ min. at 20°C, 100V DC, 60s
- Insulation Resistance (>0.33µF): ≥5,000 MΩ·µF min. at 20°C, 100V DC, 60s
Typical Applications
The Panasonic ECQ-UV is commonly used for electromagnetic interference (EMI) and radio frequency interference (RFI) suppression in:
- AC power supply circuits and across-the-line filtering
- Motor control and variable frequency drive input filters
- Industrial switching power supplies
- Home appliance and consumer electronics AC filtering
- Medical device safety coupling and noise suppression
- HVAC systems and heating equipment
Compatibility & Replacements
Compatible With
- Standard through-hole PCB designs with 27.5mm lead spacing
- AC mains filtering circuits rated 125V–250V AC
- Industry-standard EMI/RFI filter modules
- Across-the-line capacitor applications per UL/CSA safety standards
Replaces / Drop-In Replacement For
The ECQ-UV series replaces earlier Panasonic interference suppression capacitor designs in the same voltage class. Specific model substitutions should be verified with your system integrator or Panasonic technical support to ensure identical lead spacing, case dimensions, and capacitance value match your application requirements.
Works With
- PCB assembly processes (wave and reflow soldering)
- Standard through-hole insertion equipment
- UL/CSA and CE-marked equipment designs
- Standard capacitor test and burn-in equipment
[
{
“label”: “Manufacturer”,
“value”: “Panasonic Electronic Components”
},
{
“label”: “Part Number”,
“value”: “ECQ-UV series”
},
{
“label”: “Product Type”,
“value”: “Safety Film Capacitor — Metallized Polyester”
},
{
“label”: “Voltage Rating (AC)”,
“value”: “250V AC (UL1414: 125V AC)”
},
{
“label”: “Capacitance Range”,
“value”: “0.001–1.0 µF (E12 series)”
},
{
“label”: “Capacitance Tolerance”,
“value”: “±10% (K) or ±20% (M)”
},
{
“label”: “Safety Class”,
“value”: “Class X2 — UL/CSA and European standards”
},
{
“label”: “Operating Temperature Range”,
“value”: “-40°C to +85°C”
},
{
“label”: “Mounting Type”,
“value”: “Through-hole radial”
},
{
“label”: “Lead Spacing”,
“value”: “27.5 mm”
},
{
“label”: “Case Dimensions”,
“value”: “30.5 mm L × 16.5 mm W × 27.0 mm H (typical)”
},
{
“label”: “Insulation Resistance (≤0.33µF)”,
“value”: “≥15,000 MΩ min. (20°C, 100V DC, 60s)”
},
{
“label”: “Insulation Resistance (>0.33µF)”,
“value”: “≥5,000 MΩ·µF min. (20°C, 100V DC, 60s)”
},
{
“label”: “Packaging”,
“value”: “Pack of 100 units”
},
{
“label”: “Applications”,
“value”: “EMI/RFI suppression, interference filtering, across-the-line capacitor”
}
]
