Overview

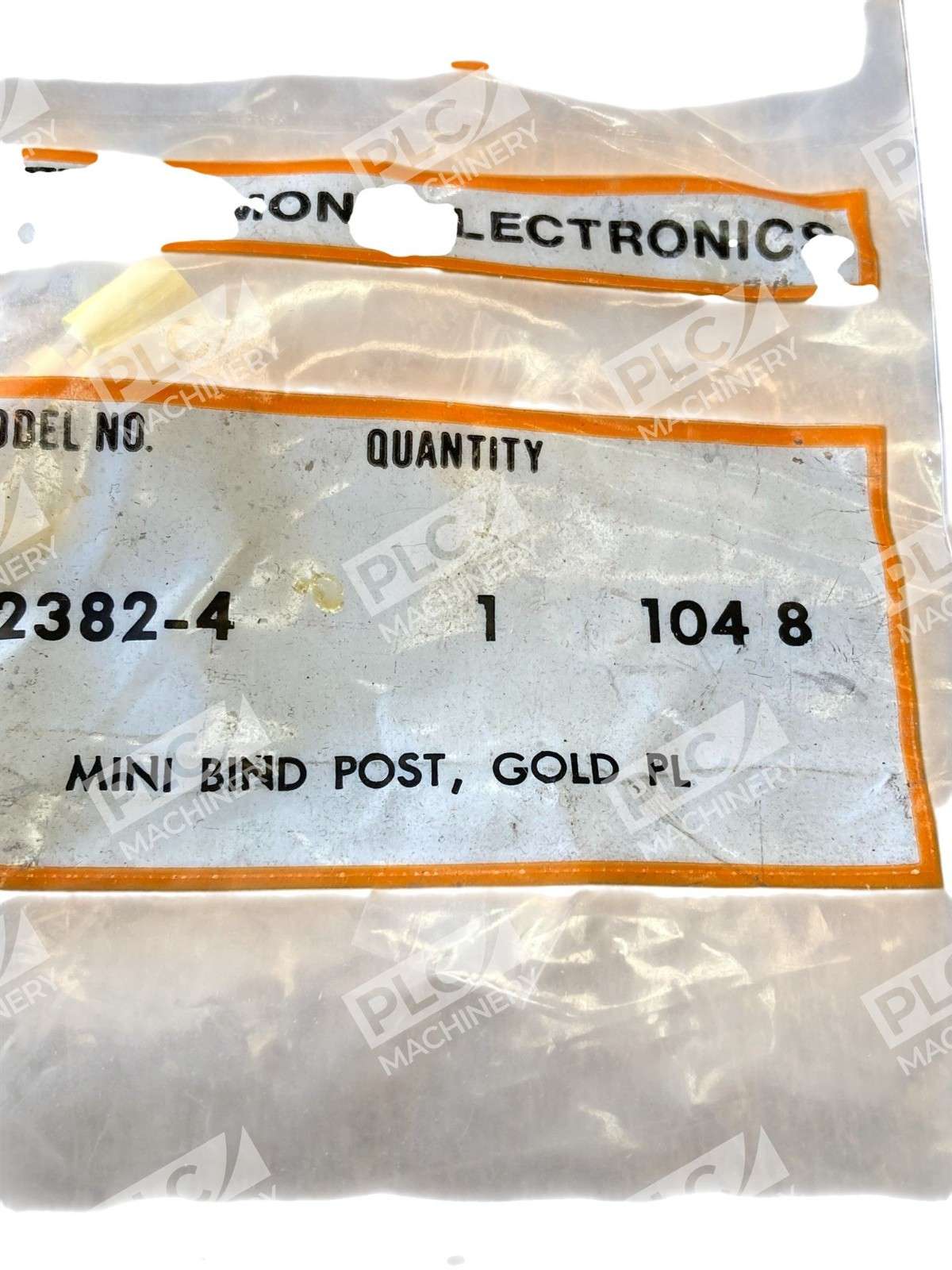

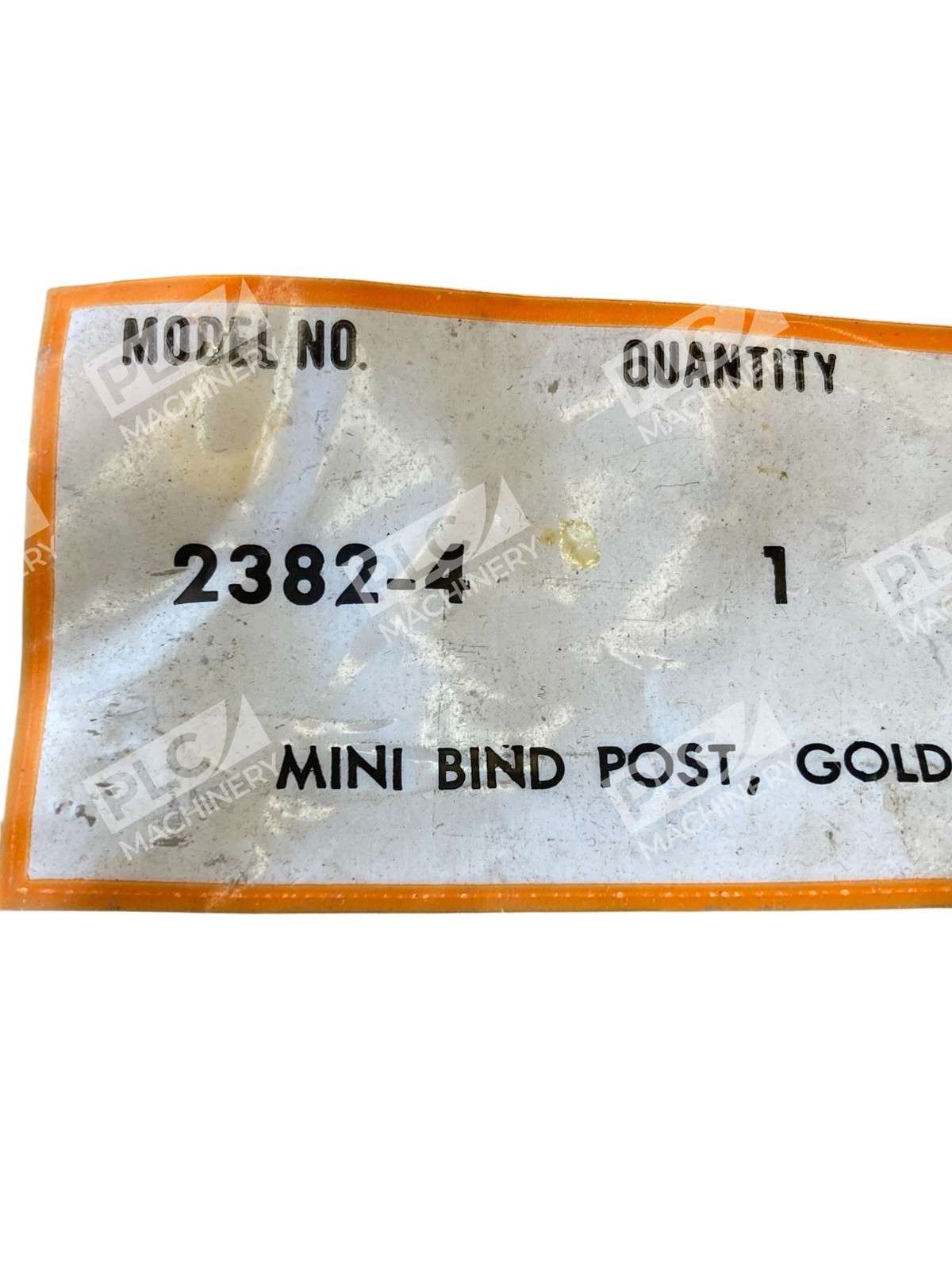

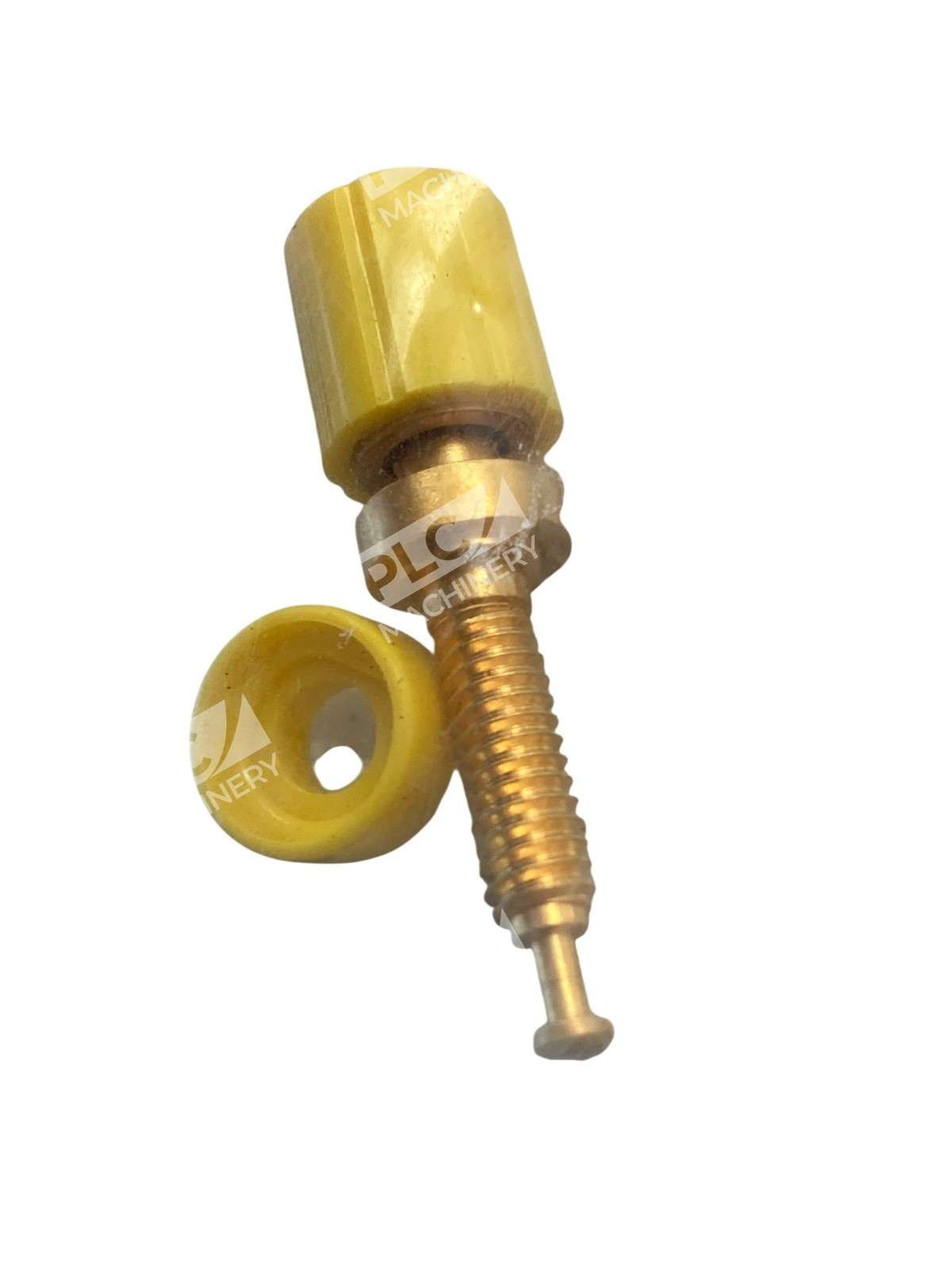

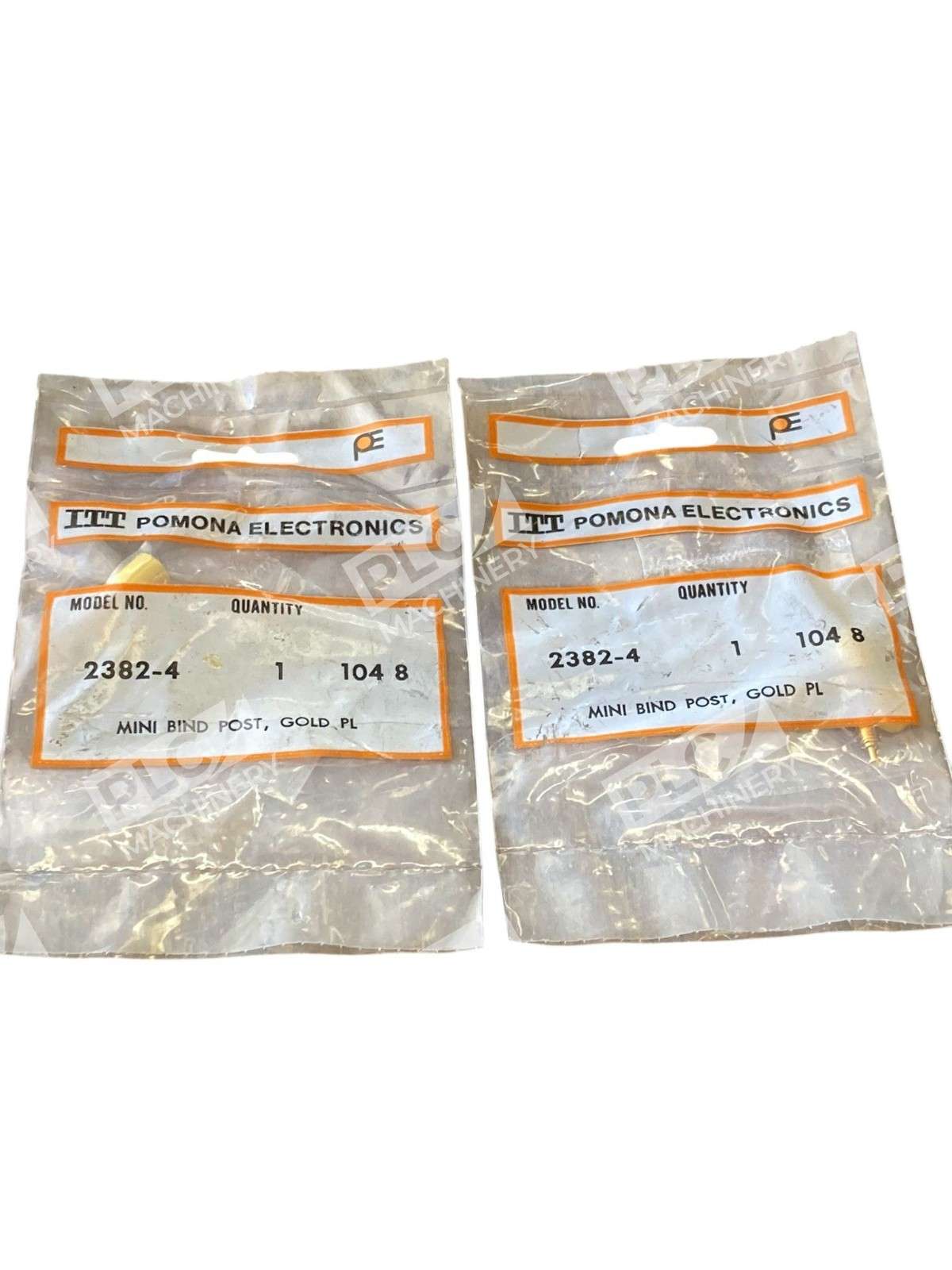

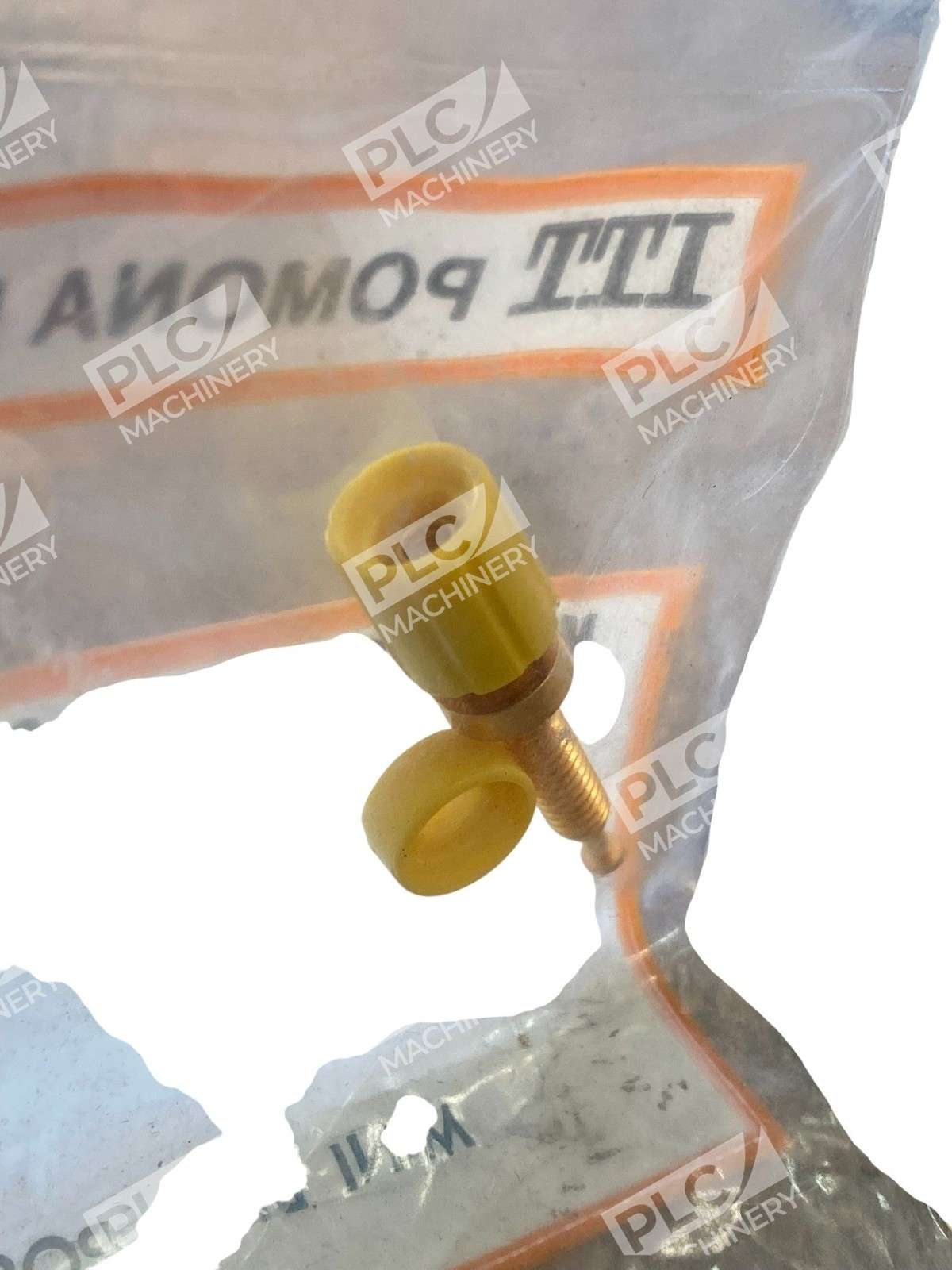

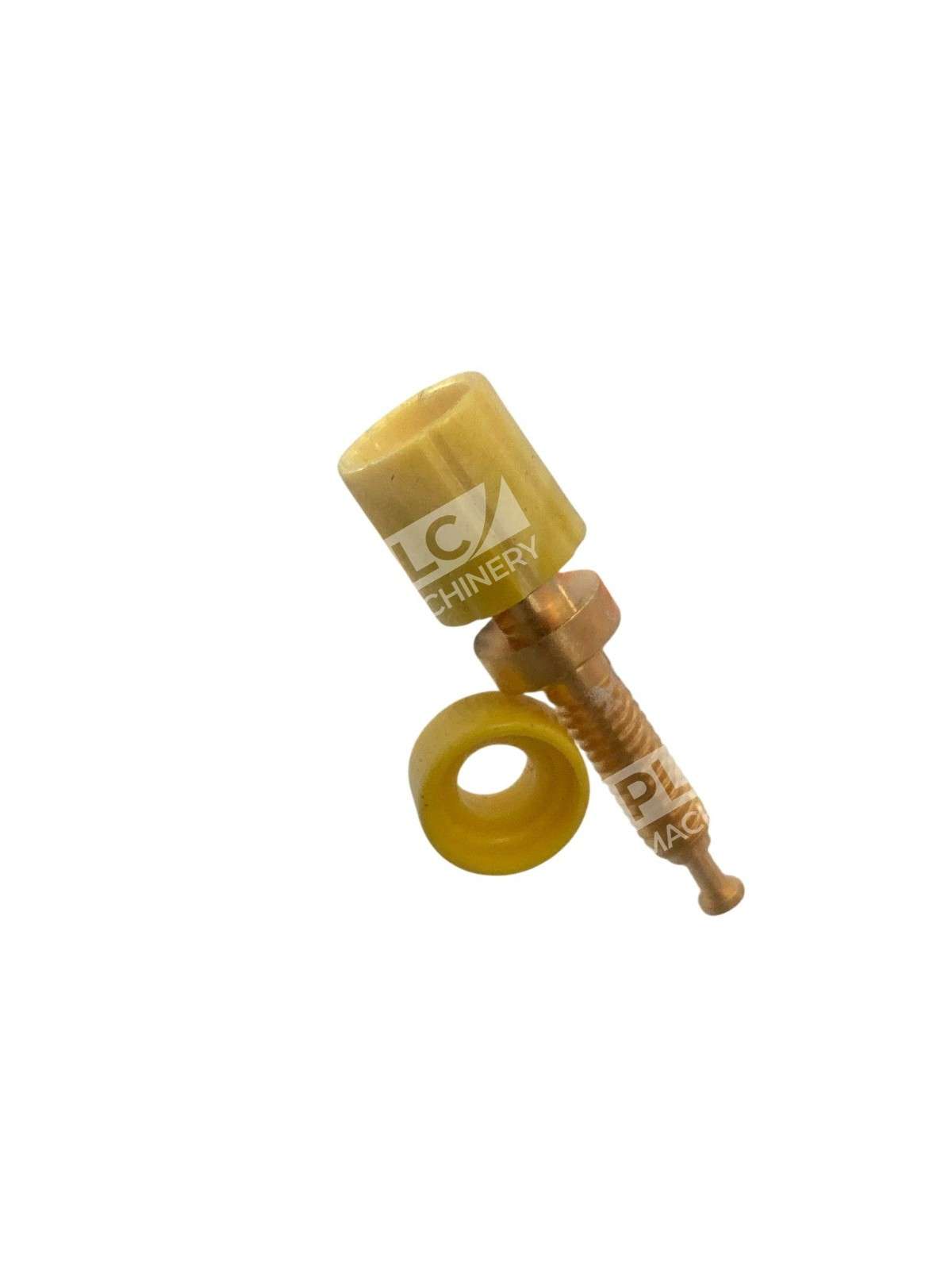

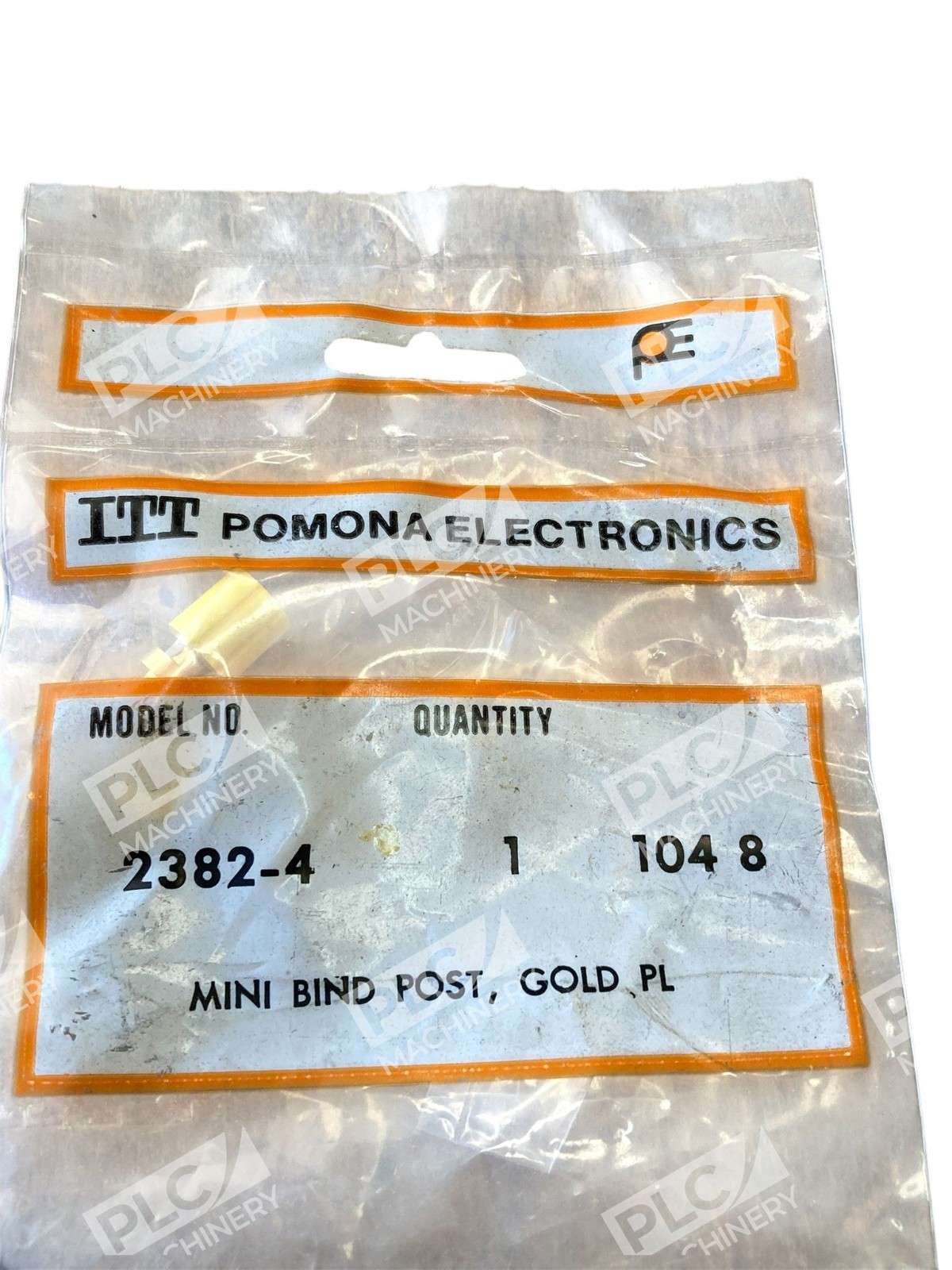

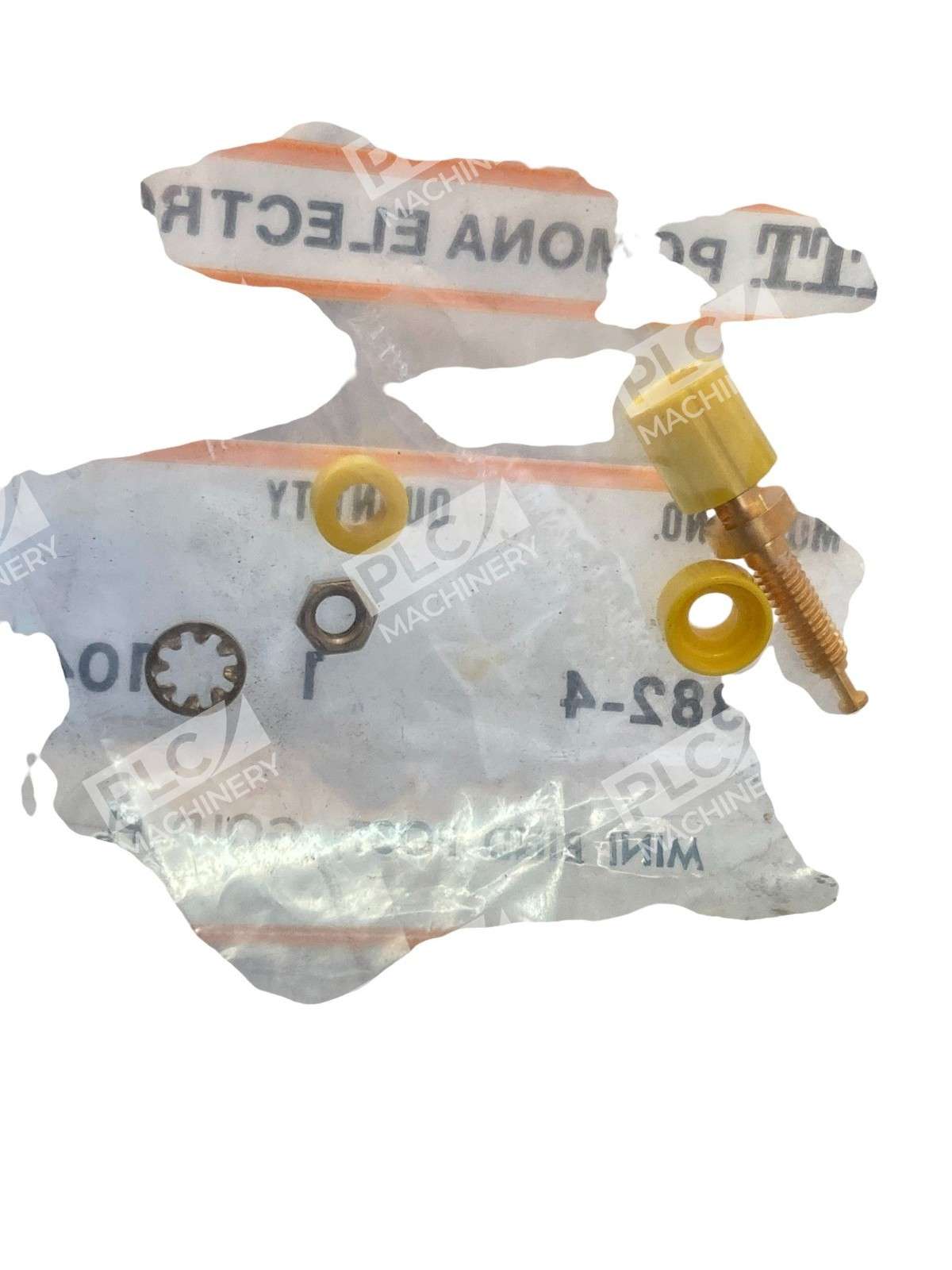

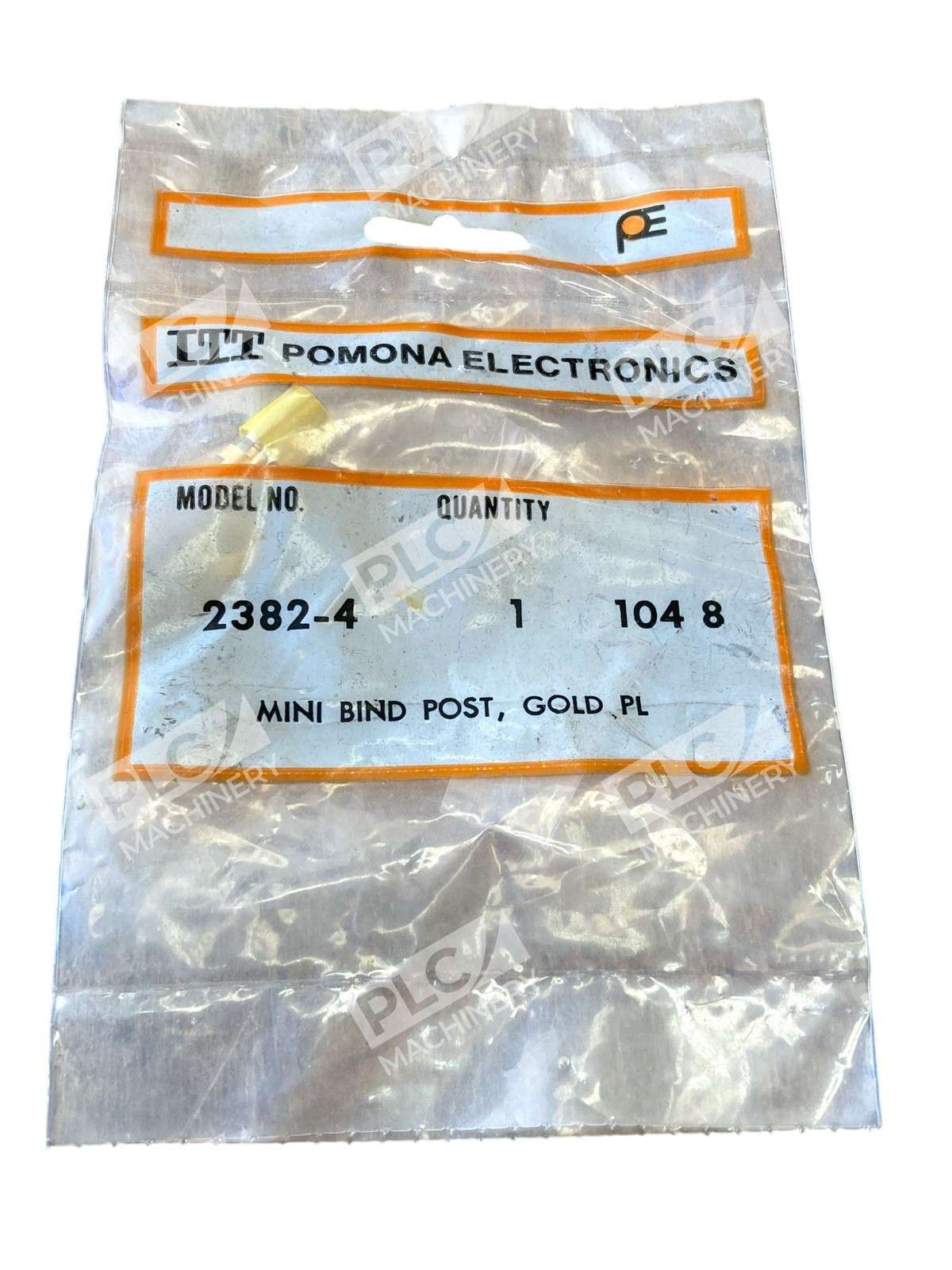

The Pomona 2382-4 miniature binding post is a high-quality panel-mount connector featuring a gold-plated brass body with yellow-gold knurled finish. Designed for laboratory testing, measurement, and general electronic assembly applications, this binding post provides secure connections for miniature test leads and probes while meeting stringent electrical and mechanical specifications.
Key Features
- Gold-plated brass construction for corrosion resistance and reliable contact
- Accepts miniature banana plugs, bare wire, and spade lugs
- Knurled design for easy hand-tightening without tools
- Polycarbonate insulation body for electrical safety
- Compact miniature form factor for space-constrained panels
- Manufactured to consistent quality standards by Pomona Electronics
Technical Specifications
- Maximum Operating Voltage: 1500 Vrms (hands-free), 33 Vrms/70 Vdc (hand-held with CE compliance)
- Current Rating: 5 Amperes
- Operating Temperature Range: −55°C to +115°C
- Connector Type: Miniature binding post
- Finish: Gold-plated (yellow gold)
- Body Material: Polycarbonate insulation
- Contact Material: Brass
- Panel Thickness: 0.07″ to 0.17″ (1.78 mm to 4.32 mm)
- Compatible Plugs: Miniature banana plugs, wire terminals, spade lugs
Typical Applications
- Laboratory test benches and measurement setups
- Oscilloscope and multimeter test panels
- Electronic component testing and diagnostics
- Signal routing and circuit connections in industrial control panels
- Educational and training equipment
Compatibility & Replacements
Compatible With
- Miniature banana test plugs and connectors
- Laboratory test leads and probes
- Standard panel-mount systems with 0.07″ to 0.17″ thickness
- General electronic test and measurement equipment
Replaces / Drop-In Replacement For
- Pomona 2382 series binding posts (all color variants)
- Similar miniature gold-plated binding post connectors from comparable manufacturers
Works With
- Pomona miniature banana plugs and test lead connectors
- Standard laboratory test equipment and oscilloscopes
- Industrial measurement and control systems requiring miniature connectors
- Equipment accepting miniature binding post interfaces
