Overview

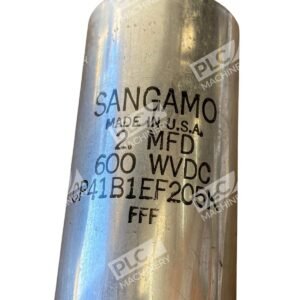

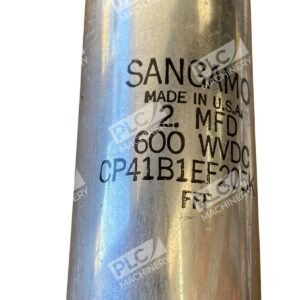

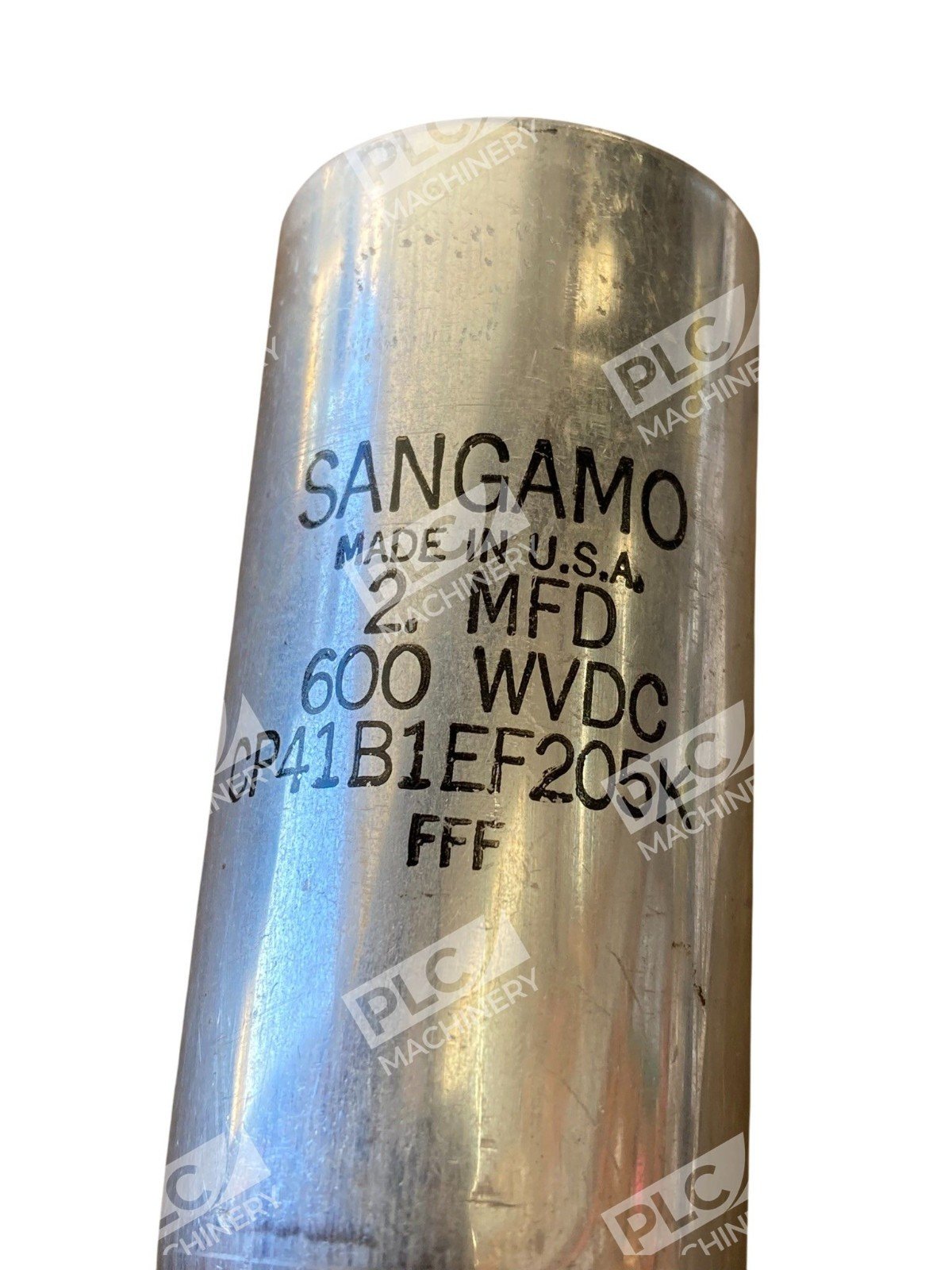

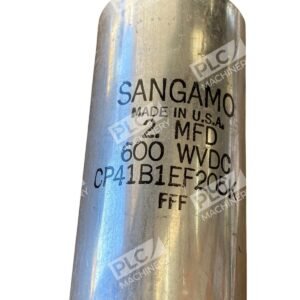

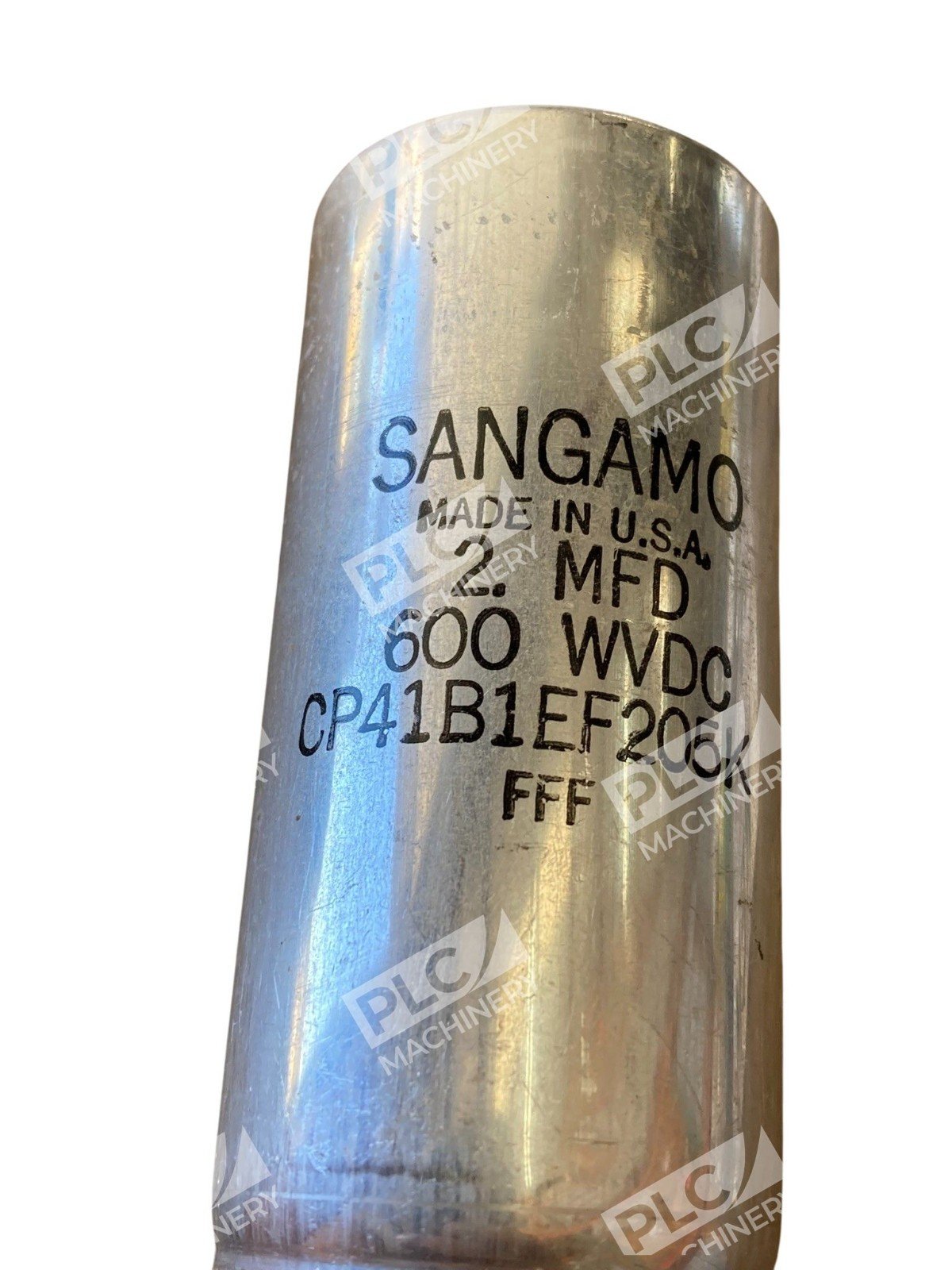

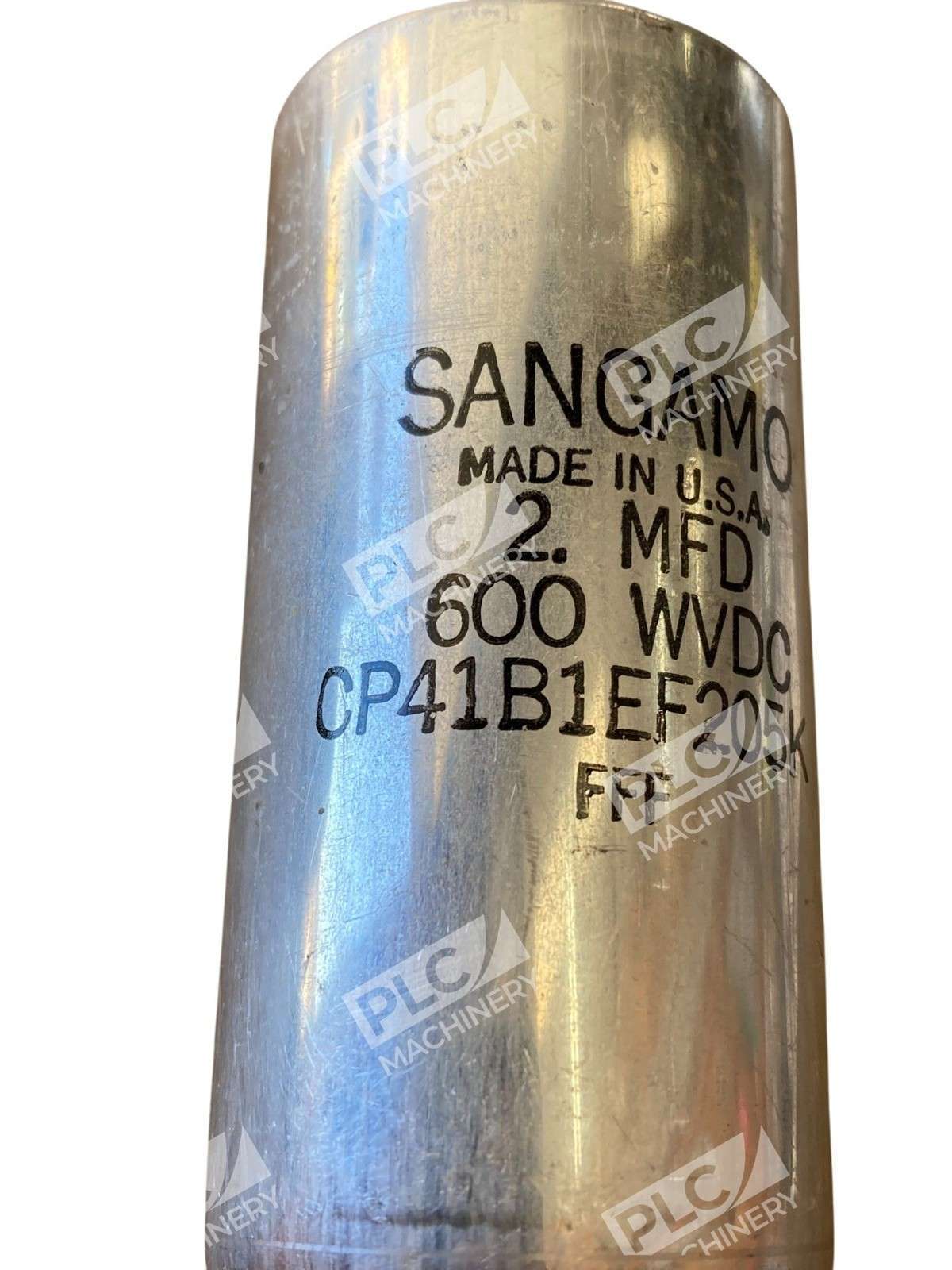

The Sangamo CP41B1EF205K capacitor is a fixed paper-dielectric component with hermetically sealed construction, manufactured to industrial military standards. Rated at 2µF and 600 WVDC, this vintage Sangamo CP41B1EF205K unit is designed for high-reliability applications where oil-filled paper construction provides superior performance characteristics. Originally produced by Sangamo Electric Company (now part of Cornell Dubilier Electronics), these capacitors remain valued for restoration work and legacy equipment maintenance.
Key Features
- Paper dielectric with oil-filled construction for stable performance and longevity

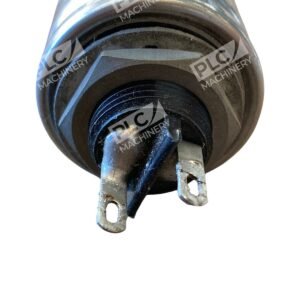

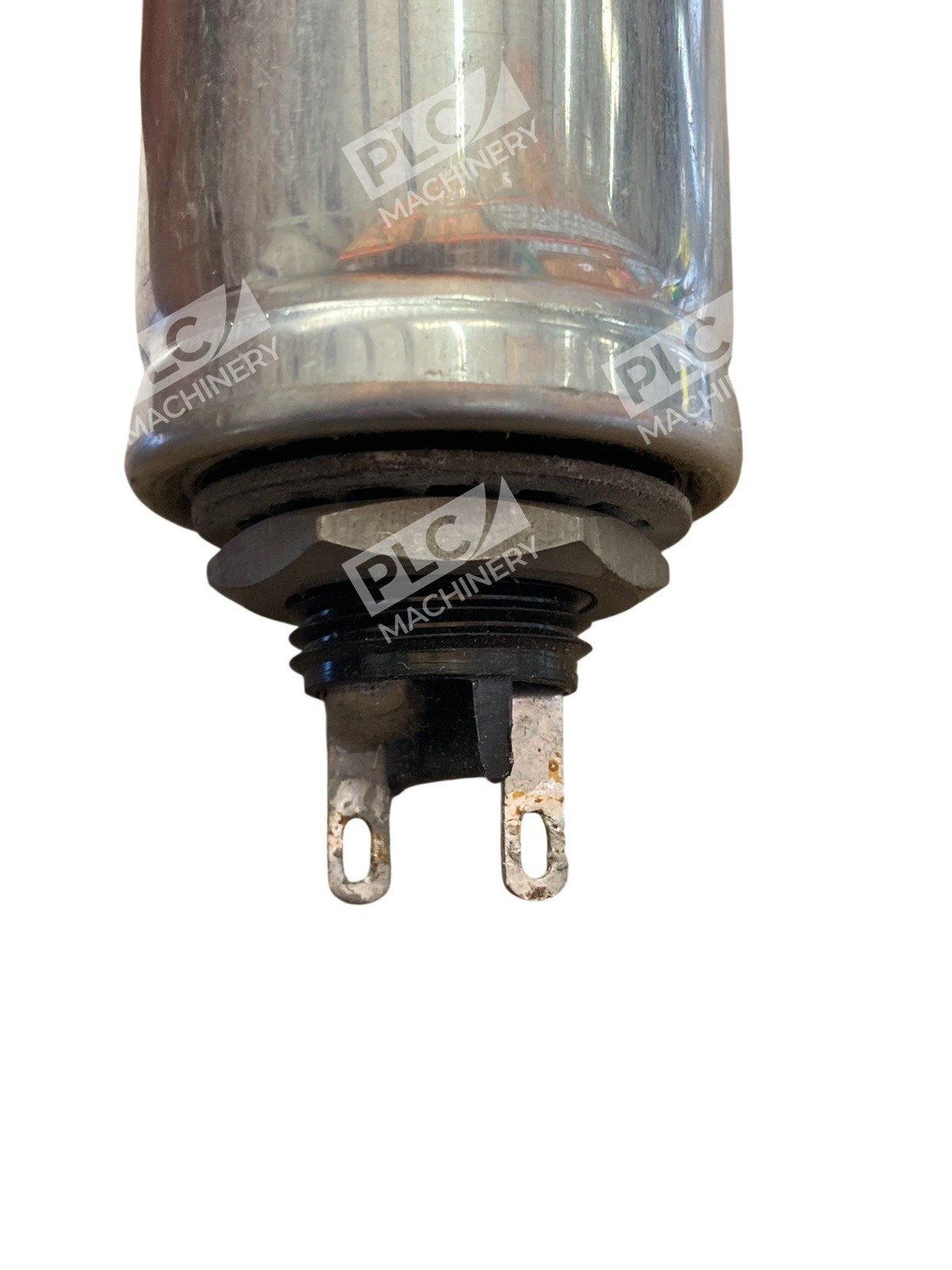

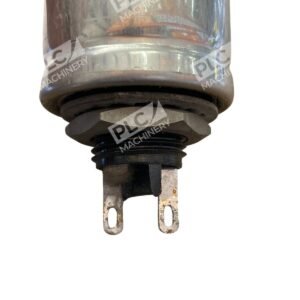

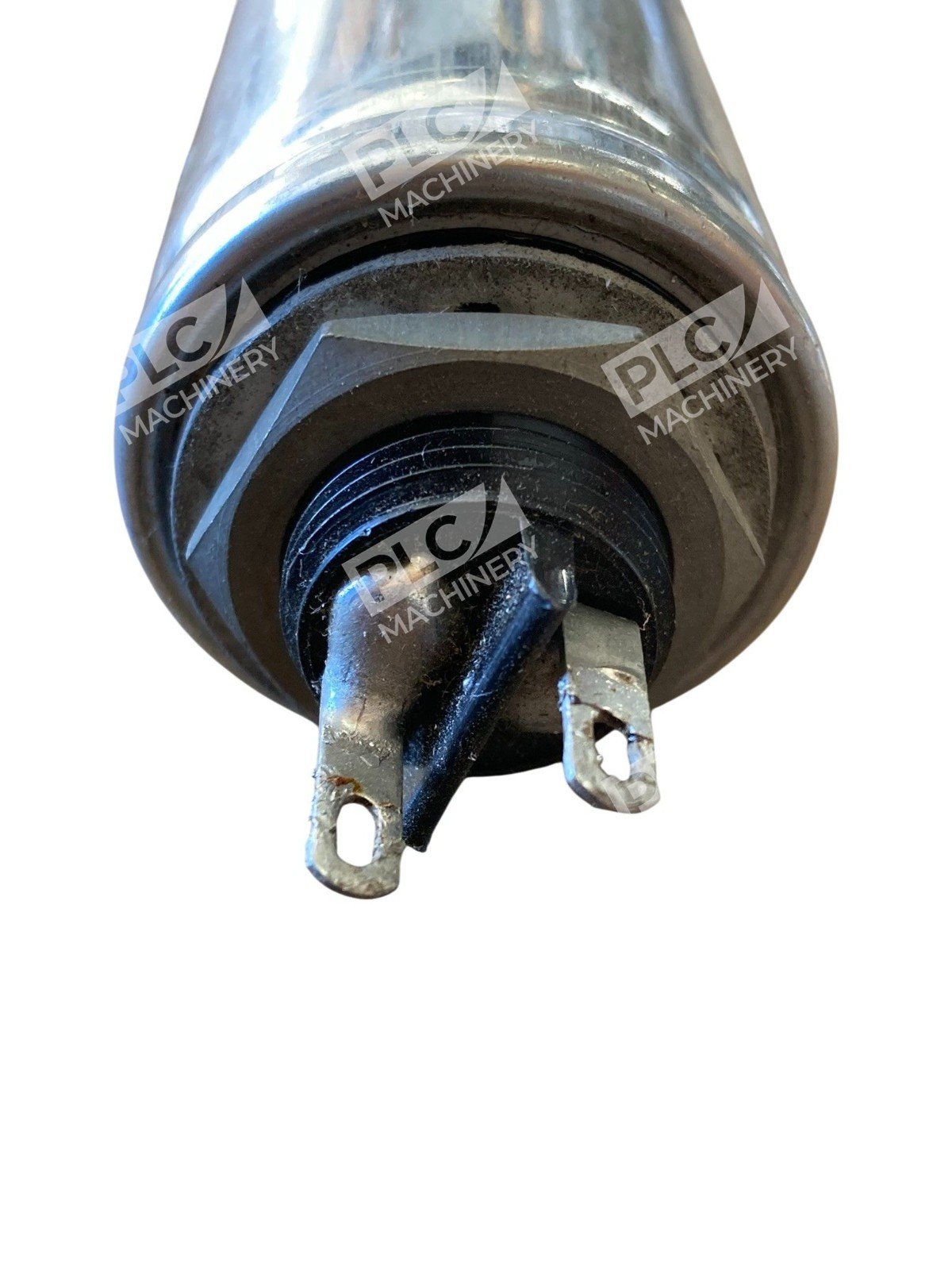

- Hermetically sealed steel case with threaded bushing mounting (0.75″ UNF)
- High voltage rating (600 WVDC) suitable for power supplies and audio circuits
- ±10% capacitance tolerance per military specification
- Operating temperature range: −55°C to +85°C
- Tested and verified functional condition
Technical Specifications
- Capacitance: 2µF (±10%)
- Voltage Rating: 600 WVDC DC
- Dielectric Type: Paper-in-Oil

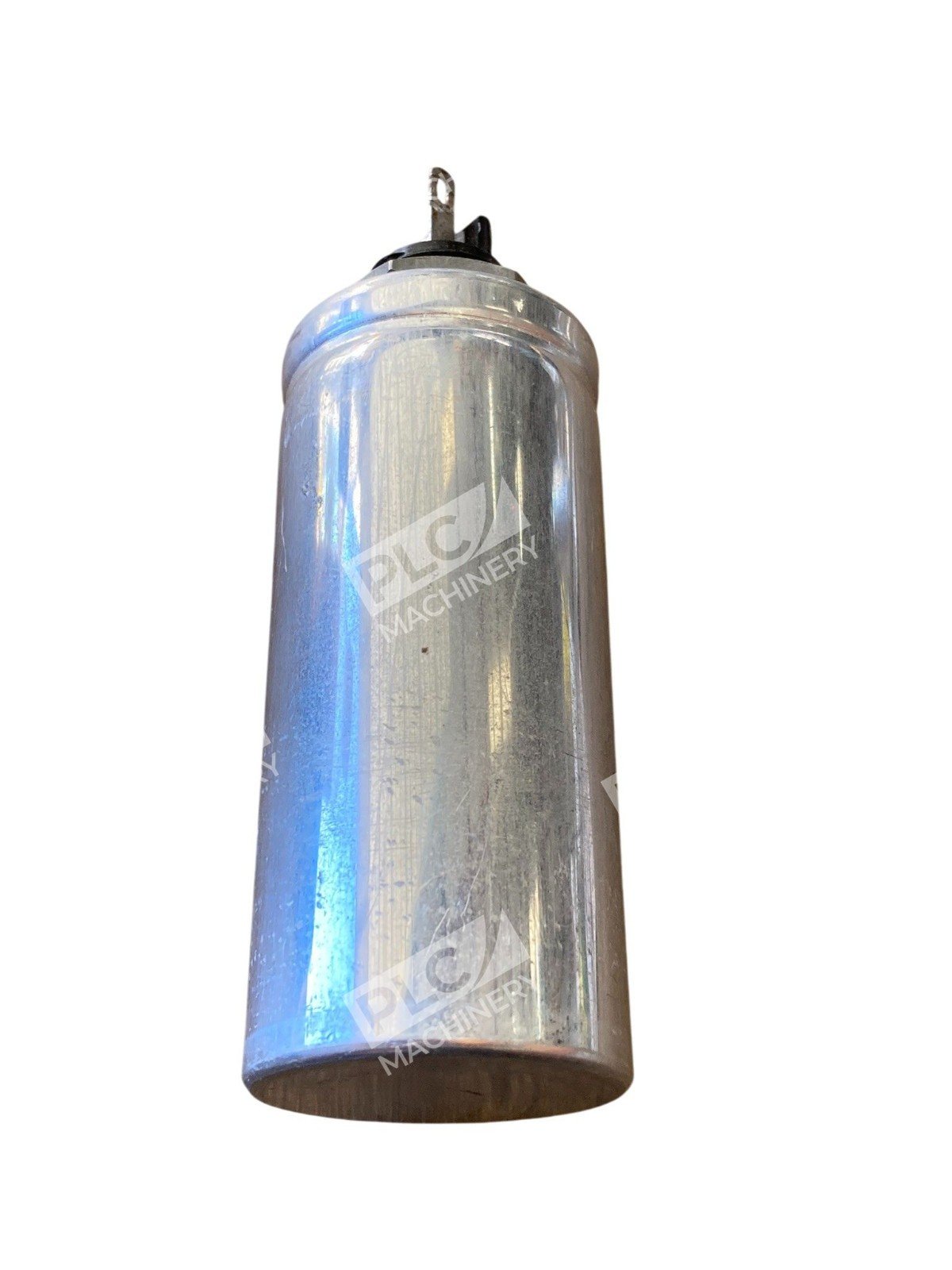

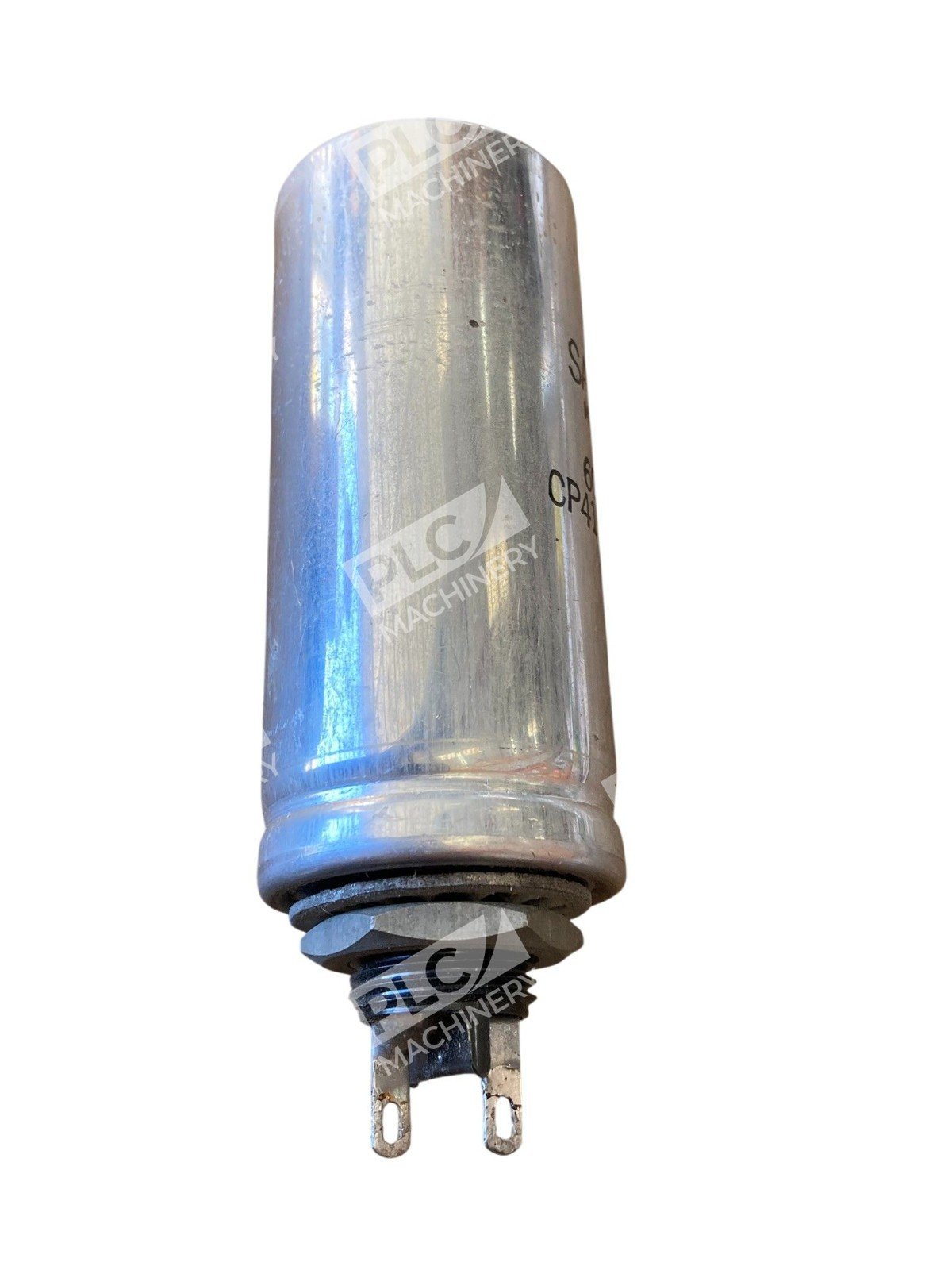

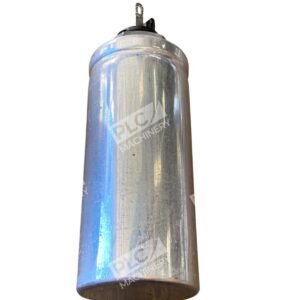

- Case Style: Hermetically sealed steel cylinder with bushing mounting
- Body Diameter: 1.5 inches nominal
- Body Length: 5.25 inches nominal
- Mount Type: Screw thread (UNF) single bushing
- Operating Temp Range: −55°C to +85°C
- Insulation Resistance: 20 MΩ·µF minimum at max operating temperature
- Mounting Hardware: Included
Typical Applications
- Vintage and restoration audio equipment (tube amplifiers, pre-amplifiers)
- Industrial instrumentation and test equipment
- Legacy power supplies and filter circuits
- High-voltage DC applications requiring stable capacitance
- Equipment requiring MIL-spec or military-standard components
Compatibility & Replacements
Compatible With
- Any vintage equipment originally specified for CP41 series capacitors
- Audio amplifier circuits rated for 600V DC operation
- Industrial power supply designs utilizing paper-dielectric capacitors
- Legacy test and measurement instrumentation
- Screw-mount fixed capacitor applications
Replaces / Drop-In Replacement For
- Vintage Sangamo CP41 series 2µF units
- Verify specific circuit requirements before substitution in critical applications
- Recommended to confirm with system integrator for mission-critical designs
Works With
- Vintage tube amplifier designs (1950s–1970s era)
- Industrial DC power supply circuits
- Legacy analog instrumentation platforms
- Restoration of audio and radio equipment
- Any application requiring high-voltage DC capacitive filtering
