Overview

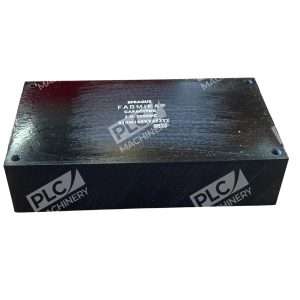

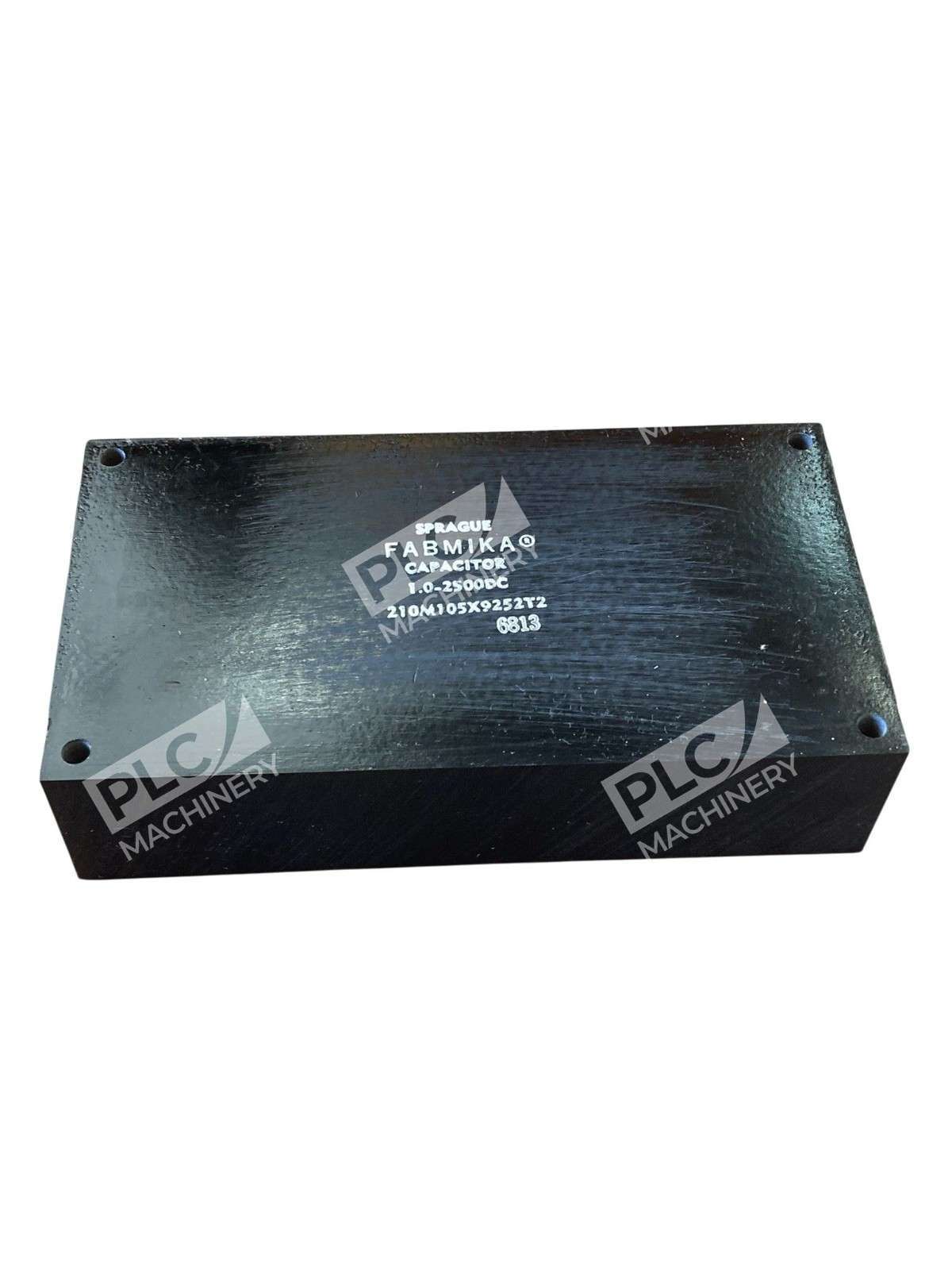

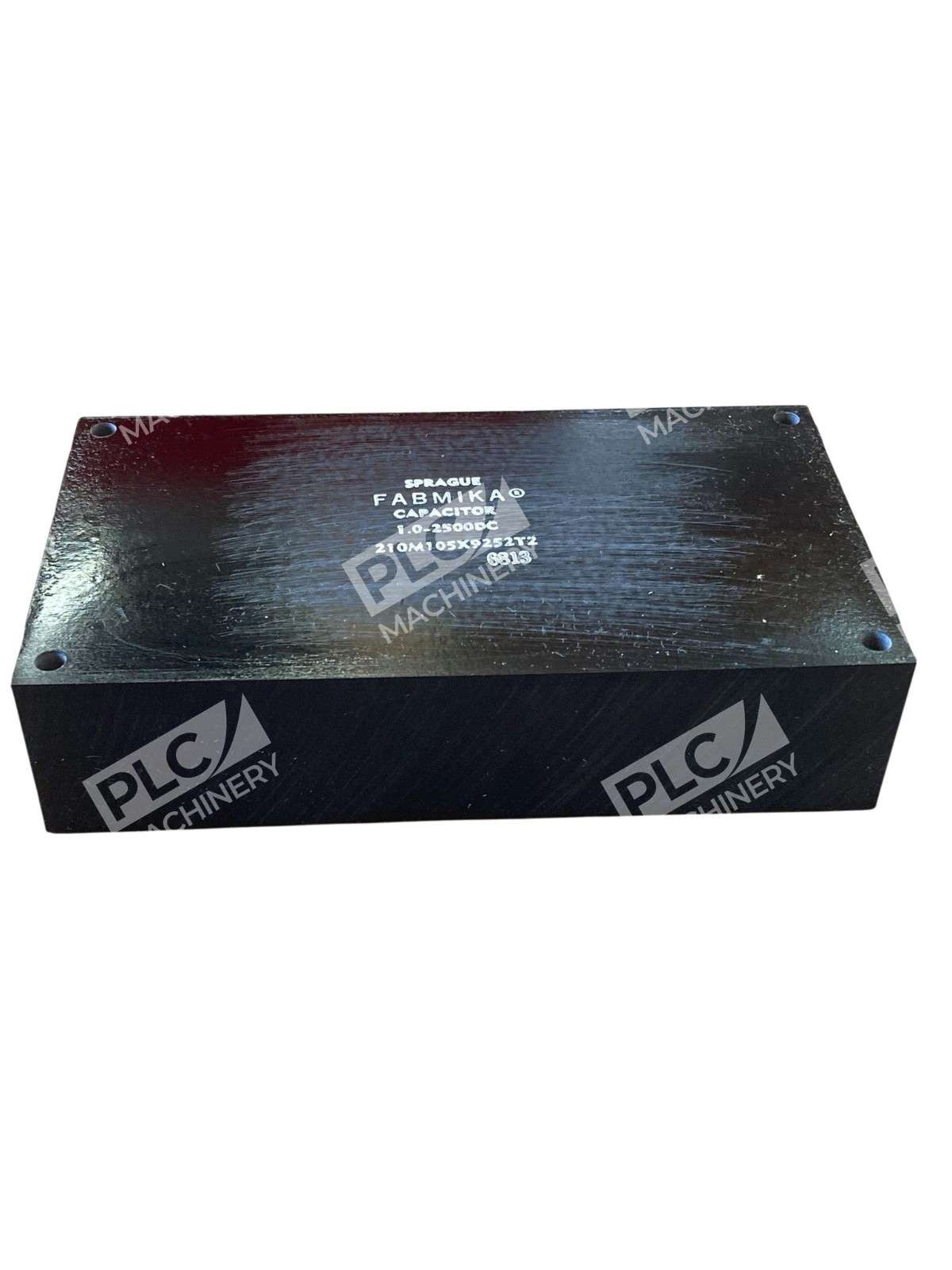

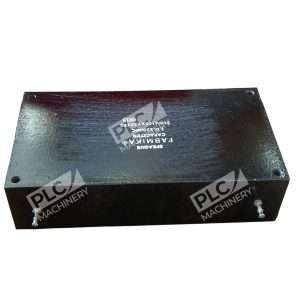

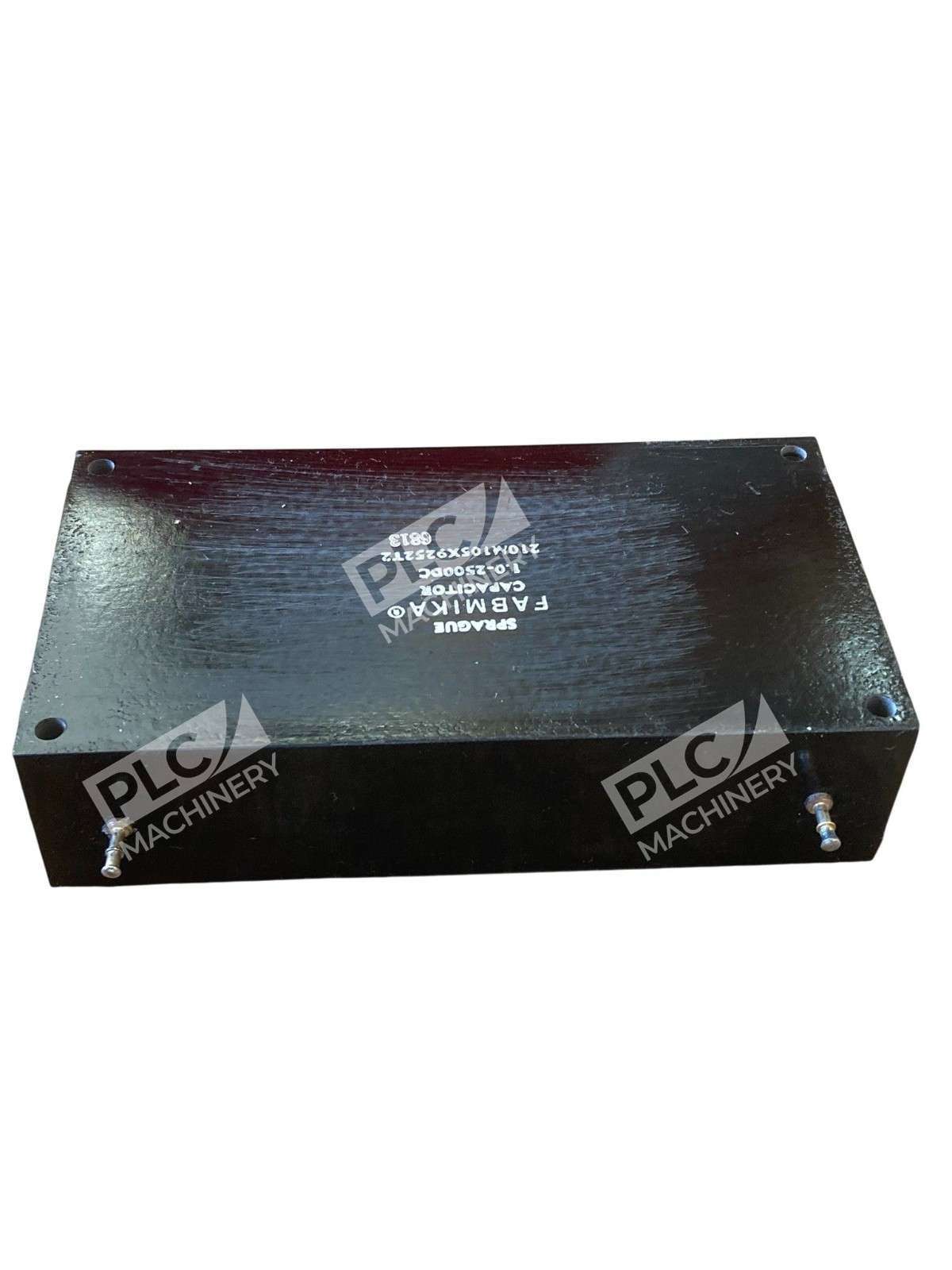

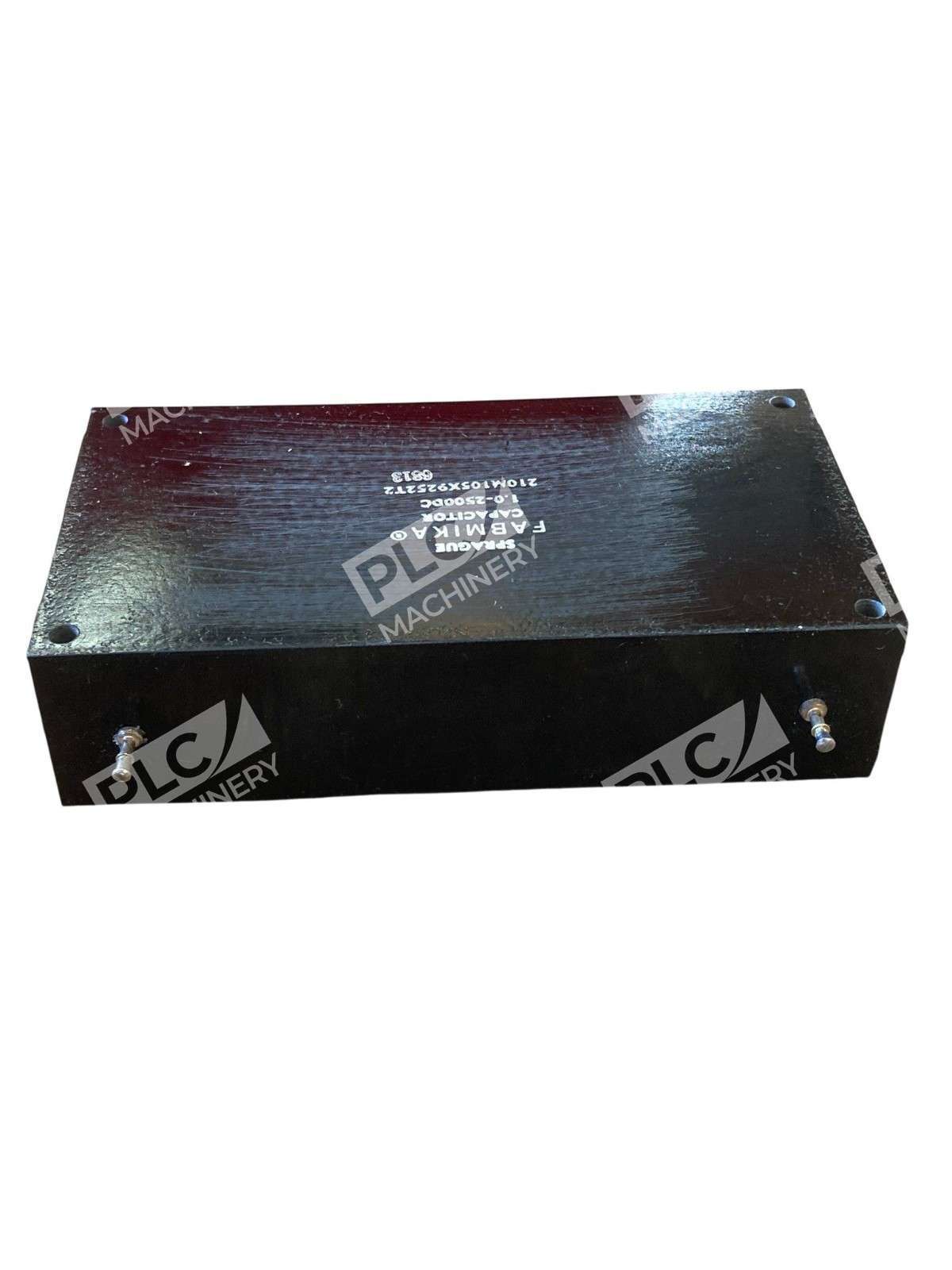

The Sprague 210M105X9252T2 is a Sprague Fabmika high-voltage film capacitor engineered for demanding industrial, medical, and aerospace applications. With a capacitance rating of 1.0µF and a voltage rating of 2500VDC, this component delivers reliable performance in circuits requiring precision energy storage and filtering at elevated operating voltages. This original stock unit maintains the mechanical and electrical specifications of the original design, making it ideal for direct replacement in legacy systems where exact form-fit-function compatibility is critical.
Key Features
- Capacitance: 1.0µF with tight tolerance control for industrial-grade reliability
- Voltage Rating: 2500VDC — suitable for high-voltage power supplies, pulsed power, and filtering applications
- Sprague Fabmika Series: Legacy design proven in military, aerospace, and critical industrial equipment
- Film Dielectric Construction: Inherently low leakage and excellent voltage stability across operating temperature ranges
- Original Stock: Direct form-fit-function replacement for discontinued equipment requiring exact part compatibility
Technical Specifications
- Capacitance: 1.0µF
- Voltage Rating: 2500VDC
- Dielectric Type: Film (Fabmika)
- Series: 210M (Sprague high-voltage film)

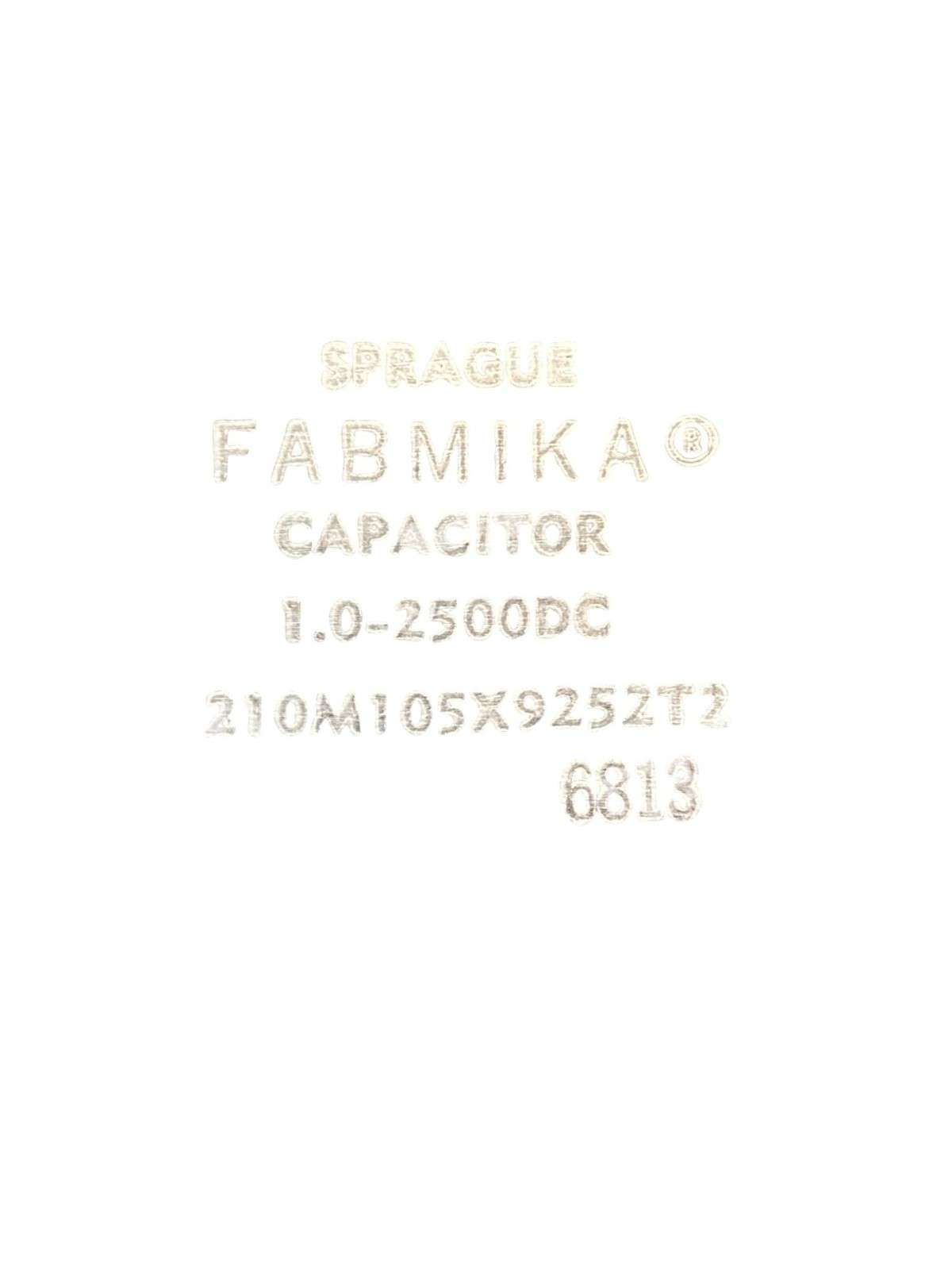

- Part Number: 210M105X9252T2
- Manufacturer: Sprague Electric (now Vishay Intertechnology)
- Condition: Original stock, new, open box
- Application Class: Industrial, aerospace, medical electronics
Typical Applications
- High-voltage DC power supplies and energy storage circuits
- Pulsed power and RF equipment filtering
- Medical diagnostic imaging and therapy equipment (legacy systems)
- Aerospace and defense electronics requiring MIL-SPEC or form-fit-function replacements
- Industrial test equipment and measurement instrumentation
- Retrofitting and repair of vintage control systems and industrial drives
Compatibility & Replacements
Compatible With
- Legacy Sprague electronic equipment and control systems
- Industrial power supplies rated for 2500VDC DC bus voltage
- Aerospace and military systems requiring exact form-fit-function replacement
- Medical equipment manufactured during Sprague’s active product line (pre-1992)
- High-voltage filter and energy storage circuits in test equipment
Replaces / Drop-In Replacement For
- Original Sprague 210M105X9252T2 units
- Legacy Sprague Fabmika series high-voltage capacitors with matching footprint and voltage specifications
Works With
- Vintage power supply modules and control boards requiring 2500VDC rated components
- Legacy industrial equipment designed prior to 1992 (Sprague’s final independent year)
- Form-fit-function replacement strategies for MIL-SPEC and critical system maintenance
- Facilities practicing planned preventive maintenance on legacy equipment where original part replacement is mandated
