Overview

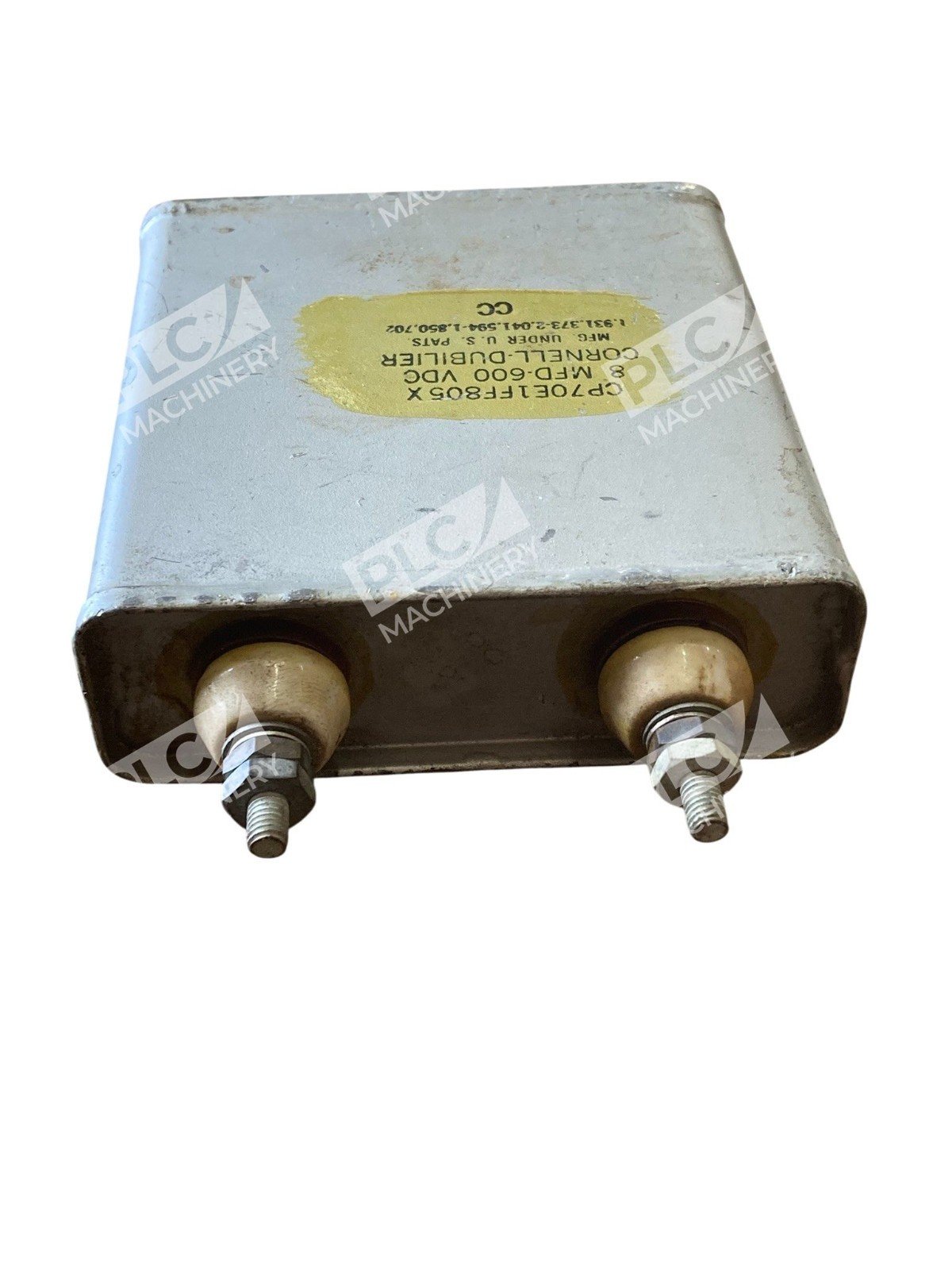

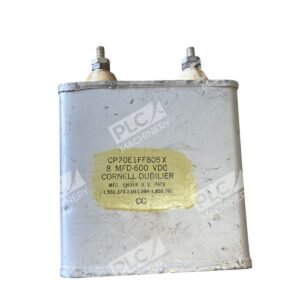

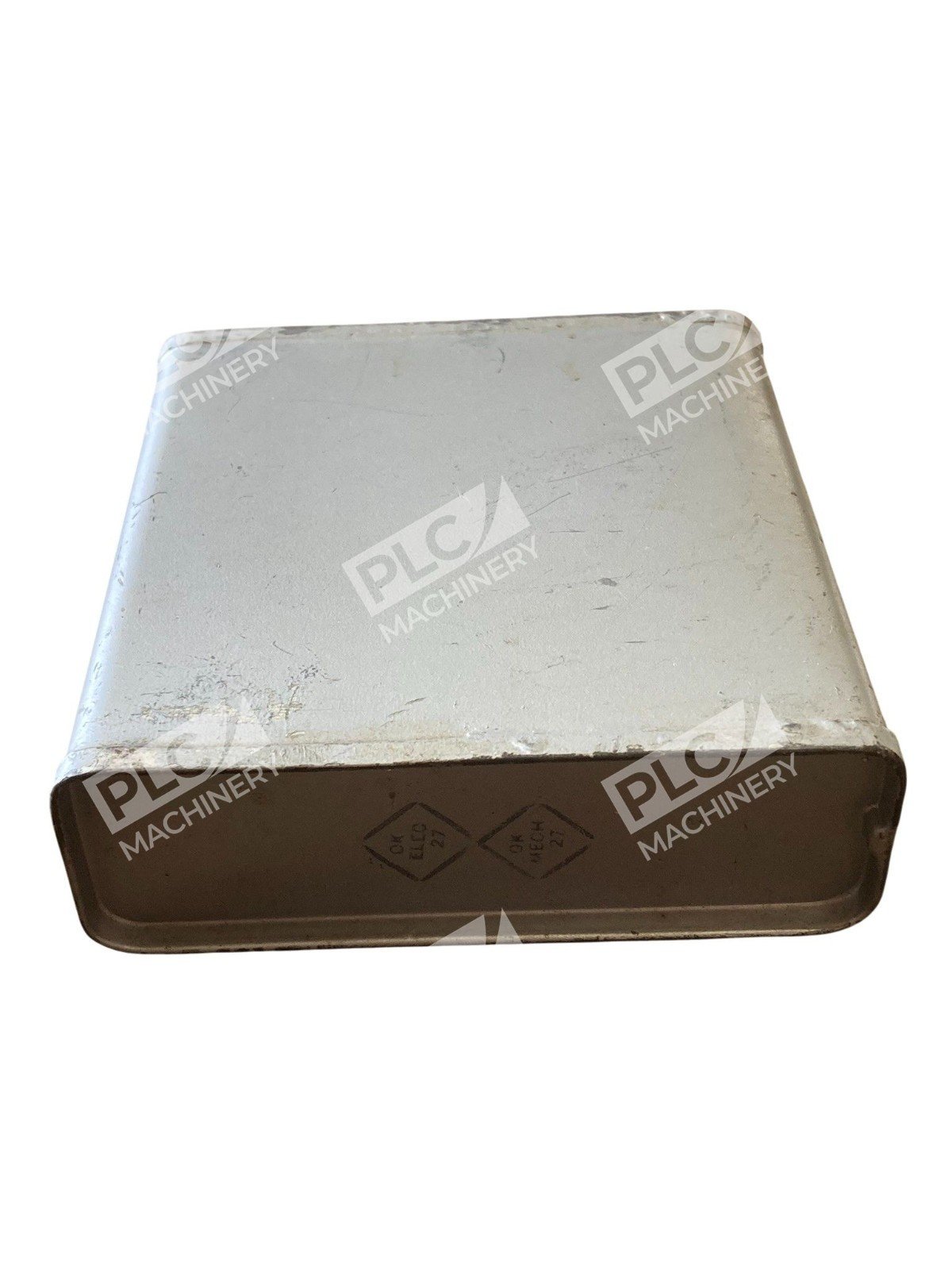

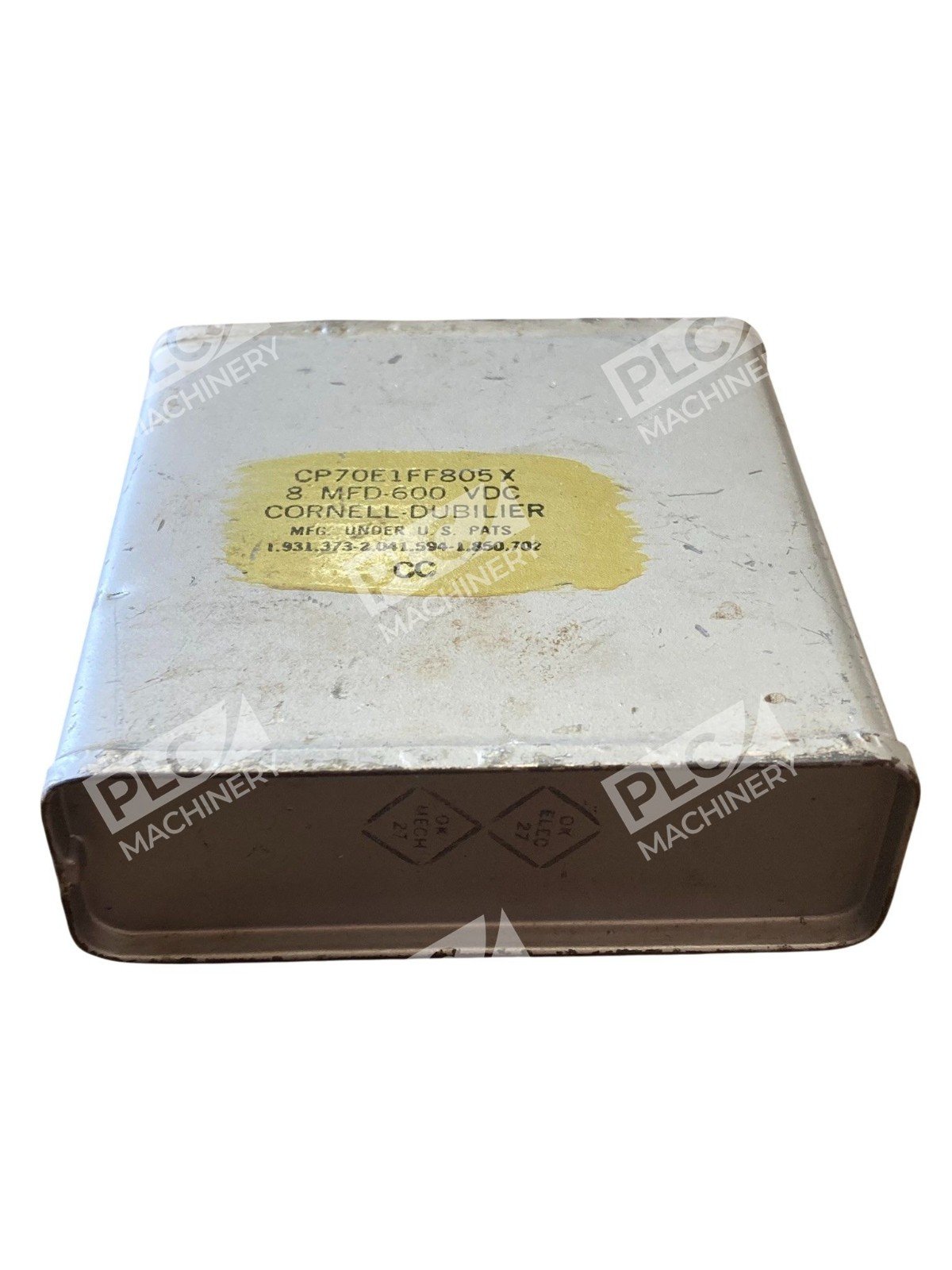

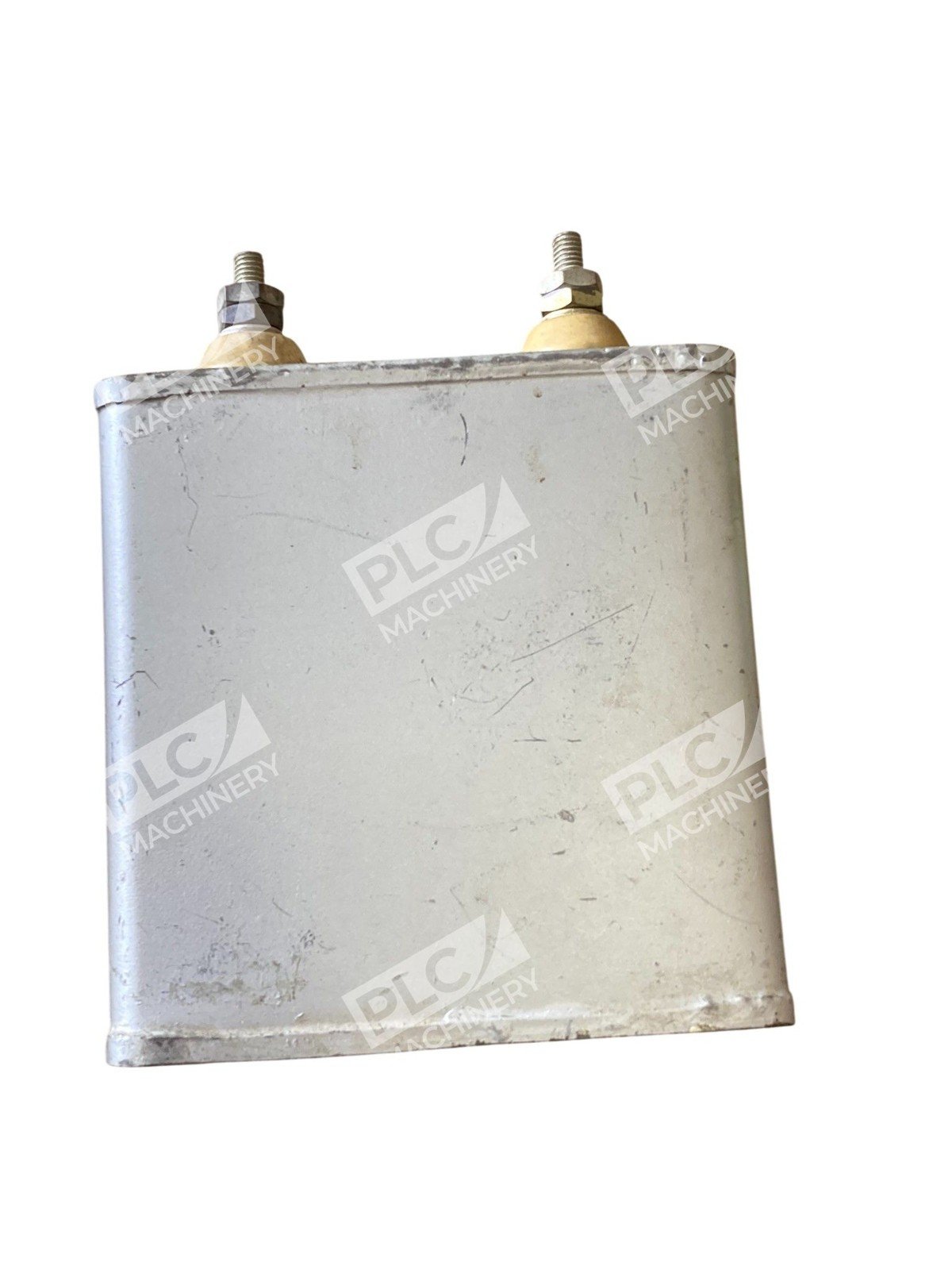

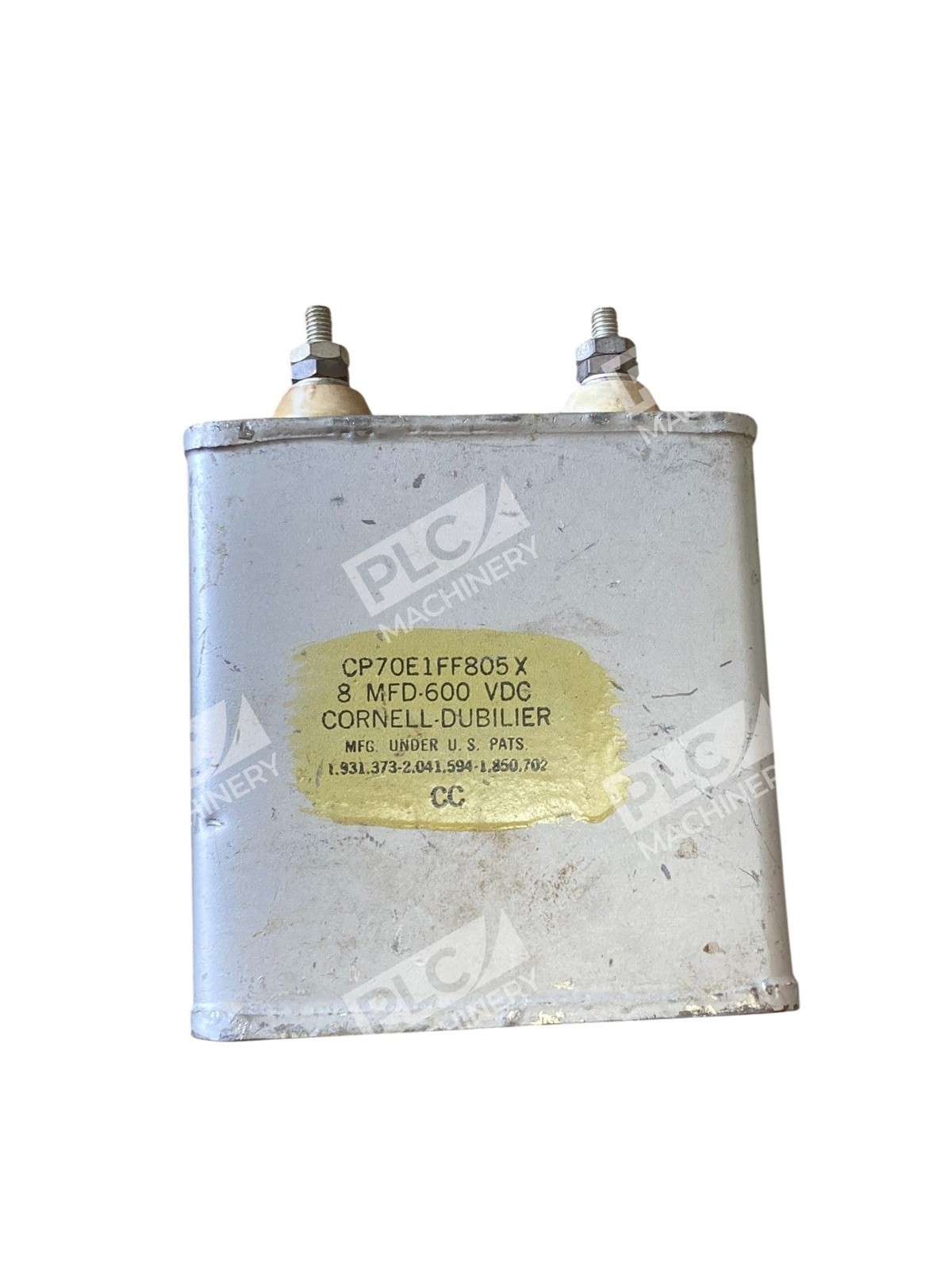

The Cornell Dubilier CP70E1FF805X is a metal can electrolytic capacitor rated for 8µF capacitance at 600VDC. This component delivers stable performance in high-voltage DC circuits commonly found in power supplies, rectifier circuits, and industrial control systems. Metal can construction provides excellent reliability and environmental protection for applications where vibration, temperature fluctuations, or moisture exposure may occur.
Key Features
- 8µF capacitance value with 600VDC rating
- Metal can hermetic construction for durability and environmental protection
- Designed for high-voltage DC applications and power conversion circuits
- Suitable for use in industrial equipment, power supplies, and rectifier circuits
- Established Cornell Dubilier quality with proven long-term reliability
Technical Specifications
| Capacitance | 8 µF |
| Voltage Rating | 600 VDC |
| Construction Type | Metal Can, Electrolytic |
| Manufacturer | Cornell Dubilier (CDE) |

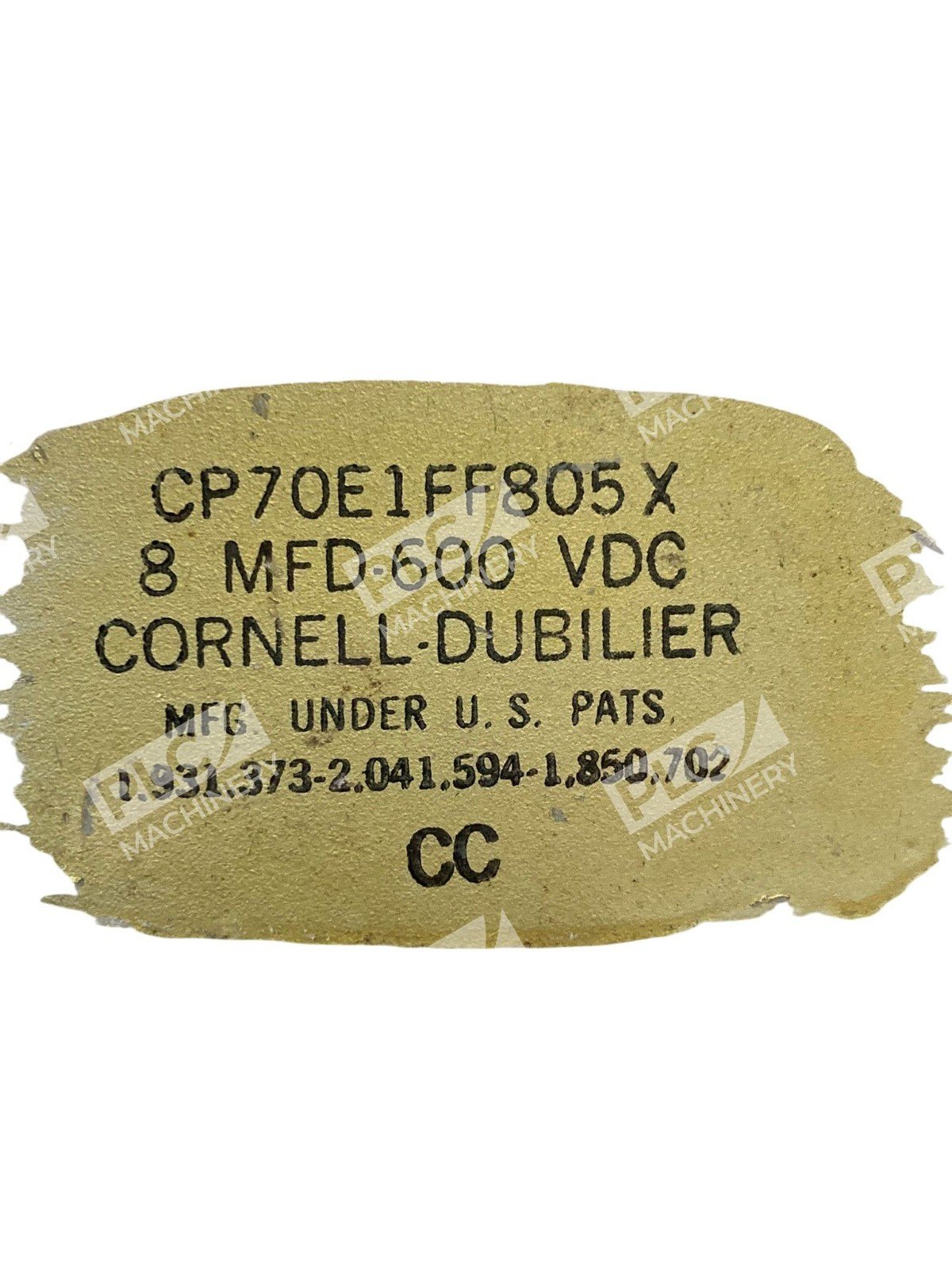

| Part Number | CP70E1FF805X |
| Application Category | High-Voltage DC Filtering |
Typical Applications
- DC link filtering in power conversion systems
- Smoothing capacitors in high-voltage power supplies
- Rectifier circuit coupling and filtering
- Industrial control system power conditioning
- High-voltage equipment requiring stable energy storage
Compatibility & Replacements
Compatible With
- High-voltage DC power supplies requiring 600V or less rated voltage
- Industrial control and rectifier circuits
- General-purpose electronic equipment with DC voltage requirements
- Custom power conversion designs requiring 8µF capacitance value
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or original equipment documentation before ordering. Cornell Dubilier manufactures the CP70E1FF series, and specific direct replacements depend on exact mounting configuration and terminal type. Contact technical support with your application details for alternative part numbers or cross-references.
Works With
- Standard 600VDC-rated circuits and subsystems

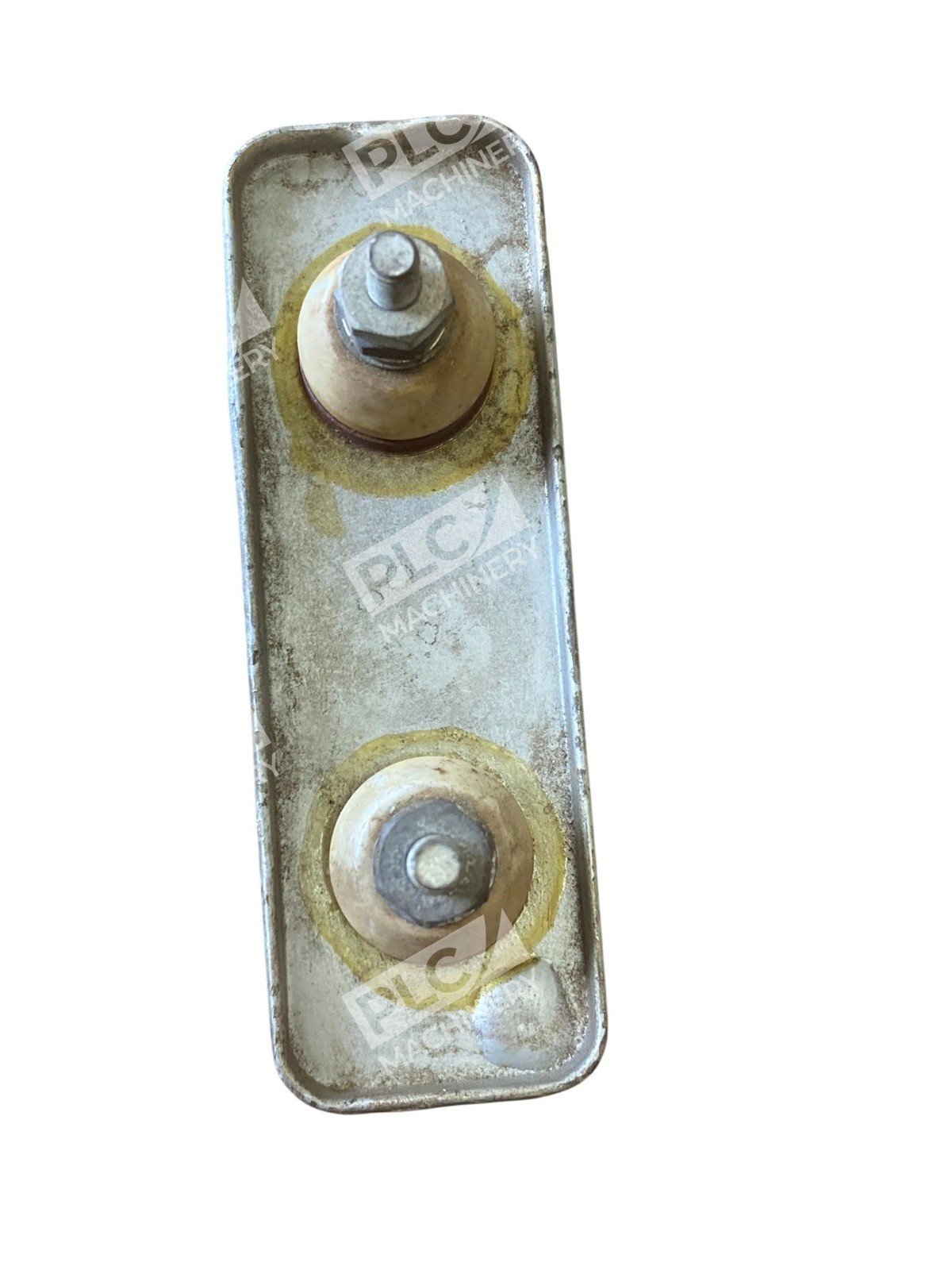

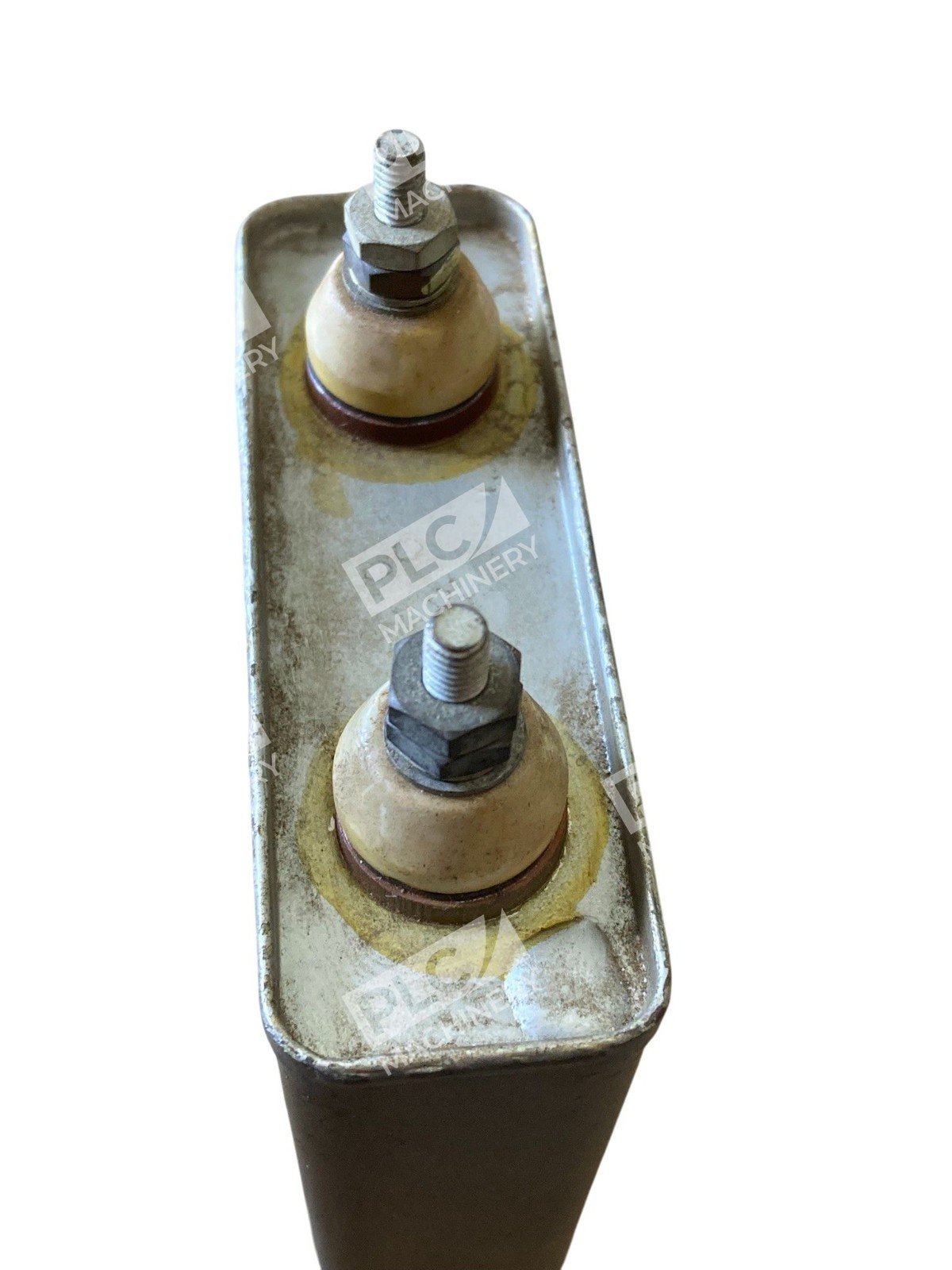

- Metal mounting brackets and hardware (screw or bolt terminal configurations)
- High-voltage DC filtering topologies in power electronics
- Industrial power supplies and rectifier modules
