Overview
The Dayton 4WT40 is a standard square axial fan engineered for reliable cooling in industrial control panels and electronic enclosures. Operating at 115V AC with 60/50Hz dual frequency capability, this fan delivers 30 CFM of airflow at zero static pressure. The compact square form factor (3-1/8″ × 3-1/8″) makes it ideal for space-constrained installations while maintaining robust thermal performance for continuous operation.
Key Features
- Square Design: Compact 3-1/8″ × 3-1/8″ footprint fits standard panel cutouts
- Dual Frequency: Operates at both 60Hz and 50Hz without modification
- Low Power Consumption: 12 watts at 0.13 amps reduces electrical load
- Quiet Operation: 35 dBA sound level suitable for office and industrial environments
- Thermal Protection: Built-in impedance-protected motor prevents overload damage
- Durable Construction: Cast aluminum housing with polybutylene terephthalate blades
Technical Specifications
- Motor Type: Shaded Pole, Single Phase
- CFM @ 0″ Static Pressure: 30
- Voltage: 115V AC
- Frequency: 60/50Hz
- Power: 12 watts
- Current: 0.13 amps
- Speed: 2750 RPM (60Hz) / 2300 RPM (50Hz)
- Height: 3-1/8 inches
- Width: 3-1/8 inches
- Depth: 1-1/2 inches
- Weight: 0.60 lbs
- Bearing Type: Sleeve bearing
- Thermal Protection: Impedance
- Motor Insulation: Class A
- Maximum Ambient Temperature: 158°F
- Electrical Connection: Lead wires (12 inches)
- Housing Material: Cast aluminum
- Blade Material: Polybutylene terephthalate
- Sound Level: 35 dBA

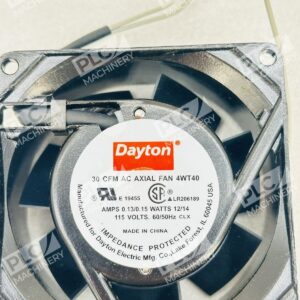

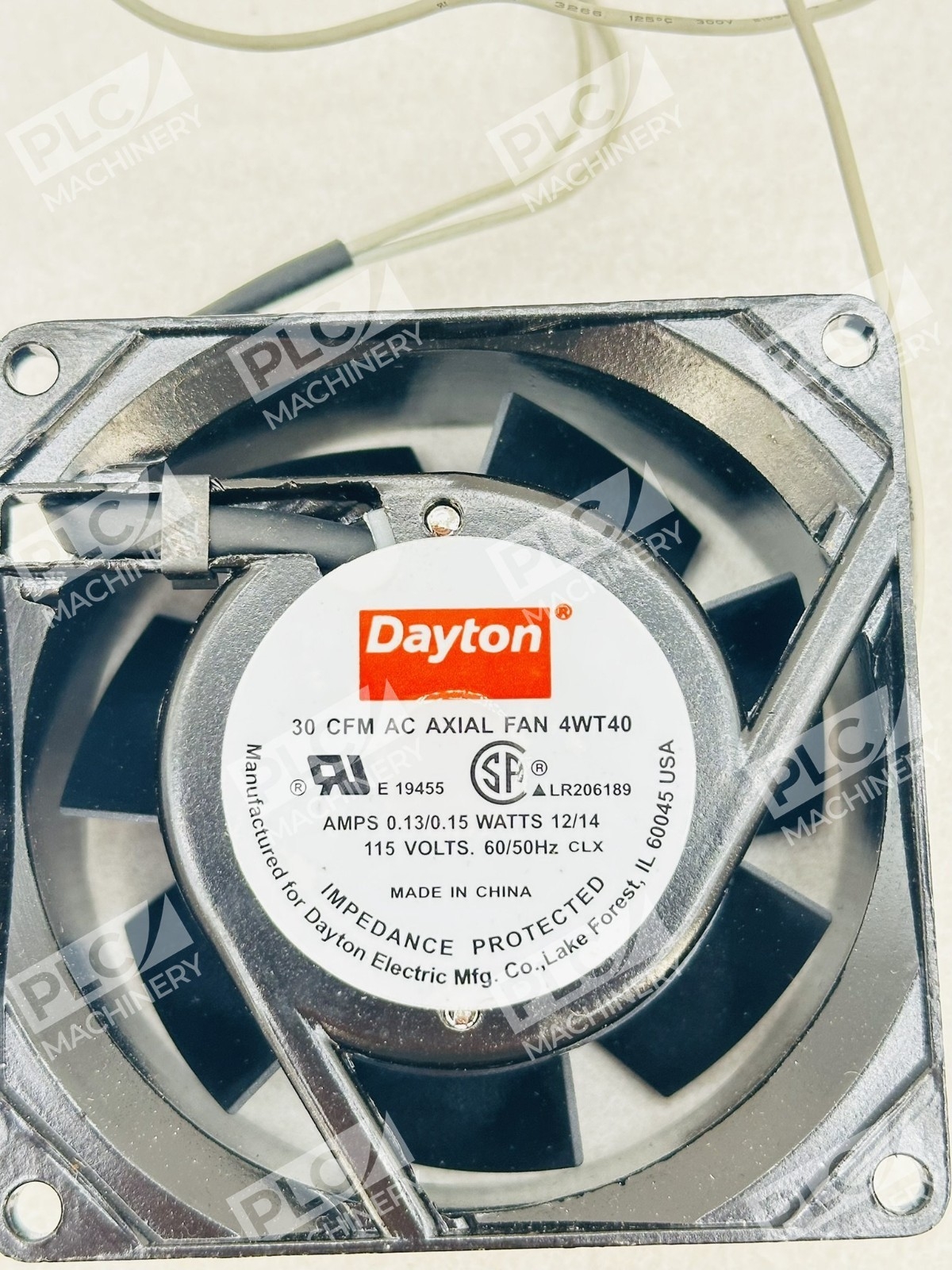

- Certifications: RU E19455, CSA LR206189
Typical Applications
- Control panel thermal management
- Electrical enclosure cooling
- PLC and servo drive cooling
- Industrial cabinet ventilation
- Semiconductor equipment cooling
- Commercial HVAC applications
- Power supply thermal regulation
Compatibility & Replacements
Compatible With
- Standard square fan cutouts (3-1/8″ × 3-1/8″)
- 110V/120V AC electrical systems
- Both 50Hz and 60Hz power supplies
- Horizontal and vertical mounting positions
- Panel-mount applications with mounting eye fasteners
Replaces / Drop-In Replacement For
- Verify with your equipment manufacturer for OEM compatibility
- Consult with system integrator for cross-compatibility with legacy models
Works With
- Universal AC power systems
- Thermal switches and fan speed controllers (via lead wire connections)
- Industrial control panels from major manufacturers
- Standard mounting hardware and ducting
