<h2>Overview</h2>

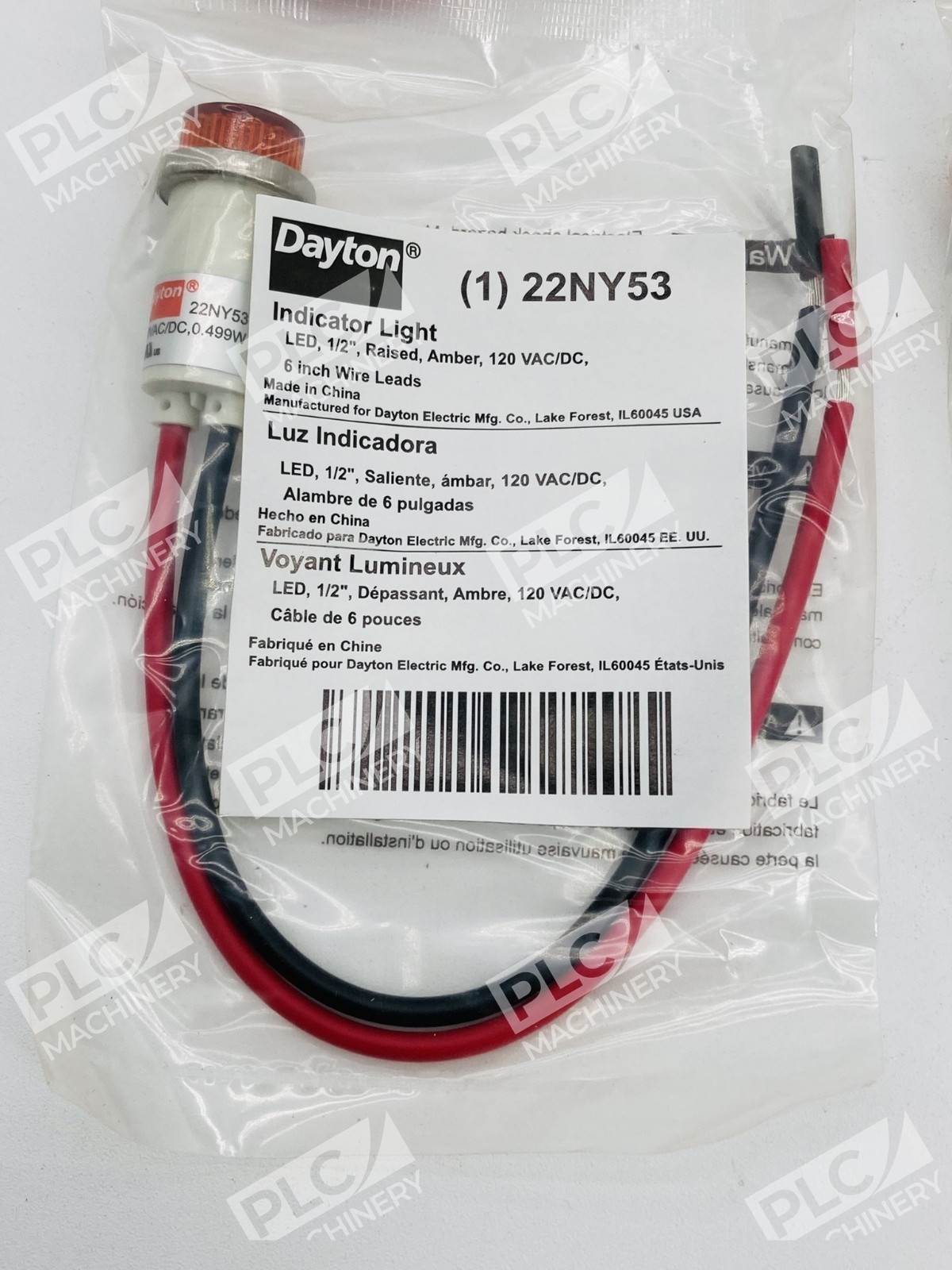

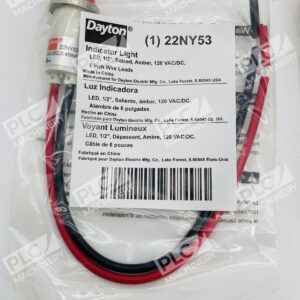

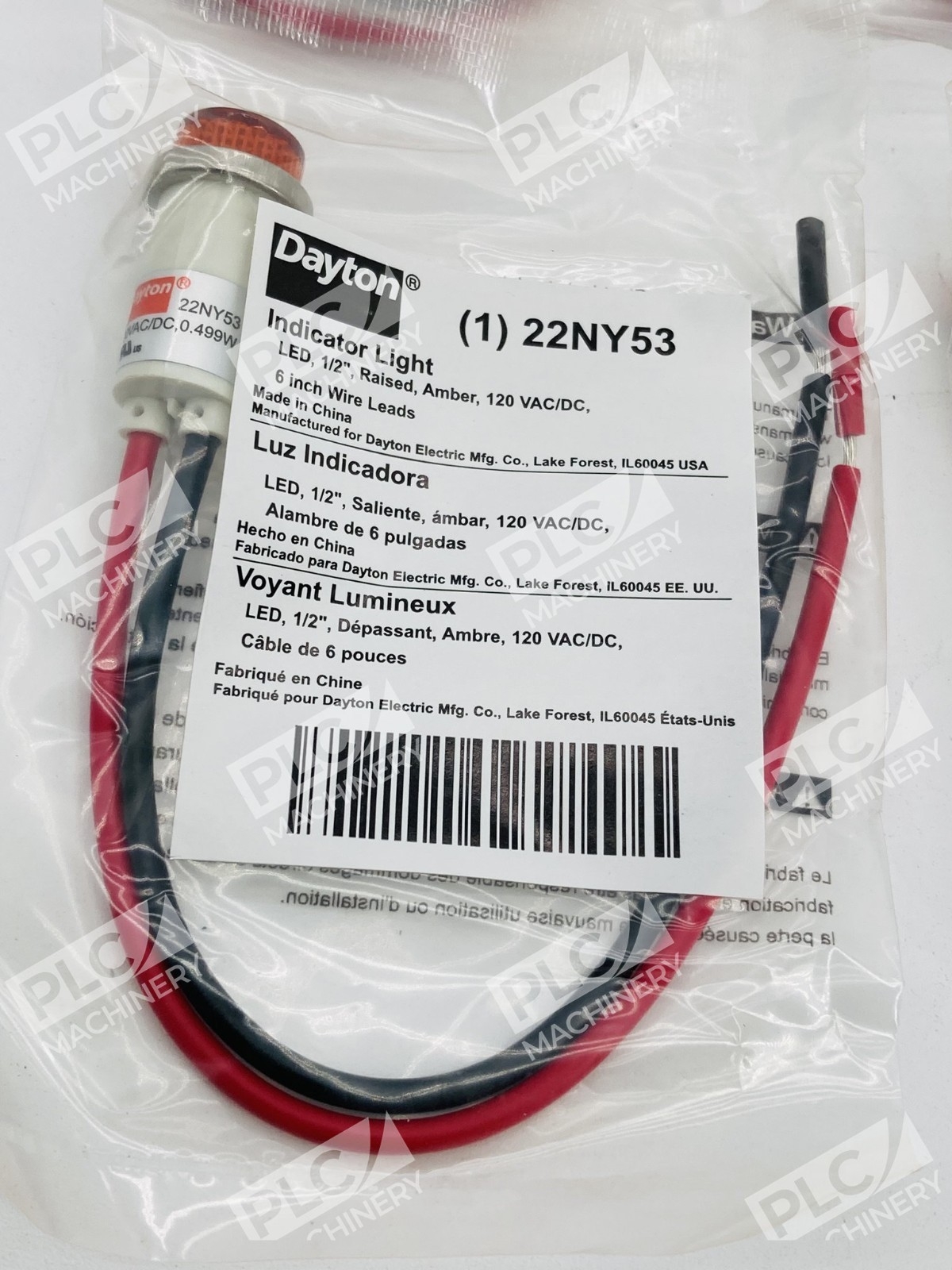

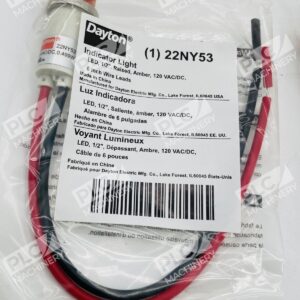

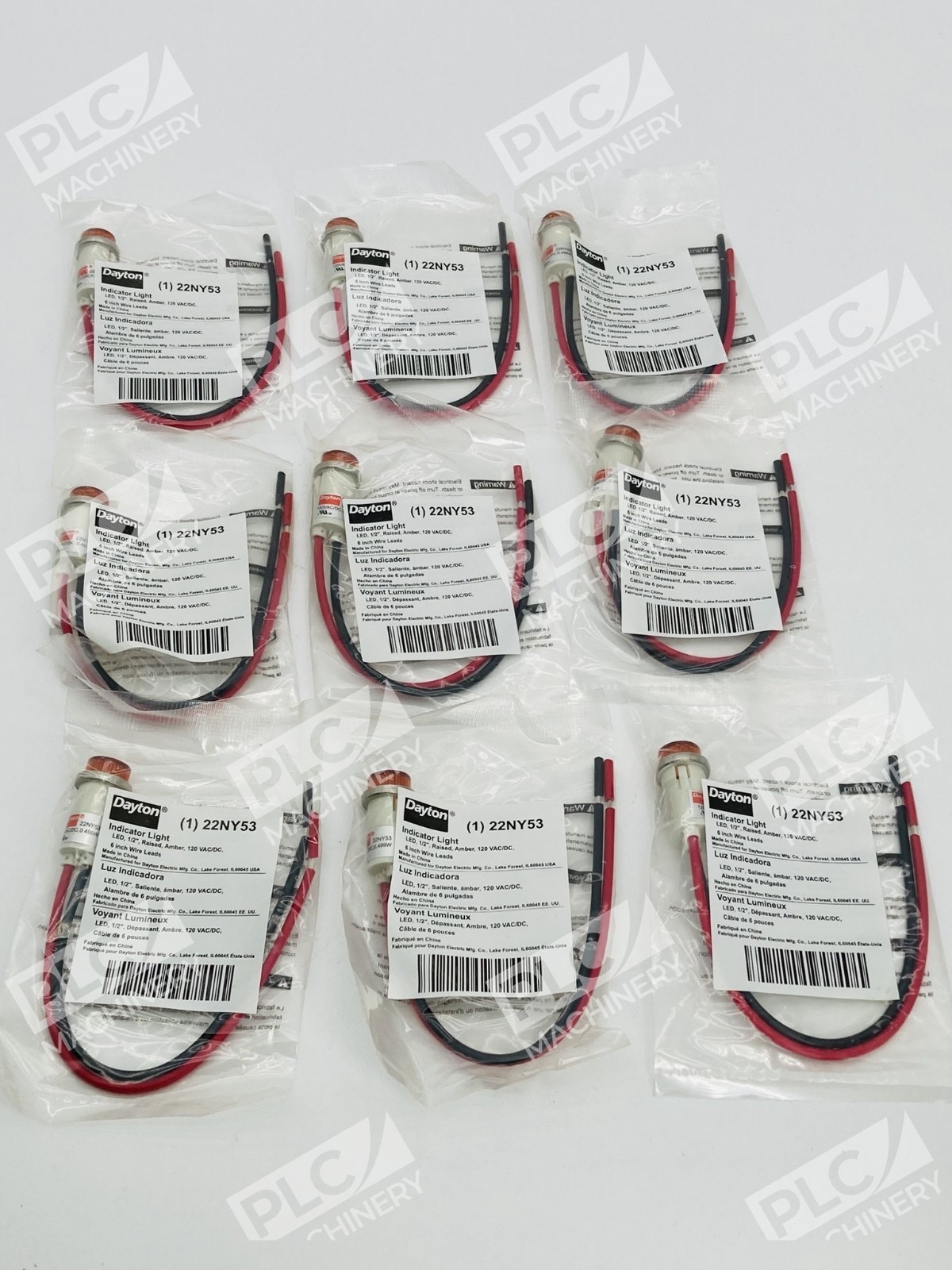

<p>The <strong>Dayton 22NY53</strong> is a raised LED indicator light engineered for machine, instrument, and switch control panel applications. With 120VAC/DC voltage compatibility and amber color, it provides clear visual signaling for industrial automation, automotive, RV, and appliance equipment. The light features a durable nylon body with polycarbonate lens and stainless steel bezel for long-term reliability in demanding environments.</p>
<h2>Key Features</h2>
<ul>
<li>LED lamp type provides energy efficiency and extended service life</li>
<li>Dual voltage rating: 120VAC/DC operation for flexible installation</li>
<li>Amber lens color for standard status indication across industrial applications</li>
<li>Ultra-low current draw of 4.16 mA minimizes panel power consumption</li>
<li>25,000-hour average LED life reduces replacement frequency</li>
<li>Raised design improves visibility and maintains IP40 rating for dust protection</li>
<li>UL listed for code compliance in North American installations</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Voltage:</strong> 120VAC/DC</li>
<li><strong>Current Draw:</strong> 4.16 mA</li>
<li><strong>Lamp Type:</strong> LED</li>
<li><strong>Color:</strong> Amber</li>
<li><strong>Mounting Diameter:</strong> 1/2 inch</li>
<li><strong>Shape:</strong> Round</li>
<li><strong>Electrical Connection:</strong> 6 inch wire leads</li>
<li><strong>Material:</strong> Nylon body with polycarbonate lens and stainless steel bezel</li>
<li><strong>Average Life:</strong> 25,000 hours</li>
<li><strong>IP Rating:</strong> IP40</li>
<li><strong>Panel Thickness:</strong> 0.030 in to 0.093 in</li>
<li><strong>Height:</strong> 0.7 inches</li>
<li><strong>Weight:</strong> 0.02 lbs</li>
<li><strong>Standards:</strong> UL Listed</li>
<li><strong>Country of Origin:</strong> China</li>
</ul>
<h2>Typical Applications</h2>
<p>The Dayton 22NY53 amber indicator light is widely used in:</p>
<ul>
<li>Industrial control and automation panels</li>
<li>Machine tool status indication</li>
<li>Electrical enclosure and switchboard signaling</li>
<li>Automotive dashboard and instrument panels</li>
<li>Recreational vehicle (RV) and bus control systems</li>
<li>Appliance and equipment operational status displays</li>
<li>Process monitoring and alarm indication</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Any 120VAC/DC control panel or enclosure with 1/2″ panel mount hole</li>
<li>Industrial PLC systems and control modules</li>
<li>Electrical distribution boards and switch panels</li>
<li>Machine tool controllers and safety relay circuits</li>
<li>General-purpose automation and signaling systems</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The Dayton 22NY53 is a direct replacement for equivalent 1/2″ 120VAC/DC amber LED indicator lights in the same mounting standard. Verify compatibility with your specific panel enclosure and electrical specifications before ordering.</p>
<h3>Works With</h3>
<ul>
<li>Direct 120VAC/DC wired control circuits</li>
<li>Relay and contactor output circuits</li>
<li>PLC digital output modules (24VDC to 120VAC rated)</li>
<li>Standard electrical panel wiring and conduit systems</li>
<li>Industrial-grade power supplies with 120VAC/DC output</li>
</ul>
