Overview

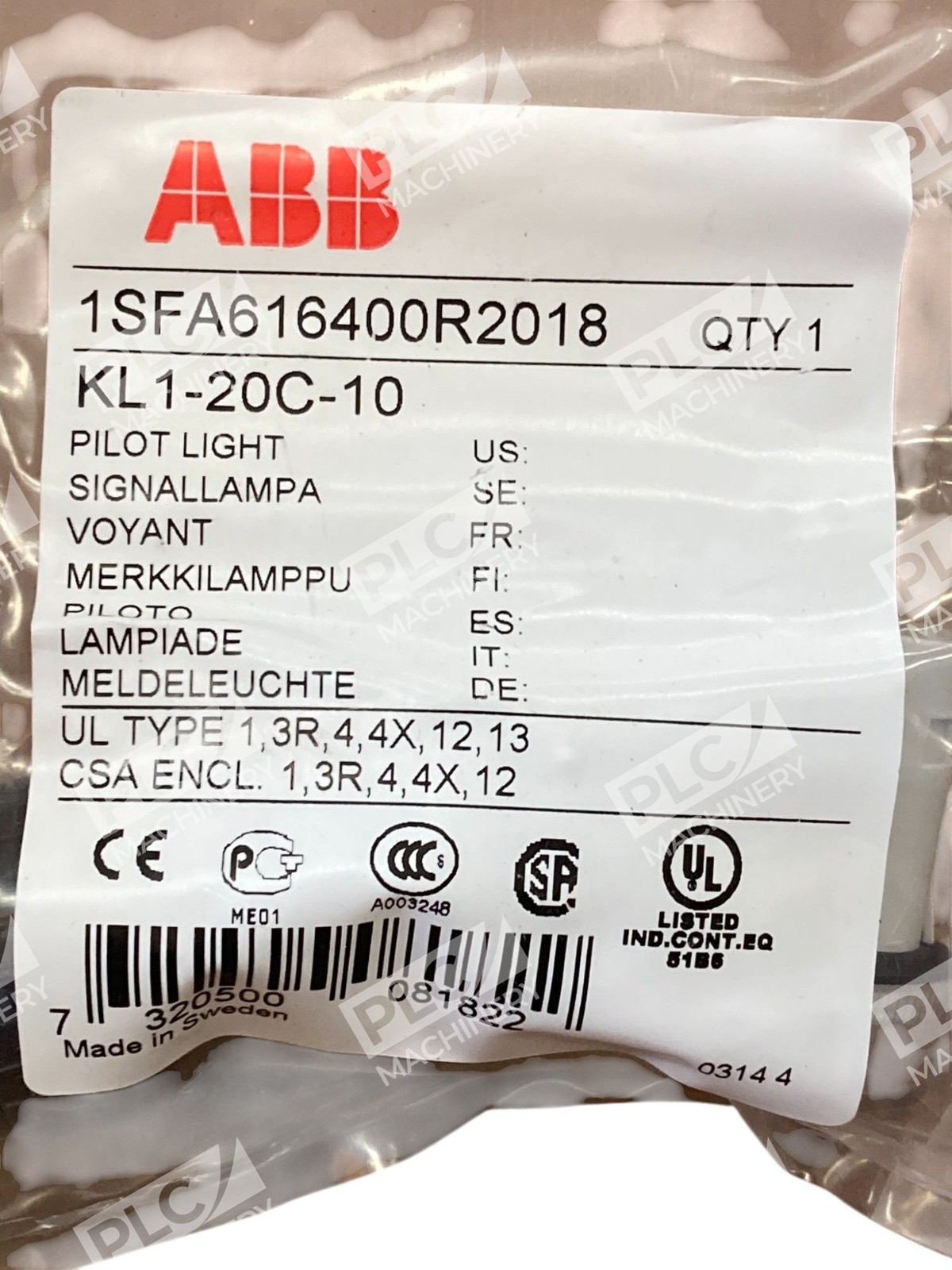

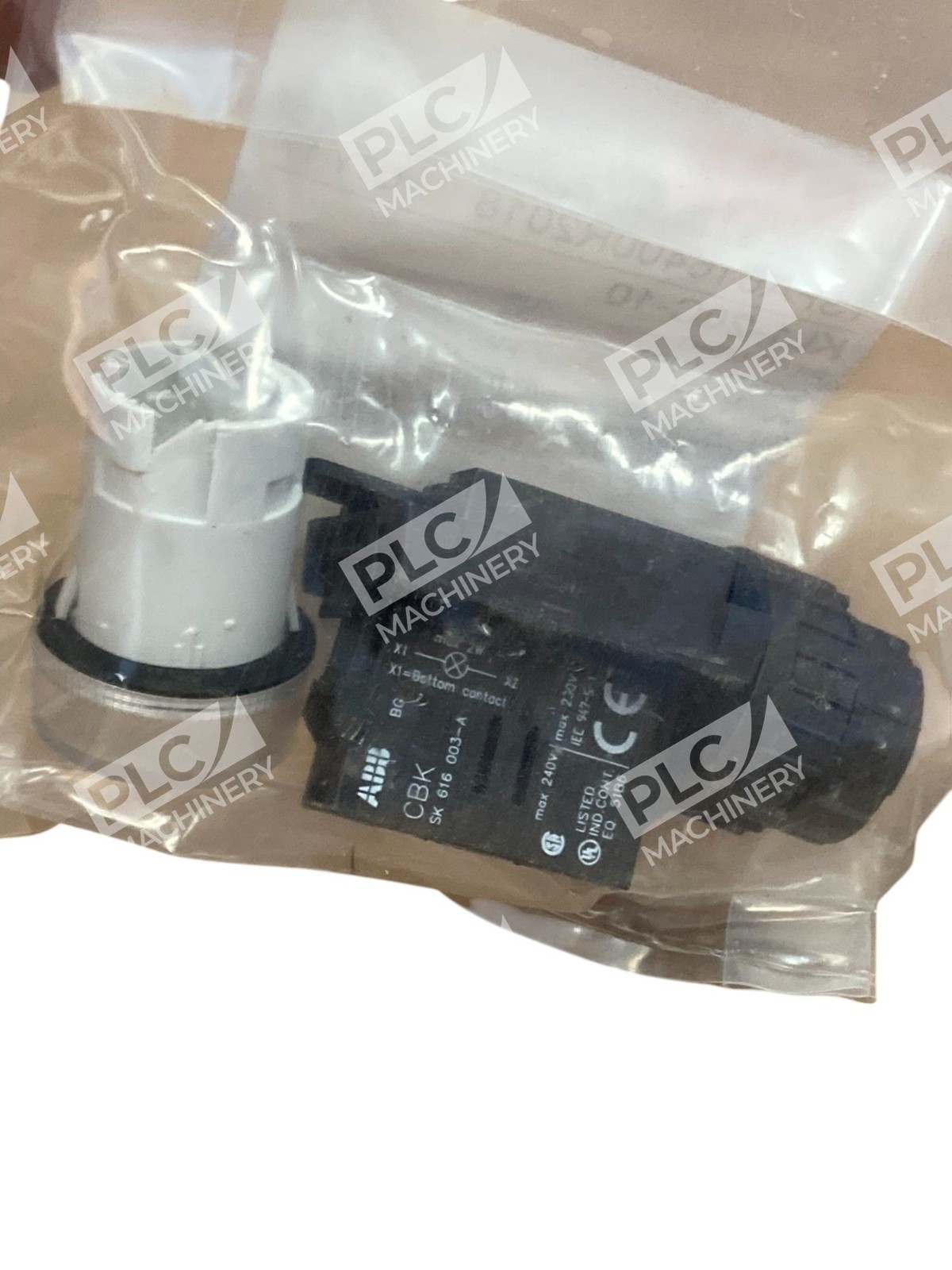

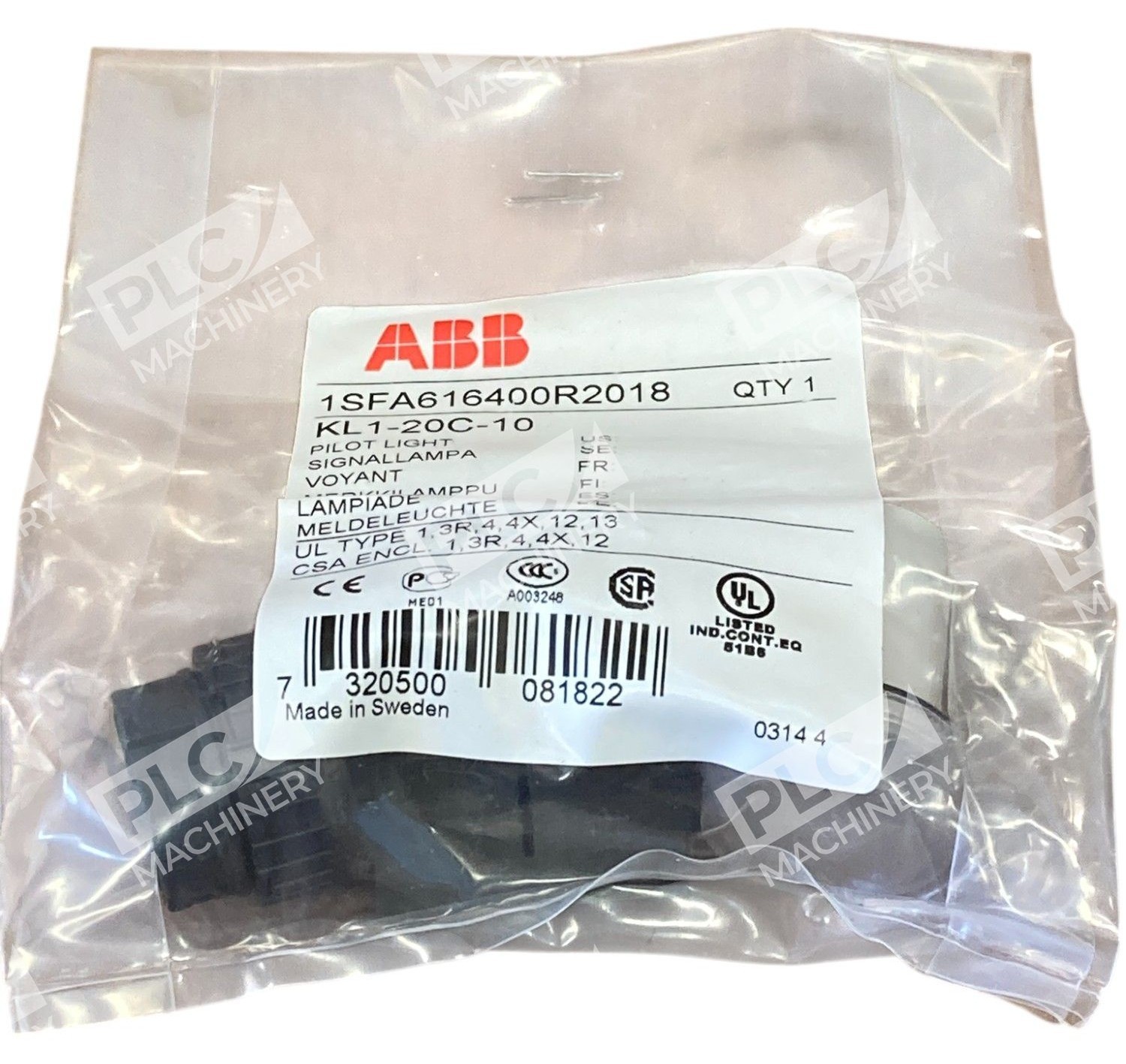

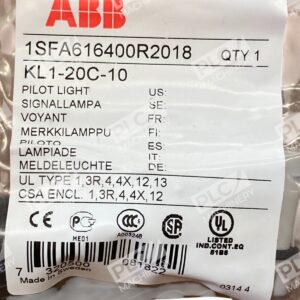

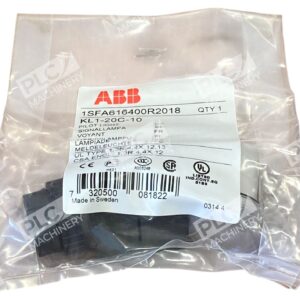

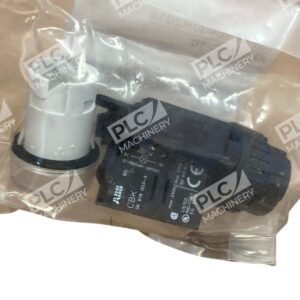

The ABB KL1-20C-10 pilot light is a 20mm compact indicator lamp engineered for industrial automation and control panel applications. Part of ABB’s modular pilot devices range, this unit meets international standards and delivers dependable status indication in manufacturing, processing, and machine control environments. The KL1-20C-10 is designed for robust long-service life in demanding conditions.
Key Features
- 20mm compact form factor fits standard panel cutouts
- Chrome finish enclosure for durability and corrosion resistance
- IEC 73 compliant color and function coding
- Modular design compatible with ABB control panel systems
- Suitable for both AC and DC voltage applications
- Available in multiple color options for status indication
Technical Specifications
- Diameter: 20mm
- Finish: Chrome metal
- Standards Compliance: IEC 73, UL, CSA
- Design Type: Modular pilot light head
- Mounting: Panel-mount push-fit
- Operating Temperature: -20°C to +70°C
- Housing Material: Chrome-plated metal
- Certifications: UL Listed, CSA Approved, IEC Compliant
Typical Applications
The ABB KL1-20C-10 is commonly deployed in:
- Machine tool control panels for status indication
- Industrial automation systems requiring reliable lamp indication
- Manufacturing and assembly line monitoring
- Electrical switchgear and motor control centers
- Process equipment and conveyor system panels
- Emergency stop and safety circuit visual feedback
Compatibility & Replacements
The KL1-20C-10 integrates seamlessly with ABB’s modular control components, including contact blocks, pushbuttons, and selector switches. It uses standard IEC 73 color conventions for rapid operator recognition. This pilot light is compatible with both metal and non-metallic panel enclosures meeting standard industrial mounting practices. For voltage-specific configurations or color variations, consult ABB’s pilot devices catalog or contact a certified ABB distributor for alternative model numbers and direct replacements.
