Overview

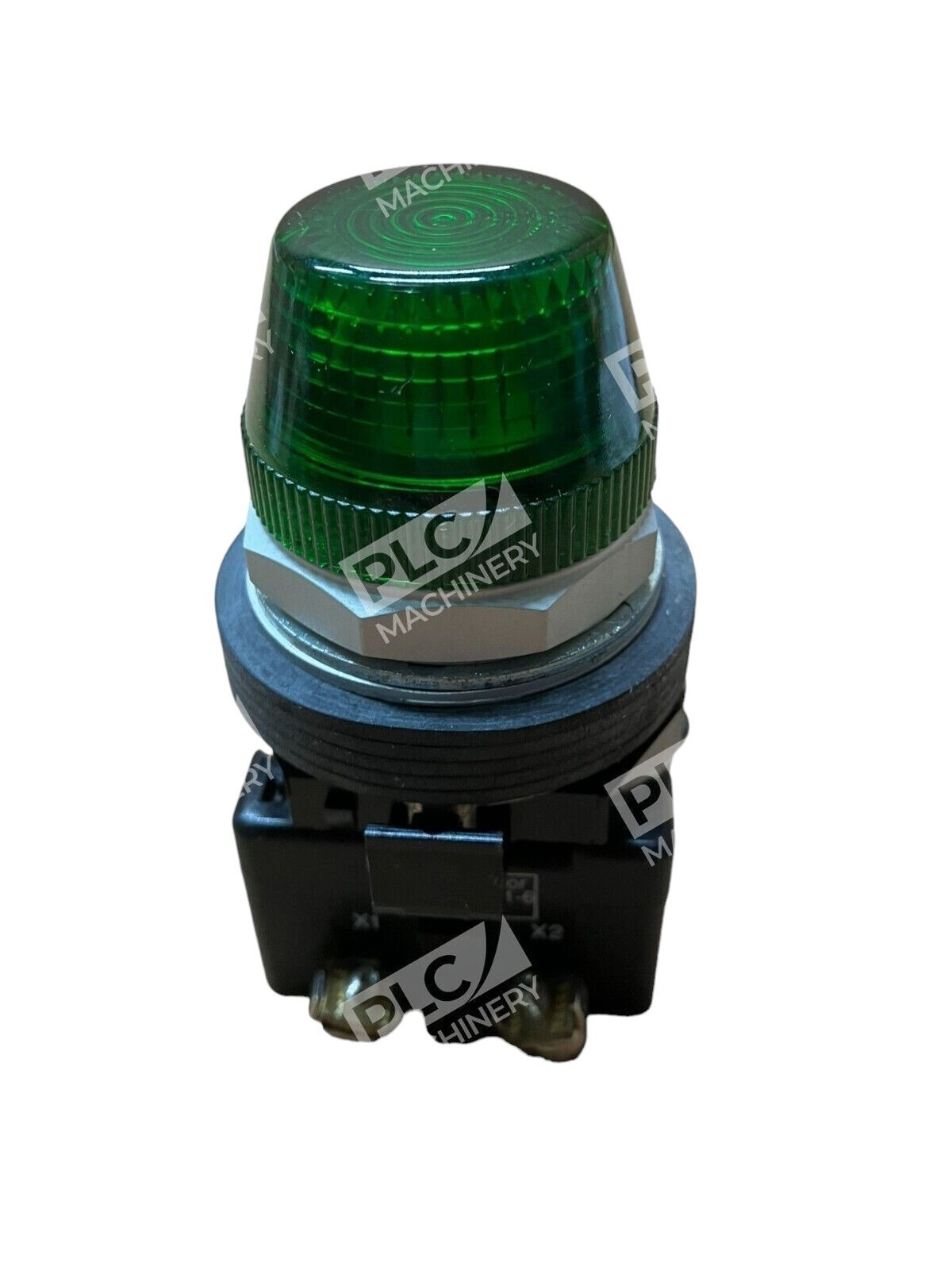

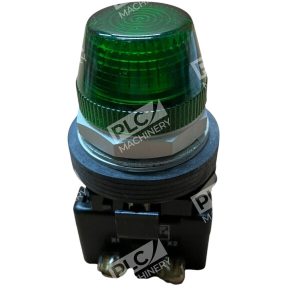

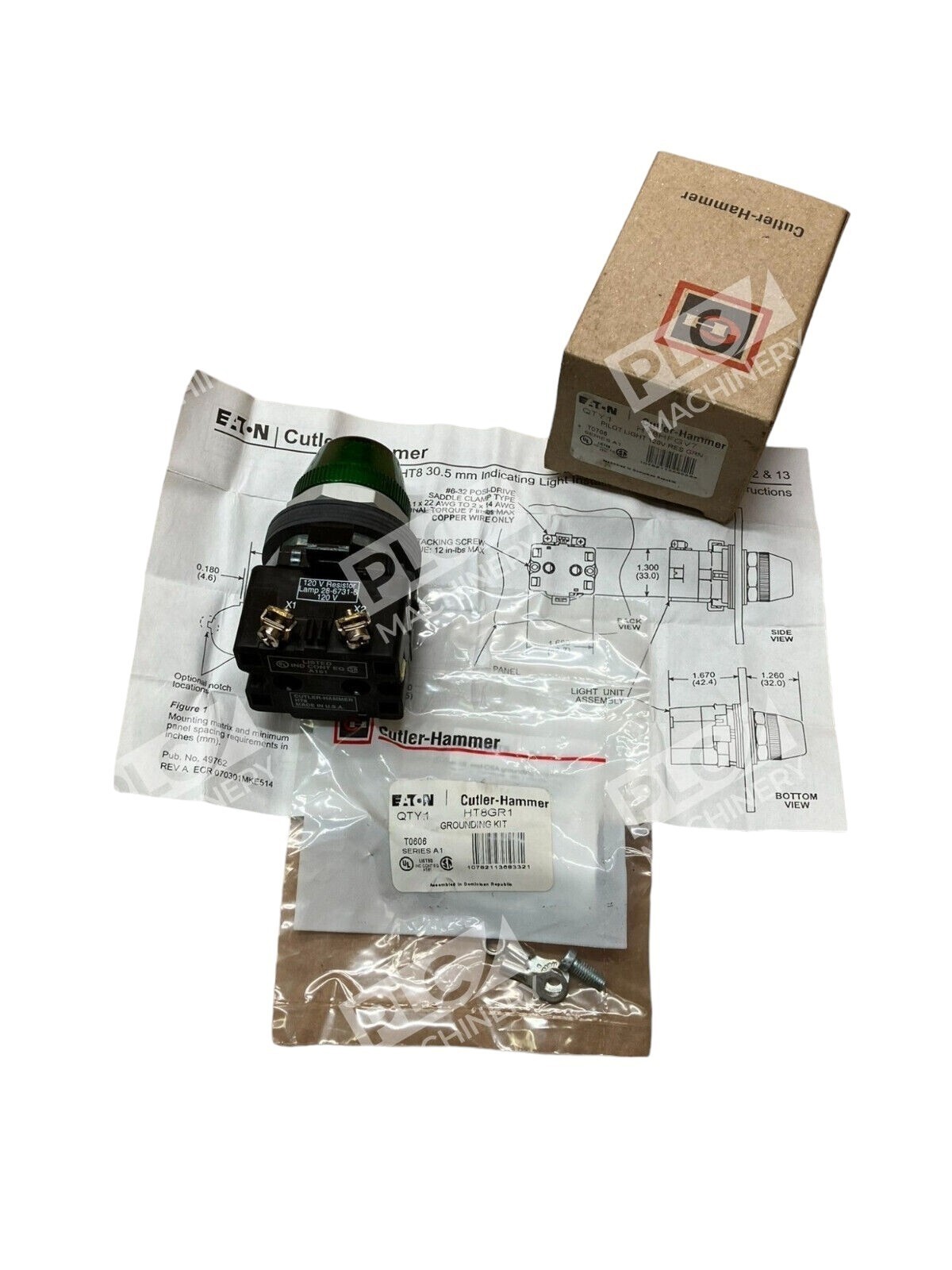

The Eaton HT8HFGV7 is a fixed-function incandescent pilot light designed for reliable status indication in industrial control panels and machinery. This green indicator from the Eaton Cutler-Hammer HT800 series operates at 120V AC/DC full voltage and features a sealed, watertight design suitable for demanding factory floor environments.
Key Features
- 120V AC/DC full-voltage incandescent lamp
- Permanent light function (non-switching indicator)
- Green polycarbonate lens for high visibility
- 30.5mm round mounting footprint with metal bezel

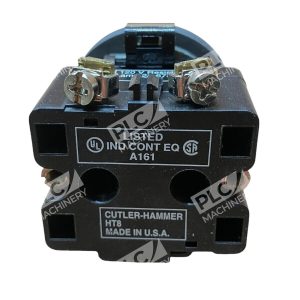

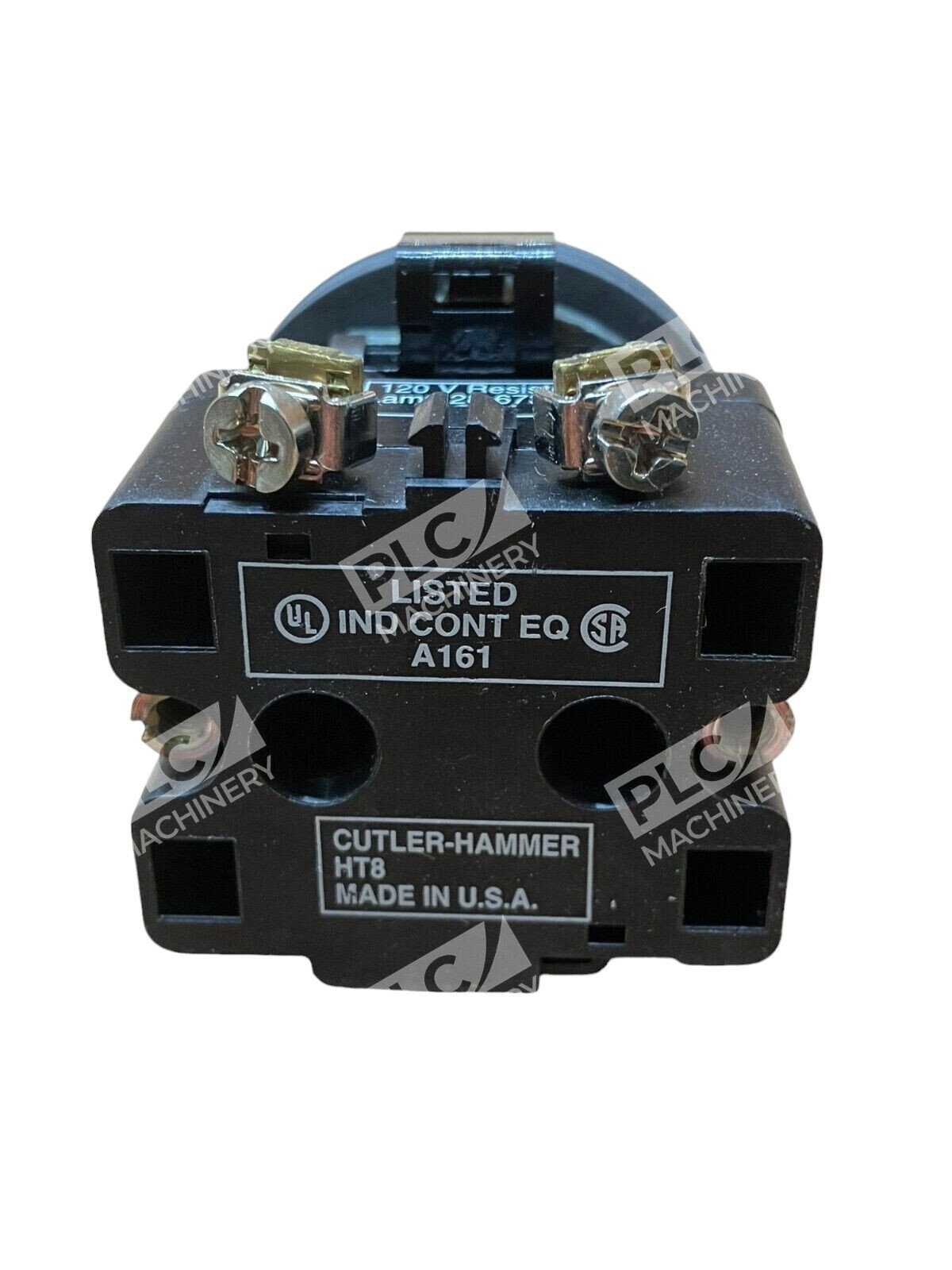

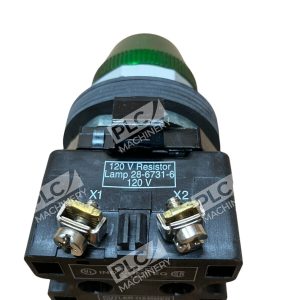

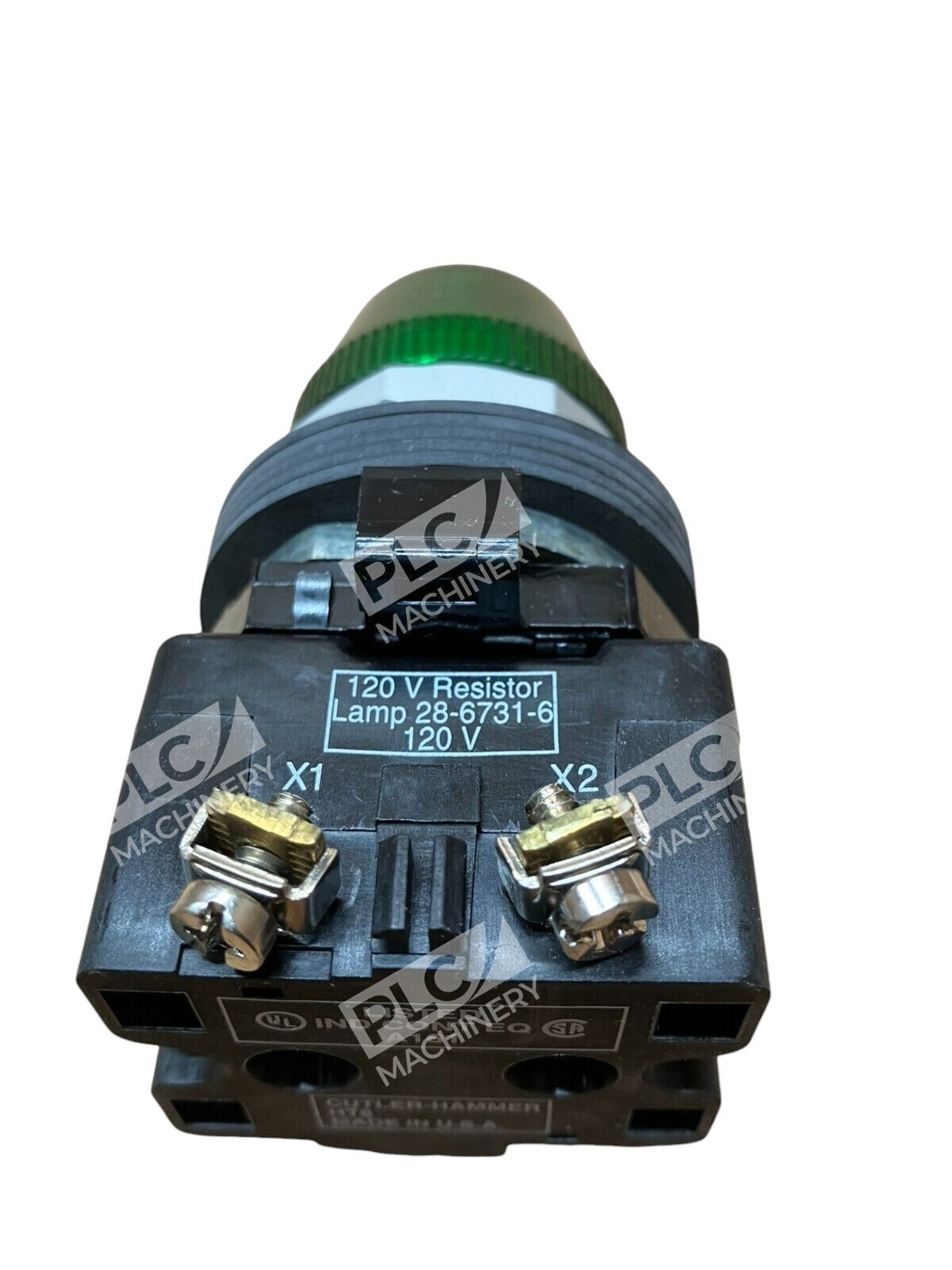

- Standard screw terminal connections
- NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 rated enclosure compatibility
- UL and CSA certified for North American industrial use
- Watertight/oiltight design
Technical Specifications
- Supply Voltage: 120 VAC/VDC
- Lamp Type: Incandescent
- Lens Color: Green
- Mounting Hole Diameter: 30.5mm
- Lens Shape: Round
- Product Series: HT800
- Base Type: Metal with screw terminals
- Certifications: UL, CSA
- Operating Design: Full voltage, permanent indication
Typical Applications
The HT8HFGV7 is commonly used for equipment status indication across a wide range of industrial controls:
- Machine tool on/off indicators
- Production line status lights
- Motor run/ready indicators on control panels
- Equipment power indication
- Factory floor visual signaling in wet, dusty, or oily environments
- Replacement for worn pilot lights in legacy control cabinets
Compatibility & Replacements
Compatible With
- 120V AC/DC industrial control panel circuits
- NEMA 1–13 rated equipment enclosures
- Standard 30.5mm pushbutton/indicator mounting holes
- Screw terminal wiring in control panels
Replaces / Drop-In Replacement For
The HT8HFGV7 is designed to replace other manufacturers’ 30.5mm pilot lights and indicator lights with equivalent 120V incandescent specifications. Verify specific model compatibility with your system integrator before ordering, as lens color and voltage must match the original circuit design.
Works With
- Allen-Bradley control panels and enclosures
- Siemens SIMATIC control systems with 120V signaling
- Schneider Electric modular control architectures
- Generic industrial control cabinets with standard 30.5mm mounting provisions
- Any 120V AC/DC circuit requiring permanent visual indication
