Overview

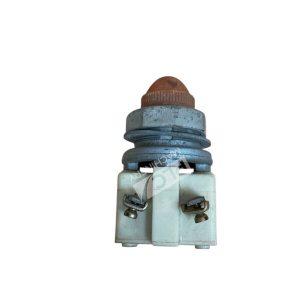

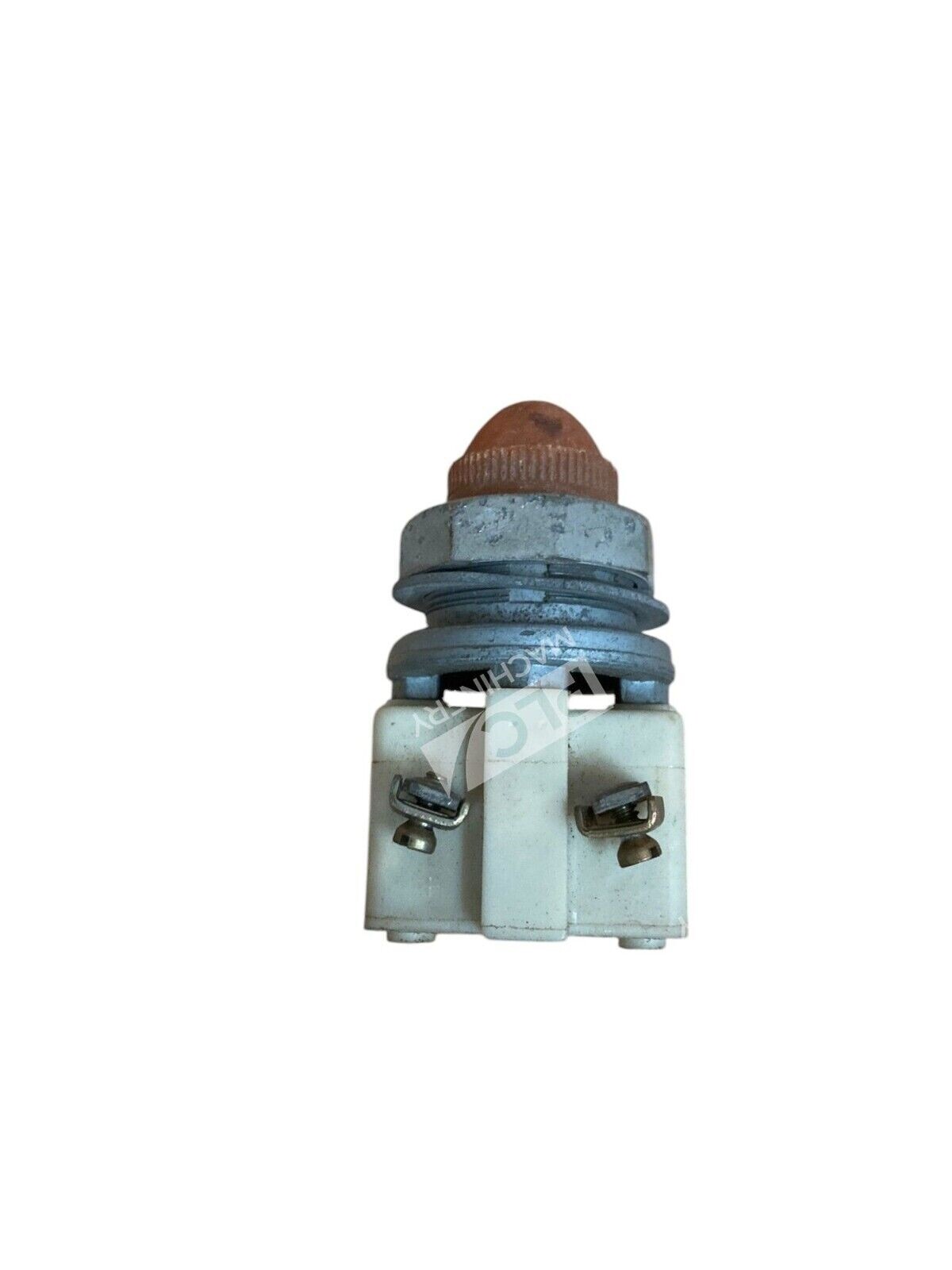

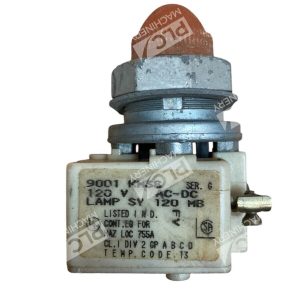

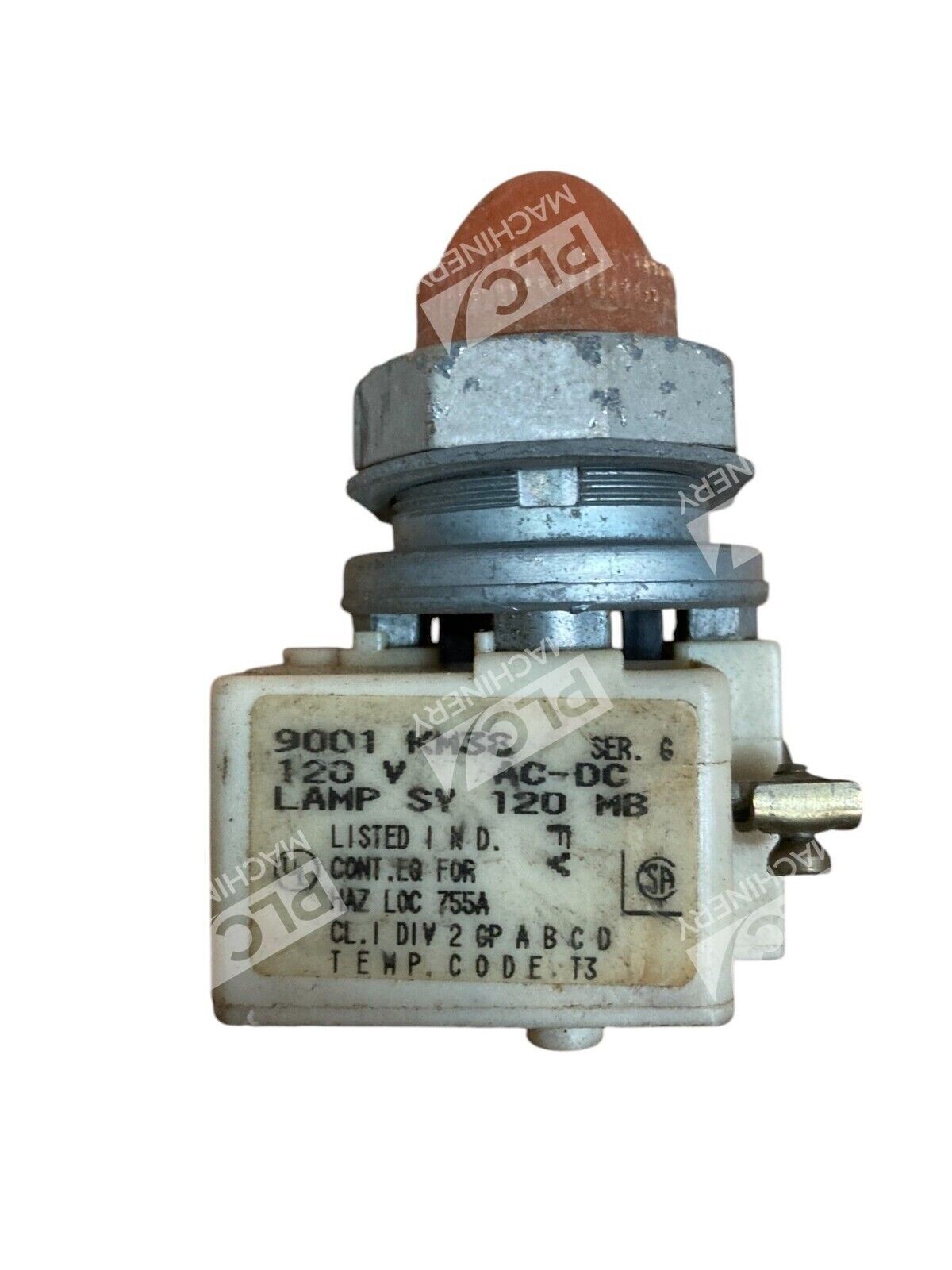

The Square D 9001-KM38 /G is a Class 9001 pilot light module featuring a vibrant orange lens for high-visibility status indication in industrial and commercial electrical installations. Rated at 120V AC-DC, this fingersafe light module integrates seamlessly into control panels, machine consoles, and process equipment. The orange color provides clear visual distinction for warning, alert, or power-on status signaling, making it an effective communication tool for machinery operators and maintenance personnel.
Key Features
- 120V AC-DC rated operation for flexibility in power systems
- 30mm lens diameter fits standard panel cutouts
- Fingersafe design prevents accidental contact hazards
- Orange lens for high-contrast visibility
- Heavy-duty construction suitable for industrial environments
- Drop-in compatibility with Class 9001 control station assemblies
Technical Specifications
- Voltage Rating: 120V AC-DC
- Lens Color: Orange
- Lens Size: 30mm
- Class: 9001
- Type: KM-38
- Design: Fingersafe Light Module
- Mounting: Panel-mounted
- Current Type: AC/DC
- Termination: Screw terminal
Typical Applications
The Square D 9001-KM38 /G excels in applications requiring visual status indication including machine control cabinets, process automation panels, HVAC systems, pump stations, and electrical distribution enclosures. The orange color specifically signals alerts, warnings, or temporary operational states that require operator attention. Ideal for facilities needing rapid equipment status recognition without requiring complex display systems.
Compatibility & Replacements
Compatible With
- Square D Class 9001 control stations and enclosures
- Panel-mounted 30mm pilot light openings
- Standard 120V AC-DC power systems
- Industrial control cabinets and switchgear
- Machine automation assemblies requiring status indication
Replaces / Drop-In Replacement For
The 9001-KM38 /G replaces other Square D 9001-KM38 orange lens versions in existing installations. For exact interchangeability with alternative colors or series, verify compatibility with your system integrator before ordering.
Works With
- Square D 9001 pushbutton and selector switch assemblies
- Class 9001 modular control components
- Standard electrical enclosure wiring and terminal systems
- AC and DC control circuits (110-120V range)
