Overview

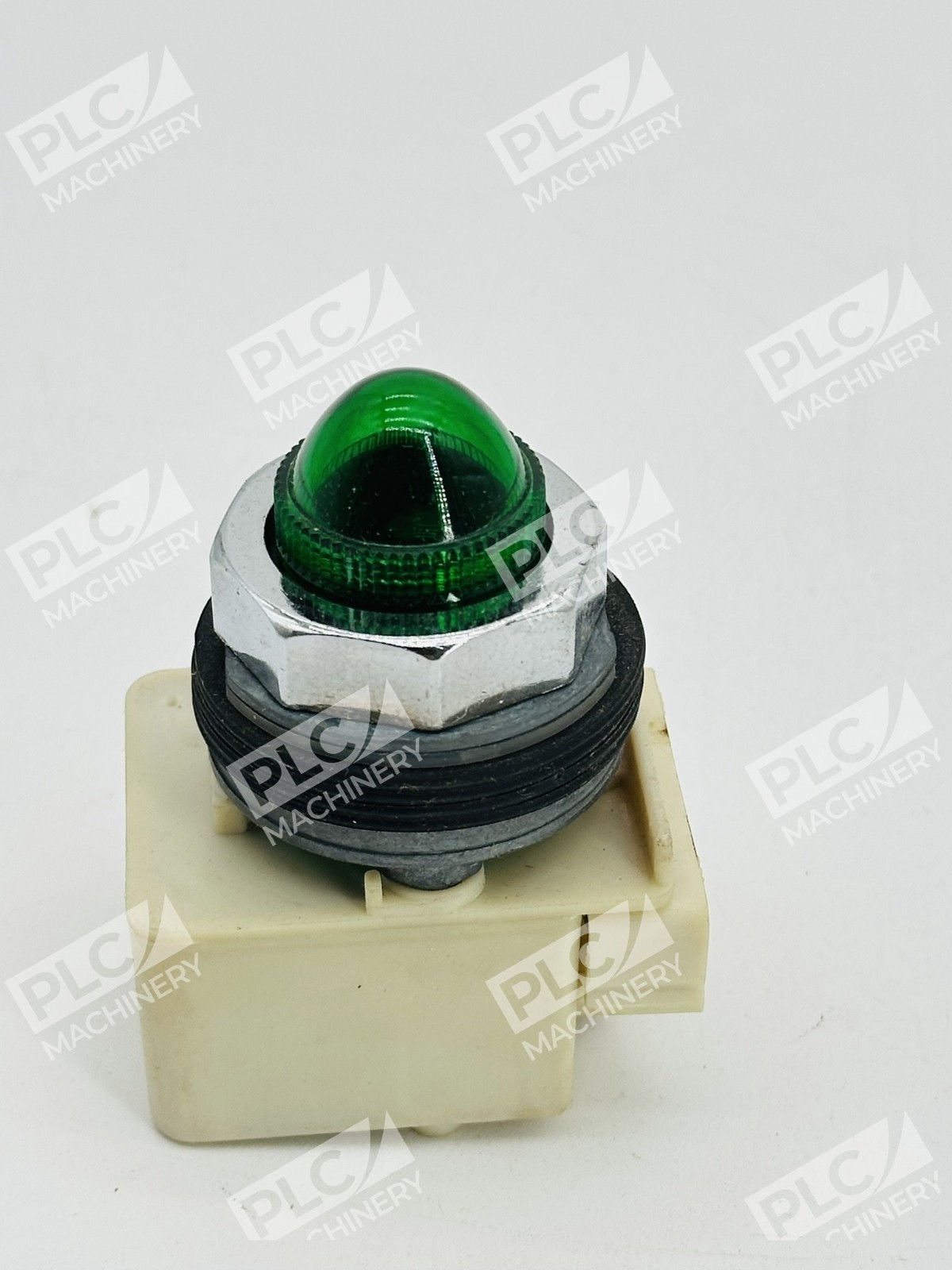

The Square D 9001KP1 pilot light transformer is a compact, 30mm standard round indicator designed for industrial control panels and signaling applications. Part of Schneider Electric’s Harmony 9001K series, this unit combines a chromium-plated metal bezel with a green lens to provide clear visual feedback in manufacturing, process control, and automation systems. The integrated transformer block supports 110/120VAC input at 50/60Hz frequencies.
Key Features
- 30mm diameter form factor fits standard panel cutouts
- Chromium-plated metal bezel for durability and corrosion resistance
- Integrated transformer block simplifies wiring and reduces component count
- Automatic self-grounding design requires minimal additional wiring
- IP66 rated—oil-tight, dust-tight, and water-tight without protective boots
- Heavy-duty construction rated for harsh industrial environments
Technical Specifications
- Part Number: 9001KP1
- Manufacturer: Square D by Schneider Electric
- Series: Harmony 9001K
- Size: 30mm (30.5mm)
- Lens Color: Green
- Input Voltage: 110/120VAC
- Frequency: 50/60Hz
- Bezel Material: Chromium-plated metal
- Lamp Type: #755 incandescent
- IP Rating: IP66
- NEMA Types: 1, 2, 3, 3R, 4, 6, 12, 13
- Certifications: UL, CSA, CE
- Environmental Class: Hazardous locations rated
Typical Applications
The 9001KP1 is suited for machine tool control, automotive manufacturing, process automation, material handling systems, food and beverage production, petrochemical plants, crane and hoist operations, and wastewater treatment facilities. Its robust construction and multi-NEMA enclosure compatibility make it ideal for on-machine mounting, panel-mounted status indication, and emergency/hazard signaling in demanding industrial environments.
Compatibility & Replacements
Compatible With
- Standard 30mm diameter panel cutouts (industrial control cabinets)
- NEMA 1, 2, 3, 3R, 4, 6, 12, 13 enclosures
- Square D/Schneider Electric 9001K series control systems
- Universal pilot light mounting fixtures and subassemblies
- Screw-clamp terminal connection blocks
Replaces / Drop-In Replacement For
The 9001KP1 is a direct replacement for other Square D/Schneider 9001K series pilot light transformers with equivalent 110/120VAC transformer block specifications. Verify lens color and electrical specifications with your system documentation before ordering. The 9001K series components are interchangeable within compatible housing assemblies.
Works With
- Harmony 9001K/SK/KX modular operator systems
- Square D Compact/PowerPact control centers
- NEMA 4X stainless steel enclosures (compatible housing)
- Contact block subassemblies and light module kits
- Standard industrial control wiring (screw-clamp terminals)
