Overview

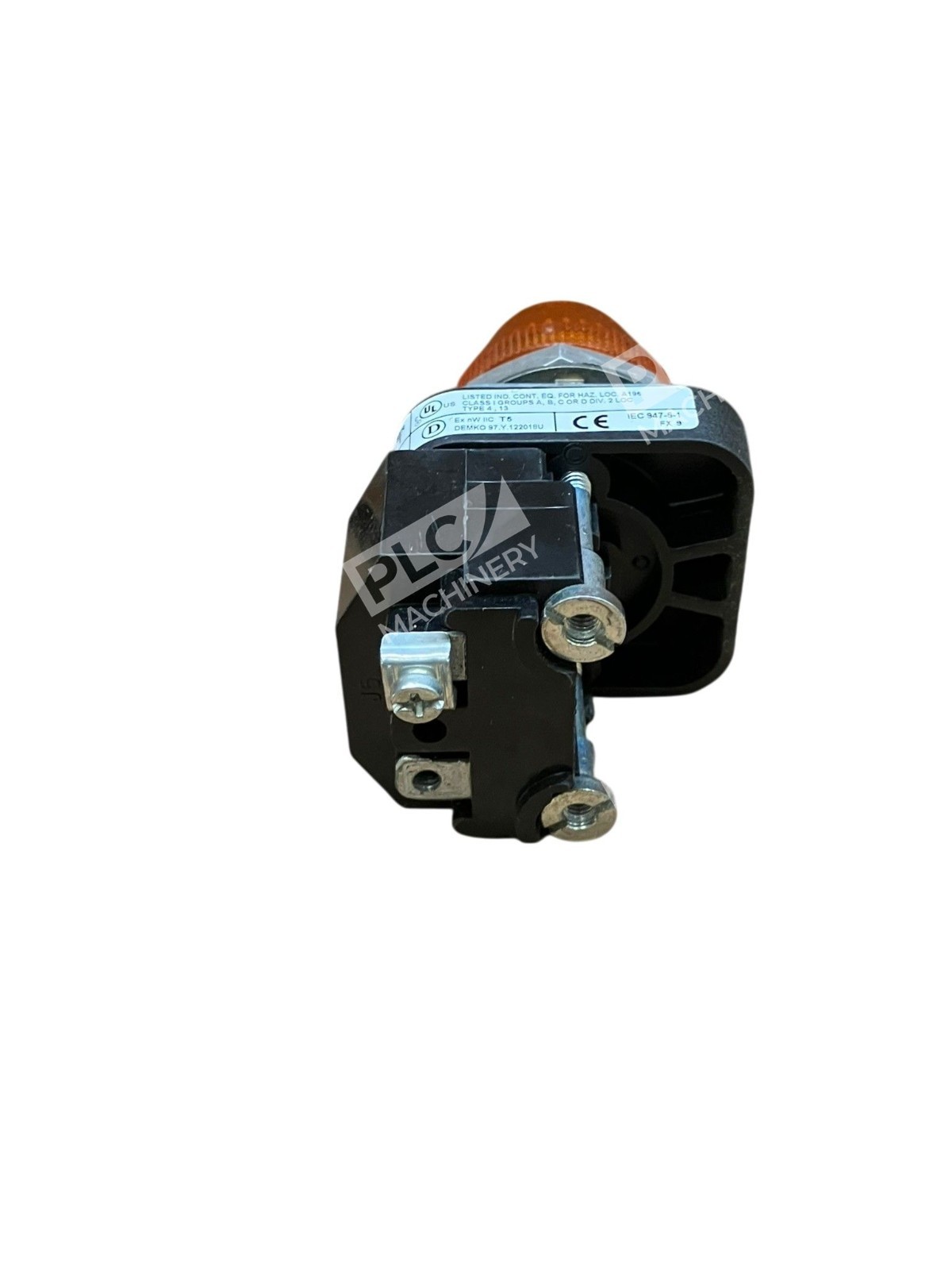

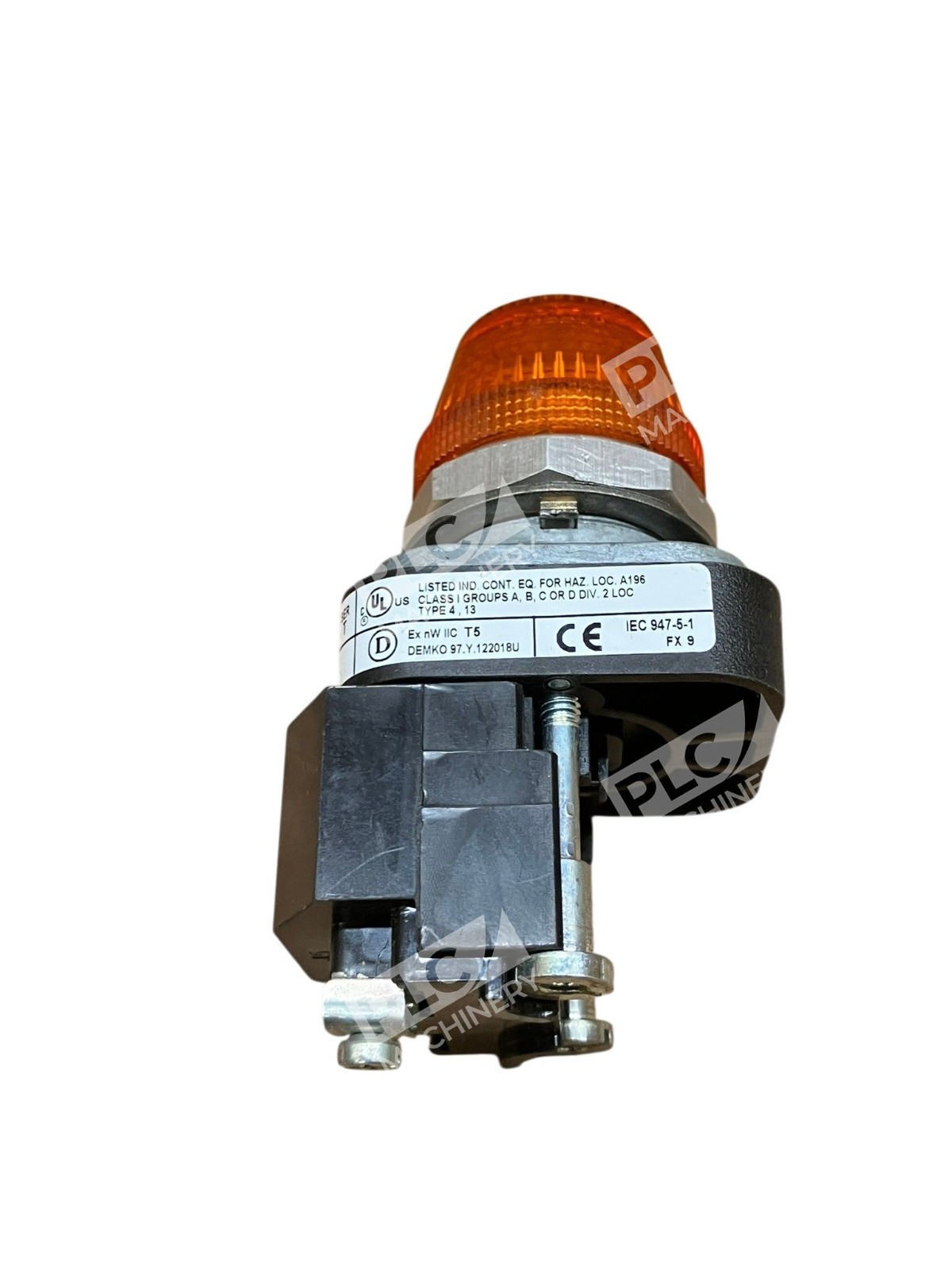

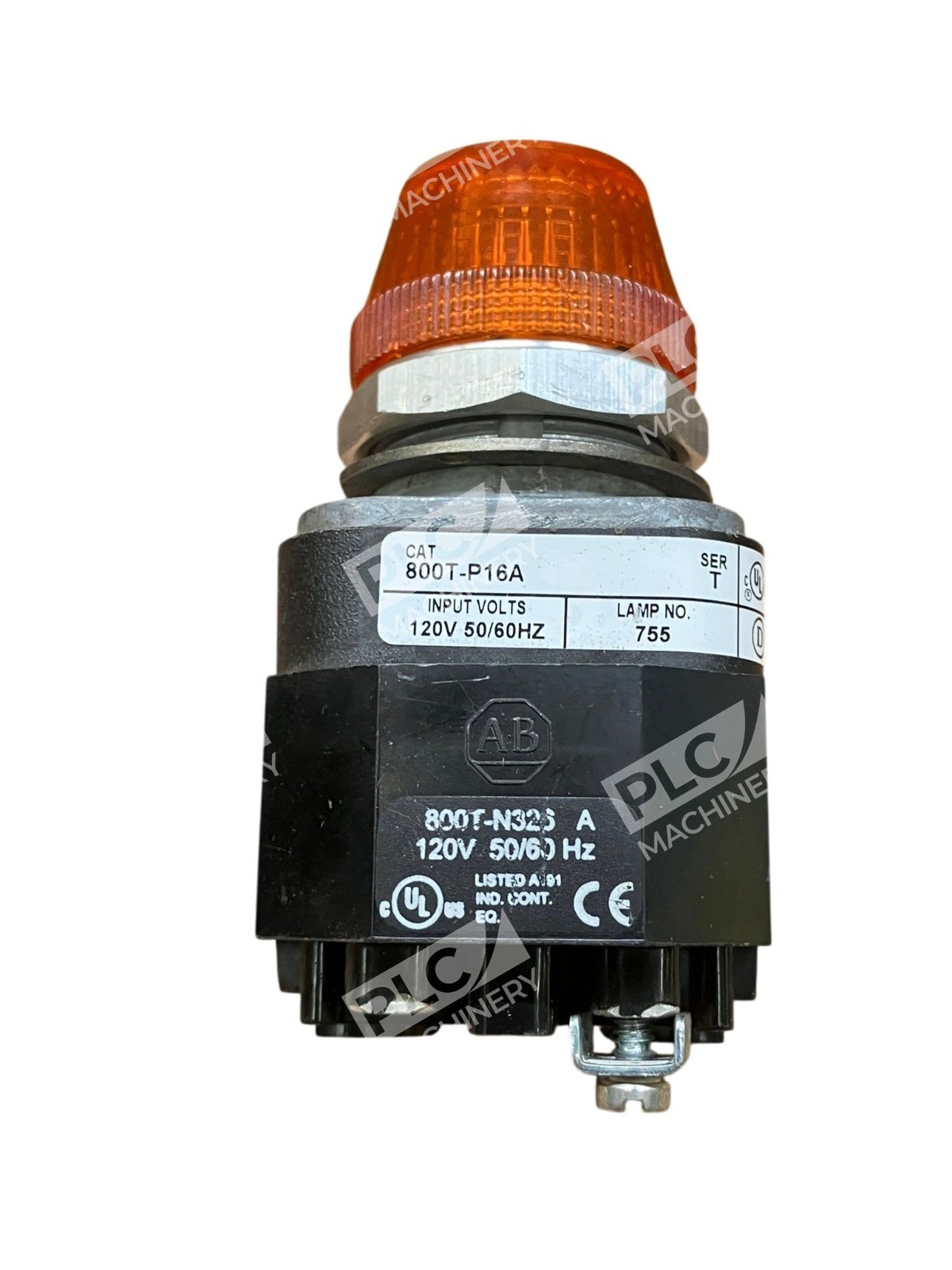

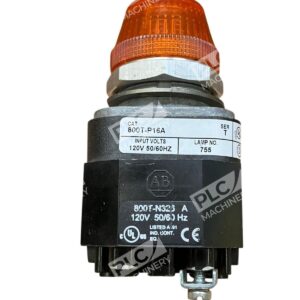

The Allen-Bradley 800T-P16A is a compact 30mm pilot light ideal for status indication in industrial automation and control panel applications. This amber lens unit operates at 120VAC 50/60Hz with incandescent illumination and is housed in a rugged metal enclosure rated NEMA 4/13 for washdown and harsh environments.
Key Features
- 30mm compact form factor fits standard panel cutouts
- Amber plastic lens for clear visual indication
- Transformer-powered operation at 120VAC 50/60Hz
- Incandescent lamp for reliable, proven illumination
- Metal housing with NEMA 4/13 protection rating
- No lamp test option; no finger-safe guards on terminals
Technical Specifications
- Input Voltage: 120VAC, 50/60Hz
- Size: 30mm (30.5mm)
- Lens Color: Amber
- Lamp Type: Incandescent
- Power Module: Transformer
- Protection Rating: NEMA 4/13, Metal Housing
- Operating Temperature: −40°F to 131°F (−40°C to 55°C)
- Dimensions: 1-13/16″ × 1-13/16″ × 2-3/32″
- Weight: 0.25 lbs
- Certifications: UL, CSA
- Finger Guards: No Guards on Terminals
- Lamp Test: No Lamp Test Option
Typical Applications
- Industrial machine tool control panels
- Process automation and manufacturing equipment status displays
- Electrical distribution and power control cabinets
- Washdown and splash-proof environments
- Safety interlocks and alarm indication
- Legacy control systems and retrofit upgrades
Compatibility & Replacements
Compatible With
- Allen-Bradley 800T series push button and indicator assemblies
- Standard 30mm pilot light panel cutouts
- 120VAC electrical supply systems
- Industrial control panels (NEMA 4/13 rated)
- Washdown and food processing environments
Replaces / Drop-In Replacement For
- 800T-P16 (non-A variant)
- Similar 30mm amber incandescent pilot lights in 800T series
- Legacy amber indicator lamps in retrofit applications
Works With
- Allen-Bradley 800T control stations and modules
- Manual and automatic control circuits
- Transformer-based low-voltage signaling systems
- Standard industrial PLC and relay-based control schemes
