Overview

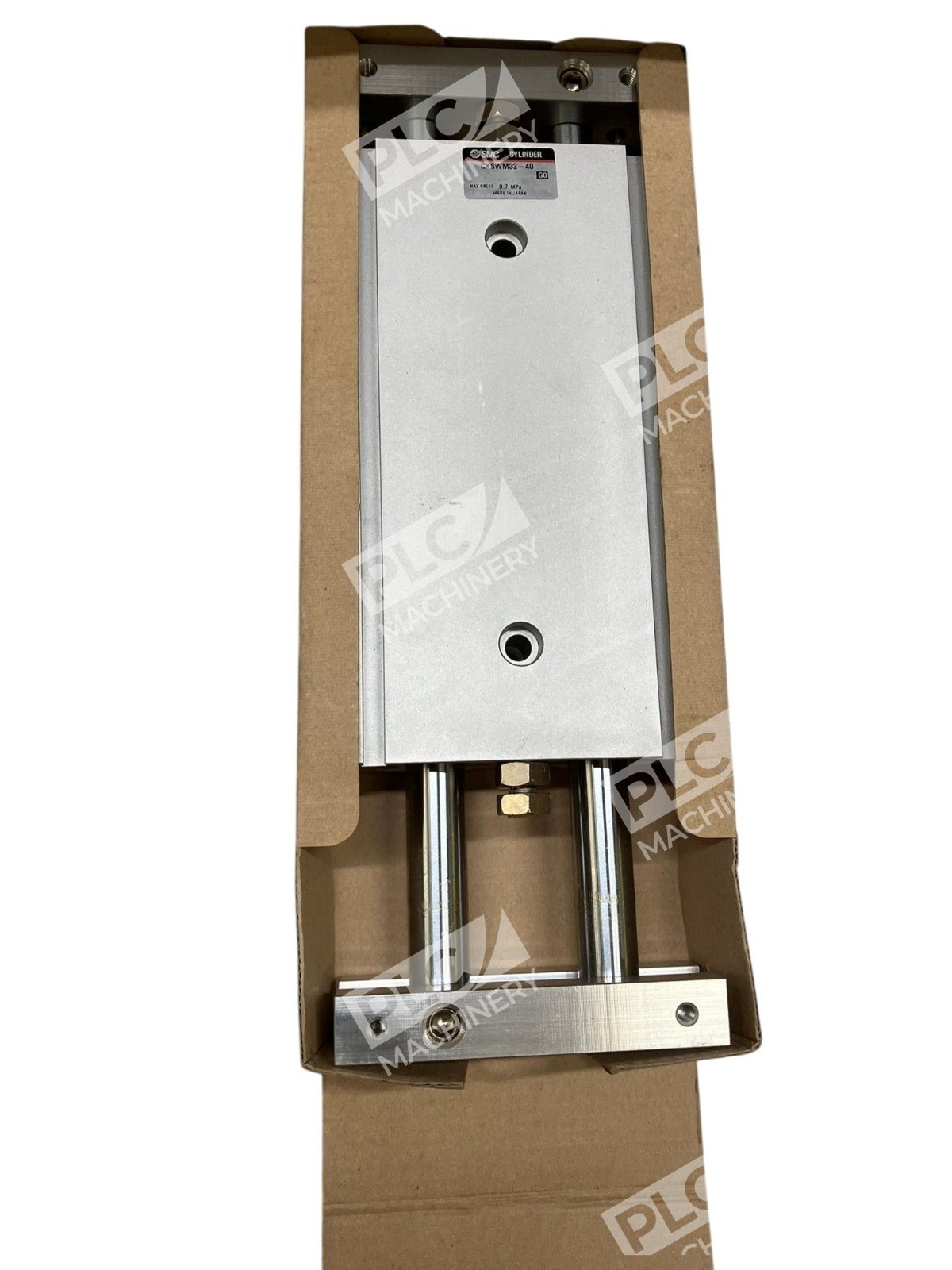

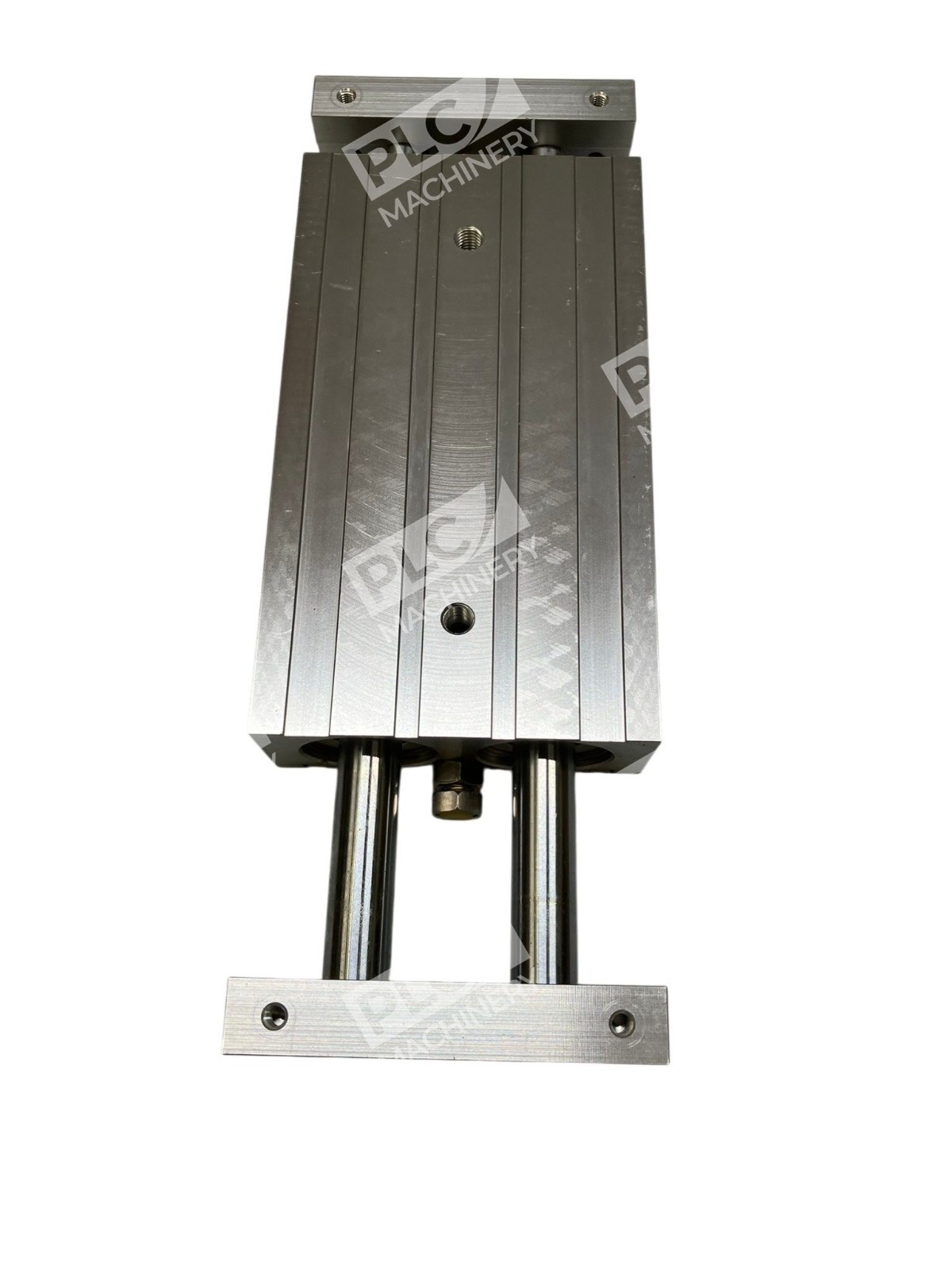

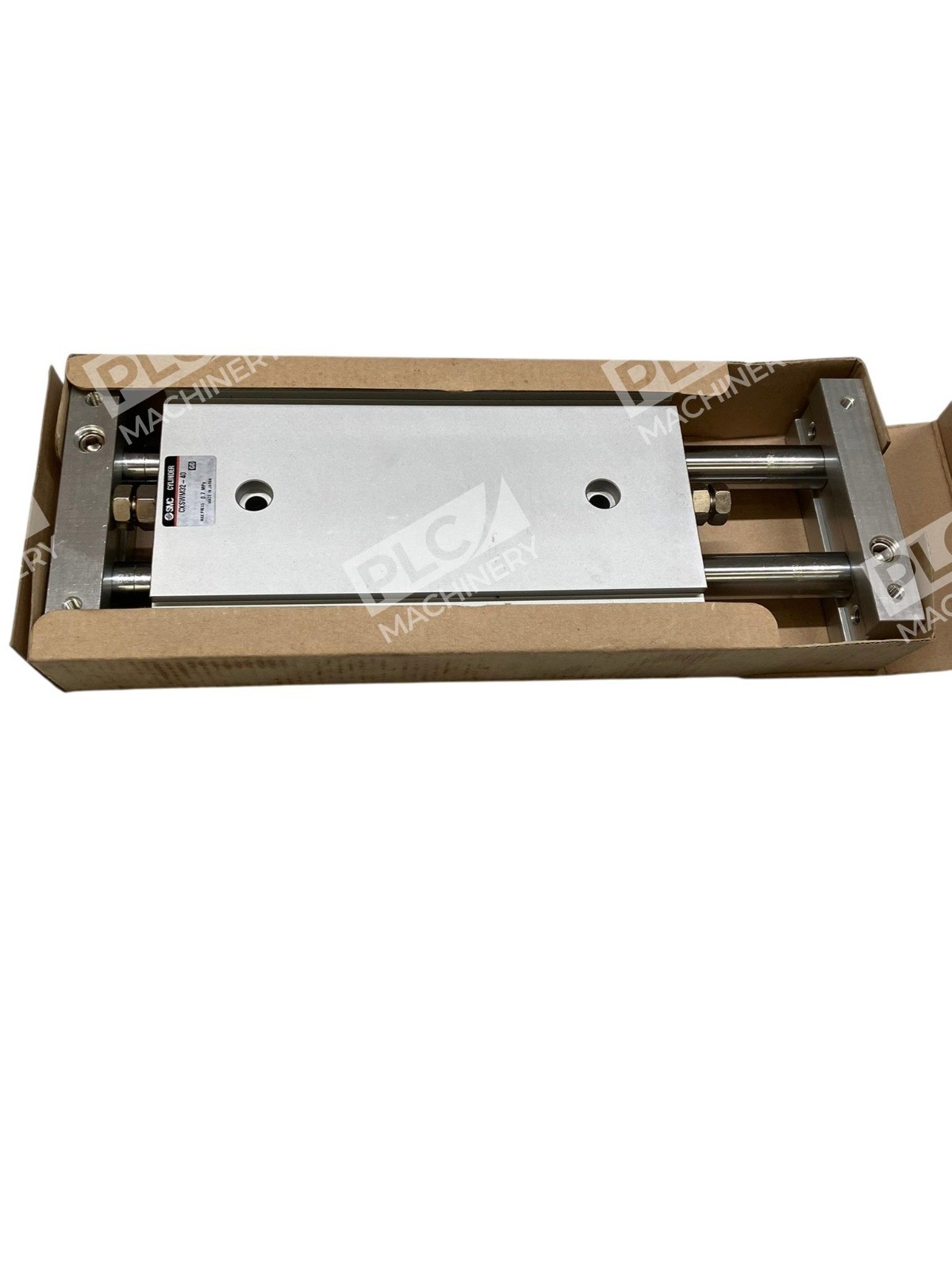

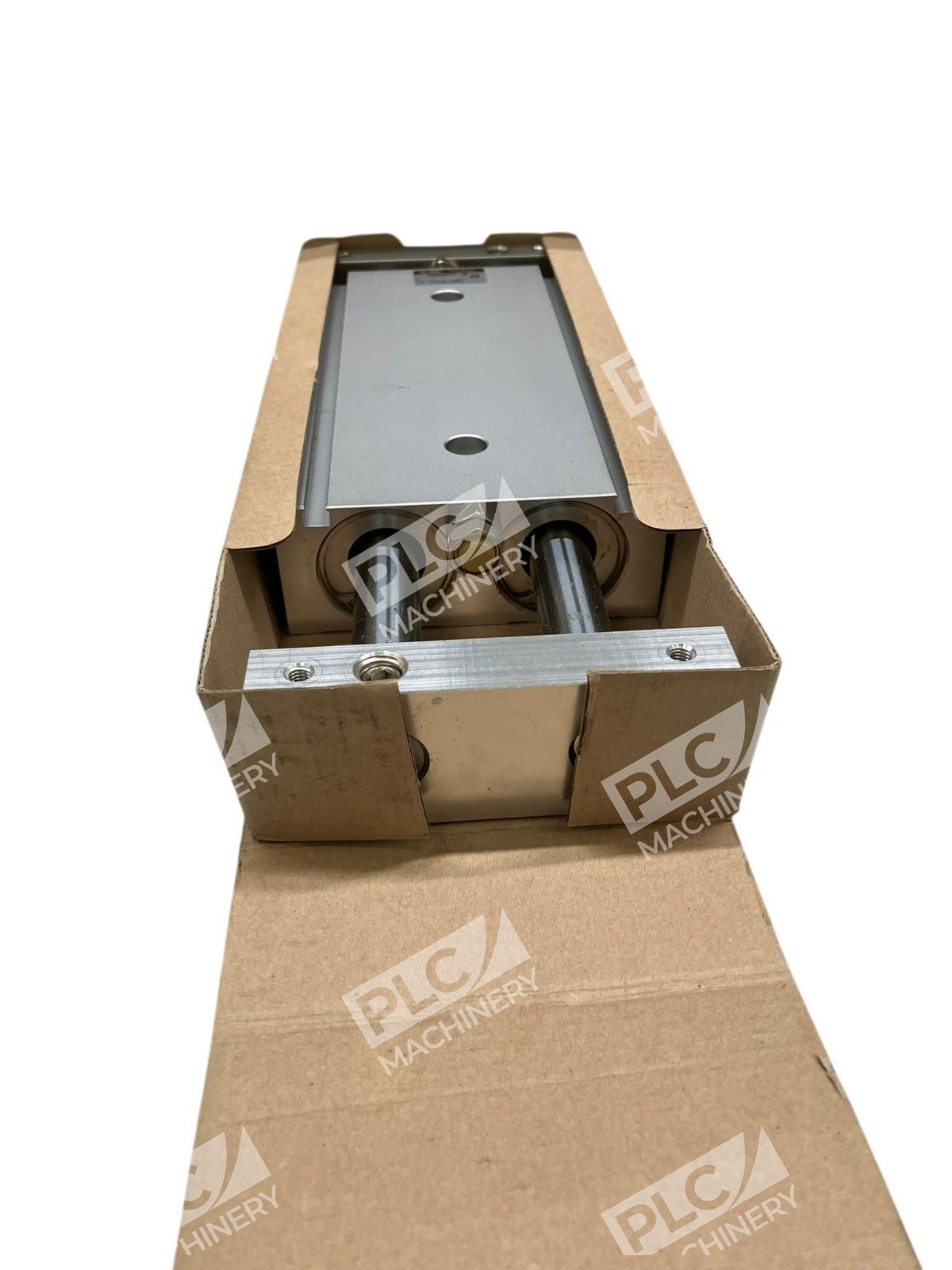

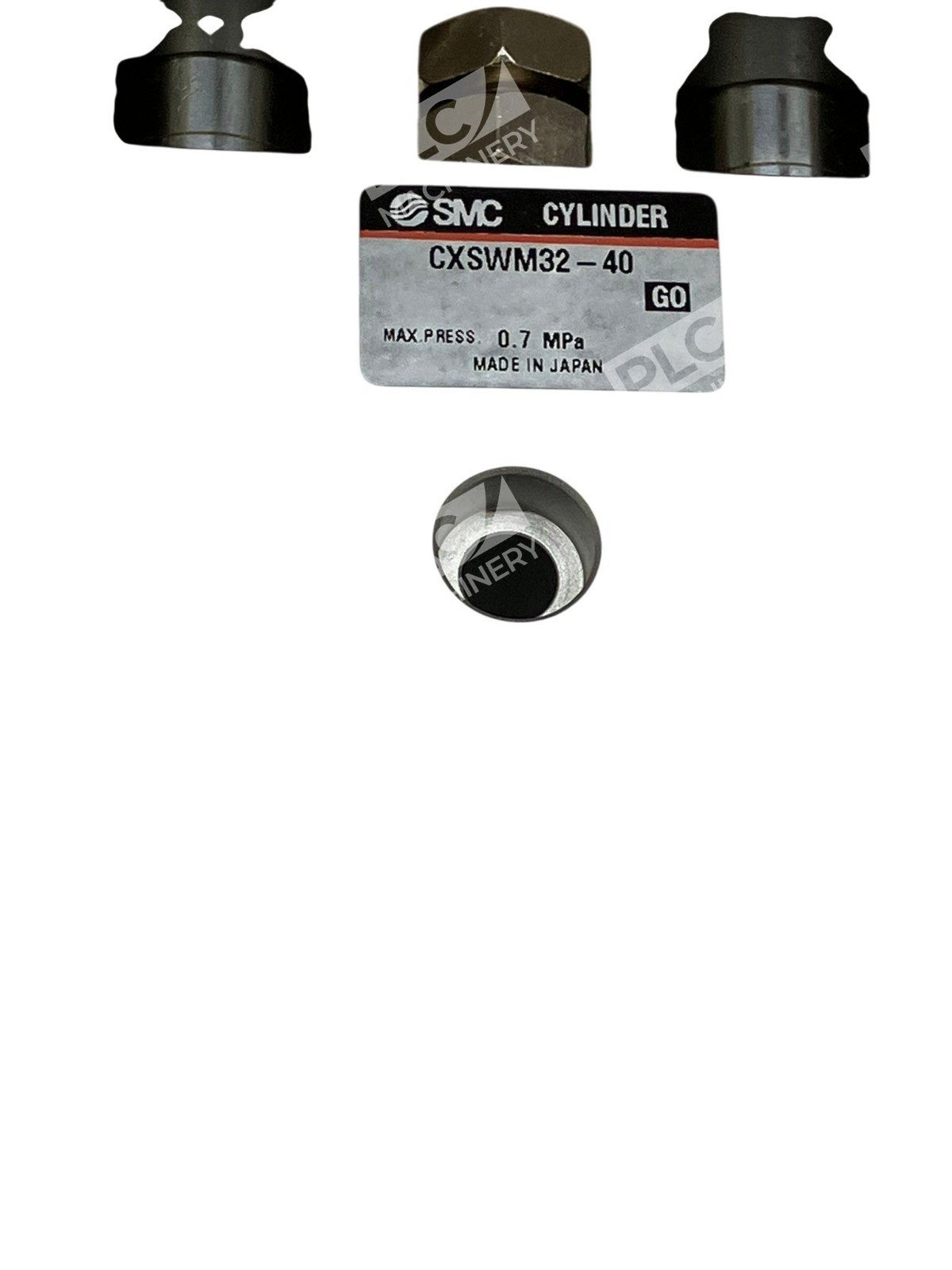

The SMC CXSWM32-40 is a precision-engineered dual rod pneumatic cylinder designed for applications demanding accuracy and stability. With a 32mm bore and 40mm stroke, this guided actuator incorporates slide bearing technology that resists lateral load impacts while maintaining ±0.1° non-rotating accuracy. The dual piston rod design provides balanced force distribution and controlled motion in both directions, making it suitable for pick-and-place operations, press applications, and precision transfer systems in manufacturing and assembly environments.
Key Features
- Dual piston rod design with non-rotating accuracy of ±0.1°
- Slide bearing type construction provides lateral stability and side load protection
- 32mm bore diameter with 40mm stroke length
- Rc 1/8 port thread for standard pneumatic connections
- Guided cylinder design suitable for high-precision industrial applications
- Compact, robust construction for reliable long-term operation
Technical Specifications
The CXSWM32-40 is engineered to meet the performance requirements of modern industrial automation. Key specifications include balanced rod diameter design for dual-rod configurations, precision-ground guide surfaces, and integrated wear protection for extended service life.
Typical Applications
- Pick-and-place and material handling systems
- Precision assembly and transfer operations
- Press and stamping fixtures requiring guided motion
- CNC machine tool clamping and positioning
- Automated test stands and production lines
- Industrial control and automation equipment
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems and proportional valve configurations
- Industrial 4.0 automation networks with appropriate pneumatic interfaces
- Pressure ranges: 0–1.0 MPa typical operating window (consult manufacturer for specifications)
- Manifold block systems using Rc 1/8 port connections
- Auto-switch mounting accessories for position sensing applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The CXSWM32-40 is designed as a guided dual-rod cylinder; verify that your existing installation uses the same rod configuration and port thread (Rc 1/8) before substituting.
Works With
- SMC BESST pneumatic control and monitoring software
- Industry-standard 5/3 and 4/3 directional control valves
- Flow control regulators and pneumatic pressure switches
- Position feedback systems via mounted auto-switches (D-series SMC switches compatible)
- Integrated plant-wide automation systems via PLC pneumatic modules
