Overview

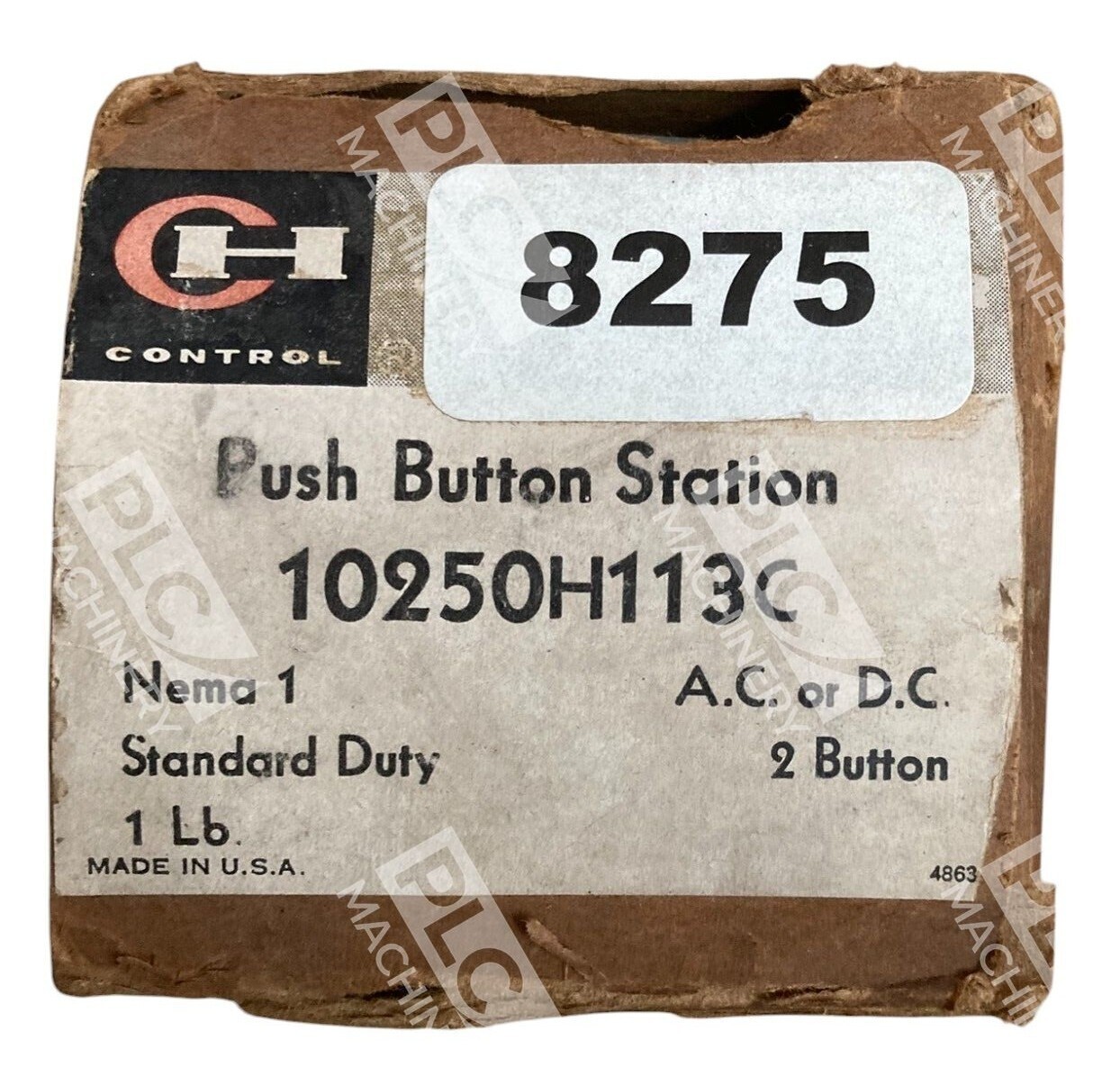

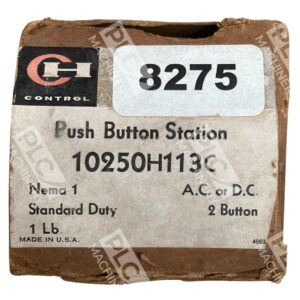

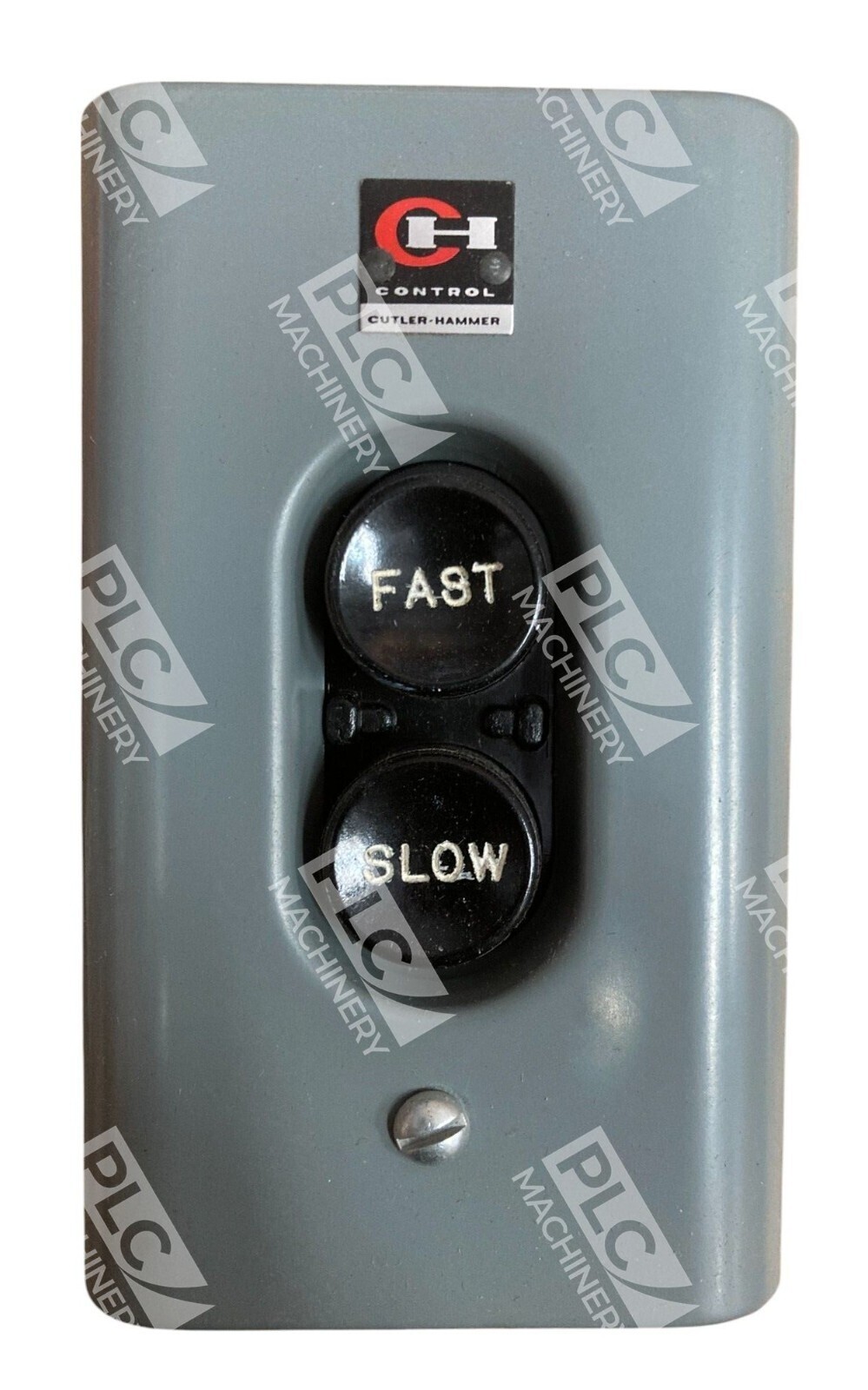

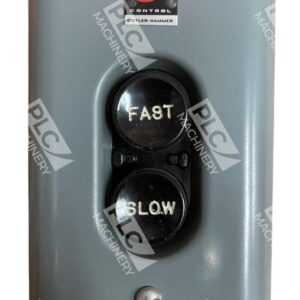

The Cutler Hammer 10250H113C is a NEMA 1 rated, standard-duty pushbutton control station designed for industrial motor control and equipment startup/shutdown operations. This two-button station provides straightforward operator interface for Start/Stop or similar control logic in manufacturing, process control, and machine automation environments. Built to Eaton’s reliability standards, the 10250H113C delivers consistent performance in indoor, controlled-environment installations.
Key Features
- Two momentary-action pushbuttons for intuitive operator control
- NEMA 1 enclosure rating suitable for dry indoor locations
- Standard-duty construction for general industrial applications
- UL listed and CSA certified for North American compliance
- Compact footprint for easy integration into control panels
- Durable pushbutton mechanisms rated for millions of cycles
Technical Specifications
- Manufacturer: Eaton Cutler-Hammer
- Model Number: 10250H113C
- NEMA Rating: NEMA 1
- Duty Class: Standard Duty
- Button Configuration: 2 Pushbuttons
- Contact Type: SPST Momentary
- Contact Rating: 10A AC
- Voltage Rating: 600V AC / 250V DC
- Operating Temperature: -10°C to +55°C
- Certifications: UL Listed, CSA Certified
- Mounting: Panel-mount (30 mm opening)
- Condition: New in Box
Typical Applications
The 10250H113C serves critical roles across diverse industrial environments:
- Machine tool start/stop control
- Pump and motor control stations
- Conveyor system operation
- Production line equipment control
- Material handling system activation
- General industrial automation panels
Compatibility & Replacements
The Cutler Hammer 10250H113C is part of Eaton’s legacy 10250H series pushbutton line. For applications requiring additional features, integrated indicator lights, or different NEMA ratings, consider the broader 10250T series (NEMA 13) or RMQ Compact series alternatives. Contact us to verify compatibility with your existing control architecture. This station pairs seamlessly with standard contactors, overload relays, and PLC input modules used in modern industrial control systems.
