Overview

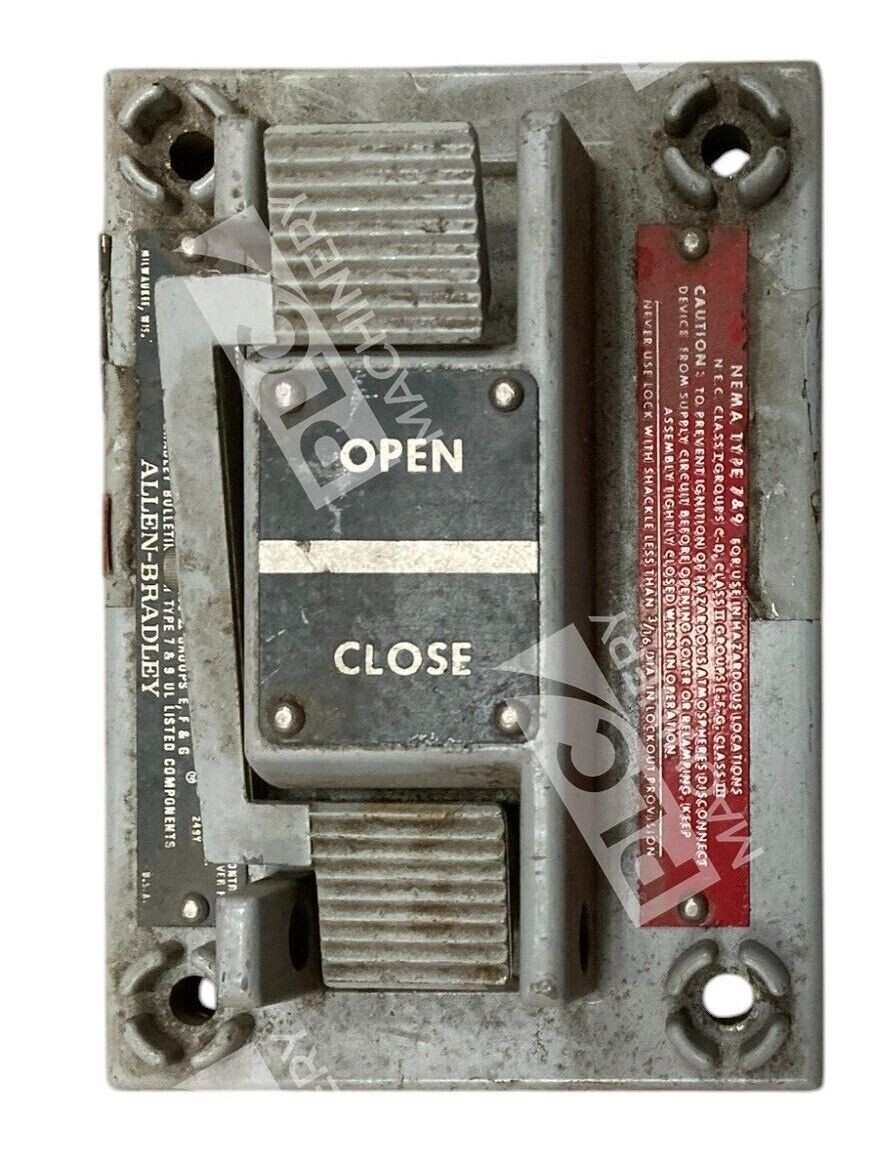

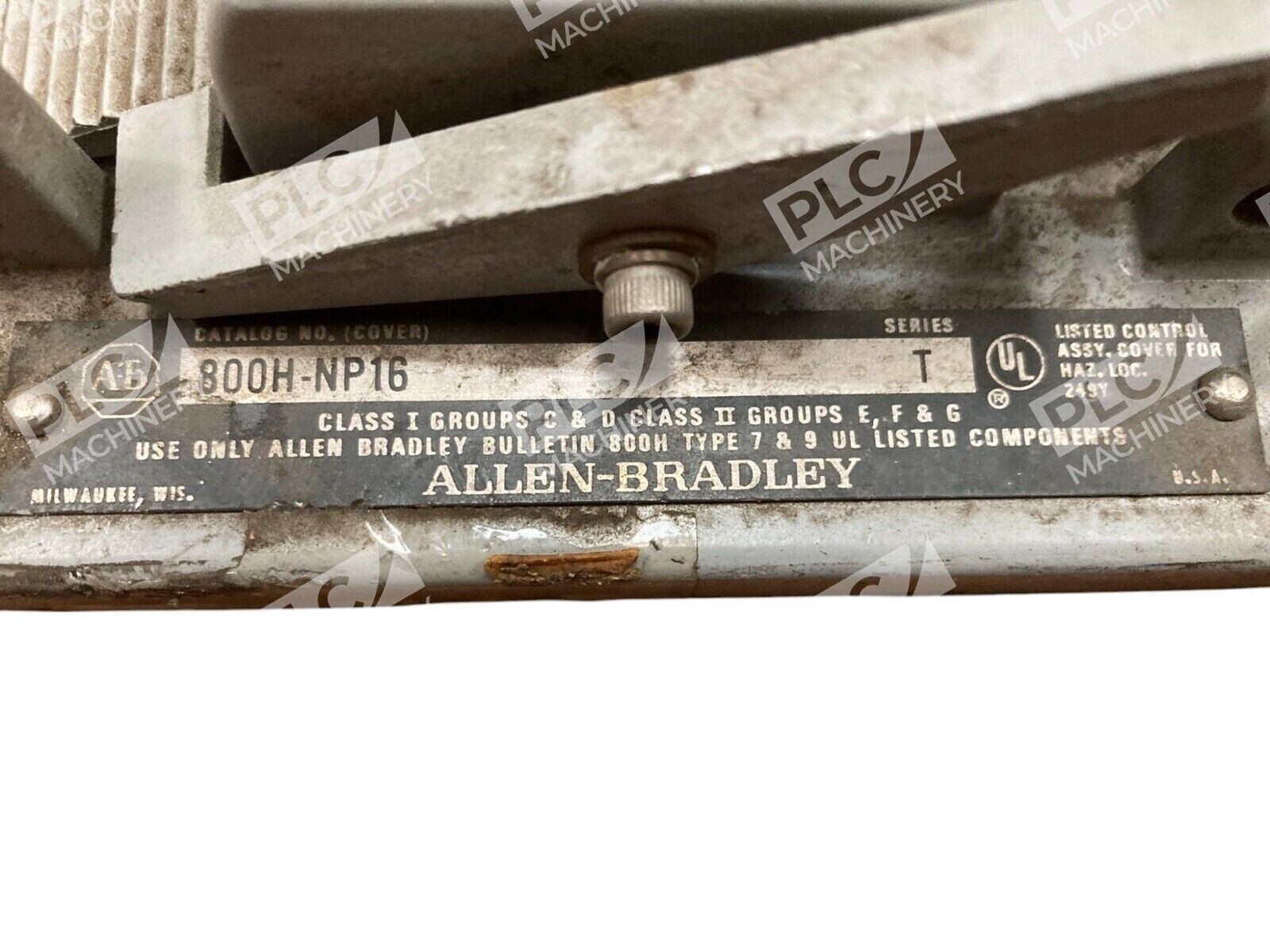

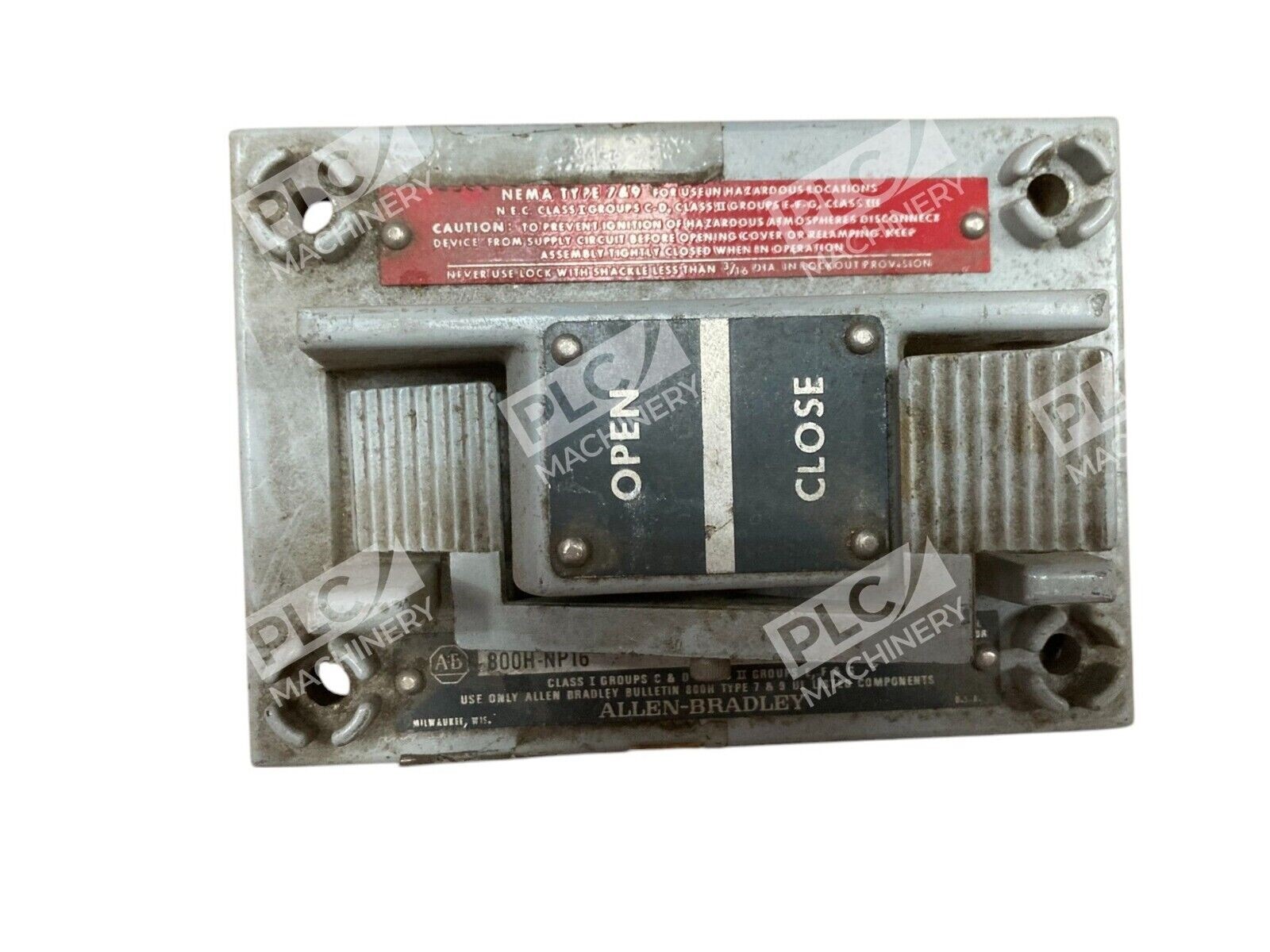

The Allen-Bradley 800H-NP16 is a dedicated enclosure cover designed for 800H hazardous location pushbutton stations. This NEMA 7/9 rated cover provides critical protection for Class I, Division 2 applications in explosive gas and vapor environments. When assembled with 800H operators, the cover supports Type 4/4X/13 environmental ratings—watertight, oiltight, and corrosion-resistant—making it ideal for demanding industrial and offshore installations.
Key Features
- NEMA 7/9 Hazardous Location Rating: Suitable for Class I, Division 2 explosive gas/vapor environments
- Maintained Lever Operation: Double-lever maintained action for secure on/off control
- Integrated Legend Plate: Factory-equipped with legend plate for clear operator identification
- Type 4/4X/13 Environmental Protection: Watertight, oiltight, and corrosion-resistant when combined with 800H operators
- Heavy-Duty Construction: Engineered for the most demanding industrial environments with proven Allen-Bradley durability
Technical Specifications
- Enclosure Type: Class I Heavy Duty Pushbutton Station Cover
- Regulatory Rating: NEMA 7/9
- Environmental Class: Class I, Division 2 (hazardous location)
- Actuator Type: Double-Lever Maintained
- Combined Type Rating: Type 4/4X/13 (with 800H operators)
- Component Compatibility: Designed for 800H operator systems
- Legend Plate: Included
- Weight: 1.45 lbs
- Certifications: UL/CSA approved for hazardous location service
Typical Applications
- Offshore platform and marine vessel control stations
- Petrochemical and refinery process control
- Chemical manufacturing facilities with explosive atmospheres
- Gas processing and pipeline stations
- Oil and gas extraction equipment
- Hazardous material handling operations
Compatibility & Replacements
The 800H-NP16/T is a direct enclosure cover component for Allen-Bradley 800H hazardous location pushbutton stations. When paired with 800H operators and contact blocks, it achieves full Type 4/4X/13 environmental protection. Consult your Allen-Bradley distributor for complete station assembly options, alternative 800H covers for different applications, and associated operator configurations. This cover is specifically engineered for maintained lever action stations in Class I, Division 2 service.
