Overview
The GE CR115E422112 is a geared rotary limit switch engineered for precision control on rotating-drive equipment. This worm and gear-reduction design integrates snap-acting contacts with a Type 4 NEMA enclosure for splash and corrosion protection in demanding industrial environments. The CR115E422112 handles 15 Amperes continuous in AC/DC applications, making it suitable for motor-driven machinery, cranes, hoists, and positioning equipment that require reliable overtravel protection and shaft control.
Key Features
- Type 4 NEMA enclosure for splash protection and corrosion resistance
- 2 normally open (NO) and 2 normally closed (NC) snap-acting contacts
- 15 Amperes continuous rating (AC/DC)
- Worm and gear-reduction mechanism for precise rotation control
- Left-side mounted shaft with standard plain-end configuration
- Durable industrial construction for material handling, overhead doors, and machine tools
Technical Specifications
| Manufacturer | General Electric (GE) |
| Model Number | CR115E422112 |
| Product Family | CR115E Geared Rotary Limit Switch |
| Enclosure Type | NEMA Type 4 |
| Contact Configuration | 2NO / 2NC (snap-acting) |
| Continuous Current Rating | 15 Amperes AC/DC |
| Shaft Configuration | Left-side, standard plain-end |
| Operating Principle | Geared (worm and gear reduction) |
| Approximate Weight | 5 lbs |

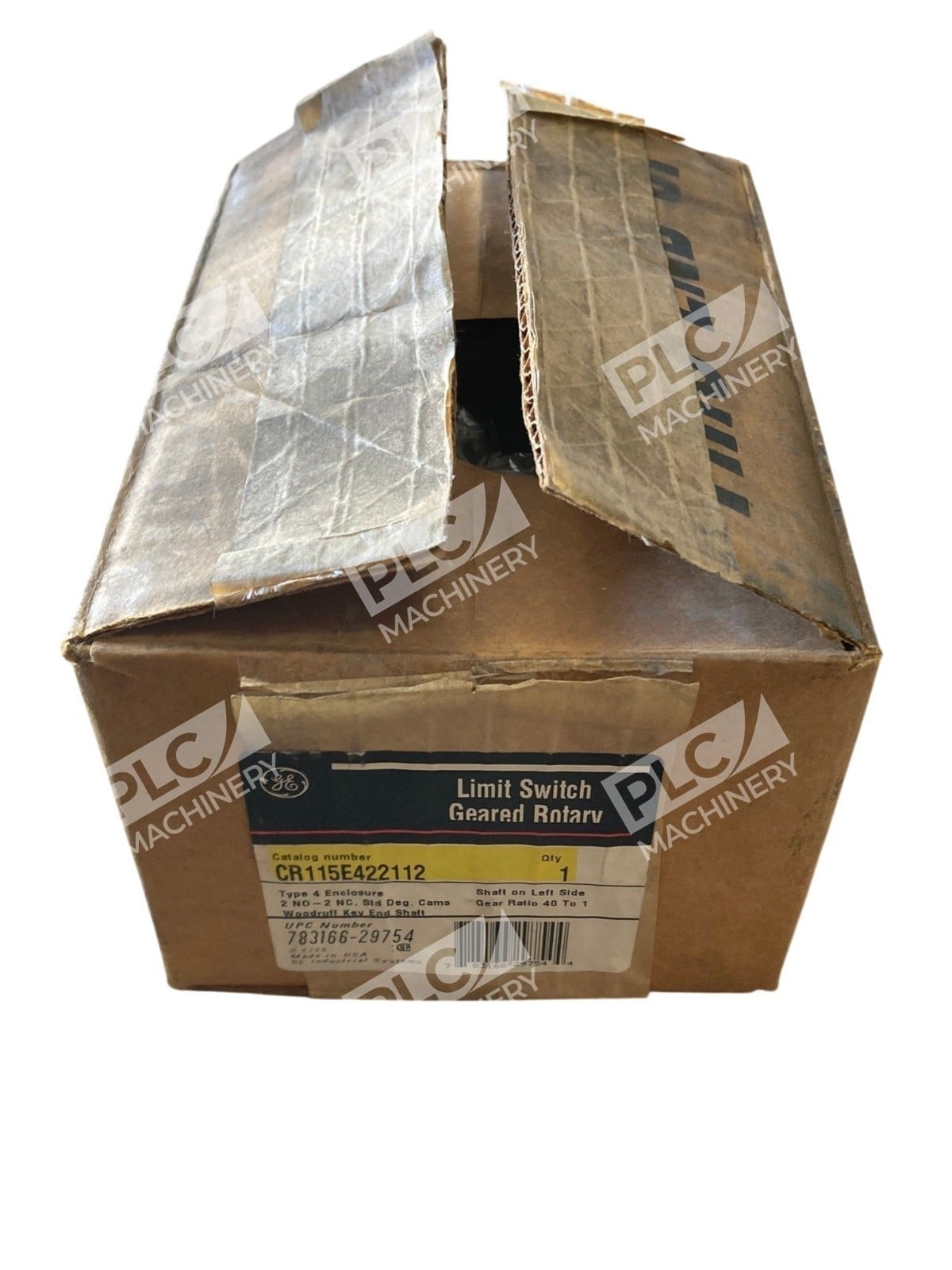

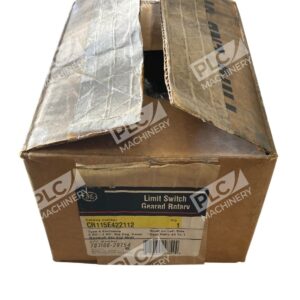

| Condition | New in Box |
Typical Applications
- Overhead door operators and garage door controls
- Cable and hoist positioning on cranes and material handling equipment
- Thread-tapping and machine-tool lead screw limits
- Packaging machinery position detection
- Compacting equipment travel limits
- Stage curtain and powered gate position control
- General rotating-shaft overtravel protection
Compatibility & Replacements
Compatible With
- GE industrial control systems and motor starters
- NEMA-compliant motor control centers (MCCs)
- Relay logic and soft-starter circuits
- AC and DC motor drive applications up to 15A continuous
- Standard industrial 120/240V control circuits
Replaces / Drop-In Replacement For
The GE CR115E422112 is a direct replacement for other CR115E models with identical NEMA Type 4 enclosure and 2NO/2NC contact configurations. Verify exact model compatibility with your system integrator before ordering if replacing a legacy unit.
Works With
- Mechanical cam-driven actuation (no external controller required)
- Standard industrial relay circuits and PLC analog/discrete inputs
- Motor-mounted and shaft-driven positioning
- AC induction and DC motor systems
- Manual and automated material-handling conveyors
