<h2>Overview</h2>

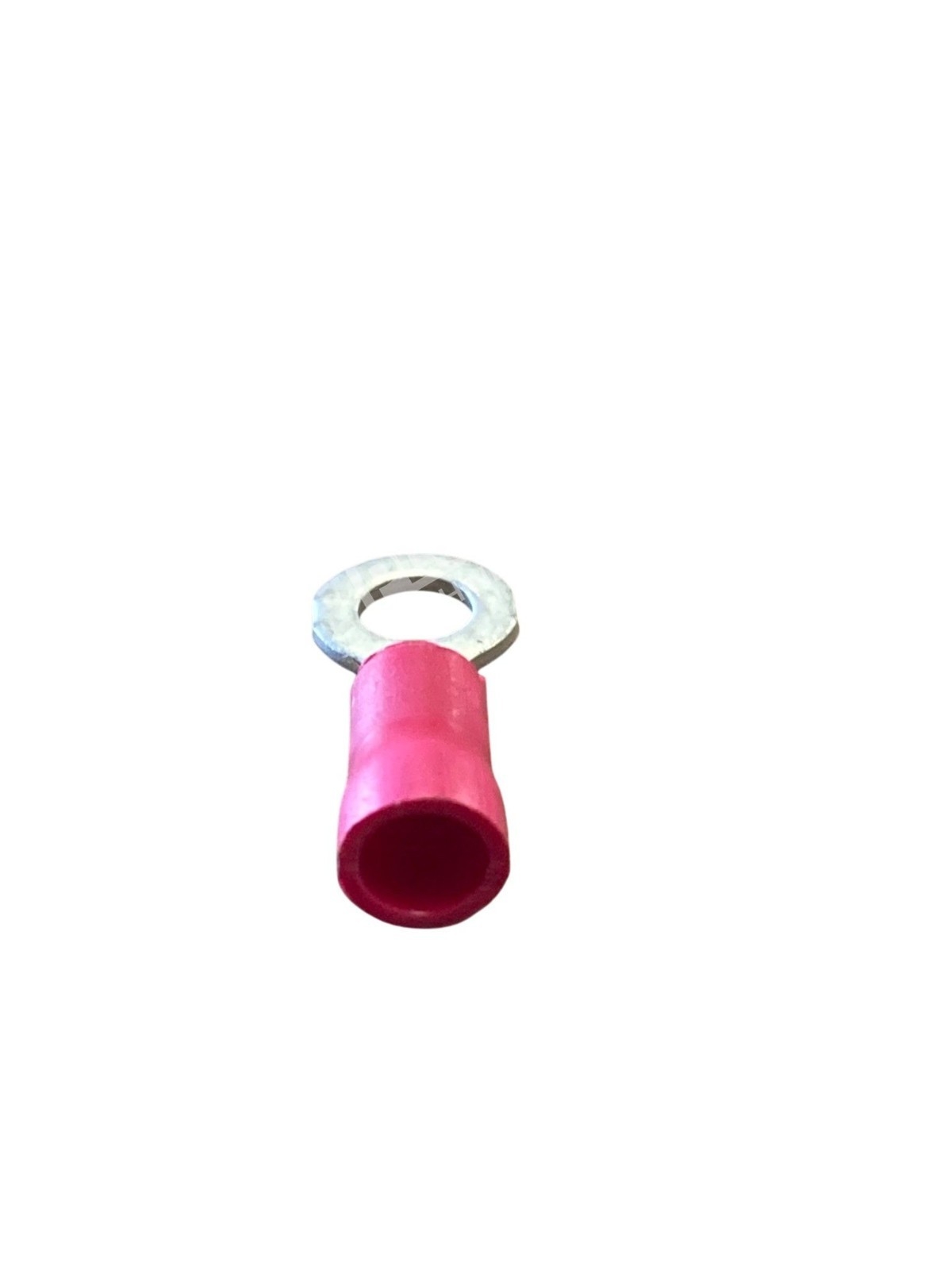

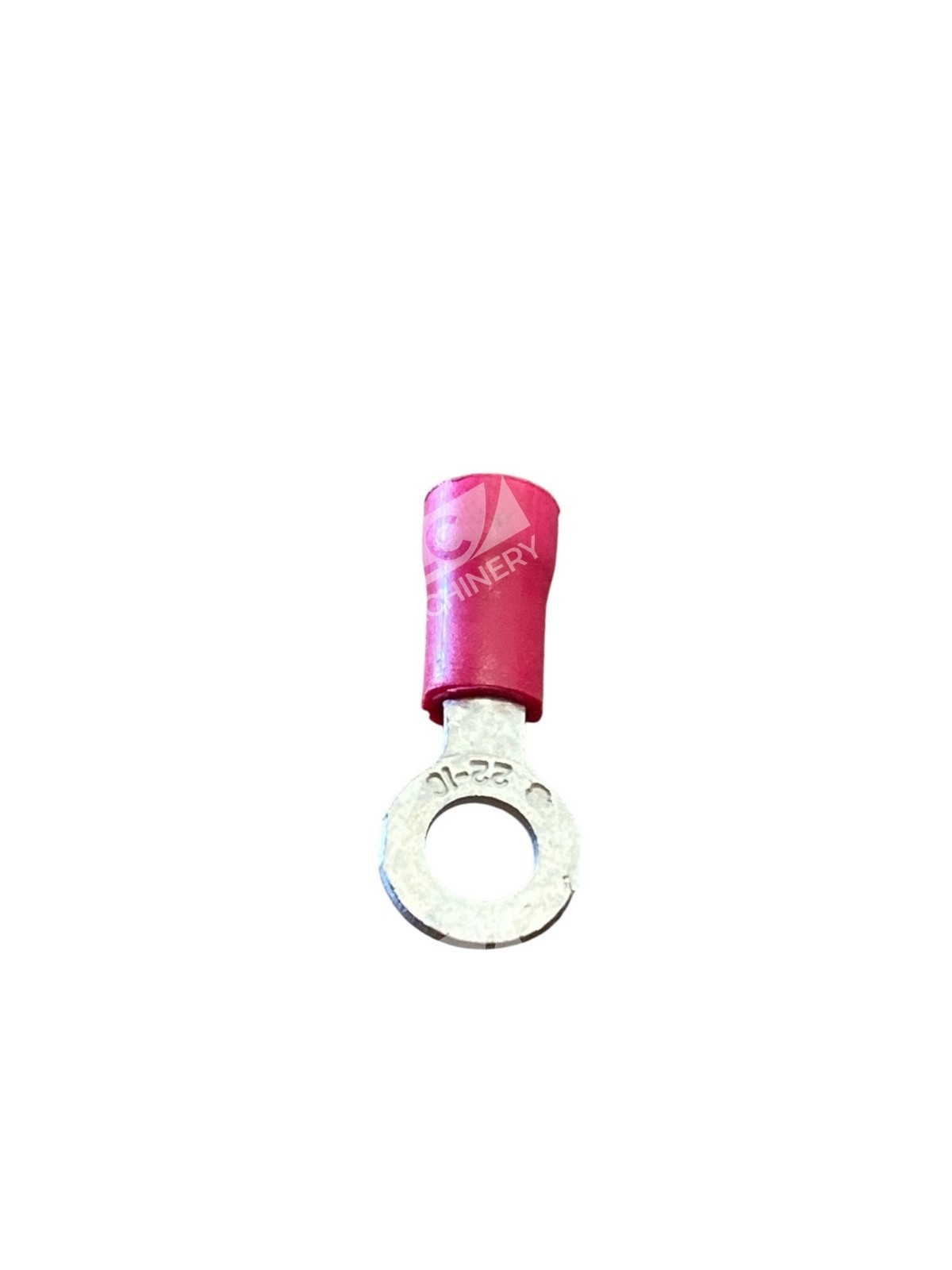

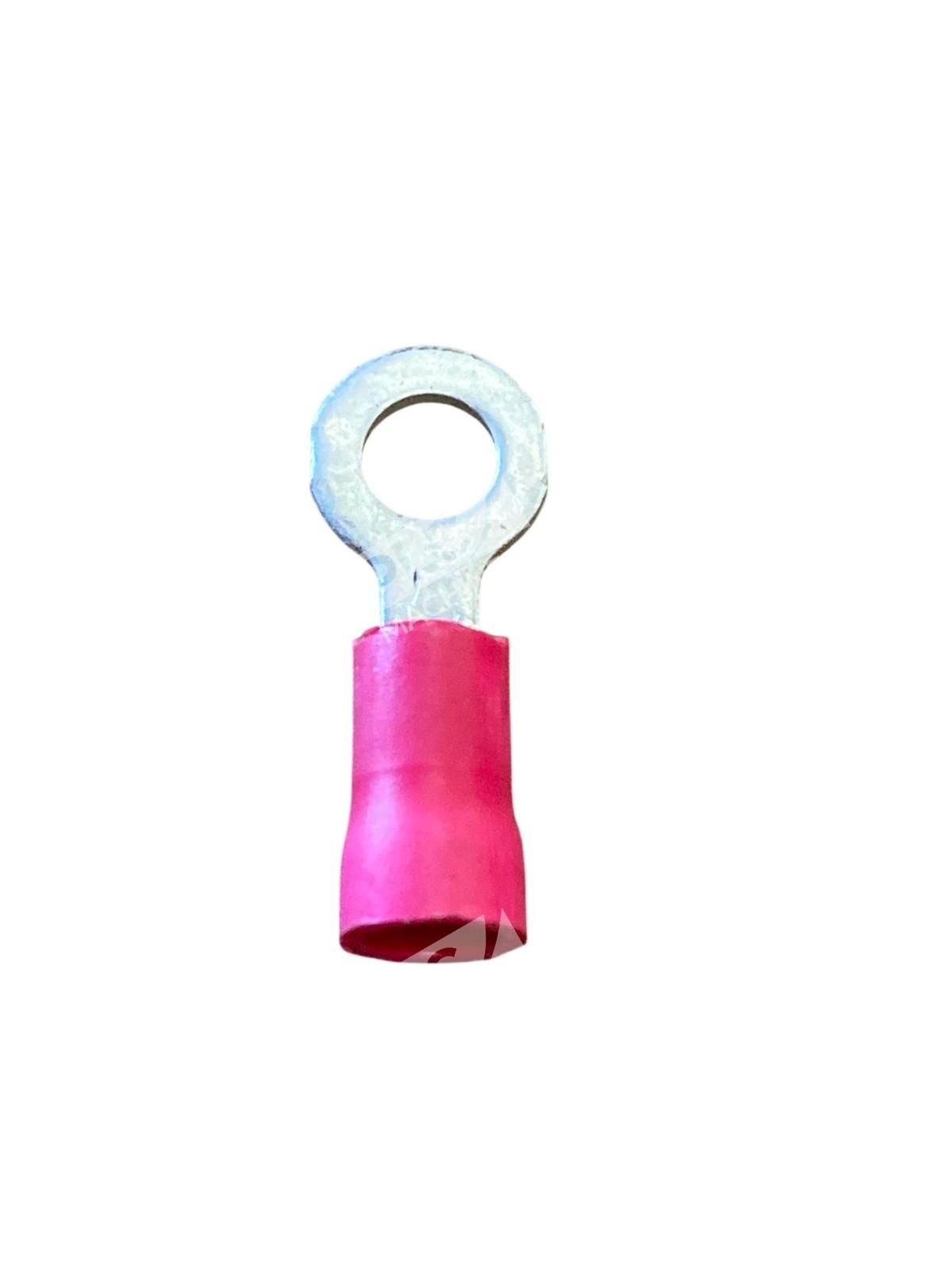

<p>The <strong>Burndy BA16E8 red ring terminal</strong> is a PVC-insulated lug designed for secure electrical connections in control and power distribution systems. This pack contains 65 units sized for 22–16 AWG conductors with #6-8 stud accommodation. The integral copper construction with tin plating provides durability and corrosion resistance, making these terminals suitable for industrial, commercial, and light-duty applications requiring reliable crimped connections.</p>
<h2>Key Features</h2>
<ul>
<li>PVC-insulated nylon shroud for added safety and strain relief</li>
<li>Deep V-groove serrations ensure secure crimp without slippage</li>
<li>Electro-tin plated copper core for long-lasting corrosion resistance</li>
<li>Smooth funnel entry for easy wire insertion</li>
<li>600V rated for standard power circuit applications</li>
<li>Integral one-piece copper design for superior conductivity</li>
</ul>
<h2>Technical Specifications</h2>
<ul>

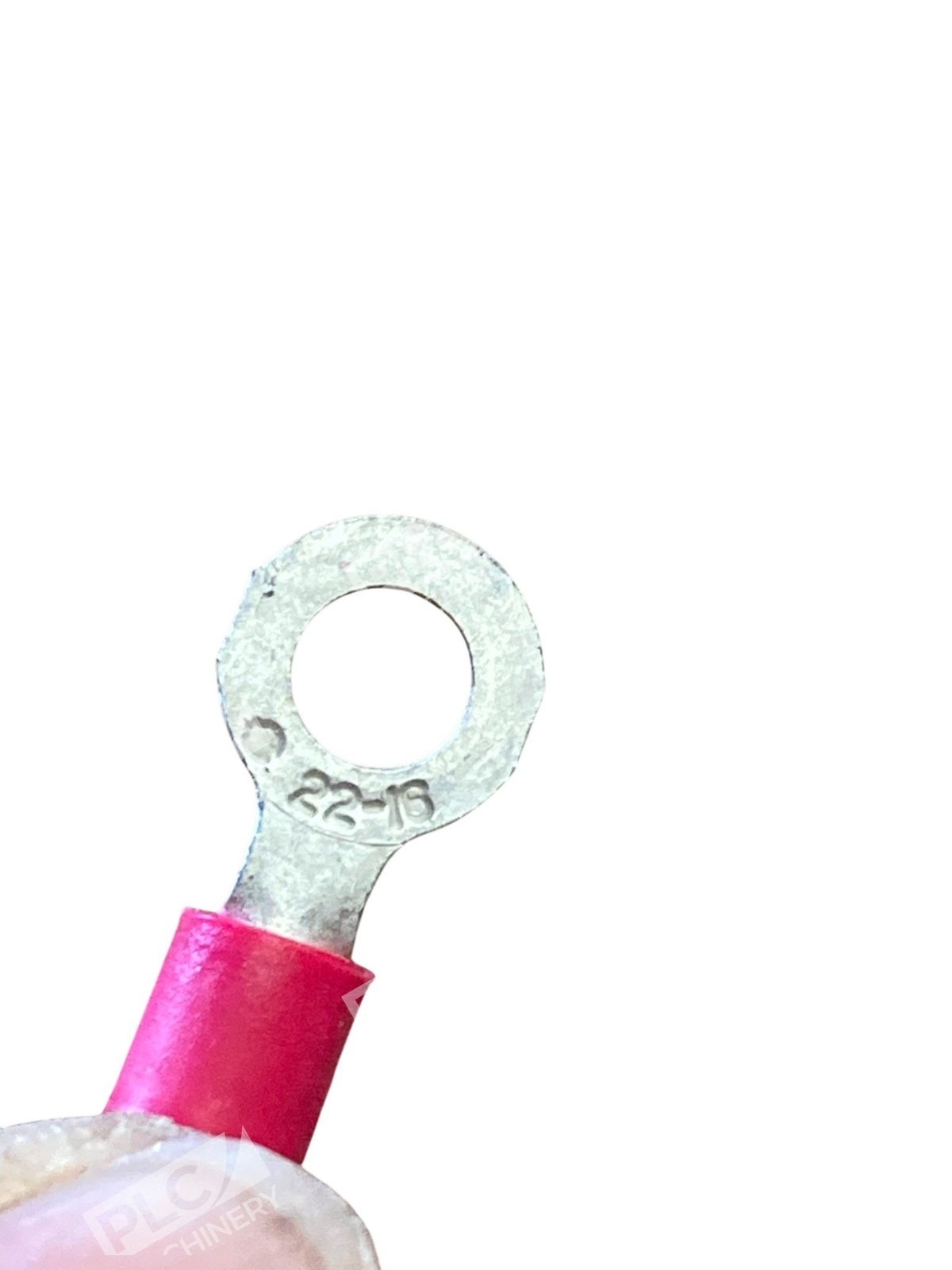

<li><strong>Wire Size:</strong> 22–16 AWG</li>
<li><strong>Stud Size:</strong> #6-8</li>
<li><strong>Voltage Rating:</strong> 600V</li>
<li><strong>Insulation Material:</strong> Polyvinyl Chloride (PVC)</li>
<li><strong>Conductor Material:</strong> Copper, electro-tin plated</li>
<li><strong>Tongue Type:</strong> Ring (circular eyelet)</li>

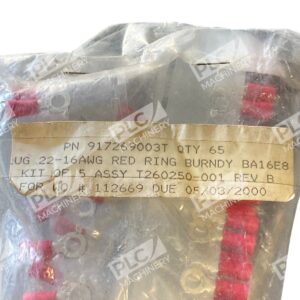

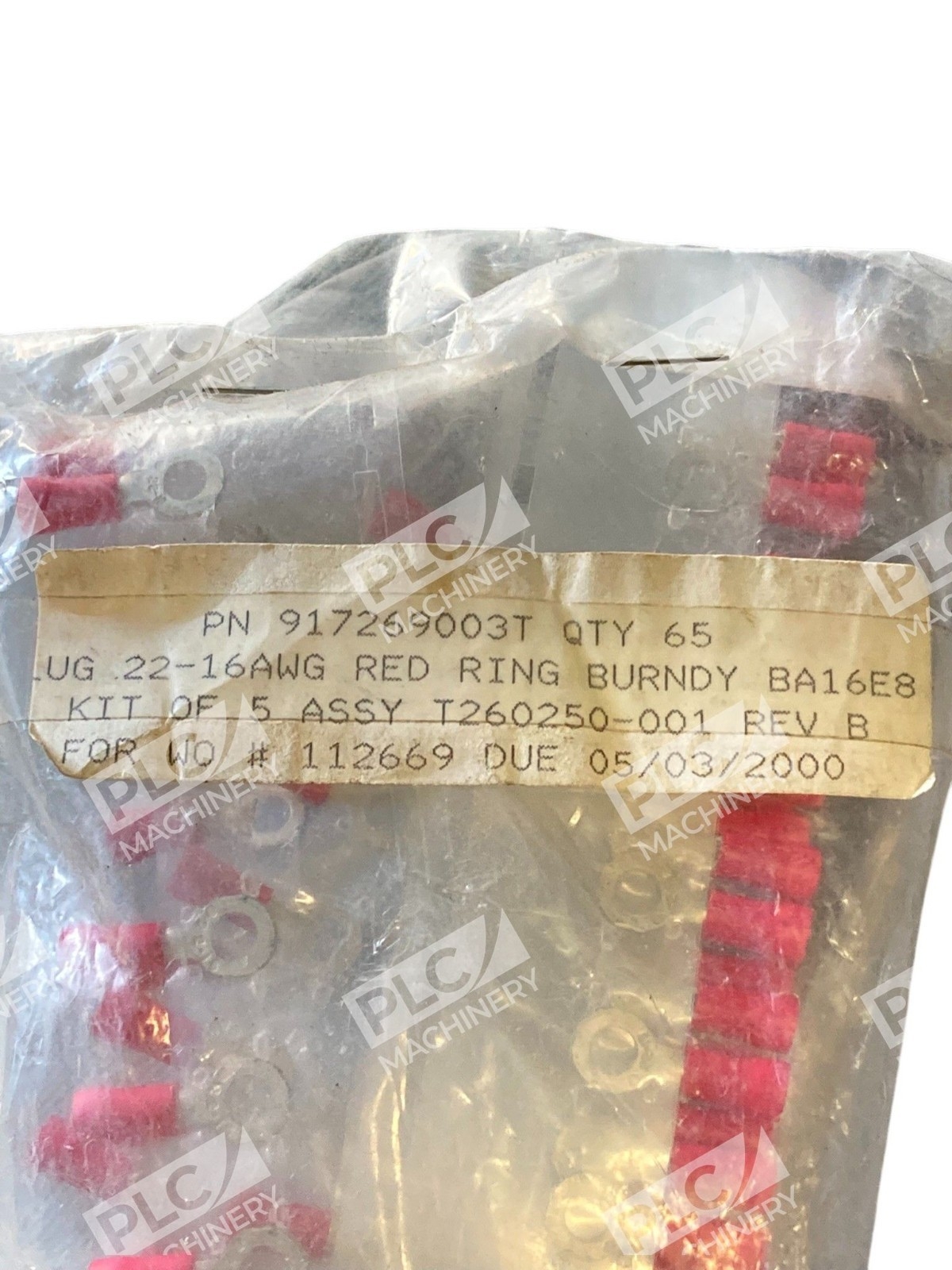

<li><strong>Quantity:</strong> Pack of 65 terminals</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Industrial process control and automation panels</li>
<li>Switchgear and power distribution assemblies</li>
<li>HVAC and motor control circuits</li>
<li>Commercial electrical installations</li>
<li>General-purpose wiring where color coding and identification are required</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>#6-8 mounting studs on terminal blocks and bus bars</li>
<li>Control panels and switchgear rated for 600V service</li>
<li>Industrial relay bases and contactor terminals</li>
<li>Standard mechanical cable terminals and lugs</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The Burndy BA16E8 is a direct replacement for equivalent insulated ring terminals rated 22–16 AWG with #6-8 stud accommodation. Verify compatibility with your system integrator before ordering if substituting from another manufacturer’s equivalent model.</p>
<h3>Works With</h3>
<ul>
<li>Standard crimping tools and dies for 22-16 AWG insulated terminals</li>
<li>Industrial battery banks and low-voltage DC systems</li>
<li>Three-phase and single-phase AC distributions up to 600V</li>
<li>Burndy INSULUG™ product family and equivalent terminal systems</li>
</ul>
