Overview

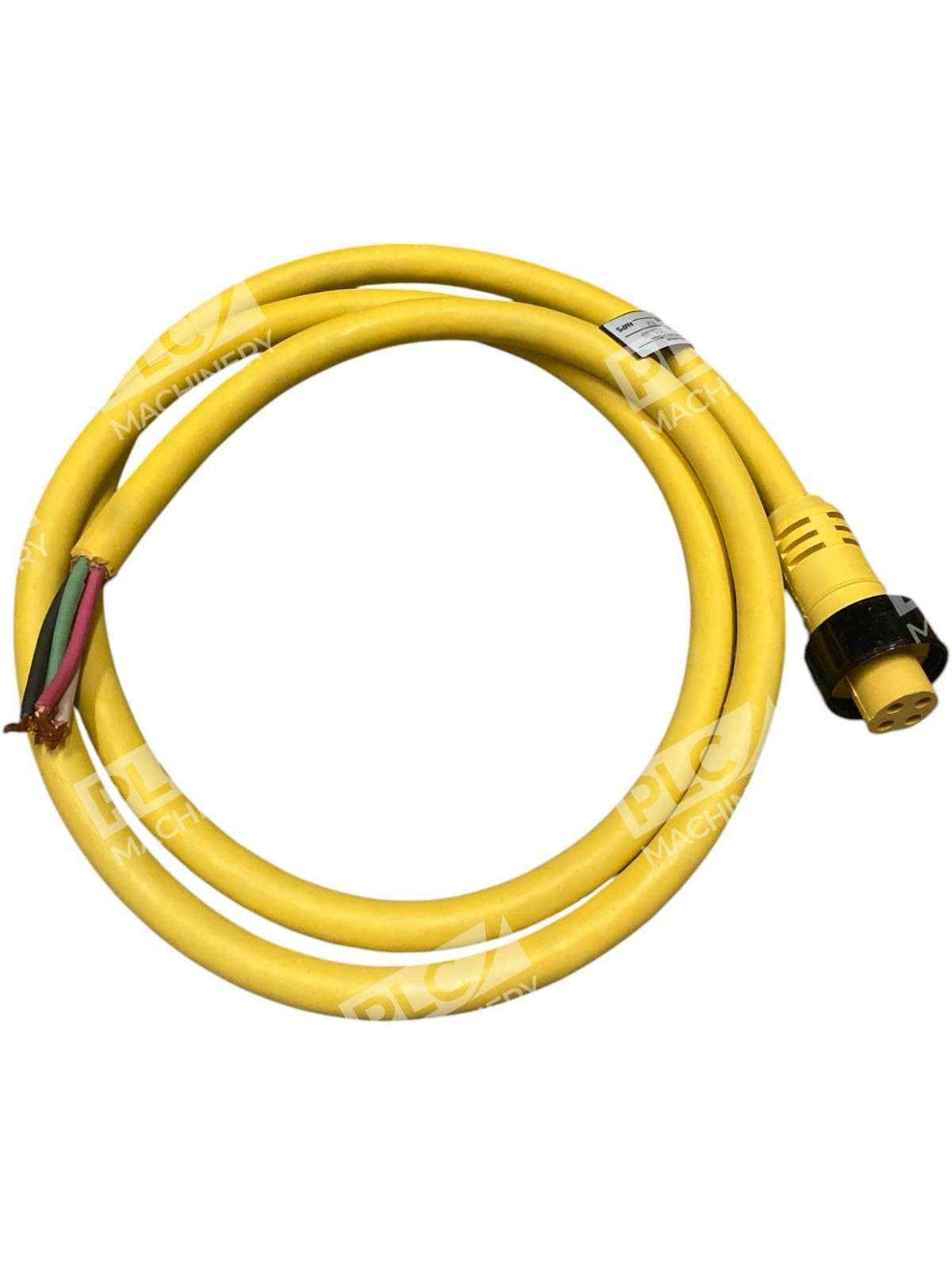

The Brad Harrison 32638 is a reliable 3-pole quick-change molded connector designed for industrial motor disconnect and reconnect applications. This connector eliminates the need for hardwiring when replacing fractional to 5HP motors on pumps, conveyors, cooling fans, grinders, saws, and other equipment. The molded construction and quick-change design enable fast, safe electrical connections while protecting against water, dust, oil, and other contaminants in harsh industrial environments.
Key Features

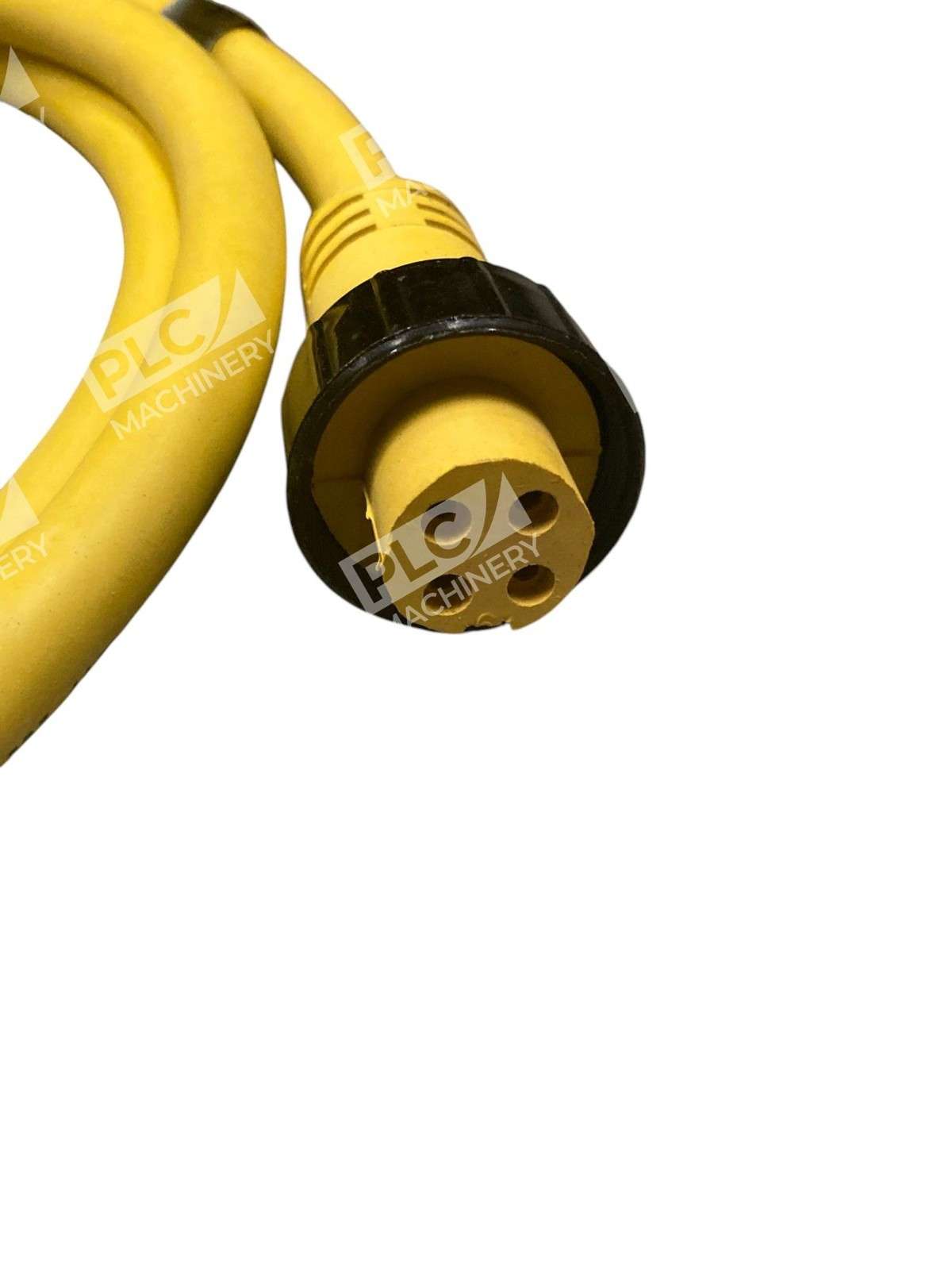

- 3-pole (3P) configuration with positive key alignment to prevent mismating
- 25A continuous-duty current rating; 600V AC/DC voltage rating
- Yellow Type SOW cable with UL/CSA approval for durability and flame resistance
- Molded PVC body and nylon connector face for corrosion resistance
- Quick push-to-lock design eliminates need for threaded connections
- Zinc-plated diecast coupling nuts with optional stainless steel available
- Heavy-duty construction proven in food processing, automotive, mining, and steel industries
Technical Specifications
- Part Number: 32638
- Configuration: 3-Pole (3P)
- Current Rating: 25A continuous-duty
- Voltage Rating: 600V AC/DC
- Cable Type: Yellow #22 AWG Type SOW PVC jacket
- Connector Face: Nylon 6/6 molded
- Connector Body: PVC
- Contacts: Gold-plated brass
- Coupling Nut: Zinc diecast with black epoxy coat (stainless steel optional)
- O-Ring: Nitrile rubber
- Environmental Rating: IP68 (sealed connector)
- Operating Temperature: -5°C to +70°C standard; -40°C to +105°C with oil-resistant PUR jacket option
- Hose-Down Rating: 1,000 PSI resistant
- Certifications: UL/CSA listed and approved
- Manufacturer: Brad Harrison (Molex/Woodhead)
Typical Applications
The Brad Harrison 32638 quick-change connector is widely used in:
- Motor disconnect/reconnect on pumps and cooling systems
- Conveyor equipment motor replacements
- Food processing machinery (wash-down environments up to 1,000 PSI)
- Automotive production and testing equipment
- Mining and heavy equipment applications
- Grinding, sawing, and metalworking machine motor circuits
- Harsh industrial environments requiring corrosion and contamination protection
Compatibility & Replacements
Compatible With
- Brad Harrison 3-pole quick-change receptacles (mating female connectors)
- Industrial motors rated 600V, 25A or less
- Power circuits requiring positive phase alignment and reverse-phase protection
- Equipment designed for standard push-to-lock quick-disconnect systems
Replaces / Drop-In Replacement For
- Earlier generation Brad Harrison quick-change cordsets (verify compatibility with original equipment specifications)
- Other 3-pole industrial quick-disconnect connectors with matching terminal pitch and current rating
Works With
- Brad Harrison/Molex quick-change receptacle series
- Closure cap assemblies and threaded adapters (P/N 55-0170, 55-0172)
- Standard industrial motor control systems and VFDs with 600V DC/AC rating
- Liquid-tight conduit connectors and 90-degree adapter kits for panelboard integration
